Description
Description

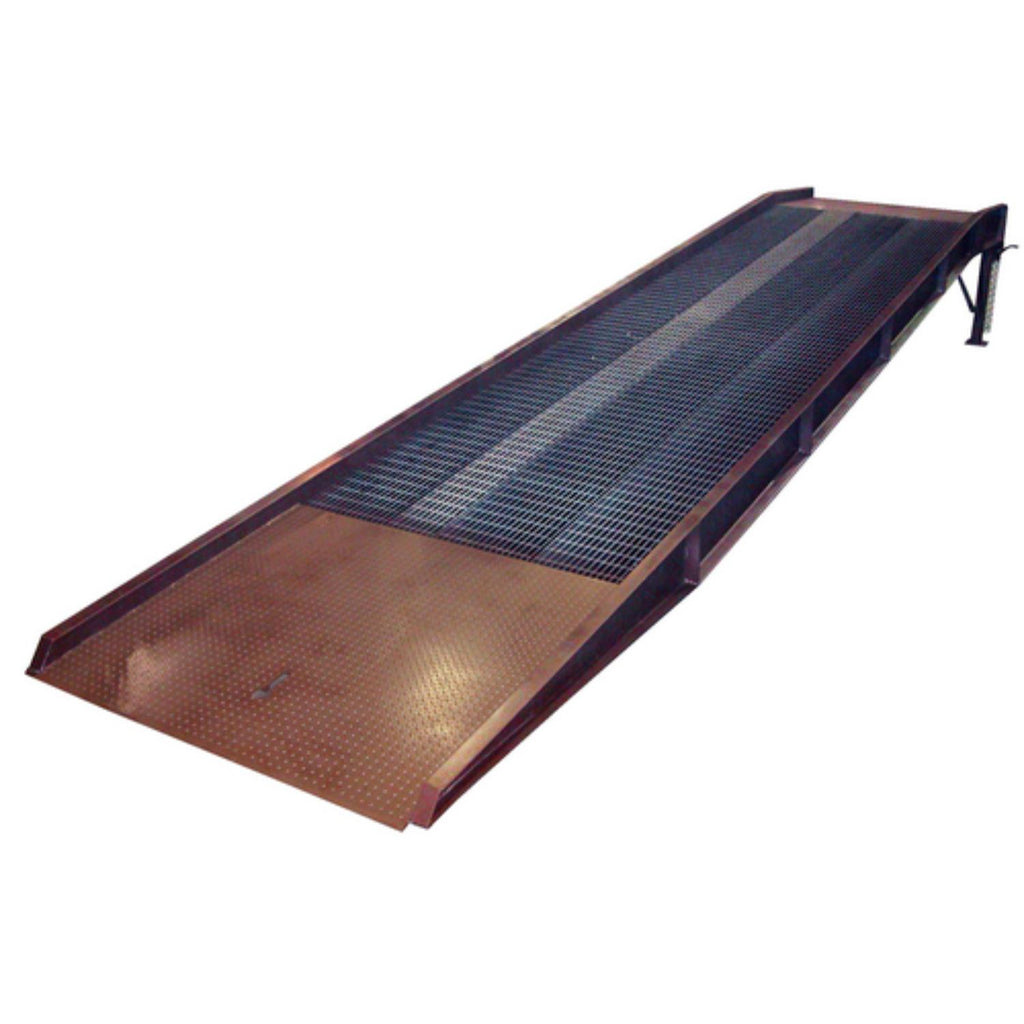

The stationary steel Yard Ramp with mechanical Edge-O-Dock at truck end quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites and includes an efficient one (1) person height adjustment. The standard features include: positive traction surface design and safety locking chains.
Features
- Steel side curbs prevent fork truck run-off
- Overlap style lip with safety chains secures ramp to trailer
- Open grating design allows snow, ice and rain to fall through
- Rubber bumpers are included for increased safety
Specifications
| Specification | Details |
|---|---|
| Overall Width (in) | 85 |
| Overall Length (ft) | 36 |
| Weight Capacity (lbs) | 20000 |
| Maximum Height (in) | 62 |
| Minimum Height (in) | 45 |
| Height Adjustment Method | Hydraulic Jack |
| Ramp Frame Material | Steel |
| Ramp Grate Material | Steel |
| Curb Height (in) | 4 |
| Distance Between Curbs (in) | 78 |
| Wheel Material | Steel |
| Wheel Diameter (in) | 8.625 |
| Wheel Width (in) | 3.625 |
| Color / Finish | Earth-Tone Brown |
| Weight (lbs) | 7325 |
| Safety Chains | Yes |
| Tow Bar | Yes |
| Handrail Included | No |
| Additional Contents | None |
| Manufacturer Warranty | 1 Year |
| Usable Lip Support Edge (in) | 13.5 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
