Description
Description

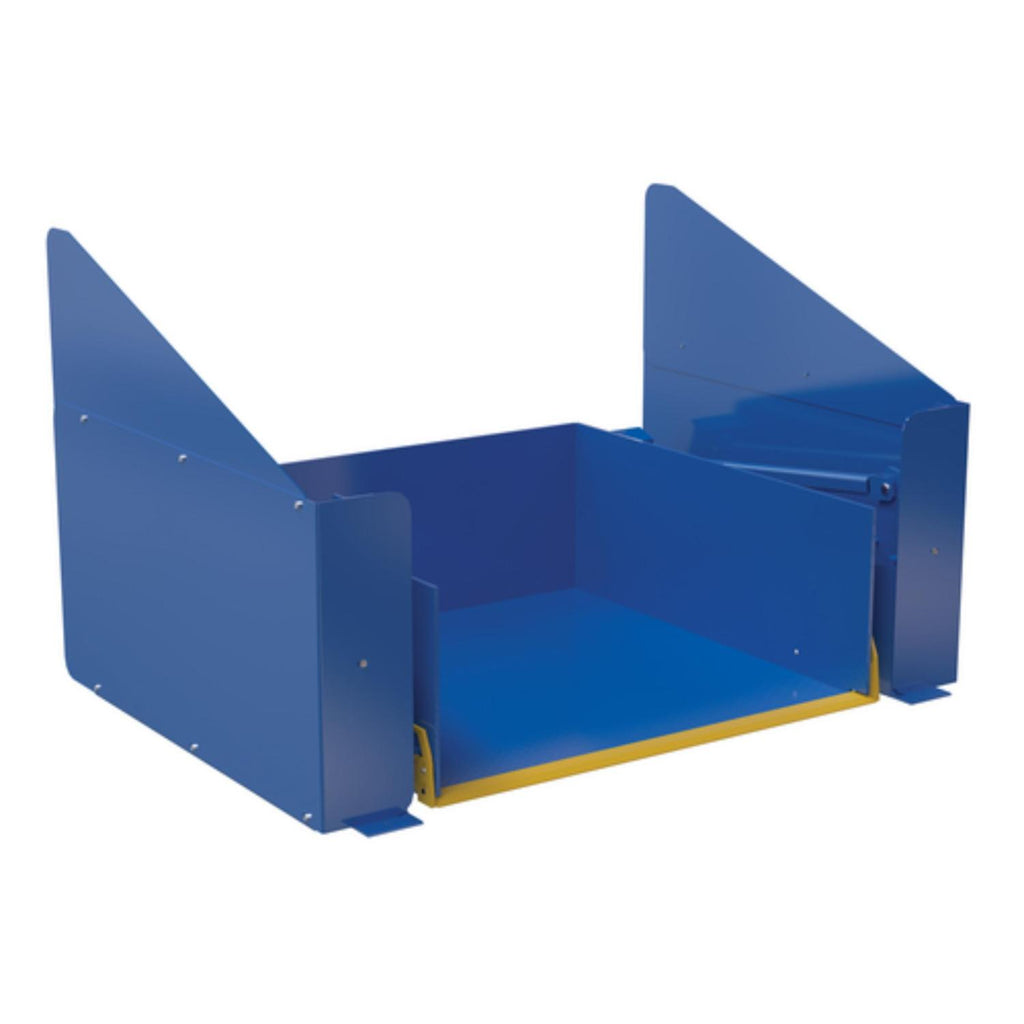

The zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.
Features
- 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
- Lift and tilt options are controlled separately allowing a precise working angle for the employee
- No pit mounting required makes installation quick and easy
- Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length | 51.5 inches |
| Platform Width | 52 inches |
| Platform Material | Steel |
| Height at Level | 36 inches |
| Lip Height | 20.25 inches |
| Maximum Tilt Angle | 45° |
| Weight Capacity | 2000 lbs |
| Color / Finish | Blue |
| Weight | 2029 lbs |
| Frame Material | Steel |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Horsepower | 2 HP |
| Phase | Three Phase |
| Power Cord Length | 2 feet |
| Operation Method | Push Button |
| Controller Cord Length | 8 feet |
| Voltage | 460V |
| Installation Hardware Included | No |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
