Description
The ATV-towable OPC503 Chipper Shredder features a KOHLER® Command PRO® CH270 7 HP 208 cc engine with high-strength double-edge cutting blades for extended sharpness. Its direct drive system efficiently processes trees, branches, leaves, and compost. Additional features include a 4-stage cyclonic air filter, auto-blade feeding, removable key lock shutoff, and ATV-locking off-road tires.
Specification
| Certification(S) | EPA Phase III, CARB Phase III |
| Material | Steel |
| Material Finish | UV Powder Coated |
| Color | Black, Orange |
| Wheels | 4.10/3.50-4 10 in (25.4 cm) O.D. x 3.5 in (8.9 cm) |
| Coupler | Lawn tractor/ATV hitch pin |
| Wheelbase | 21.7 in (55 cm) |
| Maximum Speed | Off-road only and max speed 15 mph (24 km/h) |
| Engine/Motor | KOHLER® RH265 6.5 HP 196 cc gas engine |
| Engine/Motor Maximum Torque | 10.7 ft/lb (14.5 Nm) |
| Cutters | Double-edge blades and hammer shredders |
| Handle Height | 37.4 in (95 cm) |
| Maximum Feed Chute Capacity | Ø3 in (Ø7.6 cm) |
| Maximum Top-Loading Hopper Capacity | Ø3/8 in (Ø0.95 cm) |

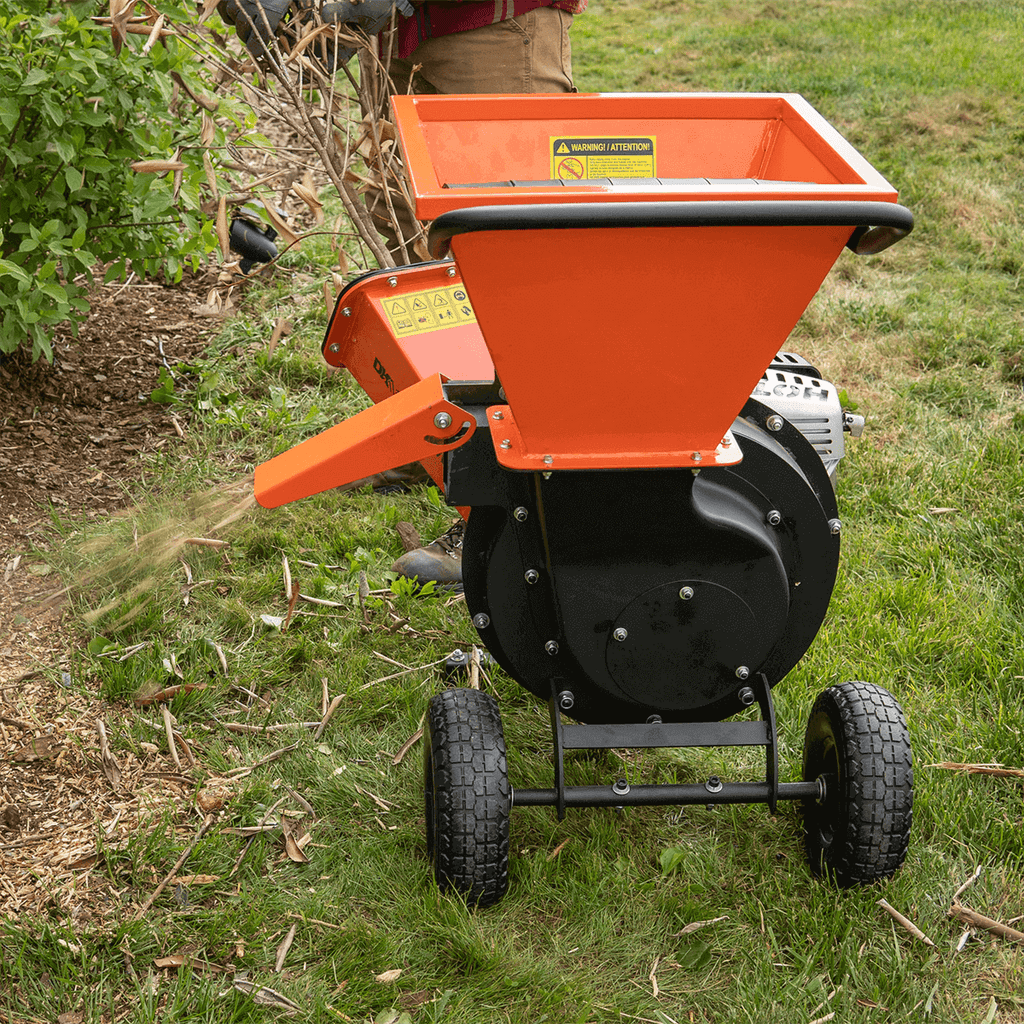

| Expulsion Chute | Vertically adjustable deflection |
| Assembled Dimensions (LxWxH) | 41.7 in x 34.3 in x 37.4 in |
| Assembled Weight | 136.7 lb |
| Disclaimer | Product appearance and specifications are subject to change, Off-road only and max speed 15 mph (24 km/h) |
| Warranty | 2-year KOHLER® engine and 1-year limited DK2 chassis |
Feature

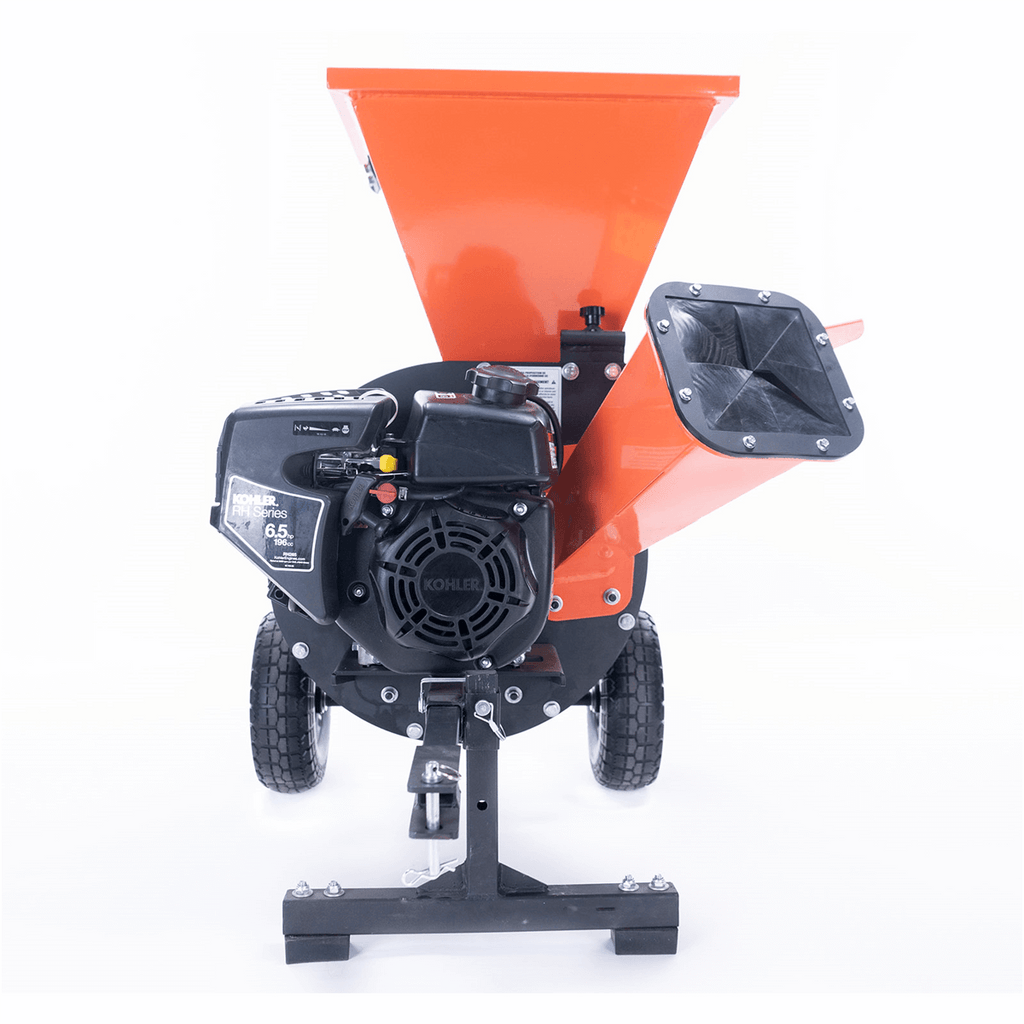

- Powered by a KOHLER 2000 Series RH265 6.5 HP 196 cc engine.
- Direct drive combo chipper shredder with double edge chip and hammer shredders.

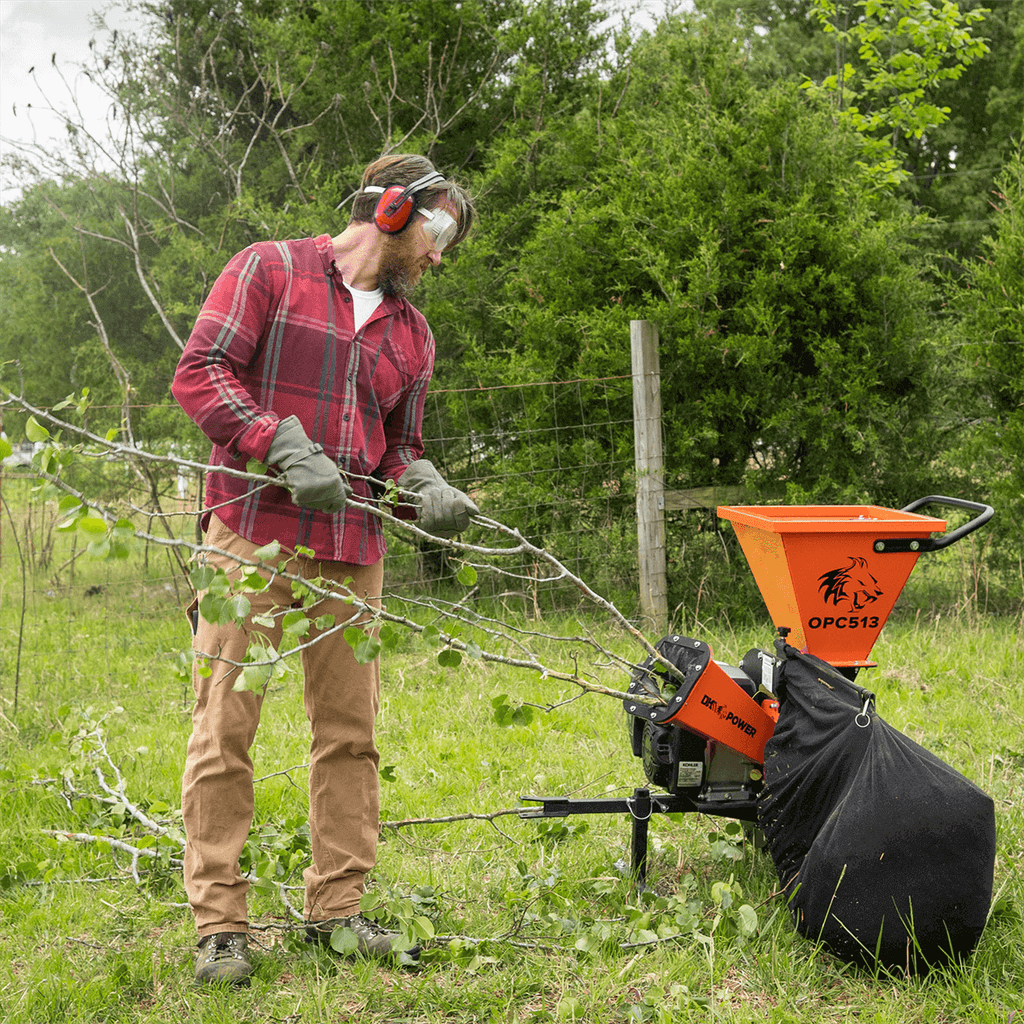

- Chips through trees up to 3 inches in diameter through the large side feed chute.

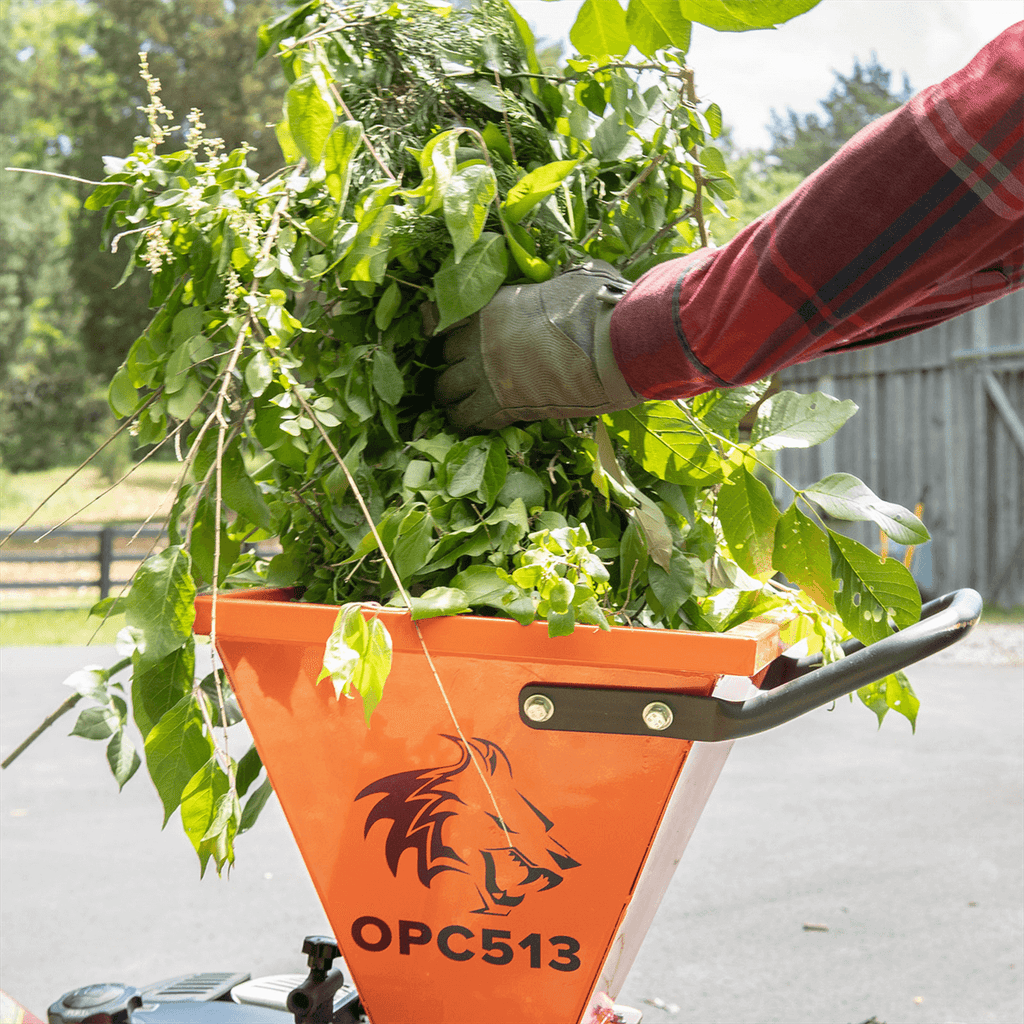

- Shreds through twigs and brush up to 3/8 inches in diameter through the extra-large top-loading hopper.

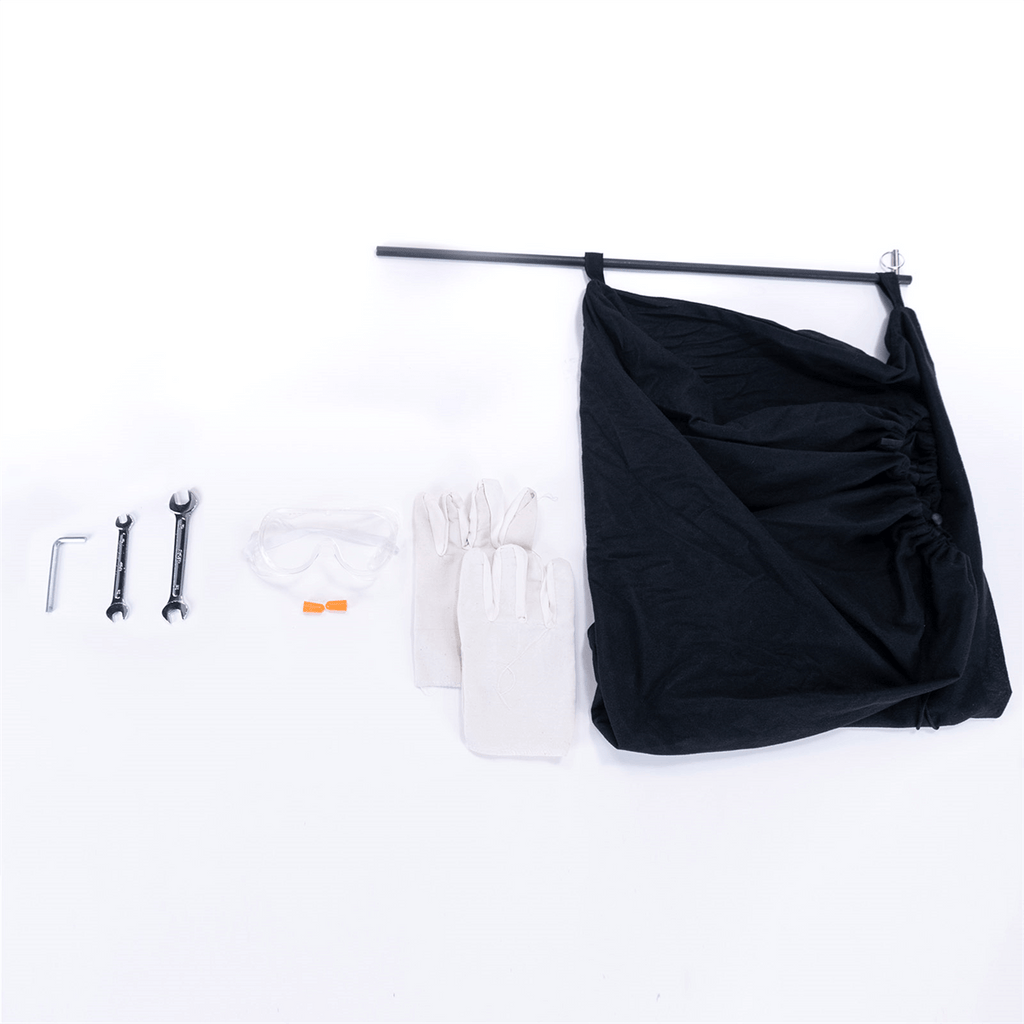

- Includes a large chip bag capable of holding up to 4.3 bushels.

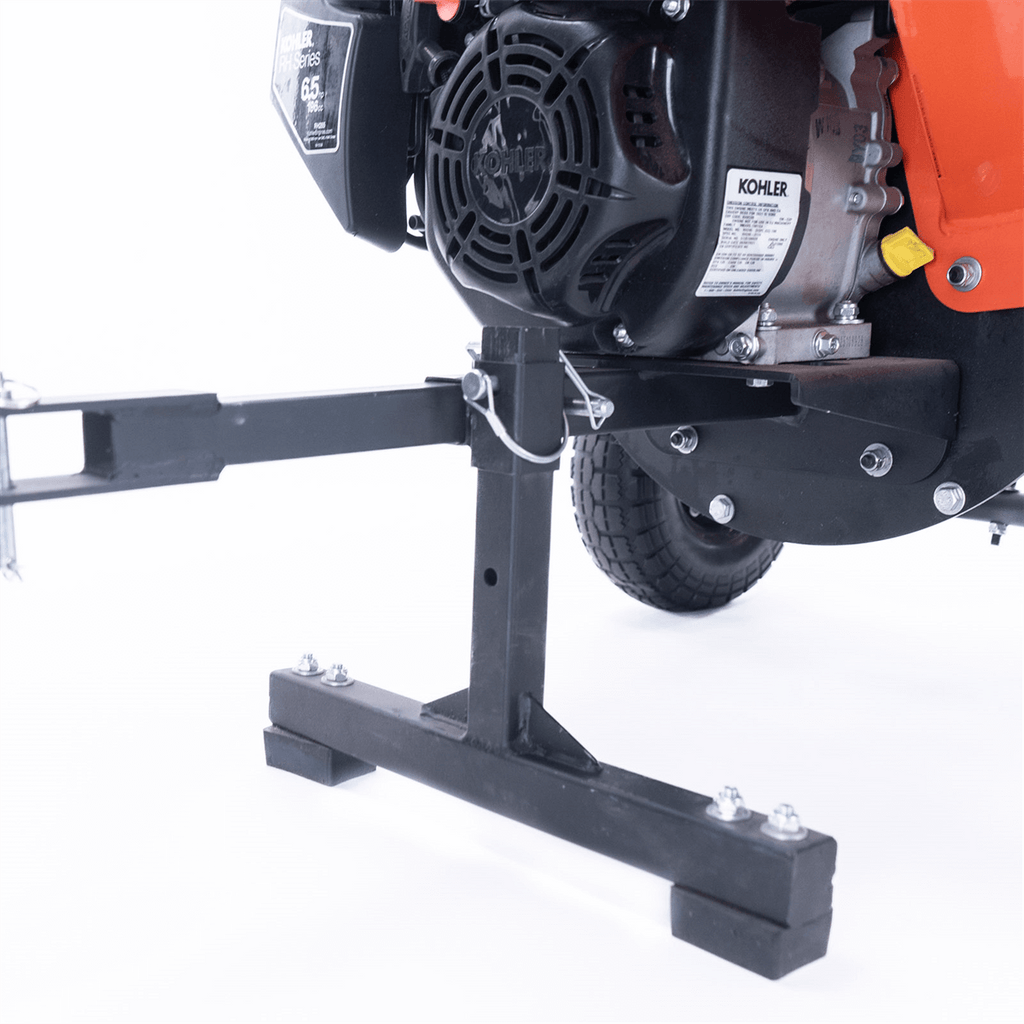

- Drop stand and handy removable hitch pin tow bar.
- 4.10/3.50-4 10-inch tires.
- Includes 2-year KOHLER and 1-year limited DK2 warranty.
Package Size
- LxWxH (inch): 29.5 x 22 x 20.9
- Weight (lb): 158.7
- A forklift or equivalent is required for unloading.
