Description

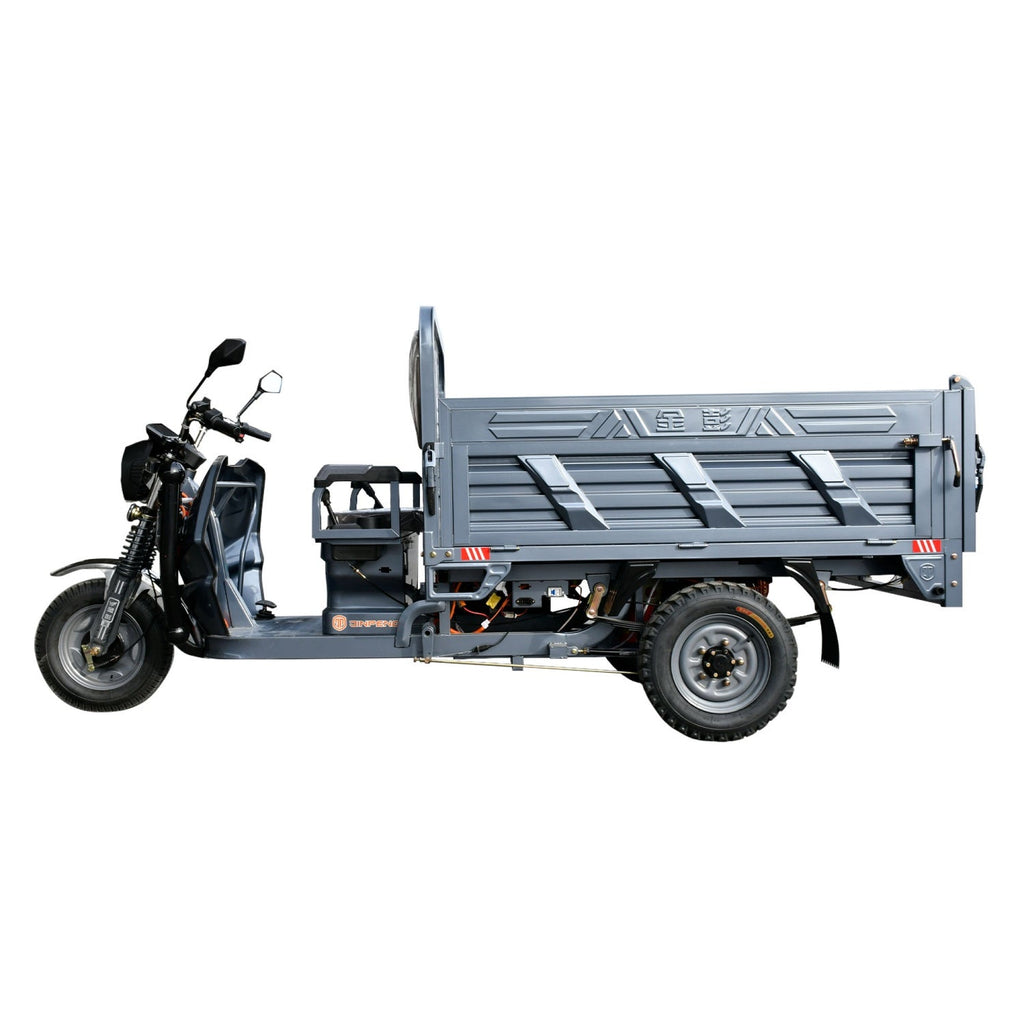

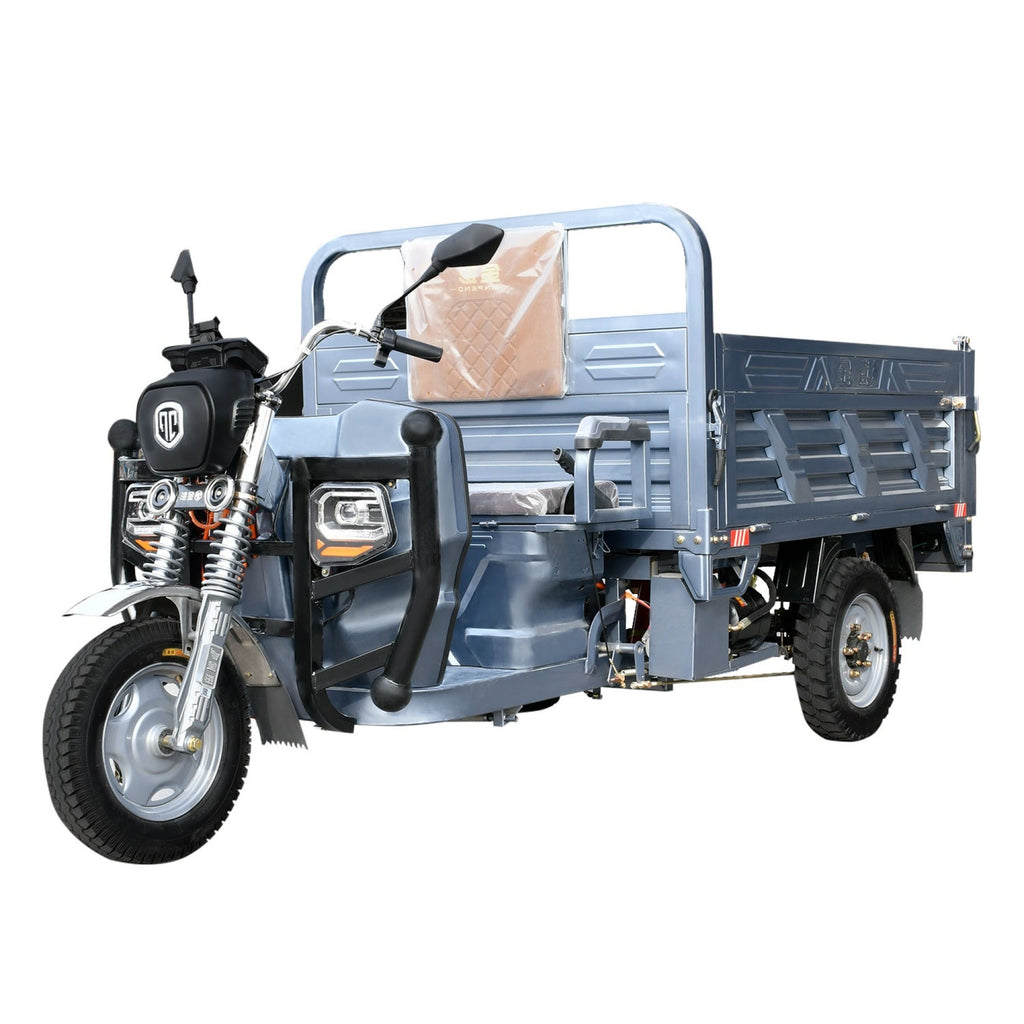

Discover the power of our Electric Hydraulic Dump Cargo Tricycle with a 1760lb load capacity and a 60V 1500W motor. Boasting a top speed of 25 miles/h, it efficiently handles heavy loads and tough terrain, making it the ideal choice for robust transportation needs.
Specifications

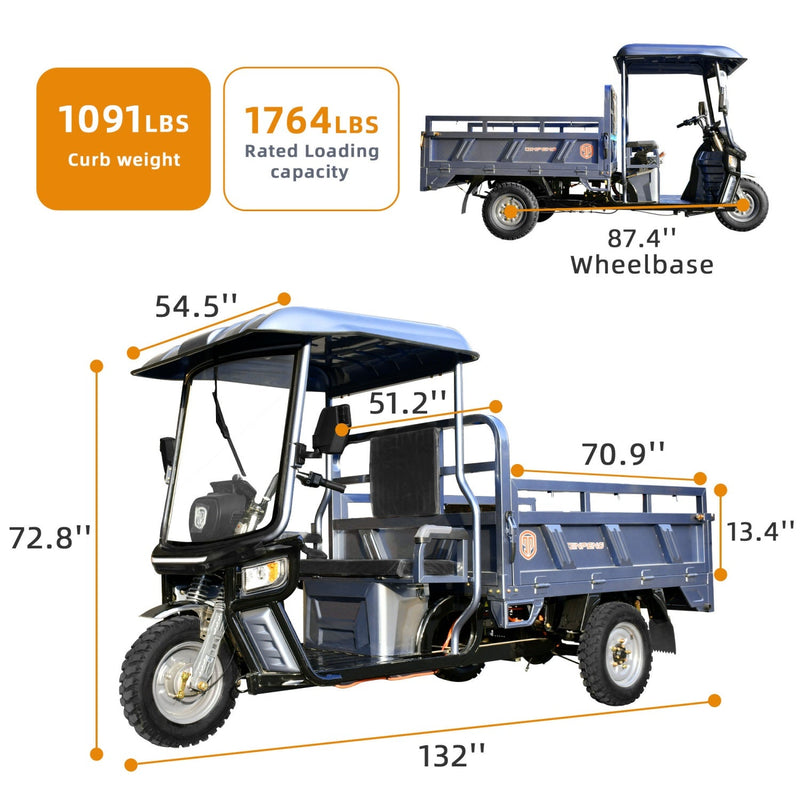

| Dimension (LxWxH) | 131"x55"x57" |
| Cargo Box Size(LxWxH) | 71"x51.2"x19.1" |

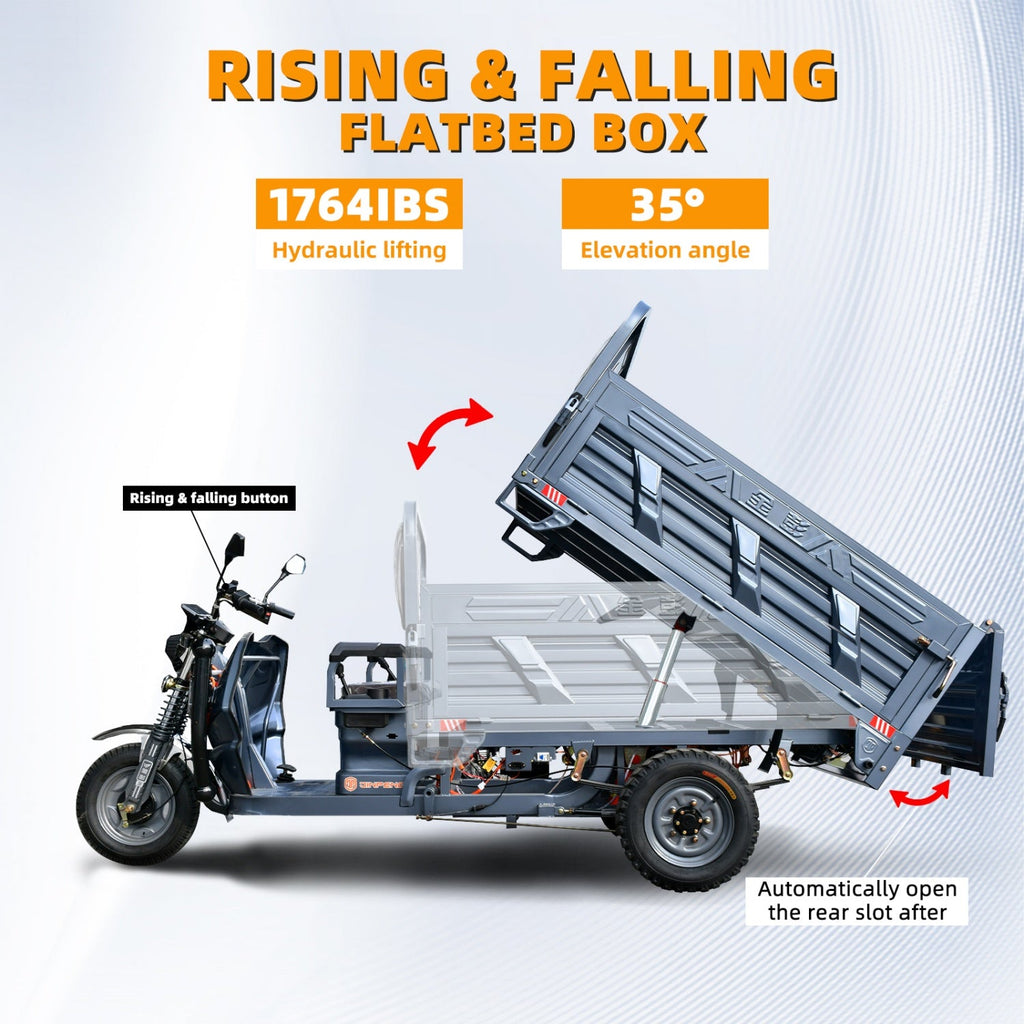

| Hydraulic Dump | Yes |

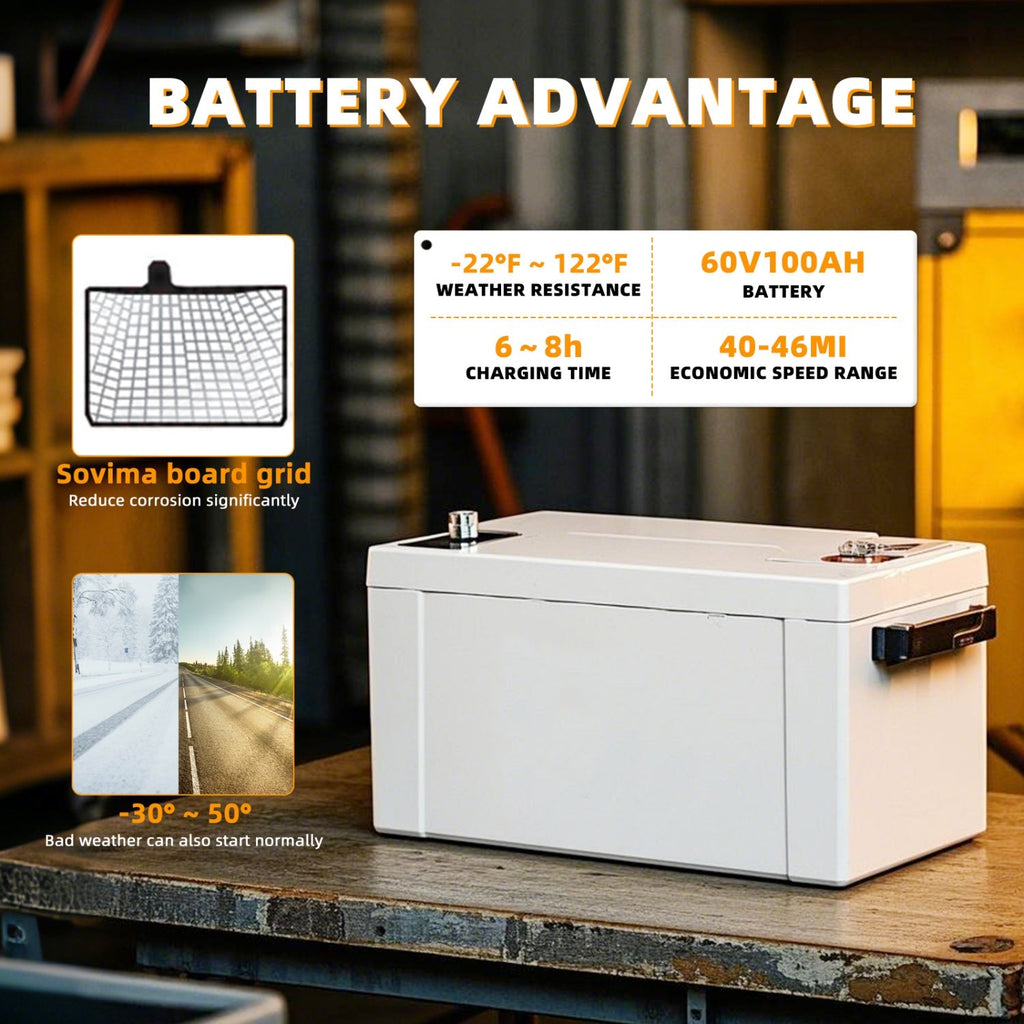

| Battery | 60V 100AH |

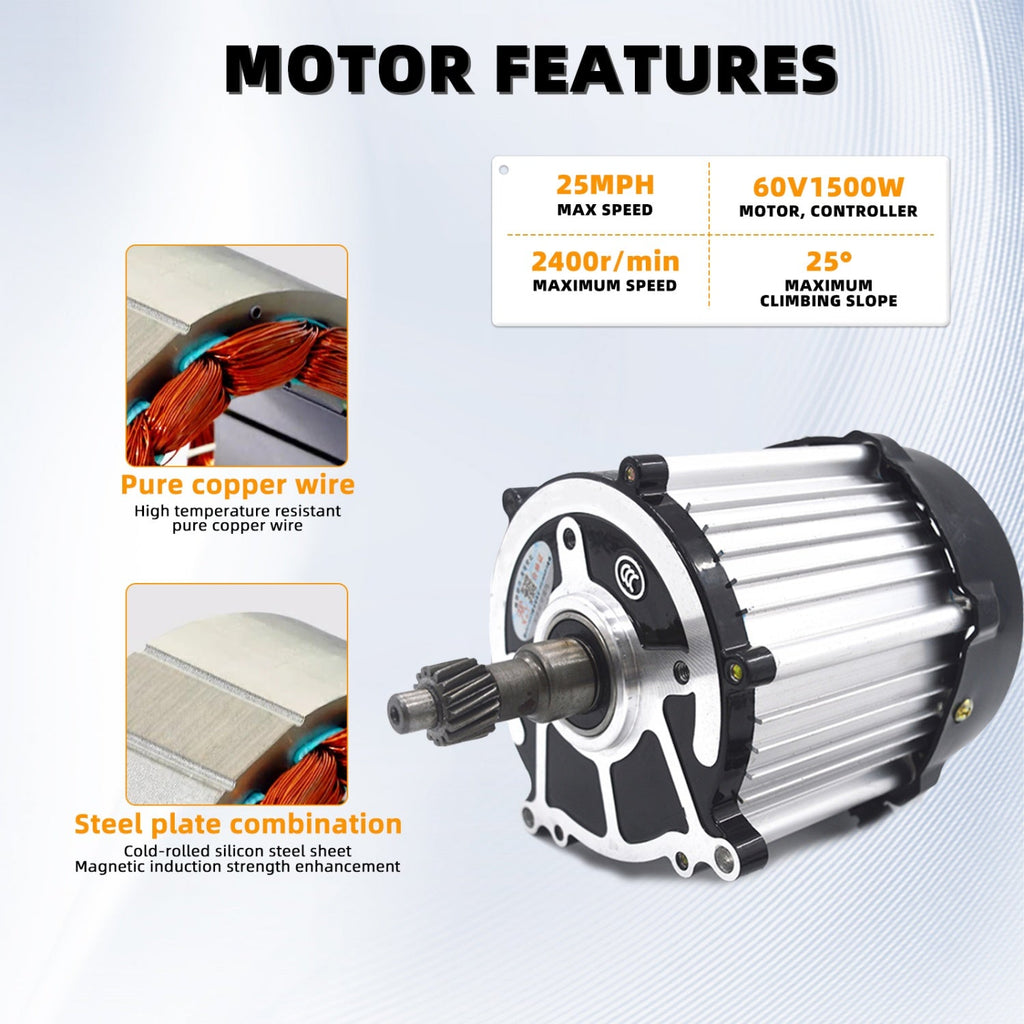

| Motor | 60V 1500W |
| Max Load Capacity | 1764 lbs |

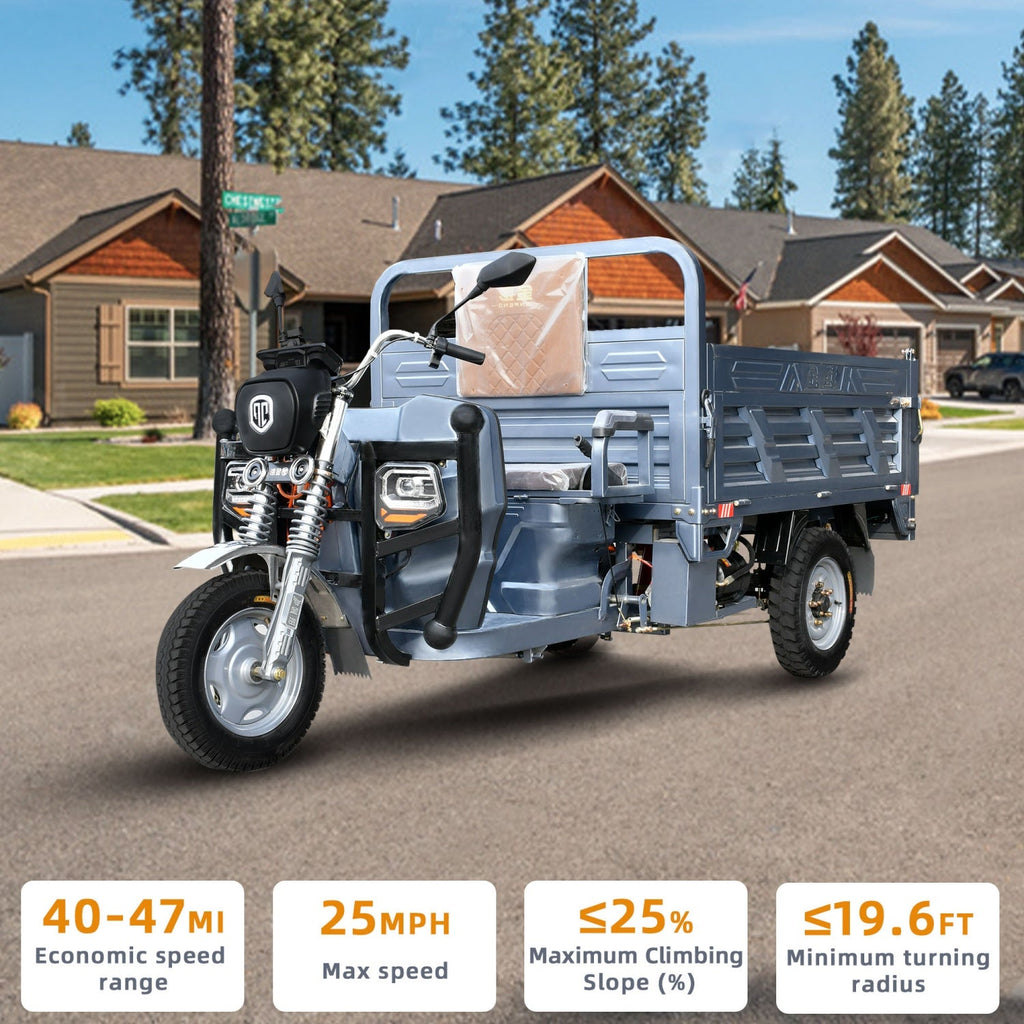

| Max Speed | 25 miles/h |
| Wheelbase | 87.8" |
| Wheel Track | 45.3" |
| Curb Weight | 838 lbs |
| Minimum Ground Clearance | ≥180 mm |
| Maximum Climbing Slope(%) | ≤25 |
| Economic Speed Range | 40-47 miles |
| Charging Time | 6～8h |
| Front Shock Absorption | Φ43 External spring hydraulic shock absorption |
| Rear Shock Absorption | 10 pieces steel plate |

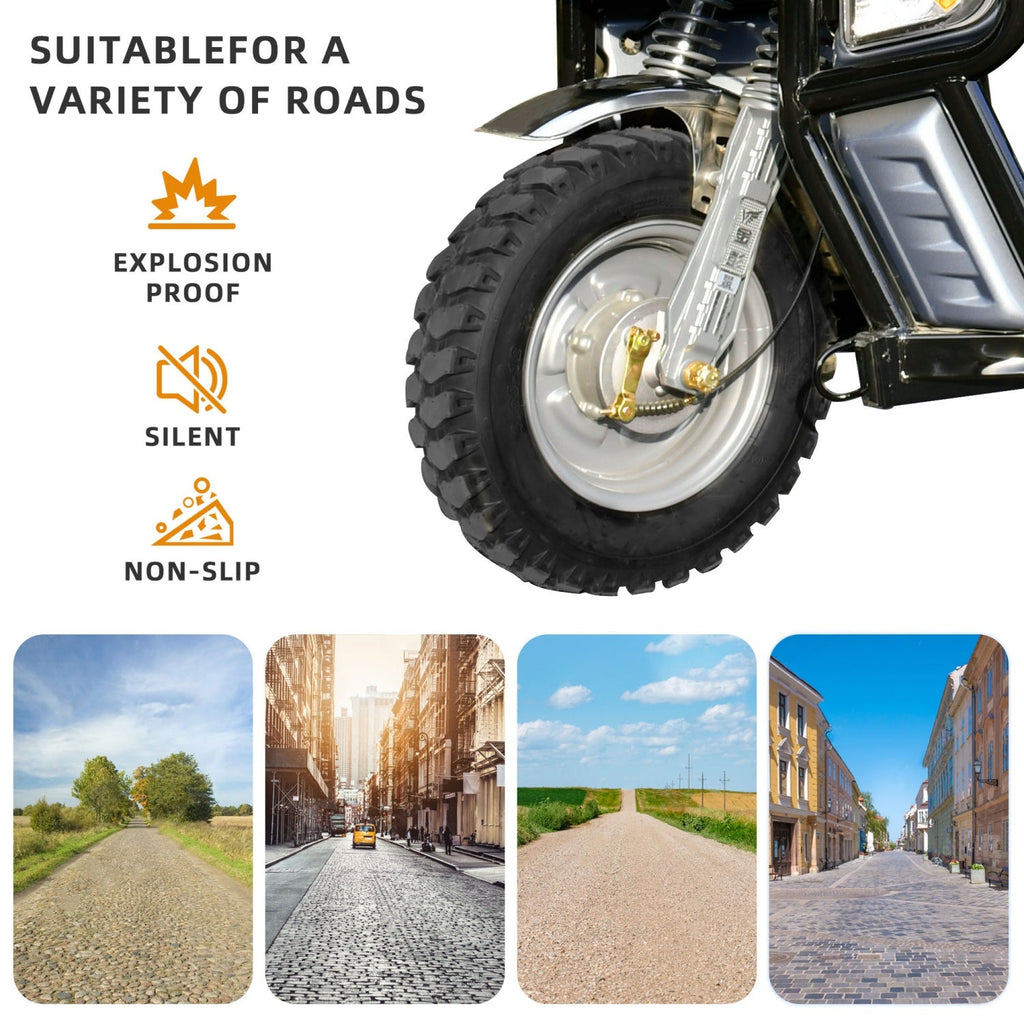

| Front/Rear Tire Specifications | Front：4.0-12 Rear：4.5-12 |
| Front/Rear Rim Type | Iron Wheel |
| Front/Rear Brake Type | Drum Brake |
| Parking Brake Type | Handbrake |
| Rear Axle Structure | Integrated fully-floating gear rear axle |
| Headlight | LED |
| High and Low Speed Function | Yes |

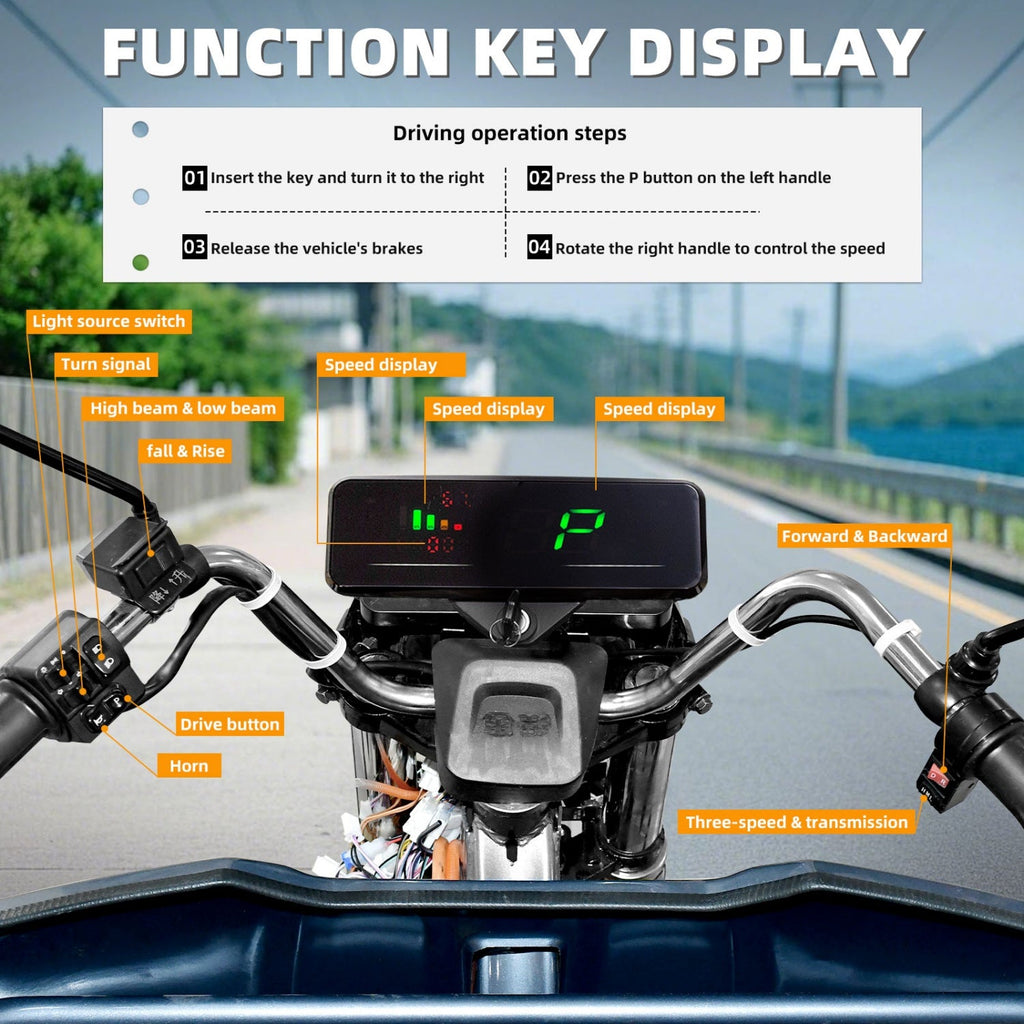

| LCD Instrument | Yes |
Package Size
- LxWxH (inch): 131x55x57
- Weight (lb): 838
- A forklift or equivalent is required for unloading.
