Bastone Handicap-Accessible Portable Restroom for Disabled - PM000122
Description

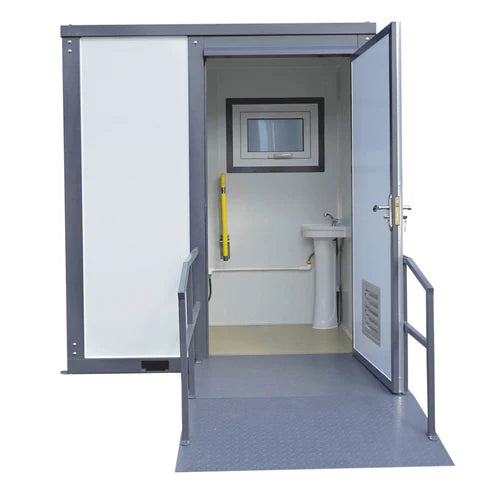

We proudly provide Bastone Handicap-Accessible Portable Restroom for business owners and individuals who need it. We have tool-free removable arms beside the toilet to improve flexibility for users. This unit has a wider space to accommodate a full-size adult wheelchair and movement within the stall.
Set up

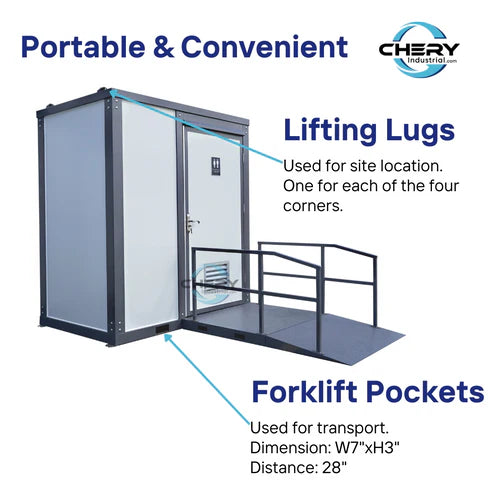

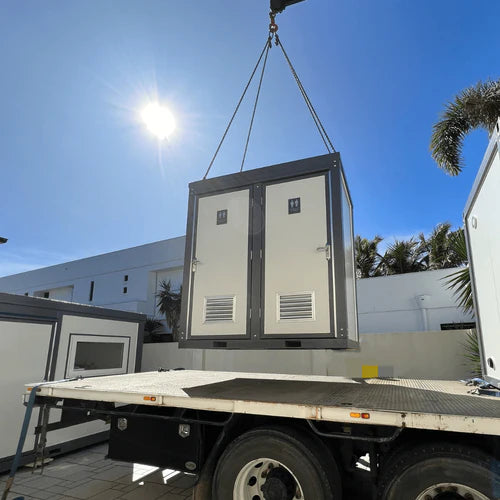

There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note:
The customer must arrange for a licensed Electrician to supply & Install all wiring. All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
If this Bastone Handicap-Accessible Portable Restroom for the Disabled is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
- If it's a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it's a soil floor, please use 20 inches - 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.

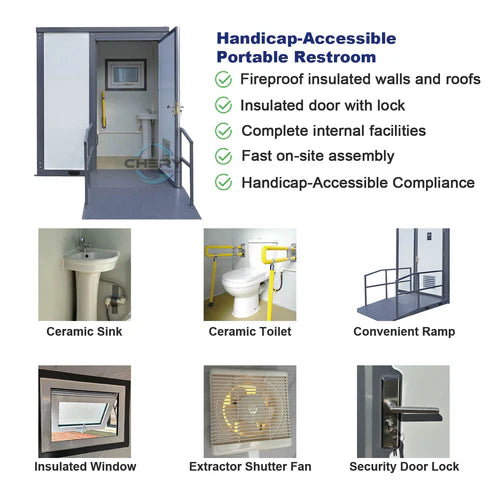

Features

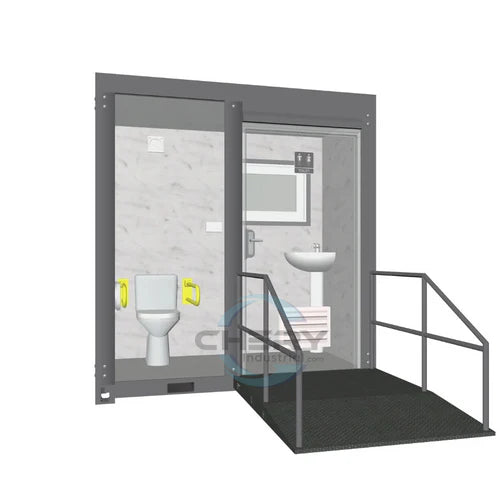

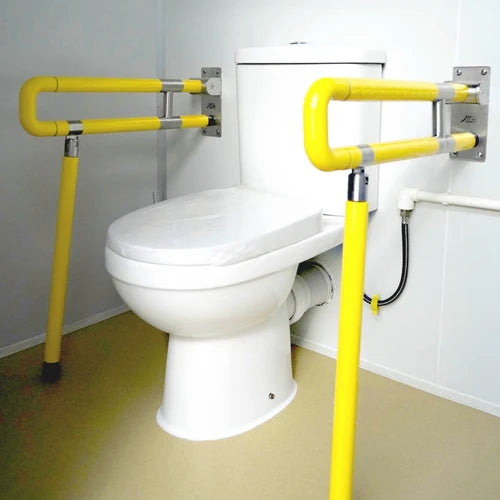

- tool-free removable arms, wheelchair accessible

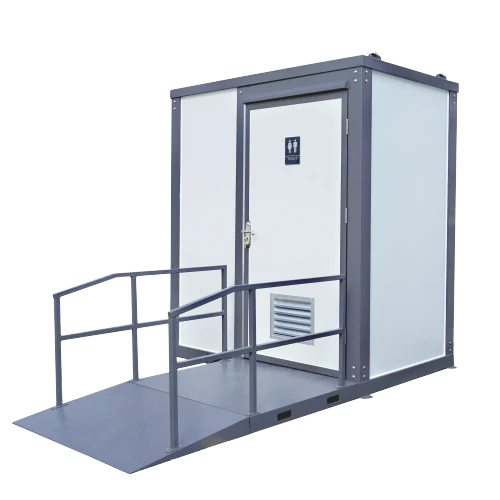

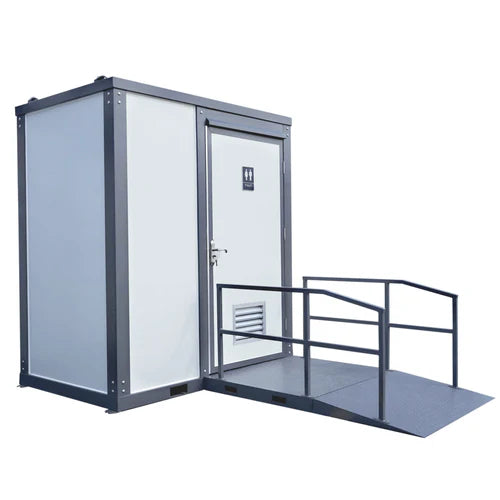

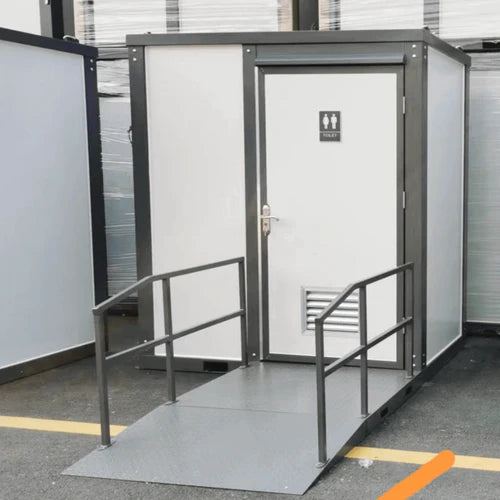

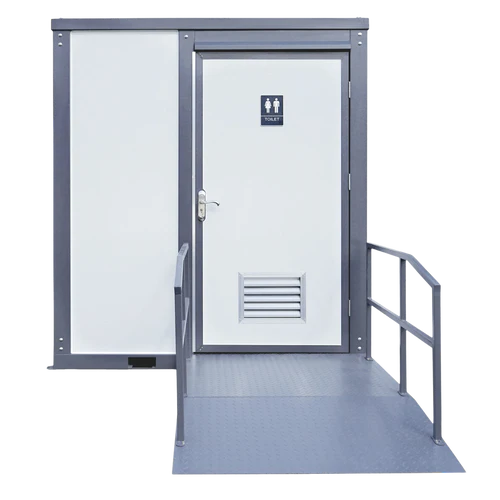

- The ramp comes inside the unit.

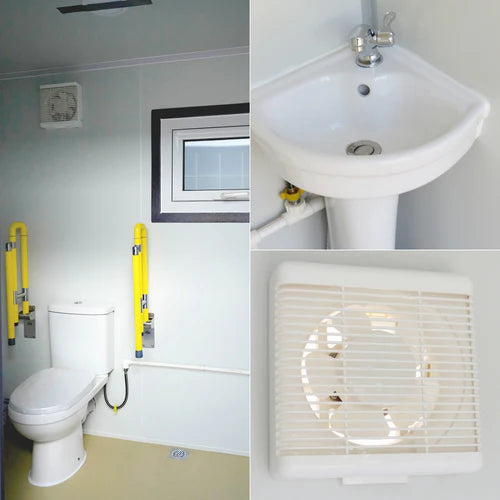

- Toilet w/Ceramic Bowl & Tank, Ceramic Vanity Sink w/Faucet

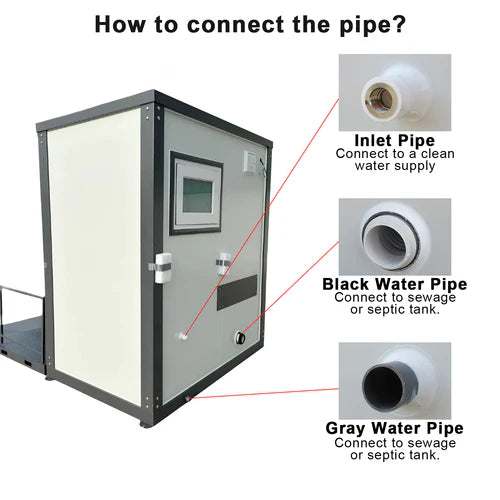

- 1/2" female inlet ports for cold water
- 3" black water/waste exhaust flexible hose (easily slide your 3" PVC pipe onto flex fitting for waste)
- 1" PVC water outlet exhaust port
- Locking Door w/ set of keys, Hinged Window
- Lifting Eyes, Forklift Pockets
Specifications
| Description | Specifications |
| Model | Handicap-Accessible Portable Restroom |

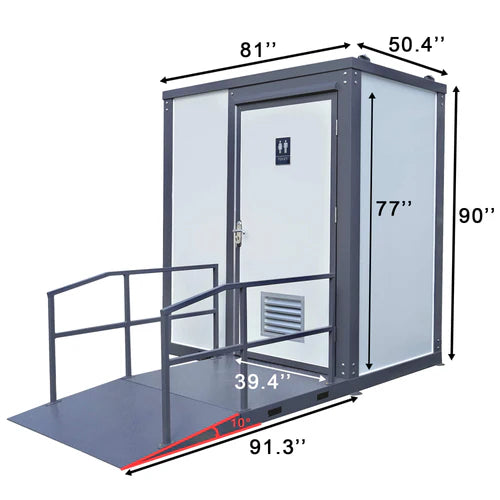

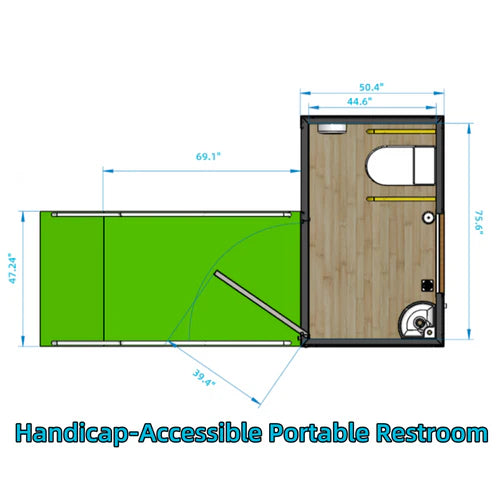

| Dimension (LxWxH) | 81"x50.4"x90" |
| Interior Dimension (LxWxH) | 75.6"x44.6"x84.6" |
| Door Size | W 39.4" x H 77" |
| Net Area | 23.4 ft² |
| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |
| Roof Material | 2-inch EPS fire-resistant & insulated roof panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 0.2~0.5(m2·K/W) |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |

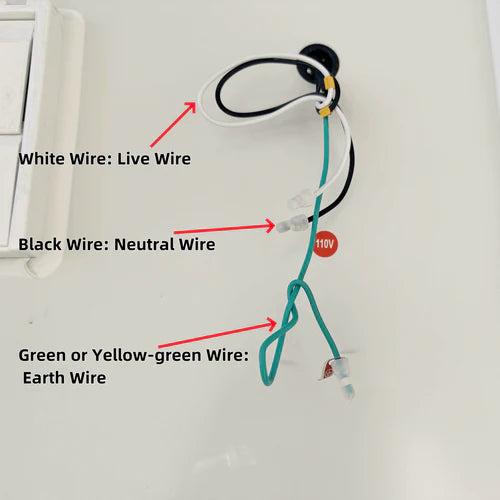

| Wiring Instructions | White Wire: Live Wire Black Wire: Neutral Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature |
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7"x H3" Distance between forklift pocket: 28" |
| Lifespan | 15+ Years |
| Warranty | 1 Year |
Package Size
- L*W*H (inch): 85x53x95
- Weight (lb): 1800
- A Forklift or equivalent is required for unloading.
