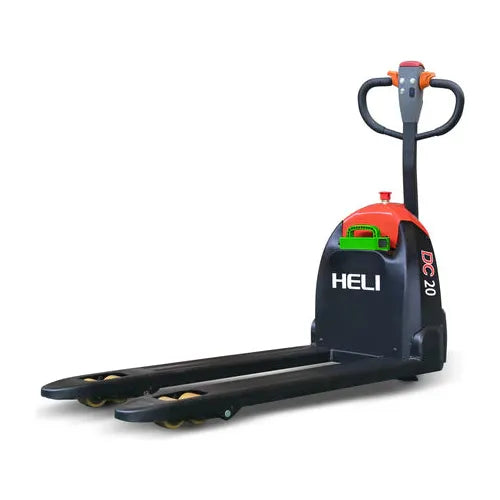

HELI CBD20J-Li2 4400lb Loading Capacity Electric Pallet Jack - PH000083
Description
The HELI Electric Walkie Pallet Jack is ideal for moving and lifting items, products, pallets inside your warehouse, supermarket, or work space. With the perfect design, and high load capacity (up to 4,400 lbs), this jack can get your work done efficiently and conveniently. Now, you don’t need to control the pallet jack manually, instead you can manage all the tasks through a control panel and buttons. Don’t wait anymore, get it now.
Specifications
| Model | CBD20J-Li2 | |
| Loading capacity | lbs | 4400 |
| Load center | in | 24 |
| Operating type | Walkie | |
| Wheels type | PU | |
| Max. lifting height | in | 7.87 |

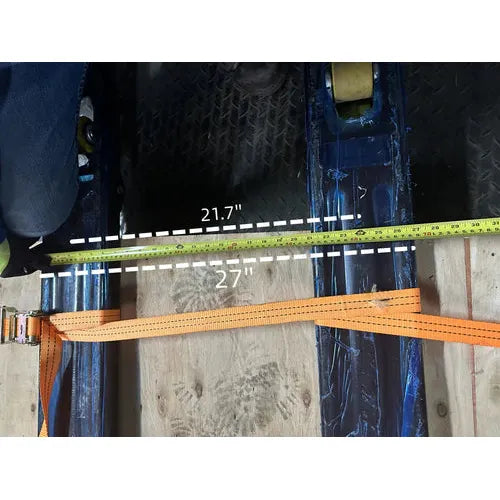

| Overall fork width | in | 21.7/27.0 |

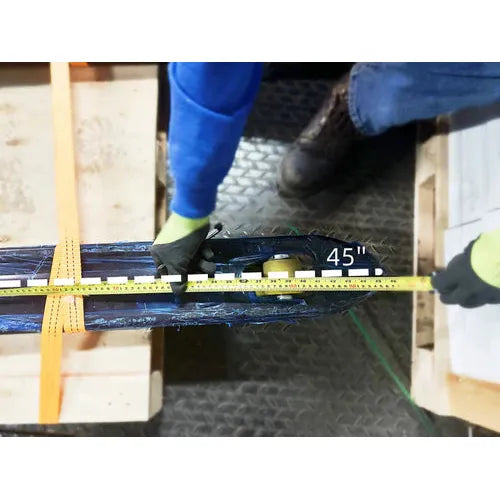

| Fork length | in | 45 |
| Overall length | in | 60.7 |
| Overall width | in | 21.7/27 |
| Overall height (with handle) | in | 44 |
| Min. Turning radius | in | 53.3 |
| Min. Aisle width for pallets 1000x12000 | in | 69.3 |
| Travel speed, laden/unladen | mph | 2.6/2.8 |
| Driving motor | hp | DC 1.0 |
| Battery voltage/capacity | V/Ah | 48/20 |
| Controller | CURTIS | |
| Battery Weight | lbs | 16.5 |
| Service weight with battery | lbs | 320 |
Features
- This jack is equipped with a 48V/20Ah (2 tons) portable lithium battery pack which is easy and convenient for battery
- The emergency reverse device ensures safety.
- The vehicle is simple and dexterous with a steering radius of 1355 mm. It is suitable for ultra-narrow aisle operation.
- Integrated handle design integrating key switch and electric meter is simple and comfortable for operation.
Package Size
- L*W*H (inch): 61*27*44
- Weight (lb): 320
- Please have a forklift or equivalent ready for unloading
Choose options
HELI CBD20J-Li2 4400lb Loading Capacity Electric Pallet Jack - PH000083
Sale price$2,730.00 USD
