Katool KT-H100 Two Post Vehicle Lift 10,000lbs - KT-H100

Sale price$2,799.00 USD

Description

Revolutionize your garage with the KT-H100 Two Post Vehicle Lift, a powerhouse of automotive innovation. Boasting symmetrical lifting arms, it effortlessly hoists vehicles up to 10,000 lbs, ensuring a balanced and secure elevation. The bilateral unlocking feature adds an extra layer of safety, providing a synchronized lifting experience. This lift is a game-changer for DIY enthusiasts and professional mechanics, facilitating tasks such as tire rotations and oil changes with unparalleled ease. Whether you're working on compact cars or robust SUVs, the KT-H100 adapts, making it an indispensable addition to any automotive workshop or garage. Elevate your lifting experience with precision and reliability.
User Manual

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

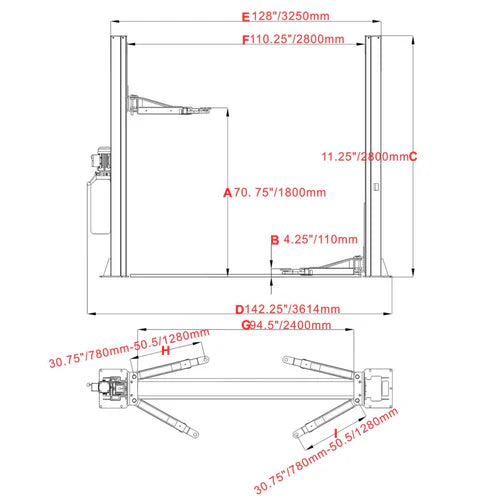

Specifications

Dimension(LxWxH)
Net weight 1256 lbs
Max. Lifting Height 70.75"/1800mm
Lifting Capacity 10000lbs/4500KG
Min. Height 4.25"/110mm
Height Overall 110.25"/2800mm
Width Overall 142.25"/3614mm
Outside Column 128"/3250mm
Inside Column 110.25"/2800mm
Drive-Thru Clearance 94.5"/2400mm
Front Arm Reach (Min) 30.75"/780mm (2 stages)
Front Arm Reach (Max) 50.5"/1280mm (2 stages)
Rear Arm Reach (Min) 30.75"/780mm (2 stages)
Rear Arm Reach (Max) 50.5"/1280mm (2 stages)
Motor 220VAC/60HZ/1PH/2.2KW

Features

  • 10000 lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Manual safety release from two sides.
  • Symmetric arm.
  • Base plate design.
  • Dual Hydraulic Chain-Drive Cylinders.
  • Rubber pad door opening protection.
  • Comes with extension support adaptor sets of +30mm and +120mm.
  • Feet-protection safety guardrails with tools box.
  • Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional).

                    Package Size

                    • LxWxH (inch): 112"x18"x35.4"
                    • Weight (lb): 1256
                    • A forklift or equivalent is required for unloading
