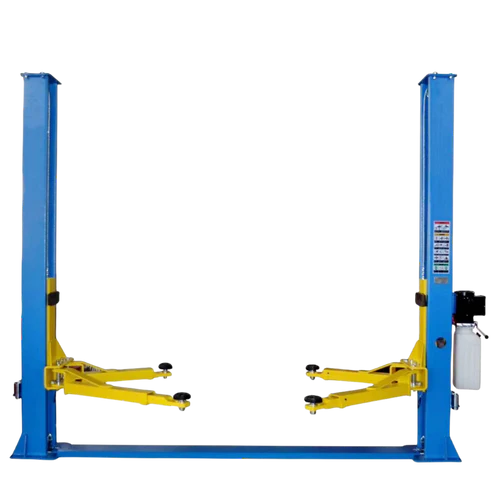

Introducing the KT-H105 Two Post Vehicle Lift, a pinnacle of automotive lifting precision. With symmetrical lifting arms and a robust 10,000 lbs capacity, it ensures a secure and balanced elevation for diverse vehicles. The cutting-edge bilateral unlocking system guarantees synchronized control, prioritizing safety during every lift. Ideal for professional garages and DIY enthusiasts, the KT-H105 excels in various scenarios, from routine maintenance to tire rotations. Versatile and efficient, its design accommodates a spectrum of vehicles, providing unparalleled support for automotive tasks. Elevate your garage experience with the reliability and precision of the KT-H105 Two Post Vehicle Lift.
User Manual
Specifications

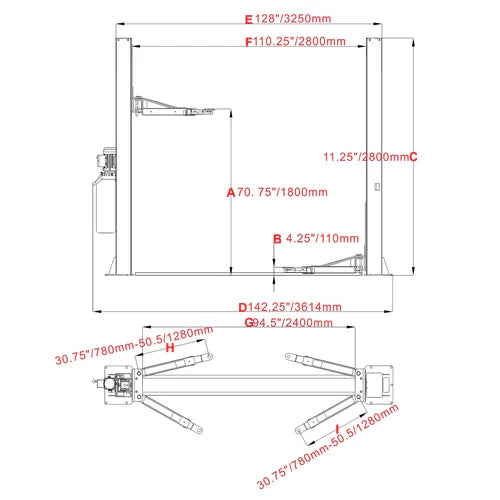

Dimension(LxWxH) | |
Net weight | 1257 lbs |
Lifting Capacity | 10000lbs/4500KG |
Max. Lifting Height | 70.8"/1800mm |
Min. Height | 3.9"/100mm |
Height Overall | 110.9"/2818mm |
Width Overall | 140.4"/3565mm |
Outside Column | 124.8"/3170mm |
Inside Column | 110.2"/2800mm |
Drive-Thru Clearance | 98.4"/2500mm |

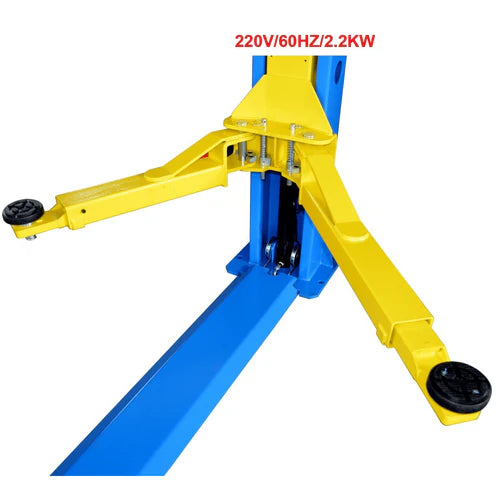

Front Arm Reach (Min) | 29.5"/750mm(2 stages) |
Front Arm Reach (Max) | 46"/1170mm(2 stages) |
Rear Arm Reach (Min) | 35.4"/900mm(2 stages) |
Rear Arm Reach (Max) | 58.2"/1480mm(2 stages) |
Motor | 220VAC/60HZ/1PH/2.2KW |
Features
- 10000 lbs lifting capacity.
- CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
- Manual safety release from two sides.
- Base plate design.
- Dual Hydraulic Chain-Drive Cylinders.
- Robber pad door opening protection.

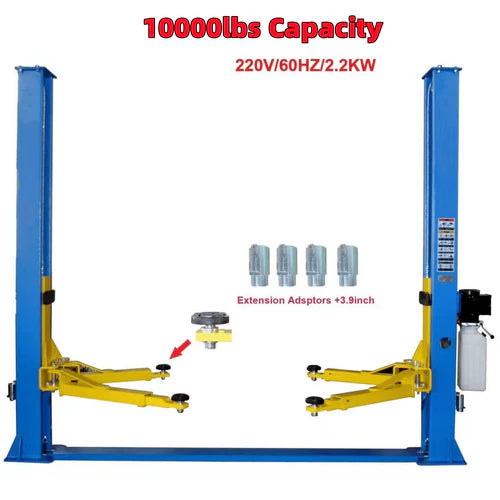

- Screw-on pad and extension support adaptor set +100mm.
- Top-level hydraulic system with 220V/60HZ/1PH.
Package Size
- LxWxH (inch): 112"x18"x35.4"
- Weight (lb): 1257
- A forklift or equivalent is required for unloading
