Katool KT-X80 Mid-rise Scissor Lift, Electric Release (Two variations for voltage, 110v and 220v) - KT-X80-110 electric

Sale price$2,999.00 USD

Description

Introducing the KT-X80 Mid-Rise Scissor Lift with Electric Release, available in two powerful voltage options – 110V and 220V. Elevate your garage experience with this efficient and compact lift, designed for seamless automotive maintenance. The electric release ensures precise control, allowing you to effortlessly raise your vehicle for tire rotations, brake inspections, and more. Choose the voltage that suits your workspace, adapting to the demands of your projects. The KT-X80 combines reliability with versatility, providing a dynamic solution for enthusiasts and professionals alike. Upgrade to precision and ease with the KT-X80 Mid-Rise Scissor Lift – where power meets performance.
User Manual

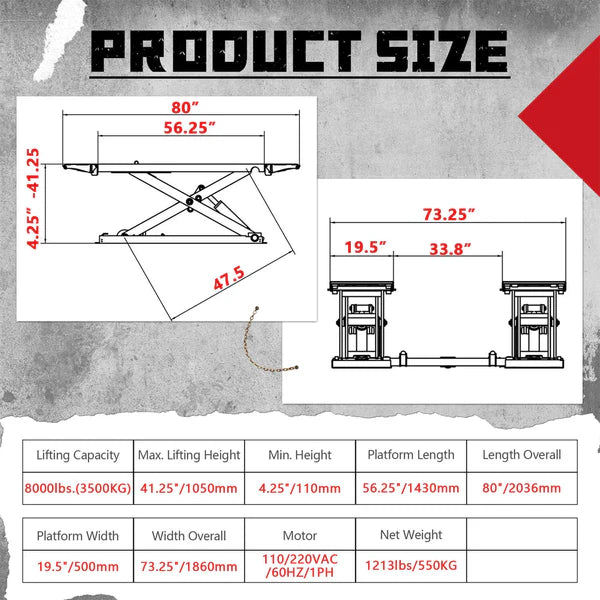

Specifications

Dimension(LxWxH)
Net weight 1213 lbs
Lifting Capacity 8000lbs/3500KG
Max. Lifting Height 41.25"/1050mm
Min. Height 4.25"/110mm
Length Overall 80"/2036mm
Width Overall 73.25"/1860mm
Platform Length 56.25"/1430mm
Platform Width 19.5"/500mm
Motor 110/220VAC/60HZ/1PH

Features

  • 8000lbs(3500KG) lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Mobile or fixed mount design.
  • Starting-up system design.
  • Electric safety release.
  • 24V safe control system.
  • Height limit switch.
  • Composite rubber lifting blocks included.
  • Comes with self-lubricated bushing and bearing.
  • Drive-up ramps lock design as platform extension for long vehicles.

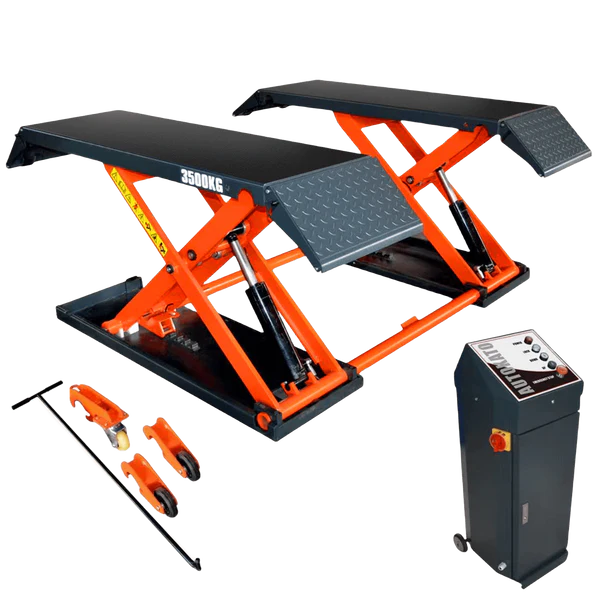

  • The portable, mobile kit included making the lift move in your garage easily.
  • Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH.

                                Package Size

                                • LxWxH (inch):
                                  Box A: 78x63x9;
                                  Box B: 17x15x43.
                                • Weight (lb):
                                  Box A: 1190;
                                  Box B: 132.
                                • A forklift or equivalent is required for unloading
