Katool KT-X80 Mid-rise Scissor Lift, Pneumatic Release (Two variations for voltage, 110v and 220v) - KT-X80-110 pneumatic
Description
Elevate your workspace with this compact yet powerful lift, boasting pneumatic efficiency for quick and hassle-free operation. With a generous lifting capacity, the X80 effortlessly raises your vehicle to a comfortable working height, perfect for tire changes, brake repairs, and more. The scissor lift design ensures stability, while the pneumatic mechanism adds a touch of convenience to your garage. Embrace efficiency without compromising on performance – the X80-Pneumatic Mid-Rise Scissor Lift is your go-to choice for precision and ease in automotive care.
User Manual

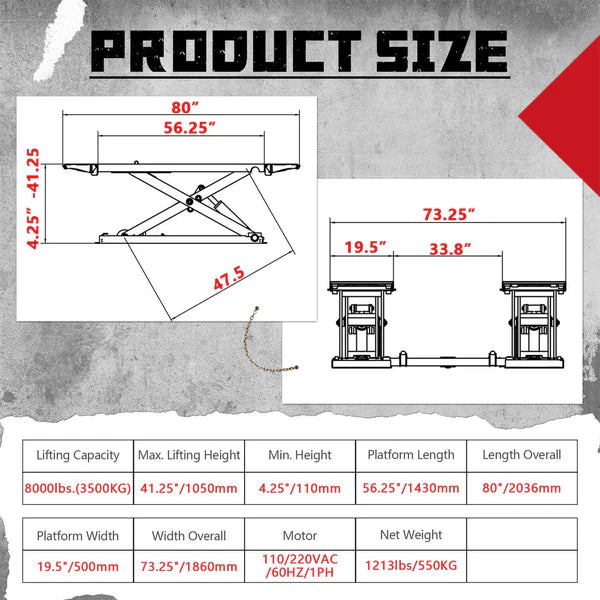

Specifications
Dimension(LxWxH) | |
Net weight | 1213 lbs |
Lifting Capacity | 8000lbs/3500KG |
Max. Lifting Height | 41.25"/1050mm |
Min. Height | 4.25"/110mm |
Length Overall | 80"/2036mm |
Width Overall | 73.25"/1860mm |
Platform Length | 56.25"/1430mm |
Platform Width | 19.5"/500mm |
Motor | 110/220VAC/60HZ/1PH |

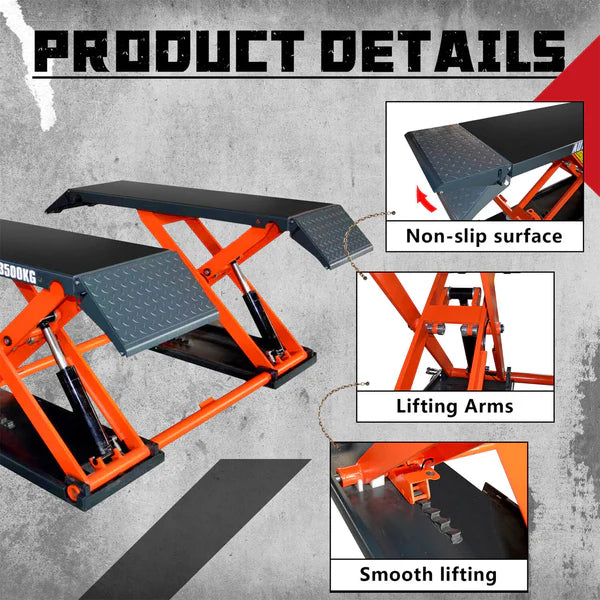

Features
- 8000lbs(3500KG) lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Mobile or fixed mount design.
- Starting-up system design.
- Pneumatic safety release.
- 24V safe control system.
- Height limit switch.
- Composite rubber lifting blocks included.
- Comes with self-lubricated bushing and bearing.
- Drive-up ramps lock design as platform extension for long vehicles.

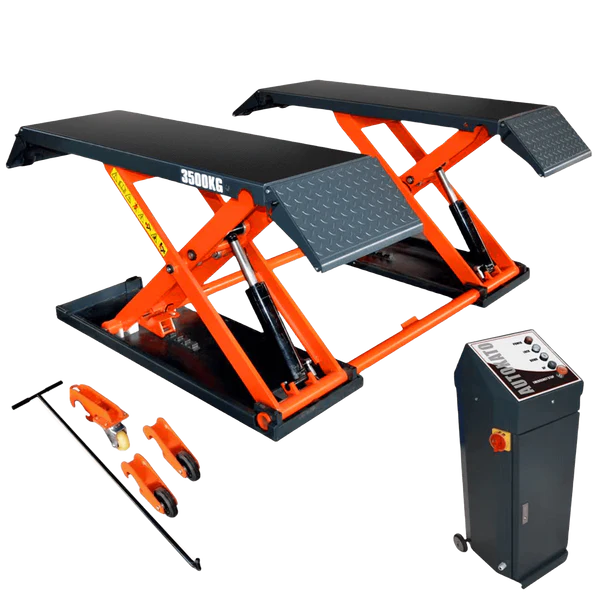

- The portable, mobile kit included making the lift move in your garage easily.
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH.
- The unit needs to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.
Package Size
- LxWxH (inch):
Box A: 78x63x9;
Box B: 17x15x43. - Weight (lb):
Box A: 1190;
Box B: 132. - A forklift or equivalent is required for unloading
