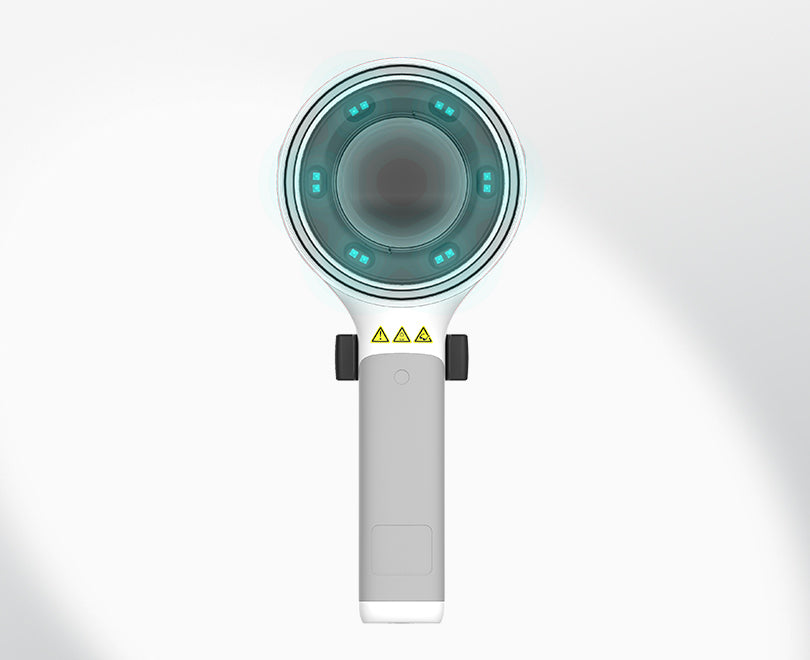

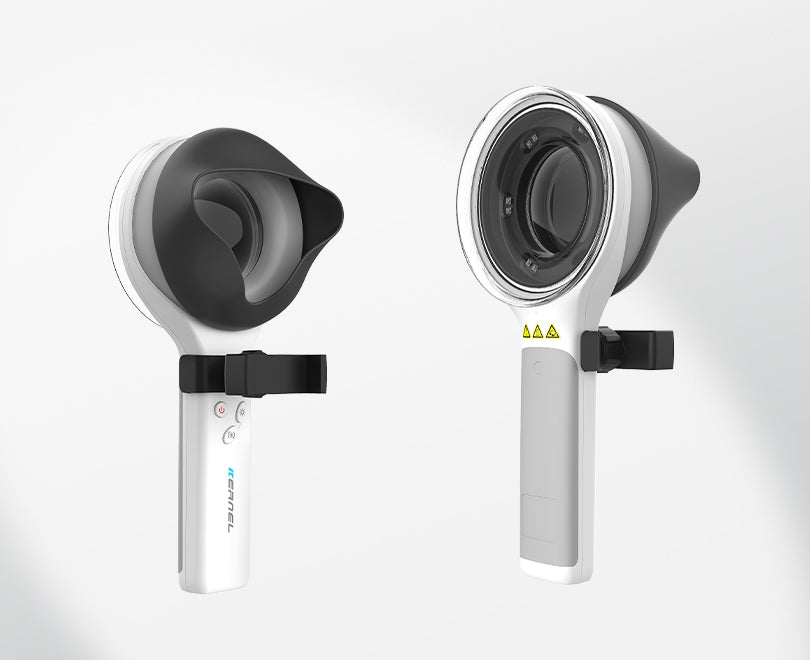

The Kernel Medical KN-9000B is a handheld Wood’s Lamp and portable skin analyzer designed to help visualize fluorescence responses under 365nm UVA. It supports quick screening and observation of pigment abnormalities, suspected infections, and other dermatologic findings—while also enabling clear photo capture for documentation and follow-up.
Common Uses
- Abnormal pigmentation screening
- Skin infection observation (including suspected fungal-related findings)
- Abnormal porphyrin metabolism observation
- Acne fluorescence screening (as part of a professional evaluation workflow)
Key Features
- Dual light sources: UVA + White light (LED)
- 3-level brightness adjustment to suit different environments
- 2X magnification viewing window for closer inspection
- Observation window design helps reduce UV transmission toward the eyes
- Rechargeable lithium battery for cordless operation

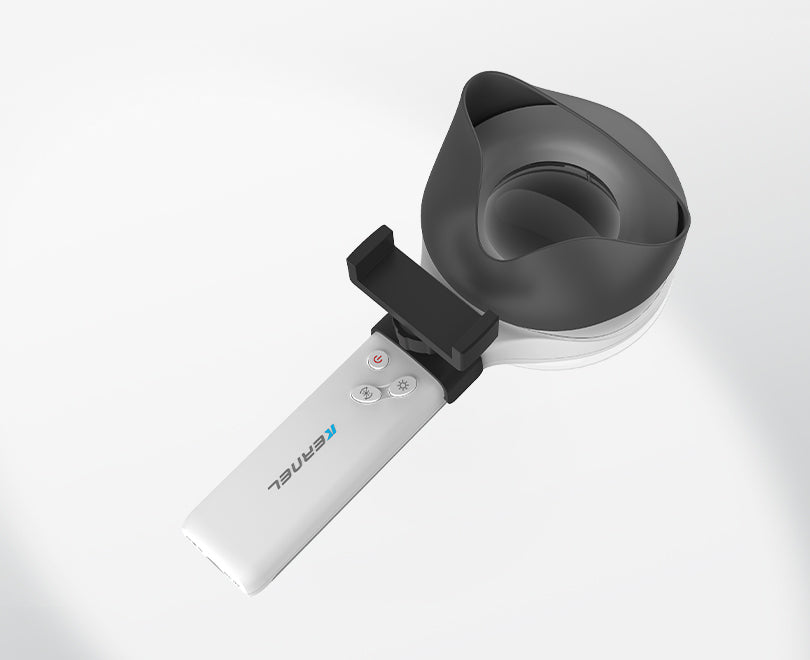

- Mobile phone clip/holder to fix a smartphone for photo capture and comparison
- Small size, lightweight, easy to carry and operate
Scope of Application
Designed for capturing and viewing digital images/videos of human skin and hair with enhanced magnification to support medical observation and documentation workflows.
Specifications
| Model | KN-9000B |
|---|---|
| Light Source | UVA light + White light (LED) |
| UVA Wavelength | 320–400nm (Peak 365nm ±10nm) |
| Working Distance | 5 cm ± 1 cm |
| Visual Lens Magnification | 2× ±20% |
| LED Lifetime | ≥ 3000 hours |
| Lamp Life | ≥ 15000 hours |
| Output Intensity | ≥ 3 mW/cm² |
| Dust & Water Protection | IP22 |
| Power | Rechargeable lithium battery (cordless operation) |
| Battery Working Time | Approx. 2.5 hours |
| Brightness Control | 3 levels |
| Phone Support | Mobile phone clip/holder for photo capture |
| Certifications | CE, FDA |
| OEM | Available |
Shipping
Ships via standard parcel delivery. Shipping speed and carrier options vary by destination and supplier. Tracking is provided after dispatch.
- Standard parcel delivery
- Tracking provided after shipment
- International shipments may require customs clearance
Setup & Use
- Charge the device fully before first use.
- Select UVA or White light mode as needed for inspection.
- Adjust brightness using the 3-level control to match the environment.
- Hold the device at the recommended working distance for best clarity.
- If photographing, attach your smartphone using the included phone clip/holder for consistent comparison images.
- Use appropriate eye protection practices and avoid direct eye exposure to UVA light.
