Description

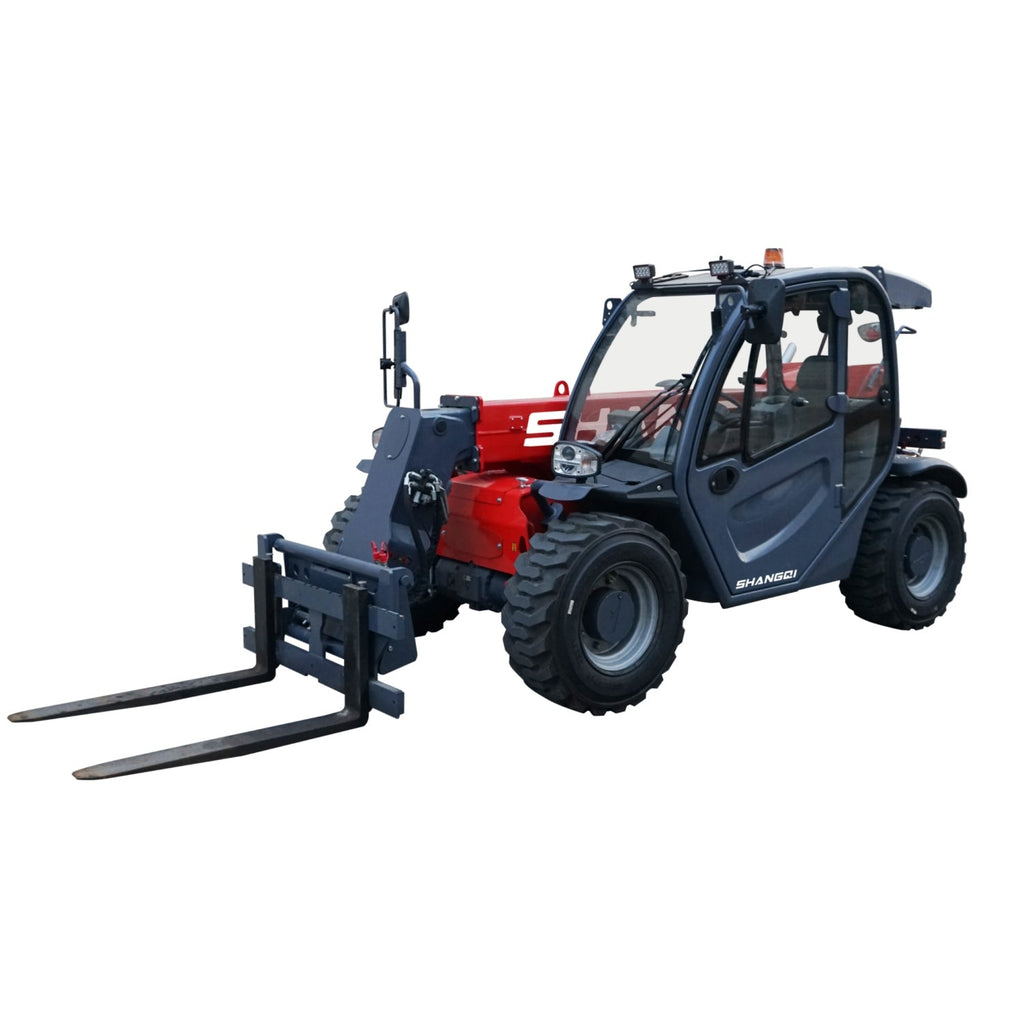

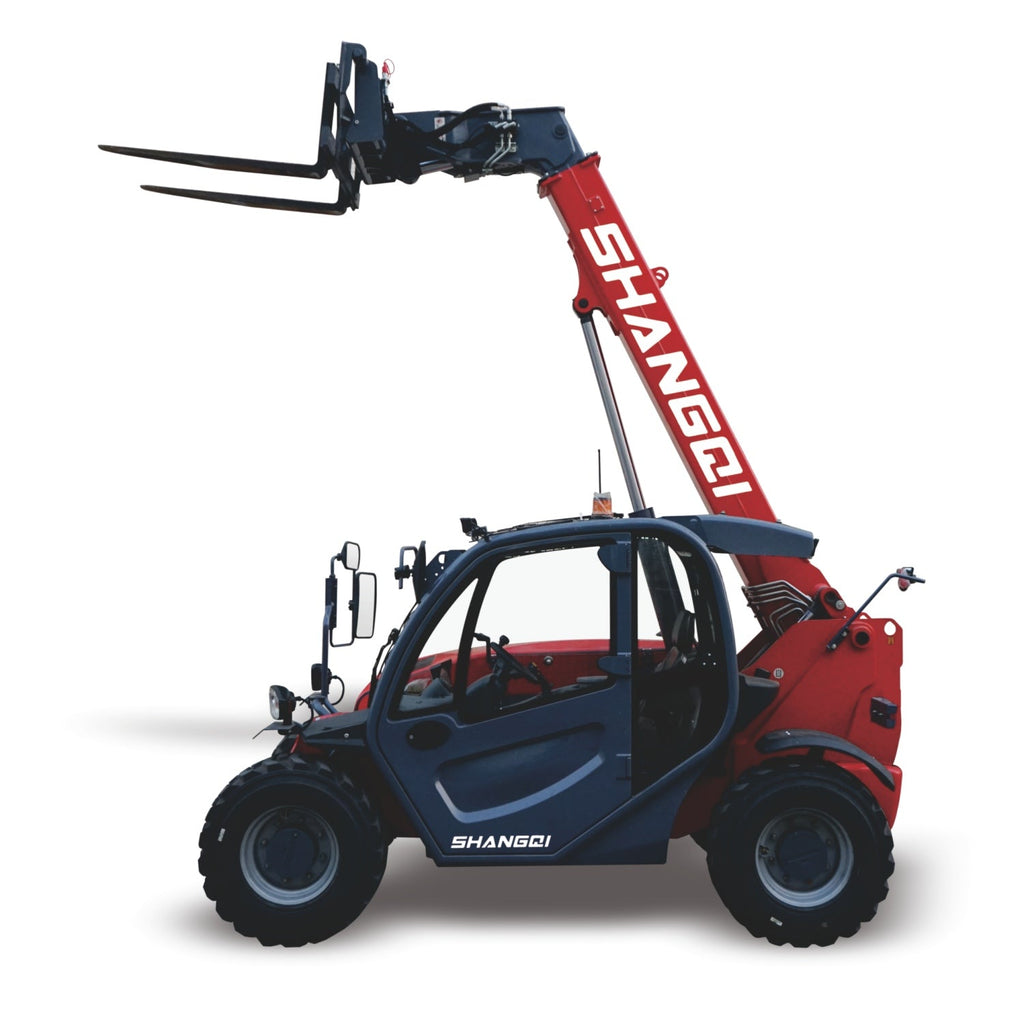

The TL875 Telehandler delivers powerful performance with its 74hp Kubota Tier 4 turbocharged engine, handling up to 5,500 lbs with ease. Boasting a maximum lift height of 19 ft 3 in and an 11 ft 5 in forward reach, it excels in reaching and lifting heavy loads with precision. Designed for versatility and reliability, the TL875 is ideal for demanding construction, agricultural, and industrial applications, ensuring efficiency and productivity on any job site.
Specifications
| Maximum Lift Height | 19ft 3in |
| Maximum Forward Reach | 11 ft 5 in |
| Height, stowed | 6 ft 5 in |
| Length, stowed (without forks) | 12 ft 10 in |
| Width | 5 ft 11 in |
| Wheelbase | 7 ft 6 in |
| Ground clearance, center | 1 ft 1 in |
| Maximum Lift Capacity | 5,500 lb |
| Lift Capacity at Maximum Height | 4,400 lb |
| Lift Capacity at Maximum Reach | 1,650 lb |
| Drive Speed | 16.7 mph |
| Draw Bar Pull(no load) | 7,716 lb |
| Turning radius, outside (4WS) | 10 ft 5 in |
| Auxiliary Hydraulic Flow | 21 gpm |
| Auxiliary Hydraulic Pressure | 3,408 psi |
| Tires, standard size | 12 ×16.5 in, 14 ply |
| Power Source | Diesel |
| Electrical System Voltage | 12v |
| Engine | Kubota Tier 4, 74hp Turbocharged |
| Hydraulic Tank Capacity | 19.8 Gal |
| Fuel Tank Capacity | 18 gal |
