Description
Description

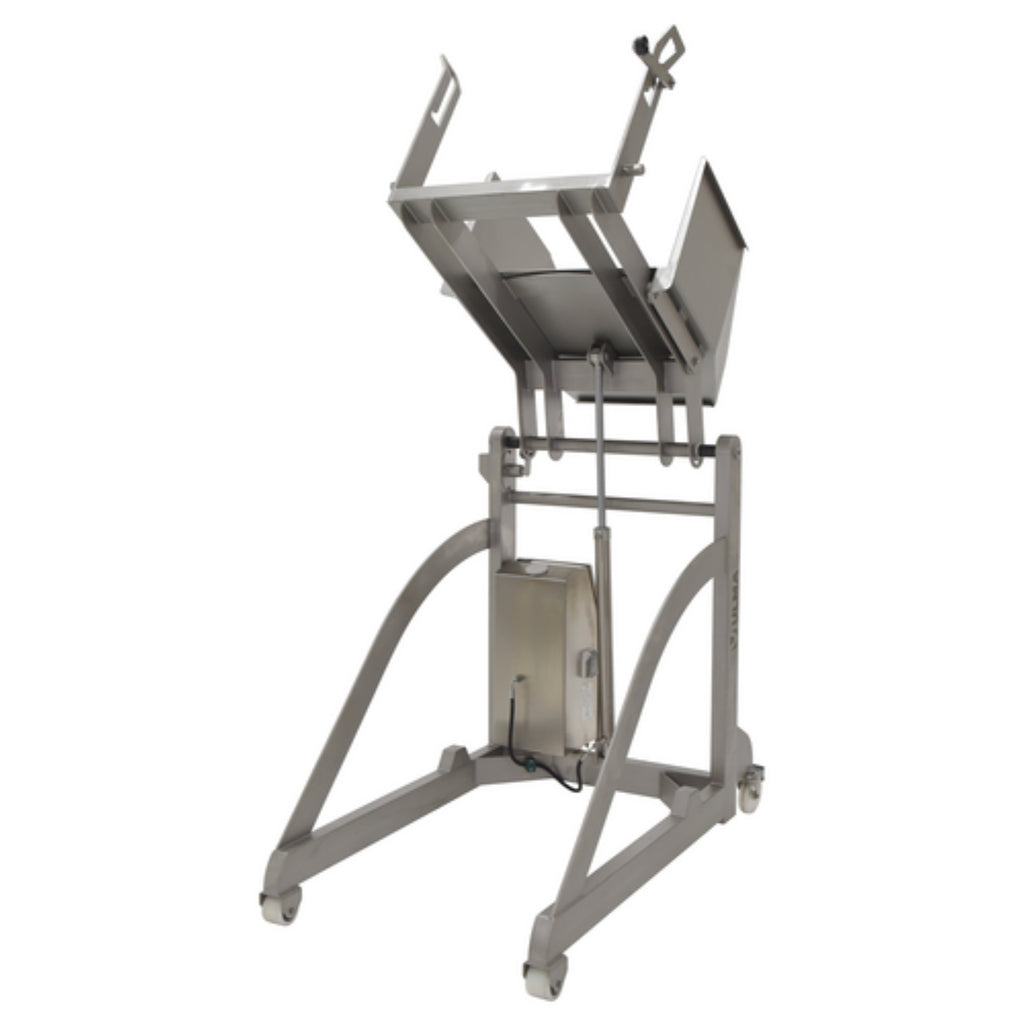

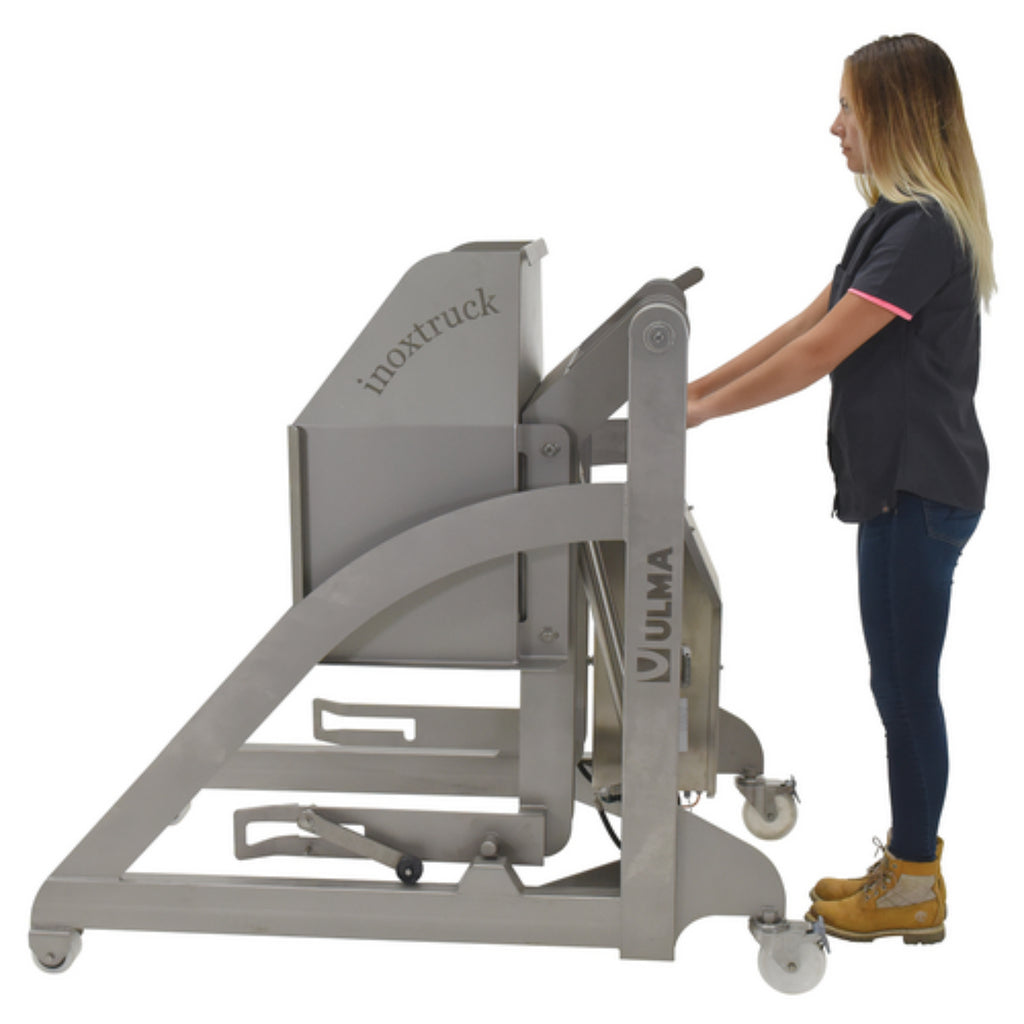

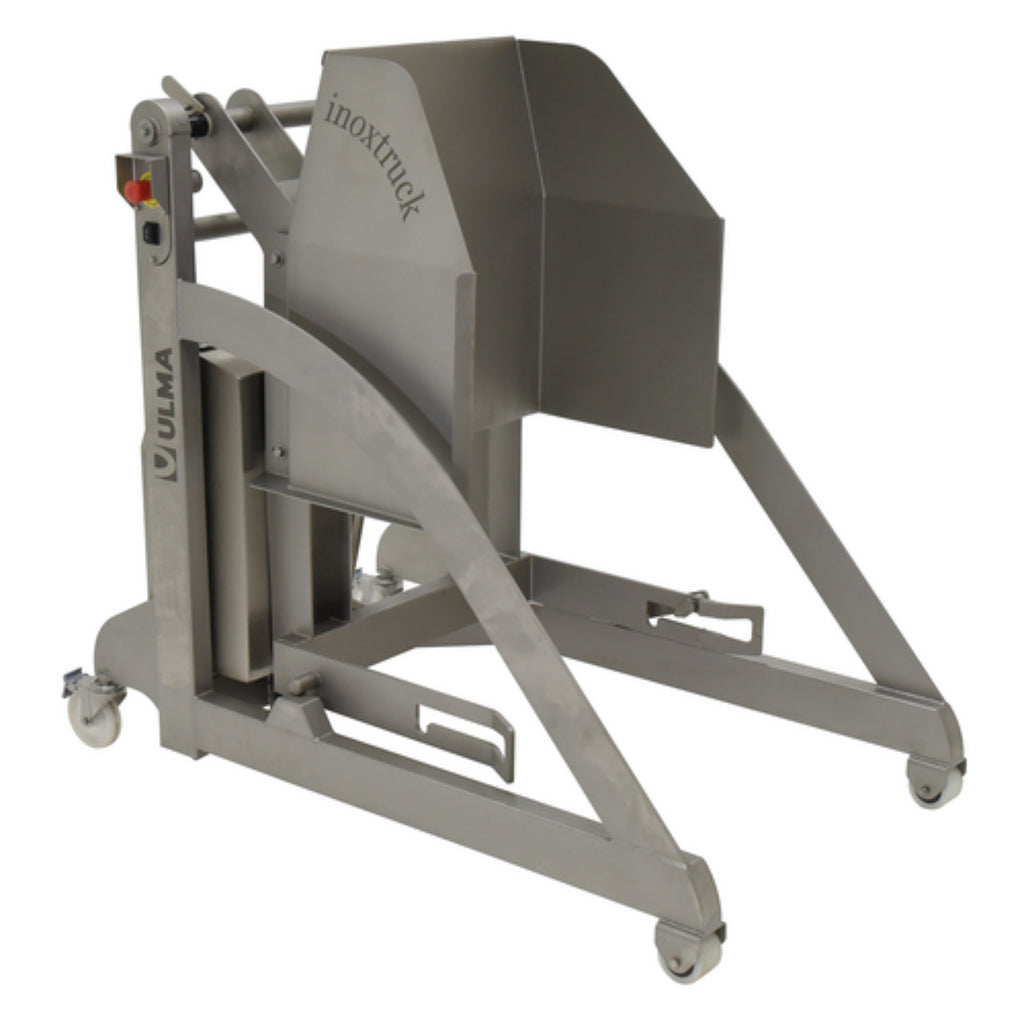

The 304L Stainless Steel bin dumpers are great for the cleanable workplace as well as manufacturing facilities. The structure is designed of 304L stainless steel including hydraulic cylinders as the piston, which promotes easy cleaning and long lasting strength. Push button functionality allows the user to move to a precise position and stop the movement completely, in an emergency, with the emergency switch. Batteries are waterproof, making maintenance a breeze. The unit rolls easily on poly wheels, while traversing from area to area. Once folded, the unit becomes more compact for utilizing less storage space. Retrofit drum and bin chutes are available.
Features
- High handle design for easy maneuvering
- Simple rolling from one area to another
- Promotes ergonomic posture
- Sleek smooth finish
Specifications
| Property | Value |
|---|---|
| Weight Capacity (lbs) | 660 |
| Overall Height (in) | 52.5 |
| Overall Length (in) | 59 |
| Overall Width (in) | 34.75 |
| Maximum Dump Height (in) | 51 |
| Level Height (in) | 51.125 |
| Rotated Height (in) | 106 |
| Platform Material | Stainless Steel |
| Platform Length (in) | 15.75 |
| Platform Width (in) | 28.375 |
| Phase | Not Applicable |
| Voltage (V) | 12 |
| Weight (lbs) | 416 |
| Installation Hardware Included | Not Required |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
| Property | Value |
|---|---|
| Weight Capacity (lbs) | 660 |
| Overall Height (in) | 52.5 |
| Overall Length (in) | 59 |
| Overall Width (in) | 34.75 |
| Maximum Dump Height (in) | 51 |
| Level Height (in) | 51.125 |
| Rotated Height (in) | 106 |
| Platform Material | Stainless Steel |
| Platform Length (in) | 15.75 |
| Platform Width (in) | 28.375 |
| Phase | Not Applicable |
| Voltage (V) | 12 |
| Weight (lbs) | 416 |
| Installation Hardware Included | Not Required |
| Manufacturer Warranty | 1 Year |
