Description
Description

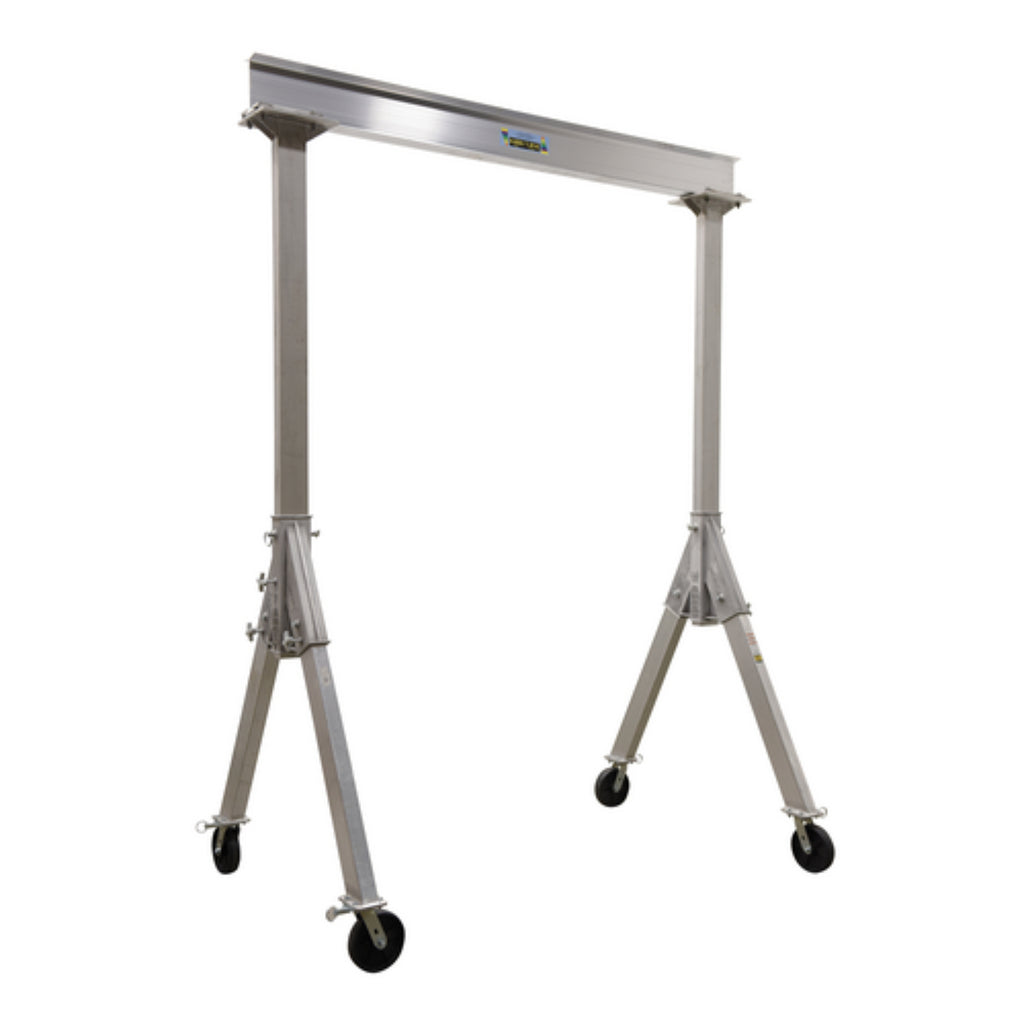

The fixed height Aluminum Gantry cranes are ideal for the manufacturing and maintenance facilities. The aluminum construction is easily manageable and can be simply assembled for immediate use. The unit has a fixed height for working in a permanent or semi-permanent environment. The casters allow the user to move the crane from workstation to workstation and smoothly roll over rough surfaces, while not marring. Do not move units while loaded.
Features
- Robust construction for long term use
- Each unit includes four casters for safe positioning
- The fixed height of the unit provides constant lifting stability
- Great for long term consistent height projects
Specifications
| Specification | Value |
|---|---|
| Capacity (lbs) | 6,000 |
| Color / Finish | Silver |
| Frame Material | Aluminum |
| Beam Height (in) | 12 |
| Beam Length (in) | 144 |
| Usable Beam Length (in) | 120.25 |
| Flange Width (in) | 7 |
| Base Width (in) | 64.6875 |
| Base Length (in) | 127.125 |
| Maximum Overall Height (in) | 132 |
| Adjustable Height | No |
| Maximum Clearance (in) | 120 |
| Number of Casters / Wheels | 4 |
| Caster / Wheel Locking | Yes |
| Wheel Material | Phenolic |
| Wheel Diameter (in) | 8 |
| Wheel Width (in) | 3 |
| Weight (lbs) | 775 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
