Description
Description

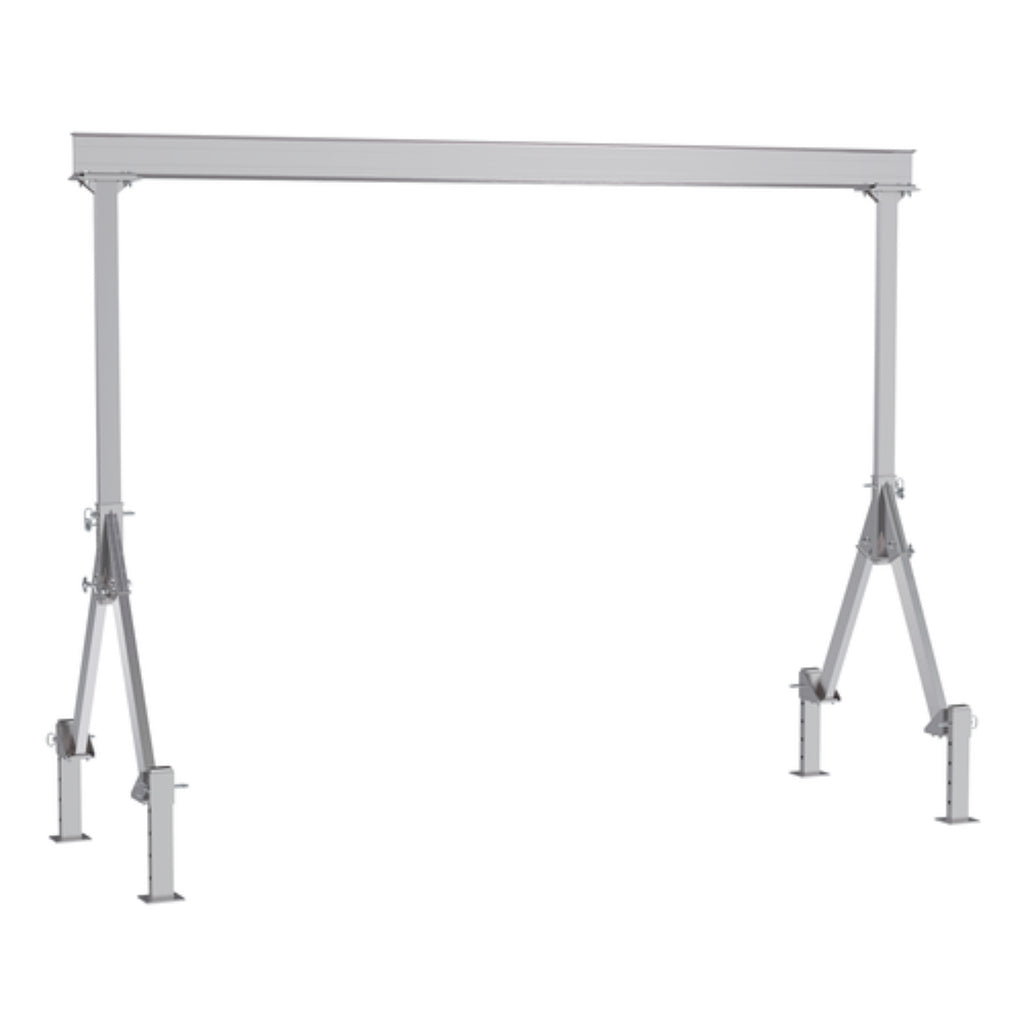

A fixed height aluminum gantry crane is a valuable asset in warehousing and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. The fixed height gives the user consistent familiarity when raising/lowering items. If a change in height is needed, the adjustable legs allow the crane to be raised or lowered in 4" increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support.
Features
- Leveling adjustment can be completed with support from fork truck or other overhead lifting device
- Flat footed design provides surface stability
- Beam length offers ample space for lifting and lowering
- Lifting hoist/trolley available separately
Specifications
| Specification | Value |
|---|---|
| Capacity (lbs) | 2,000 |
| Color / Finish | Silver |
| Frame Material | Aluminum |
| Beam Height (in) | 8 |
| Beam Length (in) | 180 |
| Usable Beam Length (in) | 156.25 |
| Flange Width (in) | 4.1875 |
| Base Width (in) | 64 |
| Base Length (in) | 180 |
| Maximum Overall Height (in) | 128 |
| Adjustable Height | No |
| Maximum Clearance (in) | 128 |
| Minimum Clearance (in) | 112 |
| Number of Casters / Wheels | No Wheels / Casters |
| Weight (lbs) | 405 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
