Description
Description

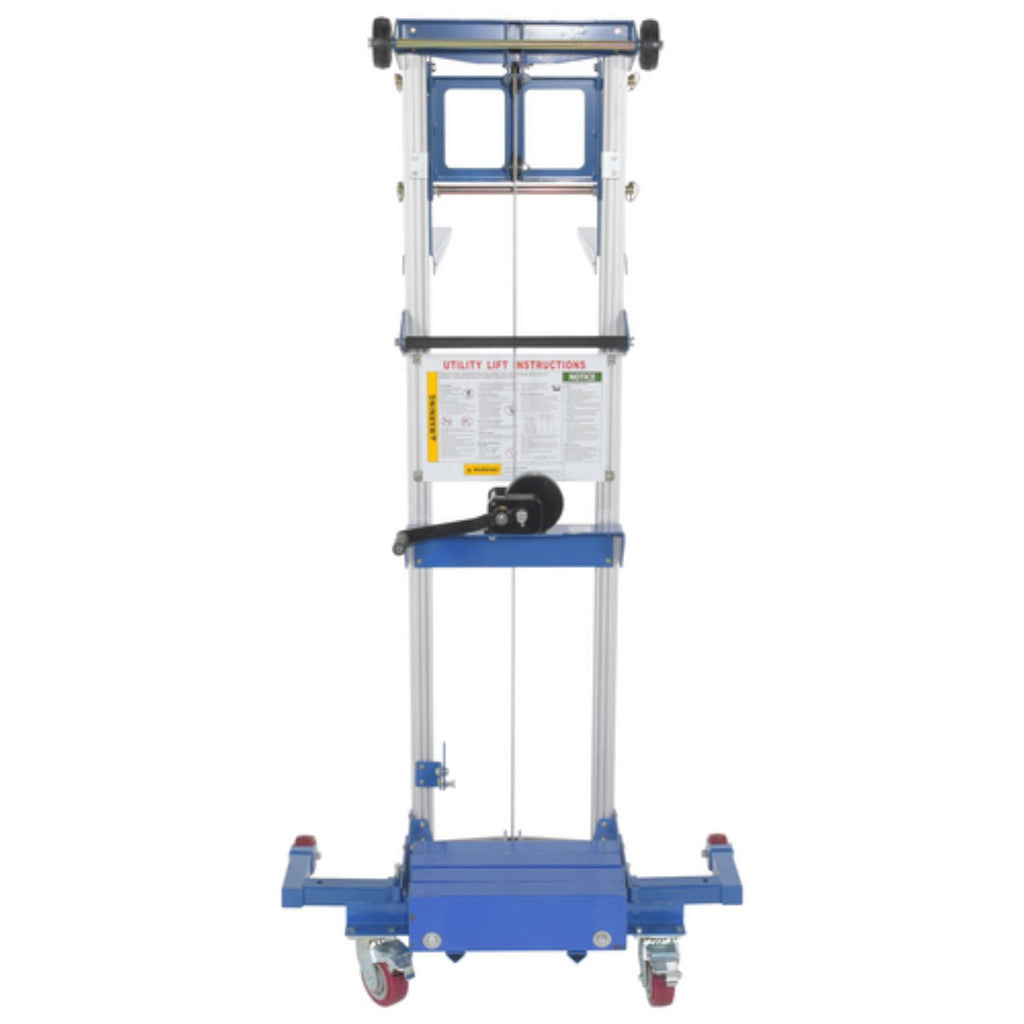

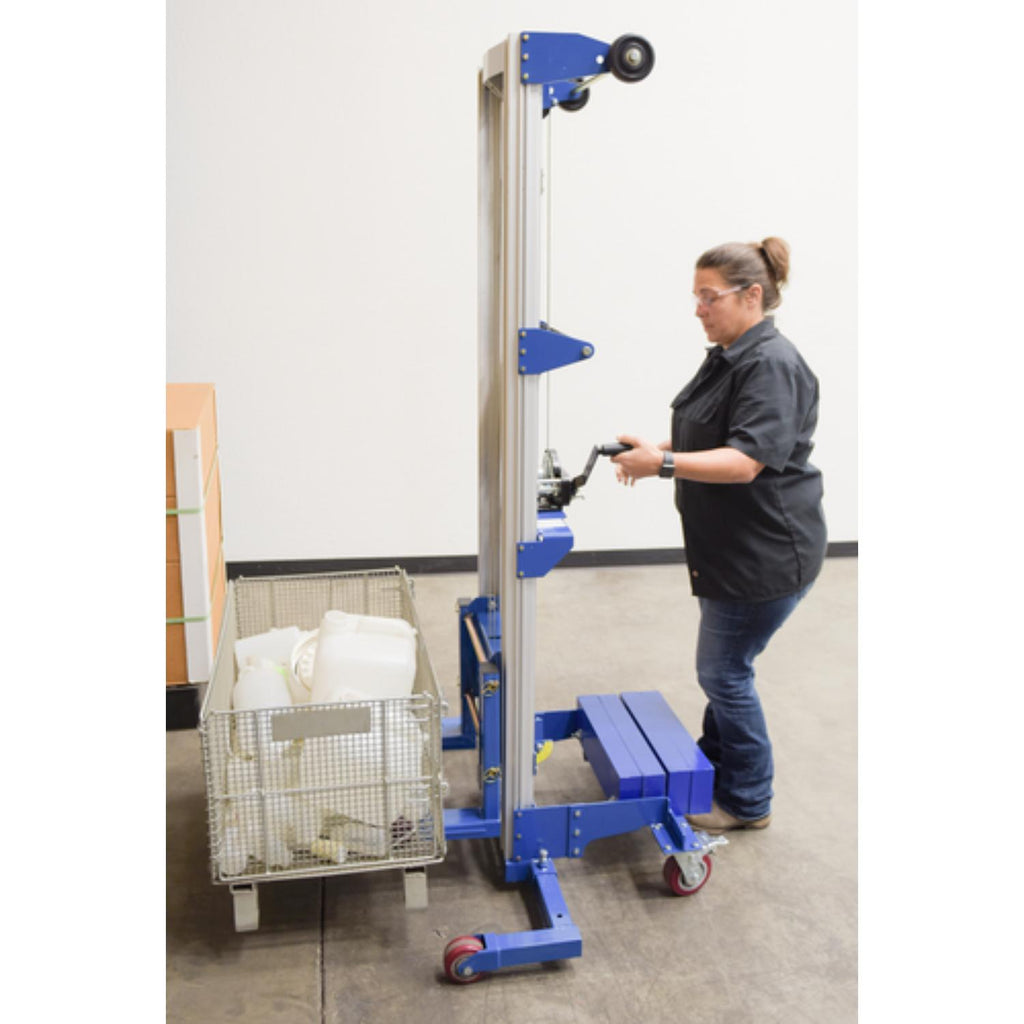

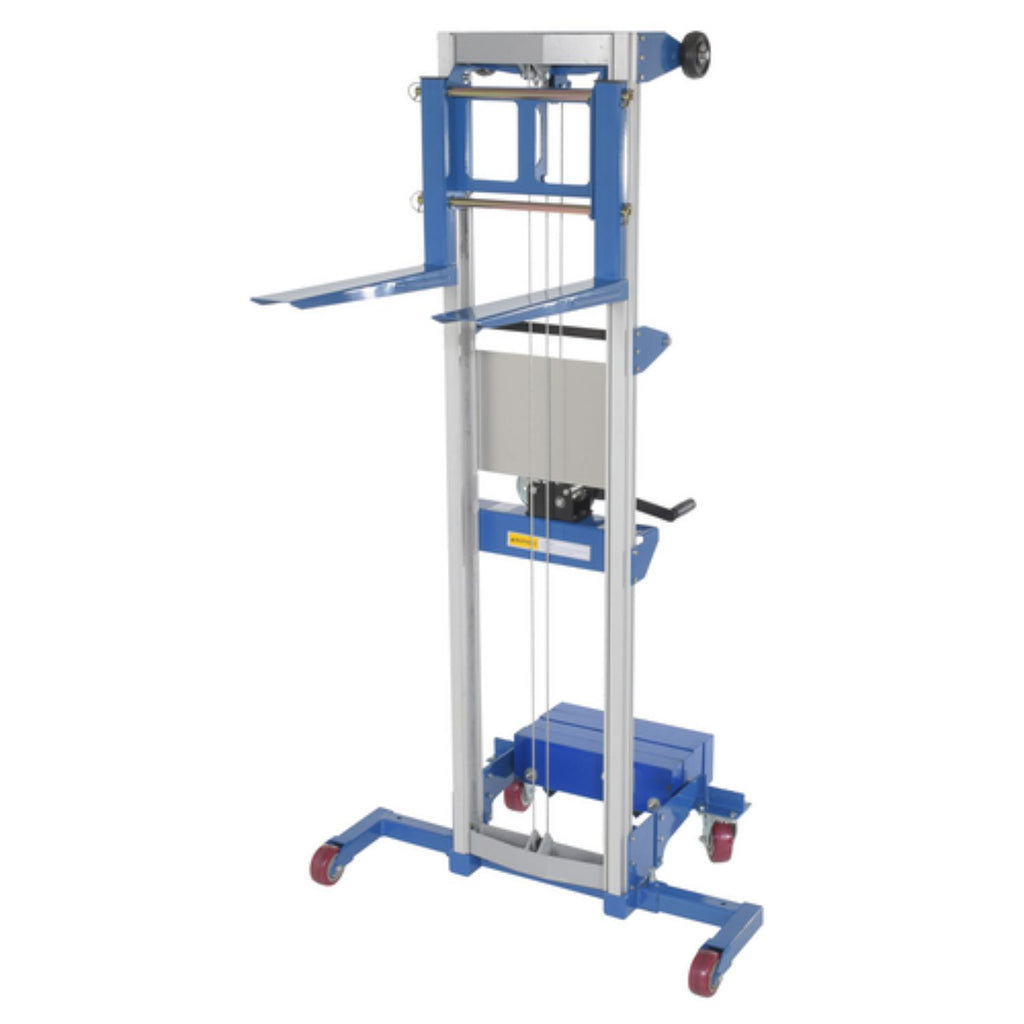

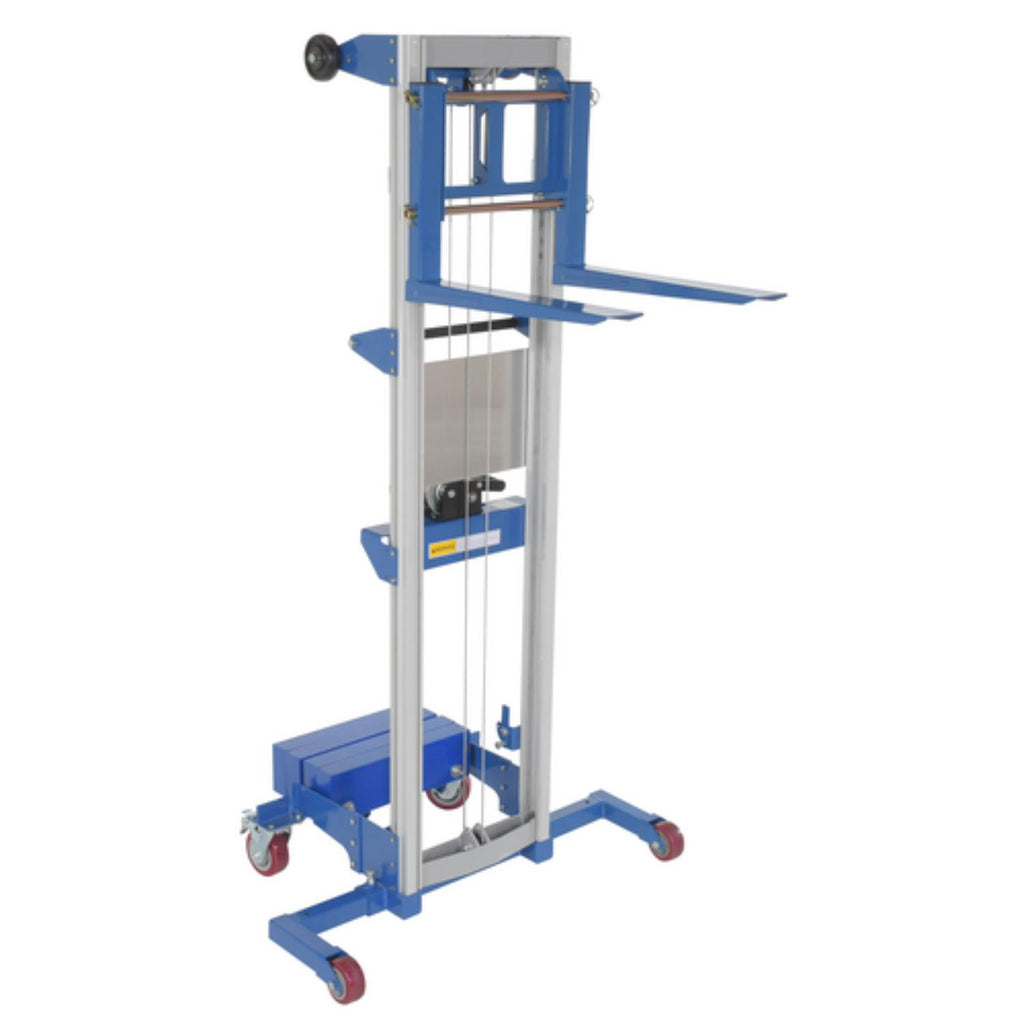

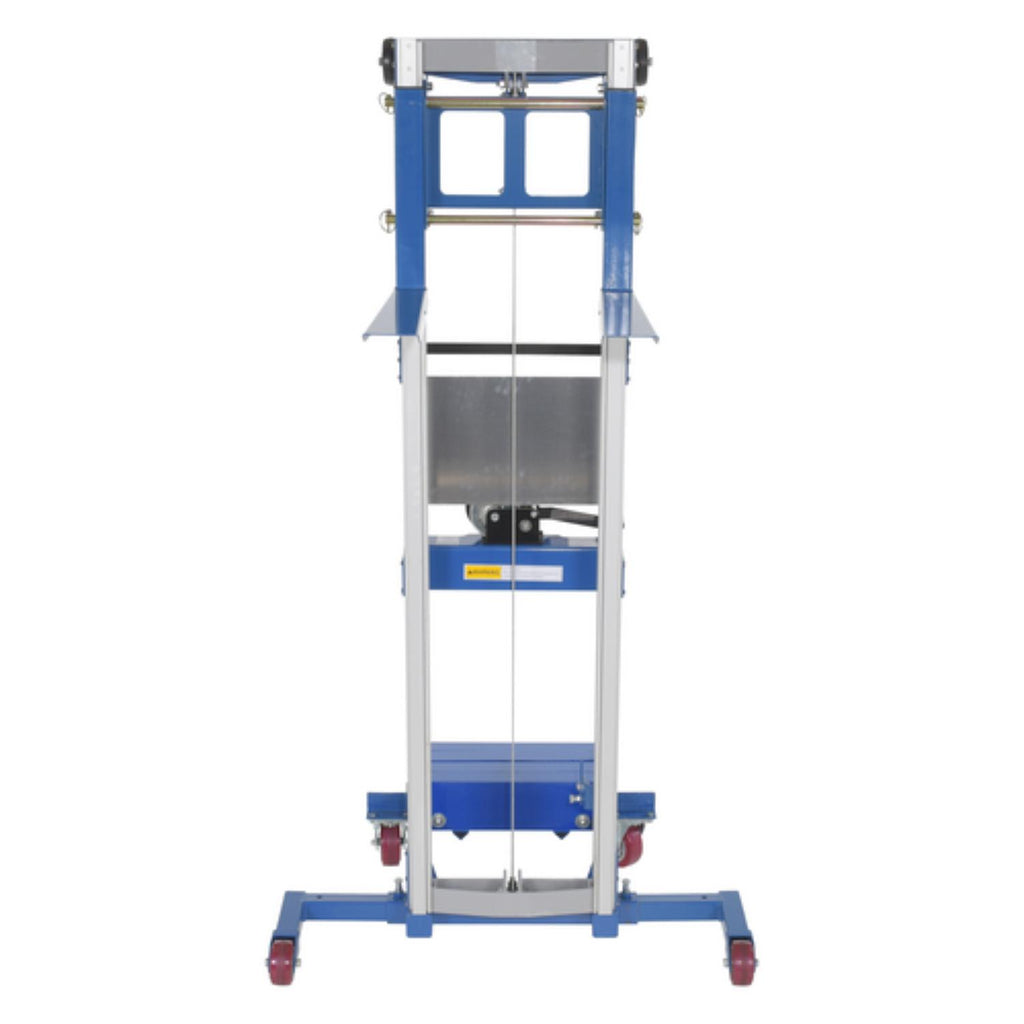

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum and a counterbalance design (counterweight included). Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.
Features
- Lightweight portable lifts are great for hundreds of applications
- Manual cable winch easily raises and lowers forks
- Counterbalance weight design keeps unit from tipping with heavy loads
- Hold-down device secures carriage during transport
Specifications
| Specification | Details |
|---|---|
| Assembly Required | None |
| Color / Finish | Silver |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 18.625 |
| Handle Material | Steel |
| Material | Aluminum/Steel |
| Lift Height Maximum (in) | 122 |
| Power Source | Hand |
| Weight Capacity (lbs) | 350 |
| Application | Industrial/Commercial |
| Maximum Fork Height (in) | 143.6875 |
| Depth (in) | 46 |
| Height (in) | 79.125 |
| Width (in) | 43.25 |
| Wheel Material | Poly on Poly |
| Fork Lowered Height (in) | 2 |
| Fork Width (in) | 4 |
| Fork Length (in) | 22.4375 |
| Fork Thickness (in) | 1.75 |
| Maximum Adjustable Fork Width (in) | 43.25 |
| Fork Saddle Width (in) | 28.25 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
