Description
Description

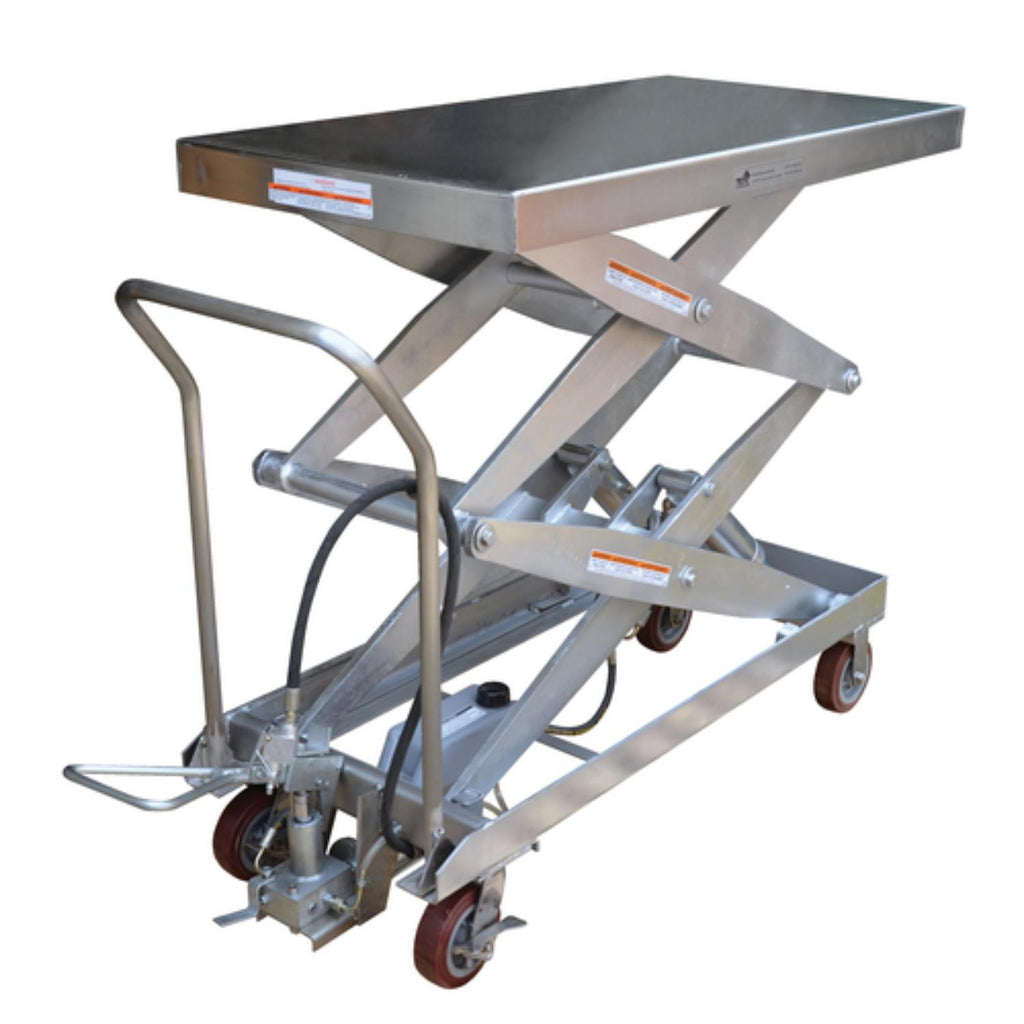

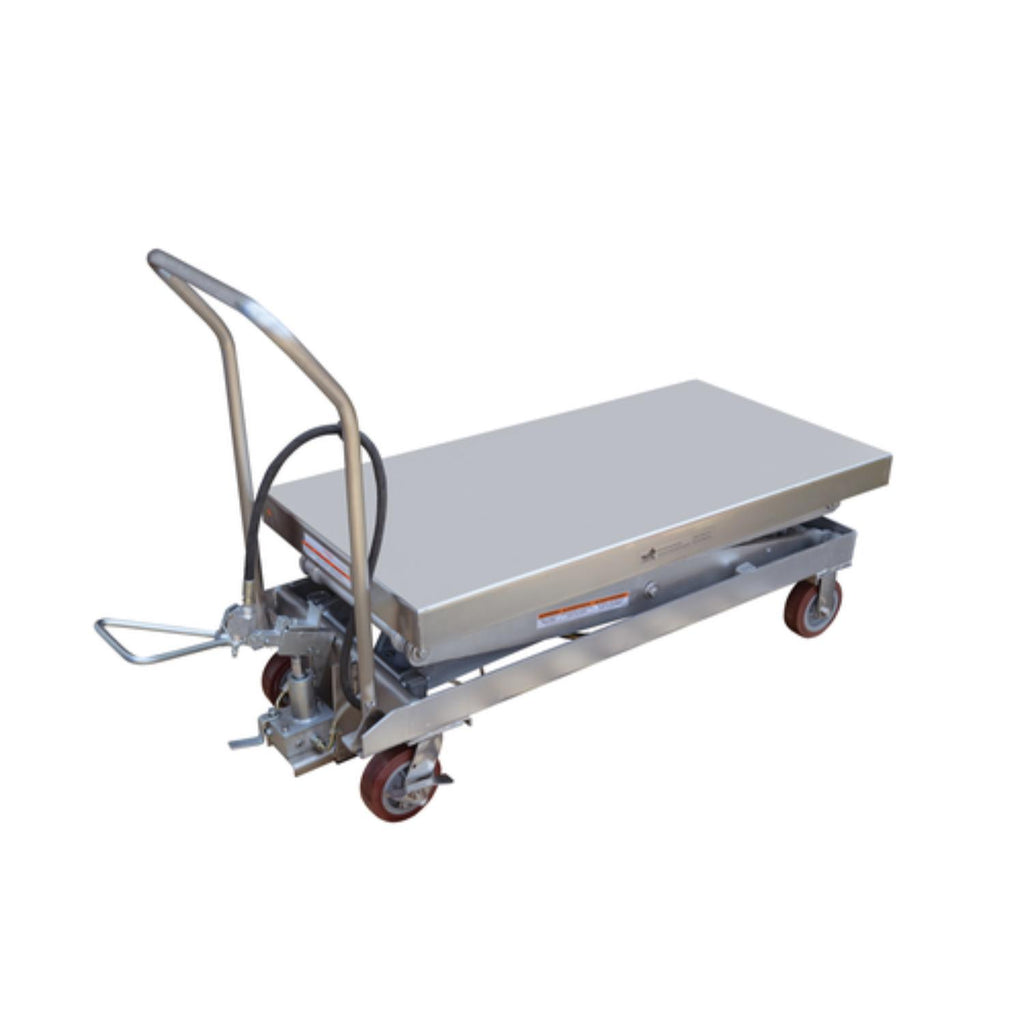

The air Hydraulic cart features a two speed foot pump and hand held reciprocating air/oil power to raise the platform. It utilizes the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting. The platform, frame, handle, caster rigs, and hardware are all stainless steel. Pump assembly, hydraulic cylinder, and scissor legs are zinc plated.
Features
- Reciprocating air/oil conveniently raises platform with ease
- Two speed foot pump raises platform when air is not available
- Poly-on-poly wheels roll smoothly when loaded down
- Steel construction provides solid long lasting use
Specifications
| Specification | Values |
|---|---|
| Power Source | Pneumatic |
| Platform Length (in) | 47.5 |
| Platform Width (in) | 24 |
| Platform Material | Stainless Steel |
| Maximum Height (in) | 67 |
| Minimum Height (in) | 19.5 |
| Maximum Travel Distance (in) | 47.5 |
| Weight Capacity (lbs) | 1500 |
| Color / Finish | Silver |
| Weight (lbs) | 515 |
| Frame Material | Stainless Steel |
| Scale Included | No |
| Operation Method | Push Button |
| Air Inlet Size (in) | .375 |
| Operating Pressure | 80-100 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Material | Poly on Poly |
| Front Wheel Diameter (in) | 6 |
| Front Wheel Material | Poly on Poly |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 54.5 |
| Overall Width (in) | 24 |
| Overall Height (in) | 39.5 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
