Description
Description

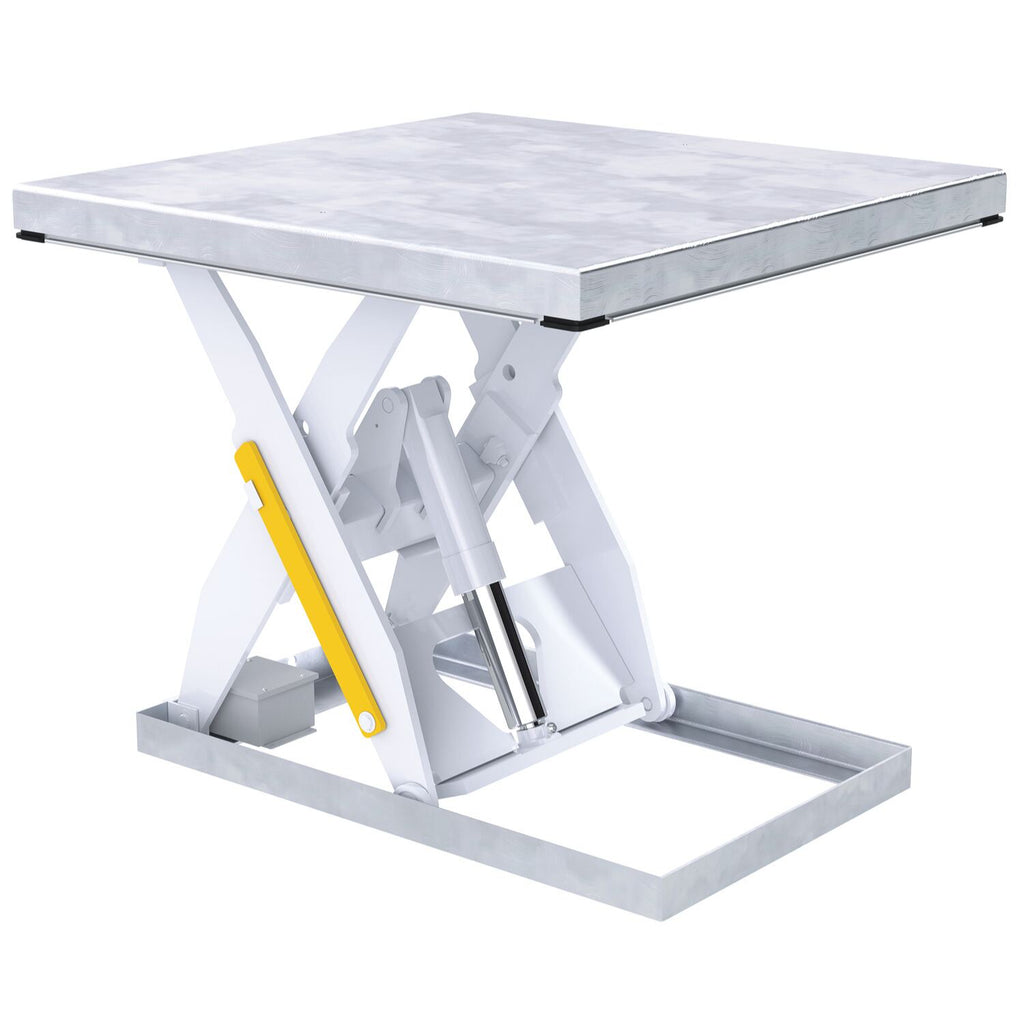

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during the lowering of the table, safety velocity fuse to maintain platform height in the event of hose or fitting failure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop the table at maximum height. A 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard with additional voltage options available. This unit has a 3000 psi hydraulic component rating.
Features
- Partially stainless steel construction for durability
- Large platform to handle large awkward sized material
- AC powered for constant power supply functionality
- Remote control capability to create distance between personnel and table
Specifications
| Uniform Capacity (lb.) | 3,000 |
| Voltage/Phase | 460/3 |
| Hydraulic Component Rating (psi) | 3000 |
| Raised Height (in.) | 43 |
| Frame and Deck Material |
Stainless Steel
|
| Stainless Steel Finish |
Unpolished Mill Finish
|
| Travel Time (sec.) | 16 |
| Hertz | 60 |
| Cord Length (in.) | 96 |
| Lowered Height (in.) | 7 |
| Greasable Pins and Roller Material |
Stainless Steel
|
| Overall Length (in.) | 51 |
| Vertical Travel (in.) | 36 |
| Motor Horsepower | 2 |
| Push Button Hand Control | 24V AC |
| Platform Width/Length (in.) | 48-3/8 X 48-3/8 |
| Scissor Legset Material |
Carbon Steel with Powder Coat White Finish
|
| Total Ship Wt.(lbs.) | 841 |
| Size |
48.375"W x 51"L x 7"H
|
| Color |
Silver (Frame, Deck), White (Leg Set)
|
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
- Cancelable: N
- Packaging is Returnable: N
