Description
Description

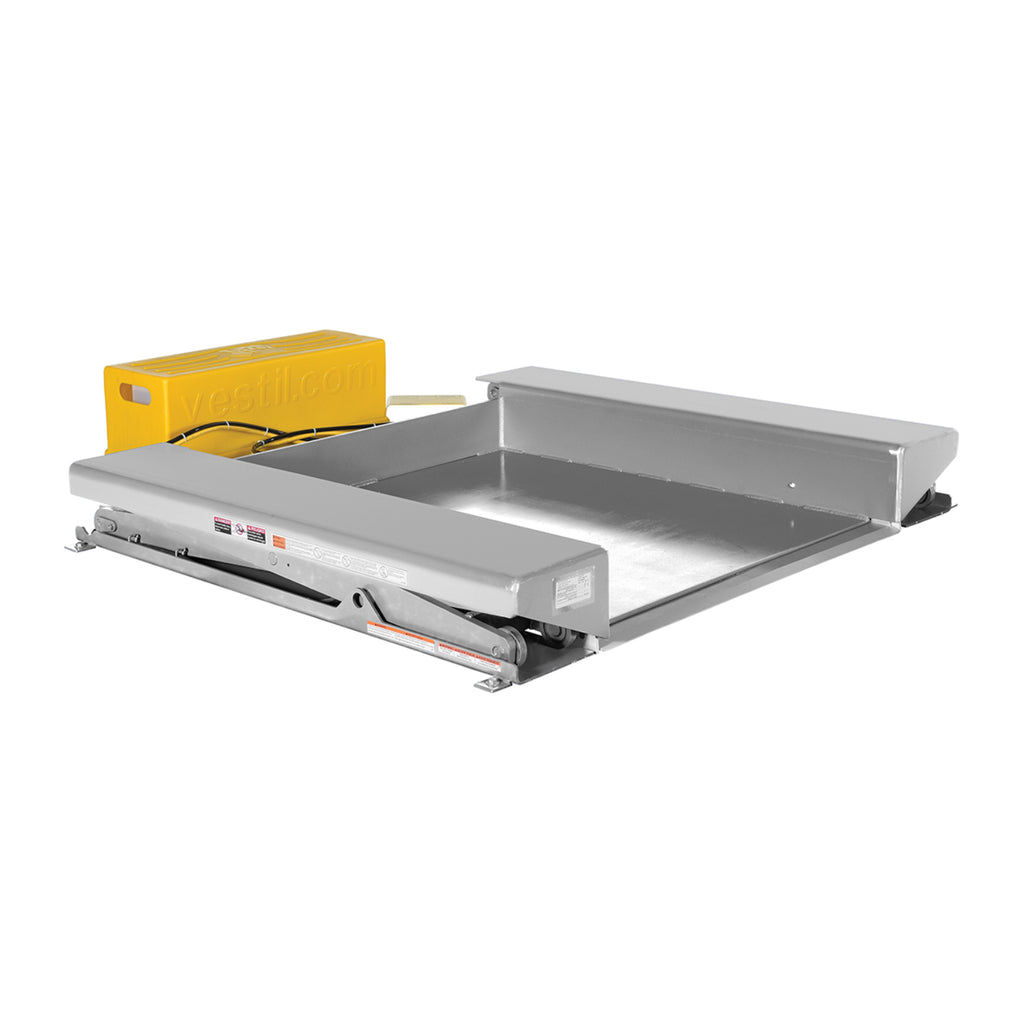

A ground lift scissor table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard protects pinch points during lowering of the table and a safety velocity fuse to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and additional voltage options are available.
Features
- Perfect for ergonomic alignment
- Built-in safety features to minimize vulnerability
- Integral system to maintain platform height
- Remote power for use away from table
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Color / Finish | Silver |
| Weight Capacity (lbs) | 4000 |
| Overall Height (in) | 44.5 |
| Overall Length (in) | 56 |
| Overall Width (in) | 61 |
| Platform Material | Stainless Steel |
| Platform Length (in) | 50 |
| Platform Width (in) | 38 |
| Maximum Height (in) | 36 |
| Minimum Height (in) | 0.5 |
| Maximum Travel Distance (in) | 35.5 |
| Operation Method | Foot Operated |
| Overload Protection | Yes |
| Lifting Speed (sec/ft) | 50 |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Power Cord Length (ft) | 8 |
| Weight (lbs) | 1272 |
| Installation Hardware Included | Not Required |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
- Cancelable: N
- Packaging is Returnable: N
