Description
Description

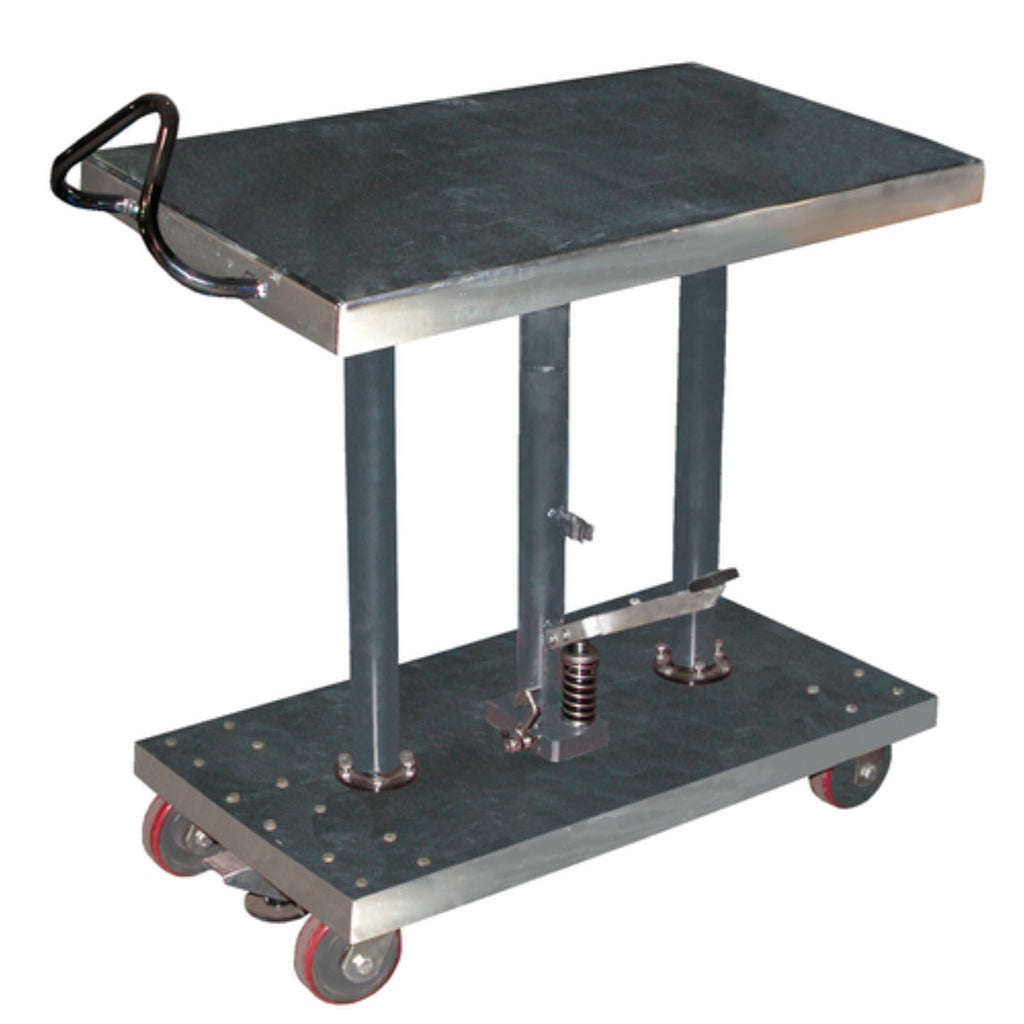

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four casters; two locking swivel with brakes and two rigid. The light duty-units feature a single-speed foot pump. All foot pumps include a down speed control valve for safe platform lowering.
Features
- Heavy-duty construction is ideal for industrial work areas
- Telescopic posts stabilize loads during use
- Units feature two rigid and two swivel casters for easy portability
- Patented ergonomic push handle makes pushing the unit safe and easy
Specifications
| Specification | Value |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 36 |
| Platform Width (in) | 20 |
| Platform Material | Partial Stainless Steel |
| Maximum Height (in) | 54 |
| Minimum Height (in) | 36 |
| Maximum Travel Distance (in) | 18 |
| Number of Posts | 2 |
| Weight Capacity (lbs) | 1000 |
| Color / Finish | Silver |
| Weight (lbs) | 241 |
| Frame Material | Partial Stainless Steel |
| Operation Method | Foot Operated |
| Pump Speeds | 2 |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Poly on Poly |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Poly on Poly |
| Installation Hardware Included | Not Required |
| Additional Contents | (2) Rigid Casters 1.5" Wide, (2) Swivel Locking Casters w/ Brakes 1.5" |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 40 |
| Overall Width (in) | 20 |
| Overall Height (in) | 36 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
