Description
Description

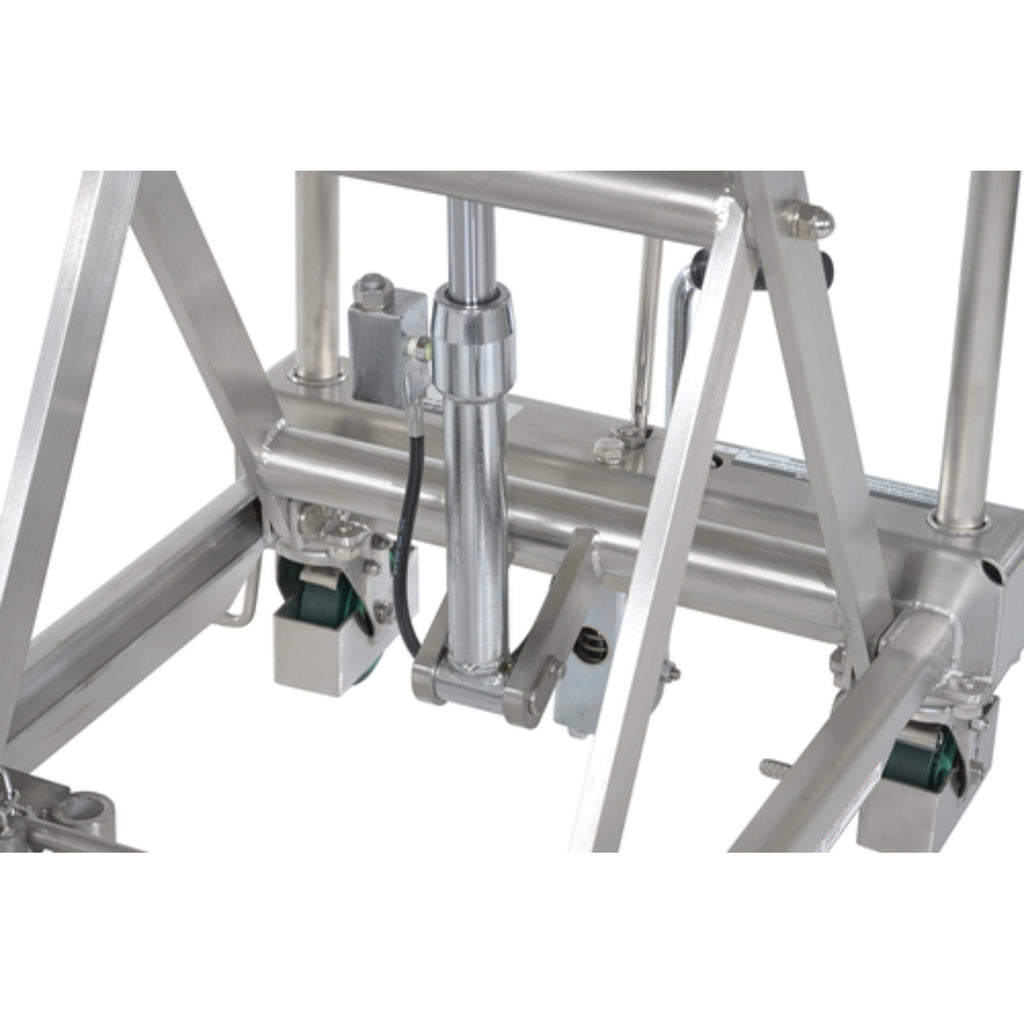

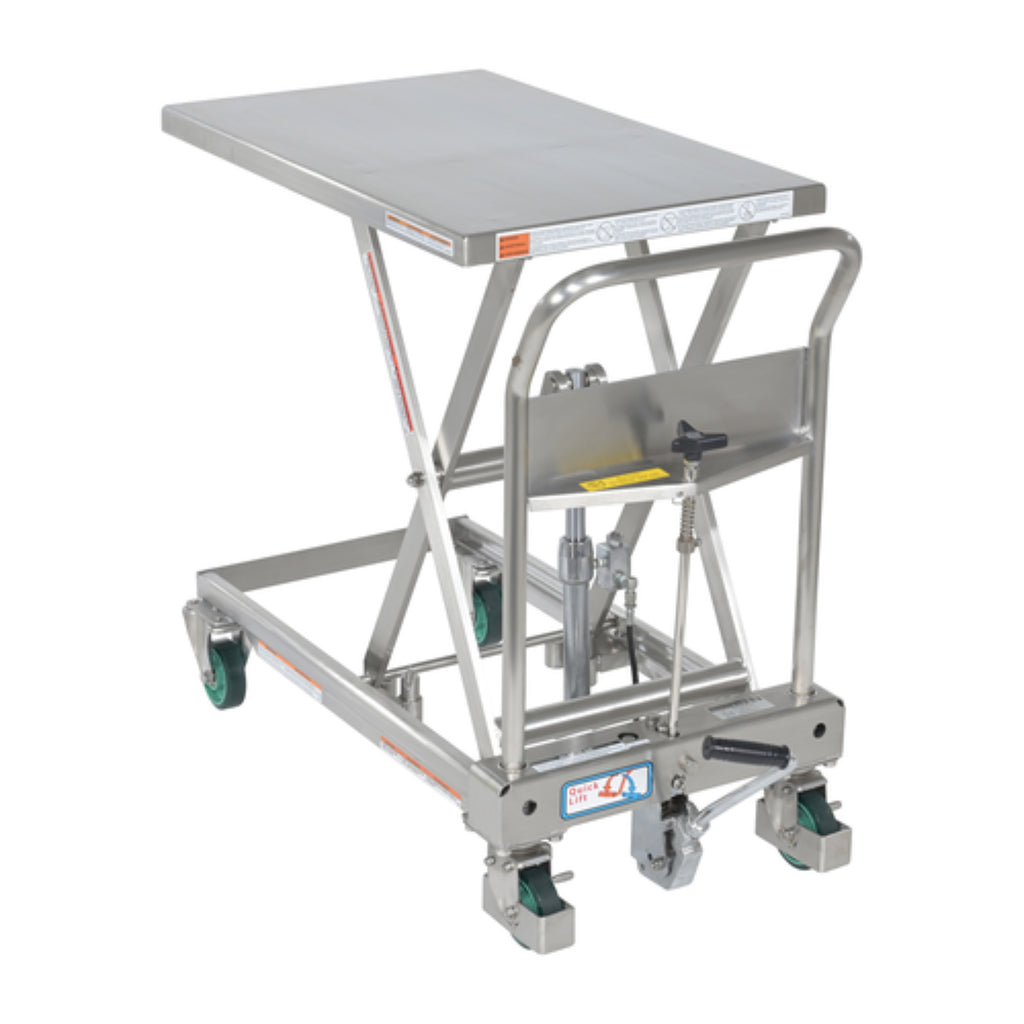

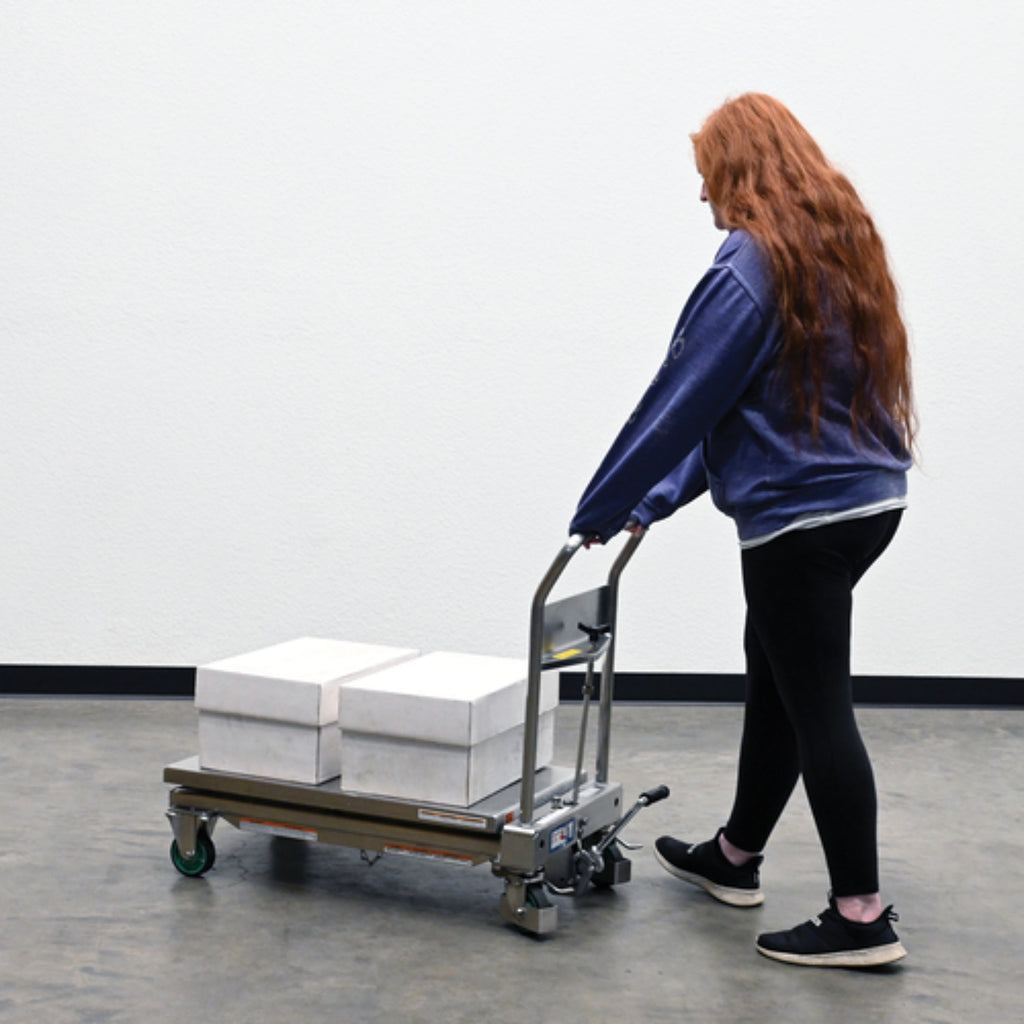

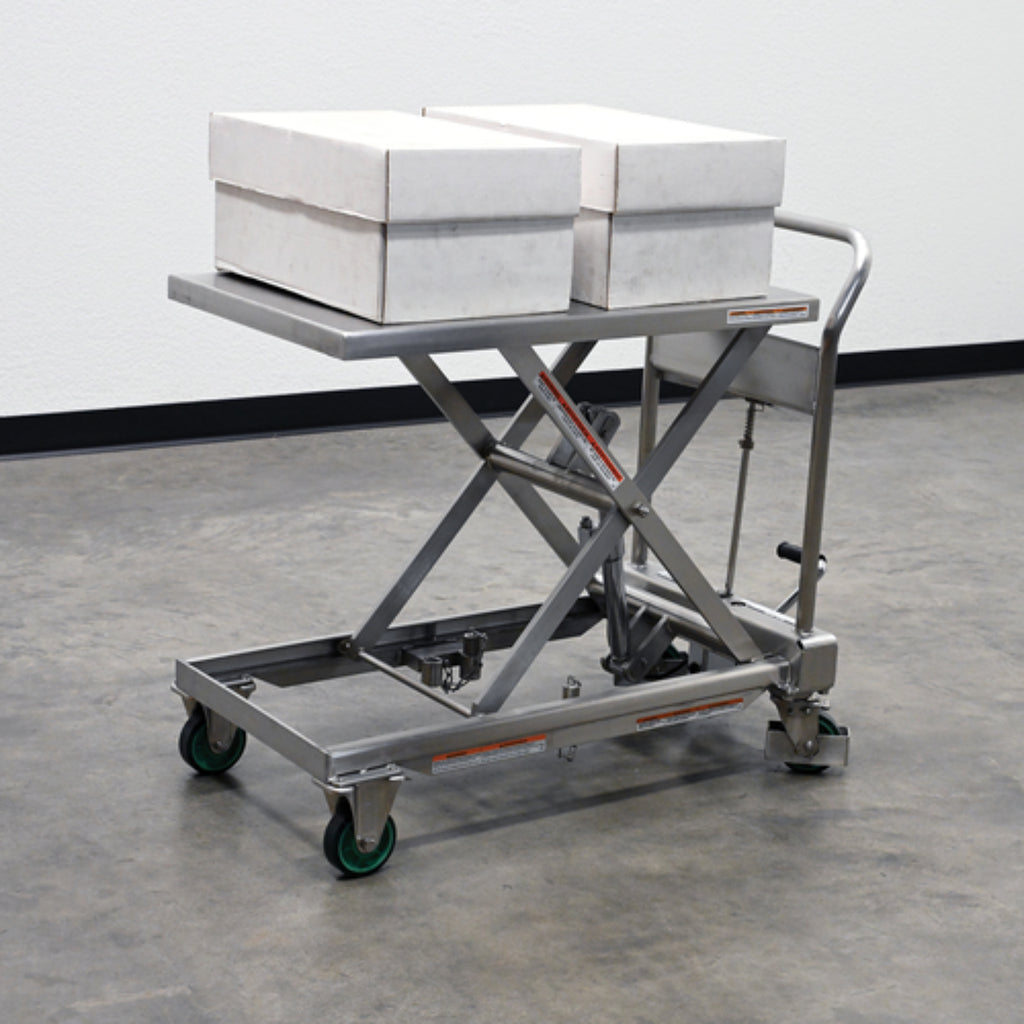

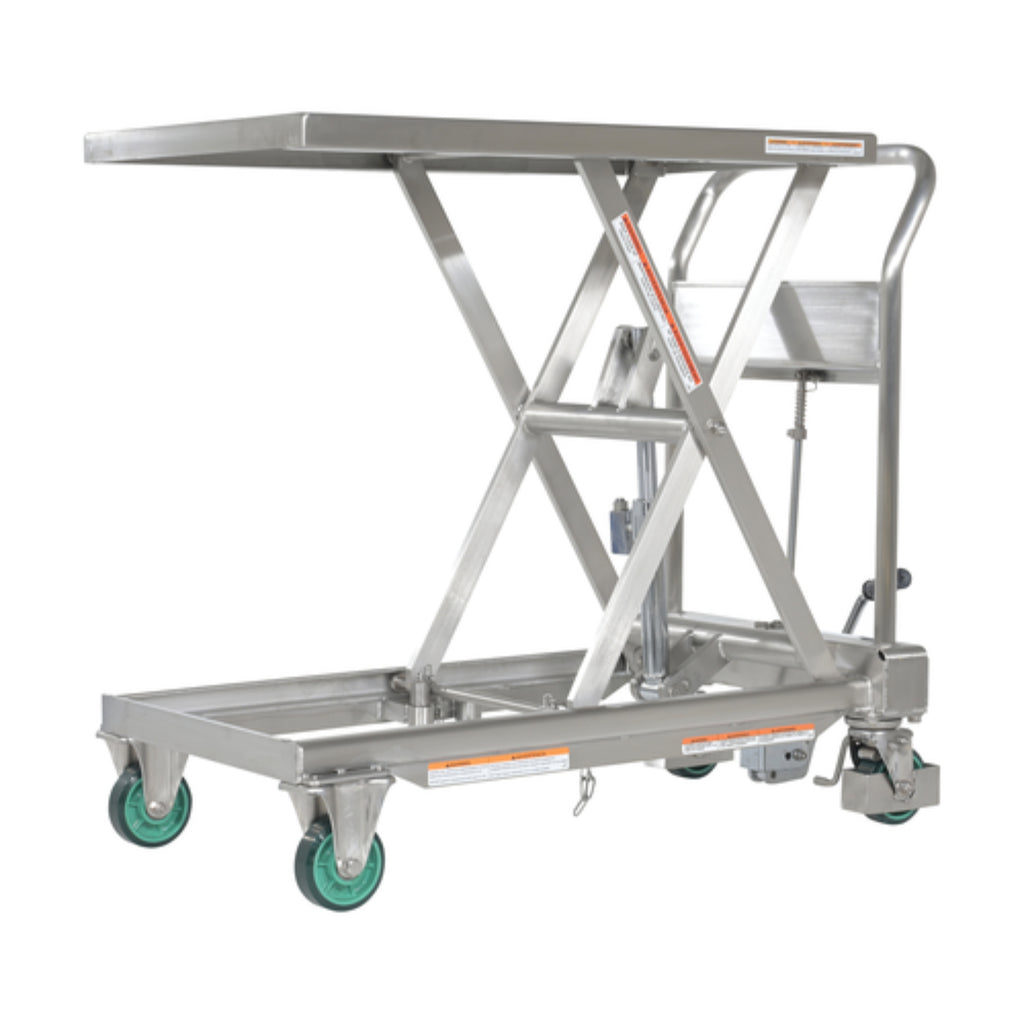

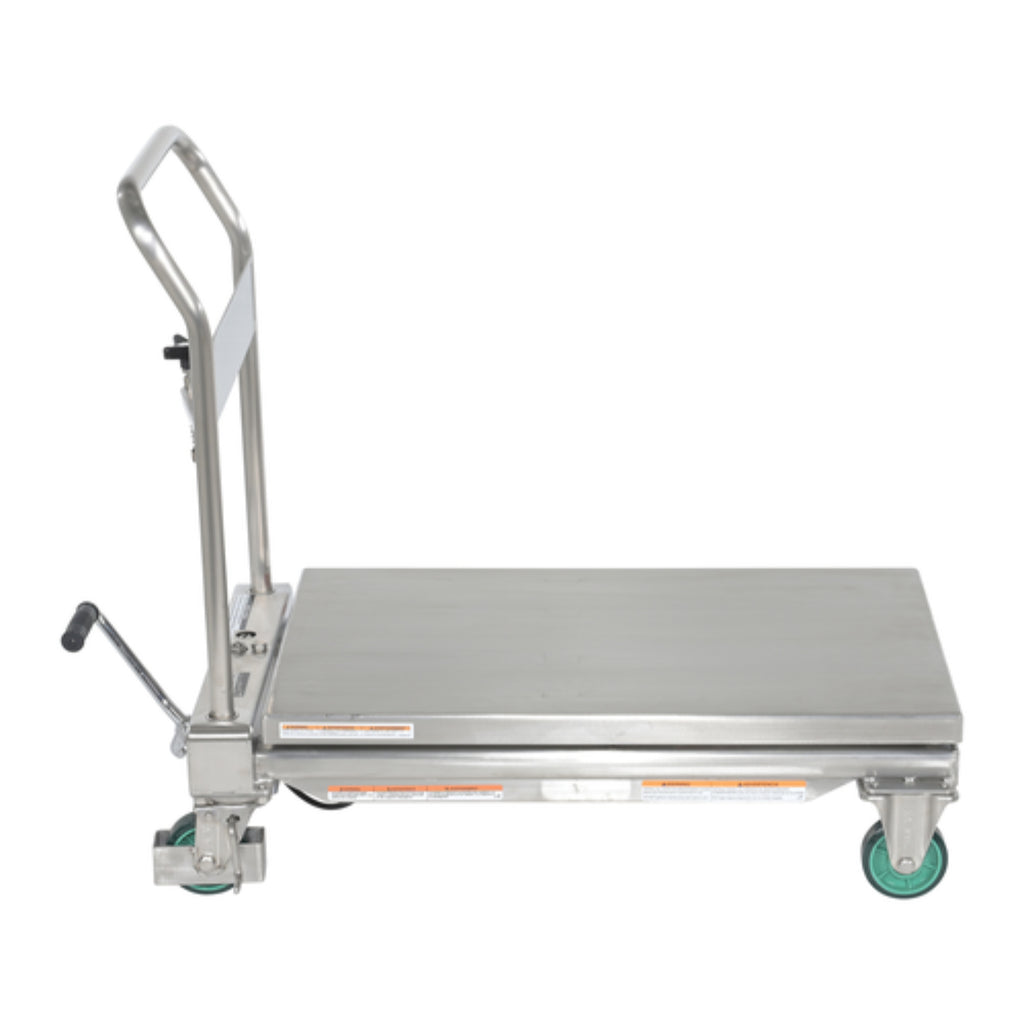

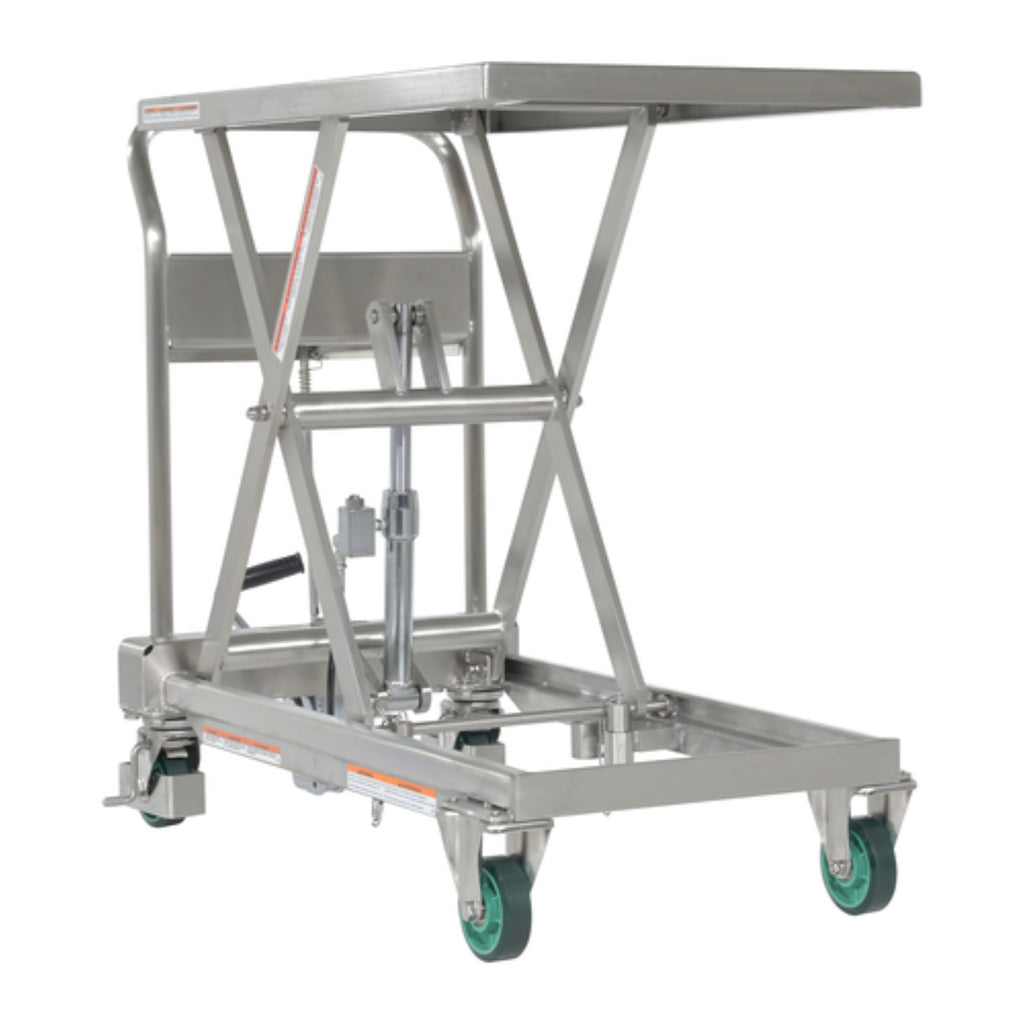

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.
Features
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Stainless Steel construction offers long lasting rugged use
Specifications
| Specification | Value |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 31.5 |
| Platform Width (in) | 19.5 |
| Platform Material | Stainless Steel |
| Maximum Height (in) | 33.5 |
| Minimum Height (in) | 9.75 |
| Maximum Travel Distance (in) | 23.75 |
| Weight Capacity (lbs) | 550 |
| Color / Finish | Silver |
| Weight (lbs) | 134 |
| Frame Material | Stainless Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Pump Speeds | 2 |
| Number of Pumps on Low Setting | 27 |
| Number of Pumps on High Setting | 12 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Polyurethane |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Polyurethane |
| Additional Contents | Includes (2) Rigid Casters 1-1/4 In. Width, and (2) Swivel Casters with Brakes 1-1/4 In. Width |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 41.3125 |
| Overall Width (in) | 21.2656 |
| Overall Height (in) | 33.2656 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
