Description
Description

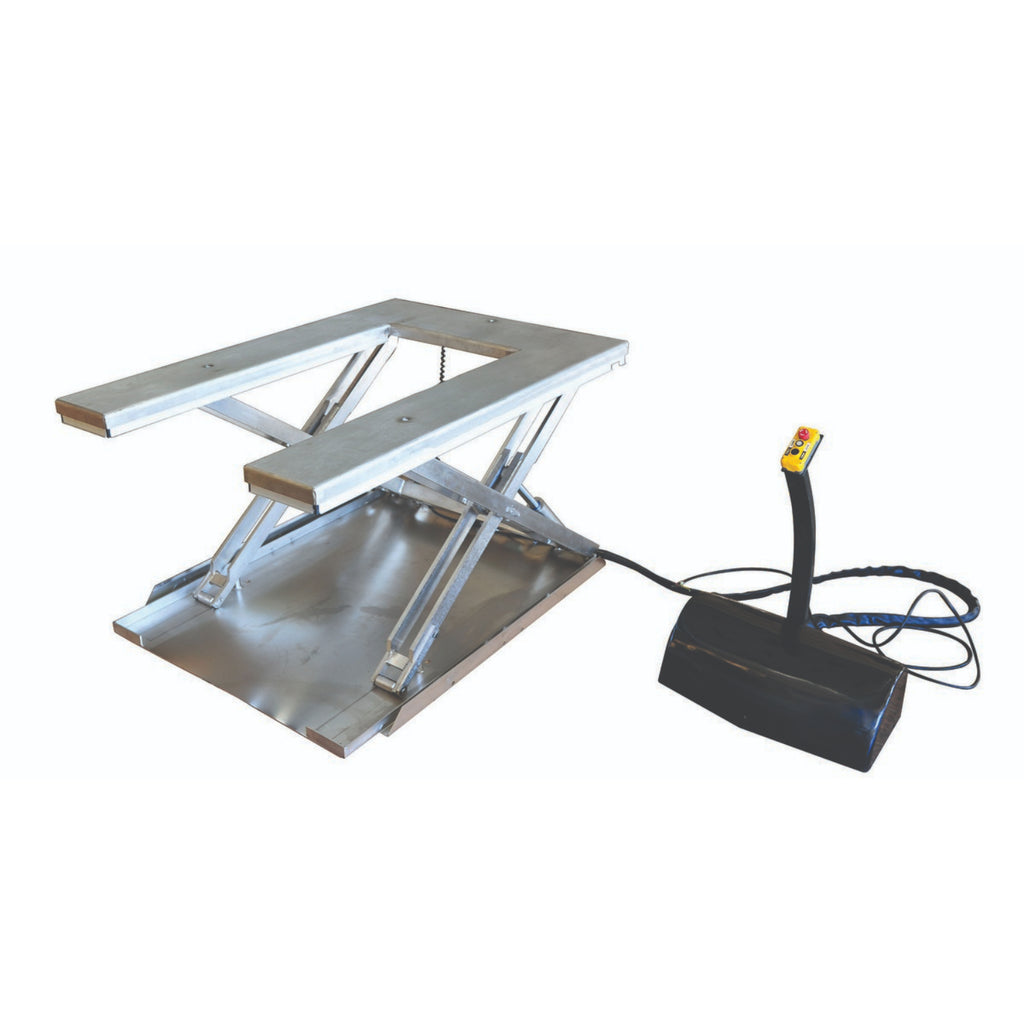

The low profile electric lift tables with the unique, steel constructed, "U" design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The up and down push button raises and lowers the unit and is located on the control box. Safety features include toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons.
Features
- Low profile "U" type electric lift table has an open center that enables a pallet truck to place a load on the platform
- Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
- Up and down push button raises and lowers the unit
- Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety
Specifications
| Feature | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 44.25 |
| Platform Width (in) | 29.75 |
| Platform Material | Stainless Steel |
| Maximum Height (in) | 33.375 |
| Minimum Height (in) | 3.375 |
| Weight Capacity (lbs) | 1200 |
| Color / Finish | Silver |
| Weight (lbs) | 592 |
| Frame Material | Stainless Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Lifting Speed (sec/ft) | 20 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 1.5 |
| Phase | Single Phase |
| Voltage (V) | 110 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 64 |
| Manufacturer Warranty | 1 Year |
| Overall Width (in) | 49.875 |
| Overall Height (in) | 3.375 |
| Maximum Travel Distance (in) | 30 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
