Description
Description

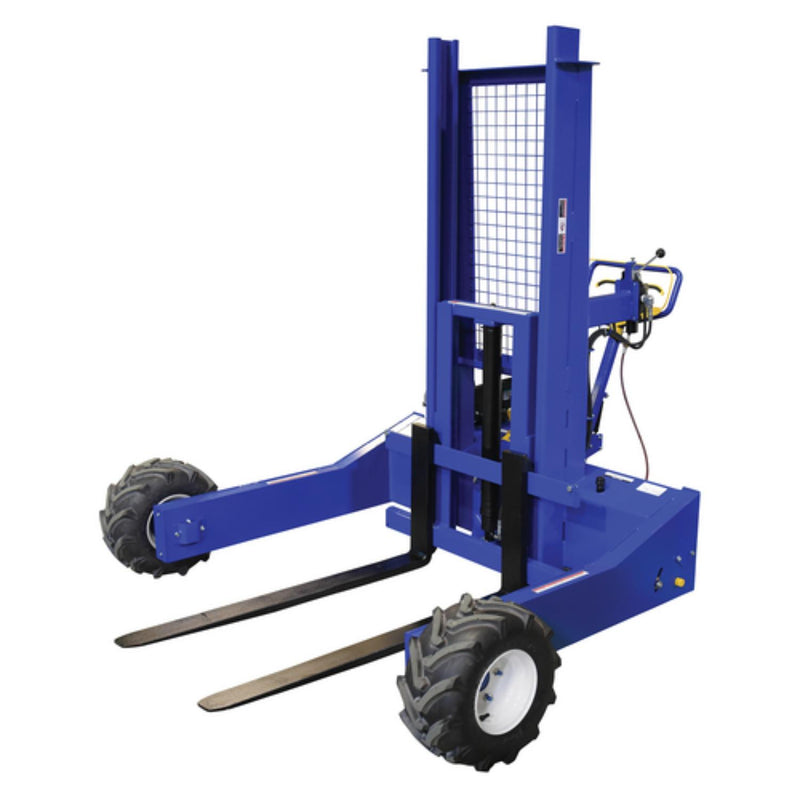

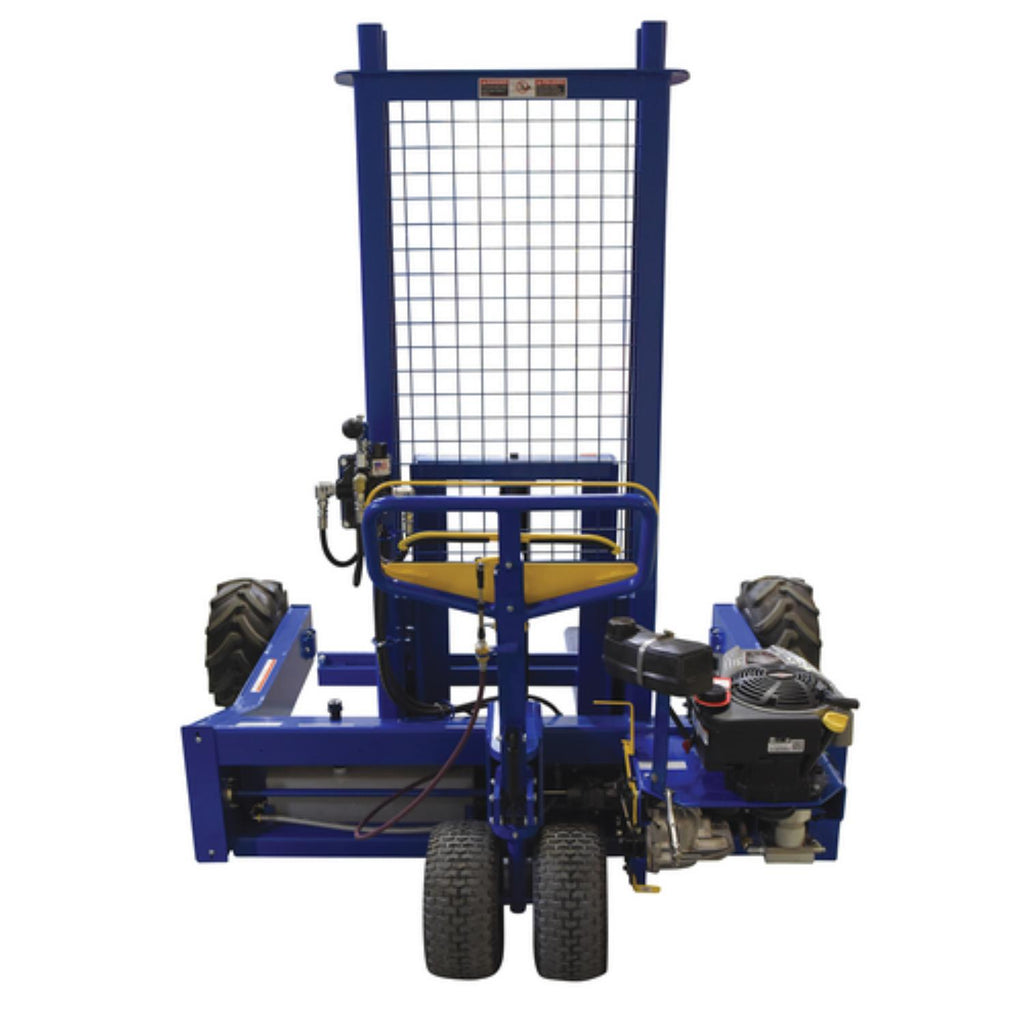

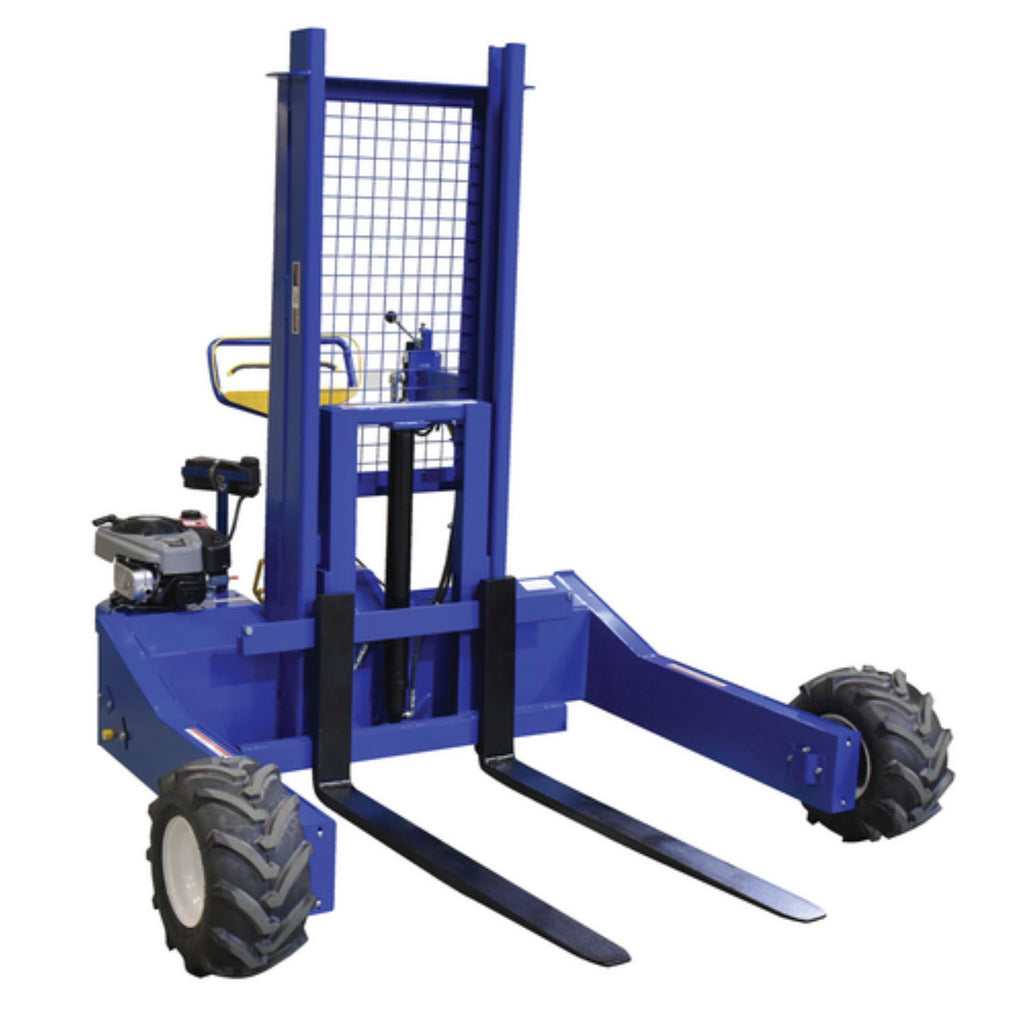

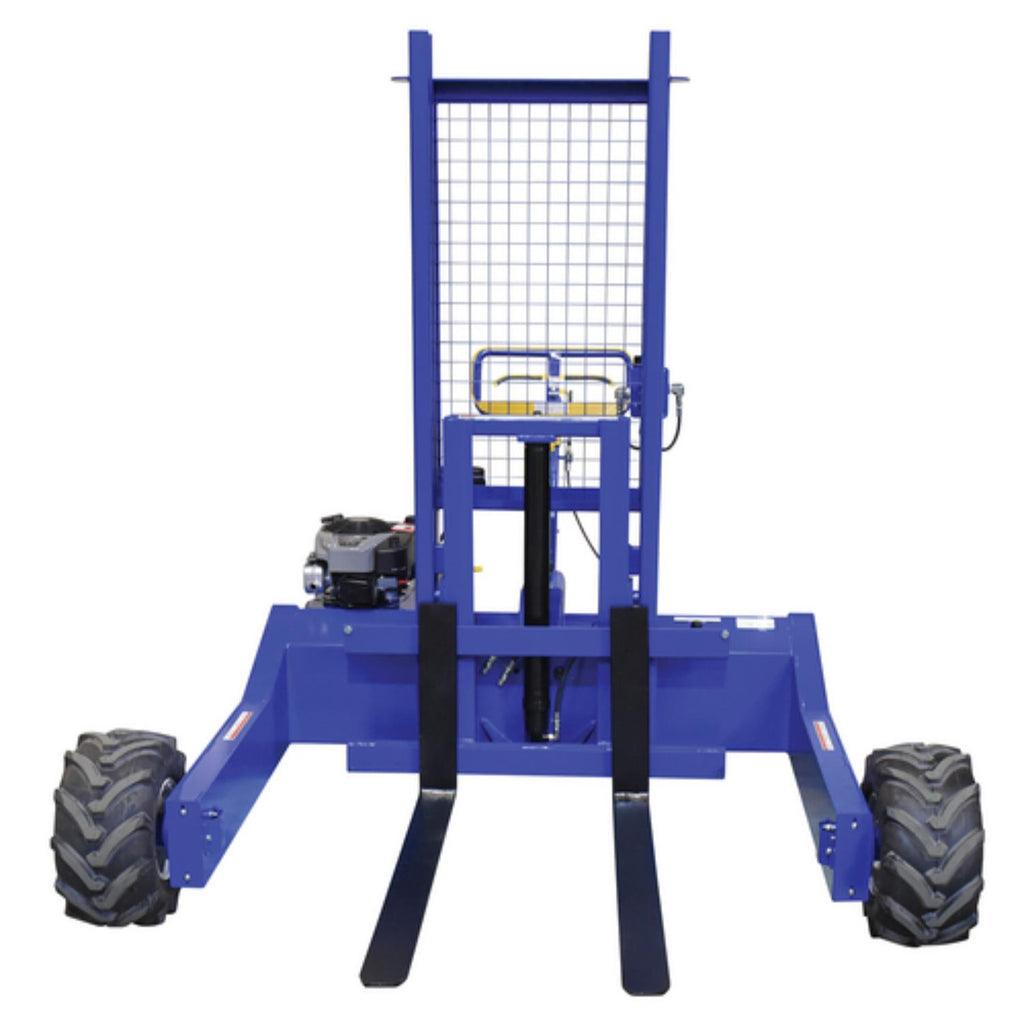

All terrain pallet truck with gas-powered traction drive system. Great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton 6HP gas-powered engine for both the power traction drive and fork lift/lower. Handle with forward reverse speed control and dead man safety switch. Approximate walking speed is 3 mph. Hydrostatic transmission with hand-operated forward and reverse selection. Powered fork raise and lower control lever. Usable width between outriggers is 52". Forks adjust 8" to 36". Pneumatic steer wheels are 13" diameter x 4" wide each. The drive wheels are 18" diameter x 8." wide each foam filled. Wheels include sealed bearings for outdoor use. Steering arc is 150�. Comply with ASME B56.1-2004. Optional 10.5 HP engine with electric start and heavy duty trans axle available.
Features
- Three position handle makes operation easy
- Unique design easily rolls on pneumatic tires
- Welded steel tubular frame construction provides maximum strength
- Sealed bearing wheels provide dust protection and long life
Specifications
| Specification | Value |
|---|---|
| Assembly Required | None |
| Color / Finish | Blue |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 45.375 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 48 |
| Power Source | Gas |
| Weight Capacity (lbs) | 1,000 |
| Application | Moving heavy loads over rough terrain |
| Depth (in) | 86.6875 |
| Height (in) | 79.3125 |
| Width (in) | 79 |
| Wheel Material | Foam Filled Pneumatic |
| Fork Lowered Height (in) | 3 |
| Fork Width (in) | 4 |
| Fork Length (in) | 48 |
| Fork Thickness (in) | 1.25 |
| Maximum Adjustable Fork Width (in) | 36 |
| Fork Saddle Width (in) | 52 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
