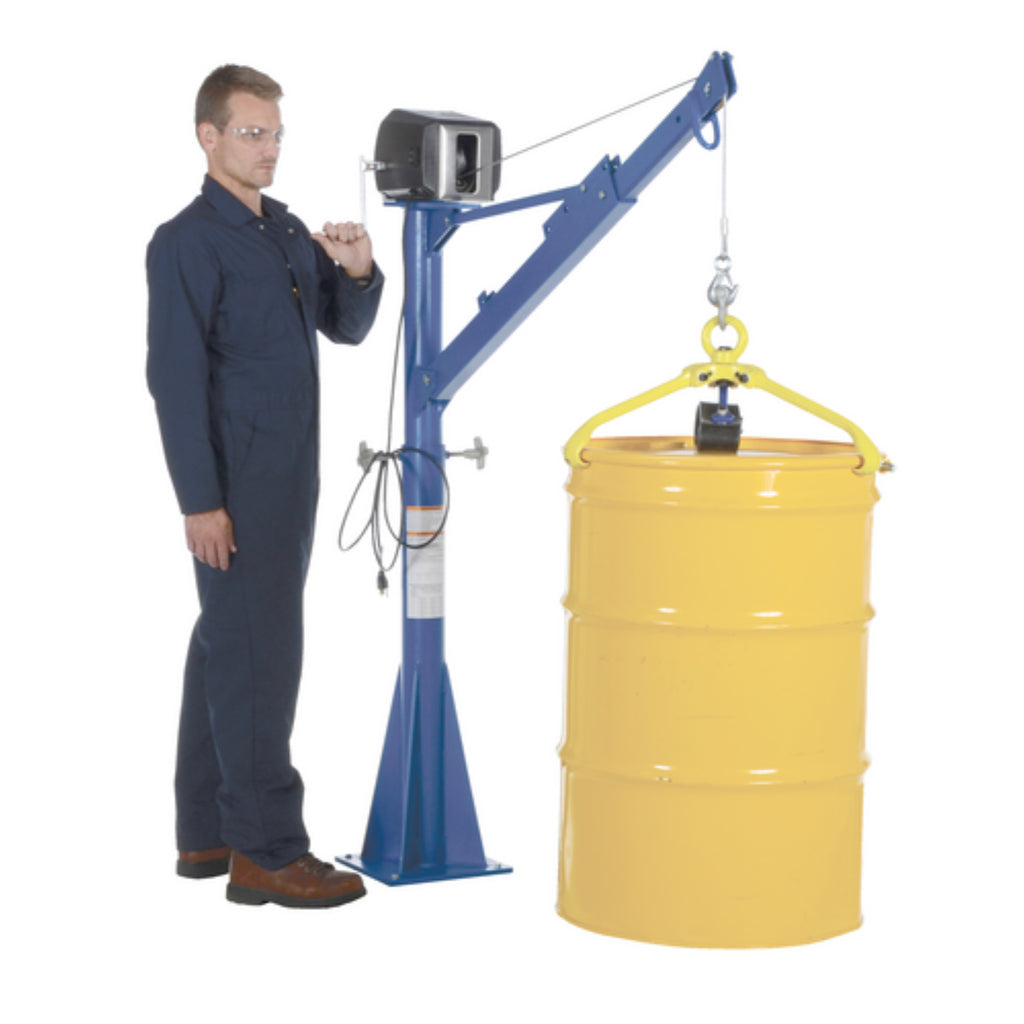

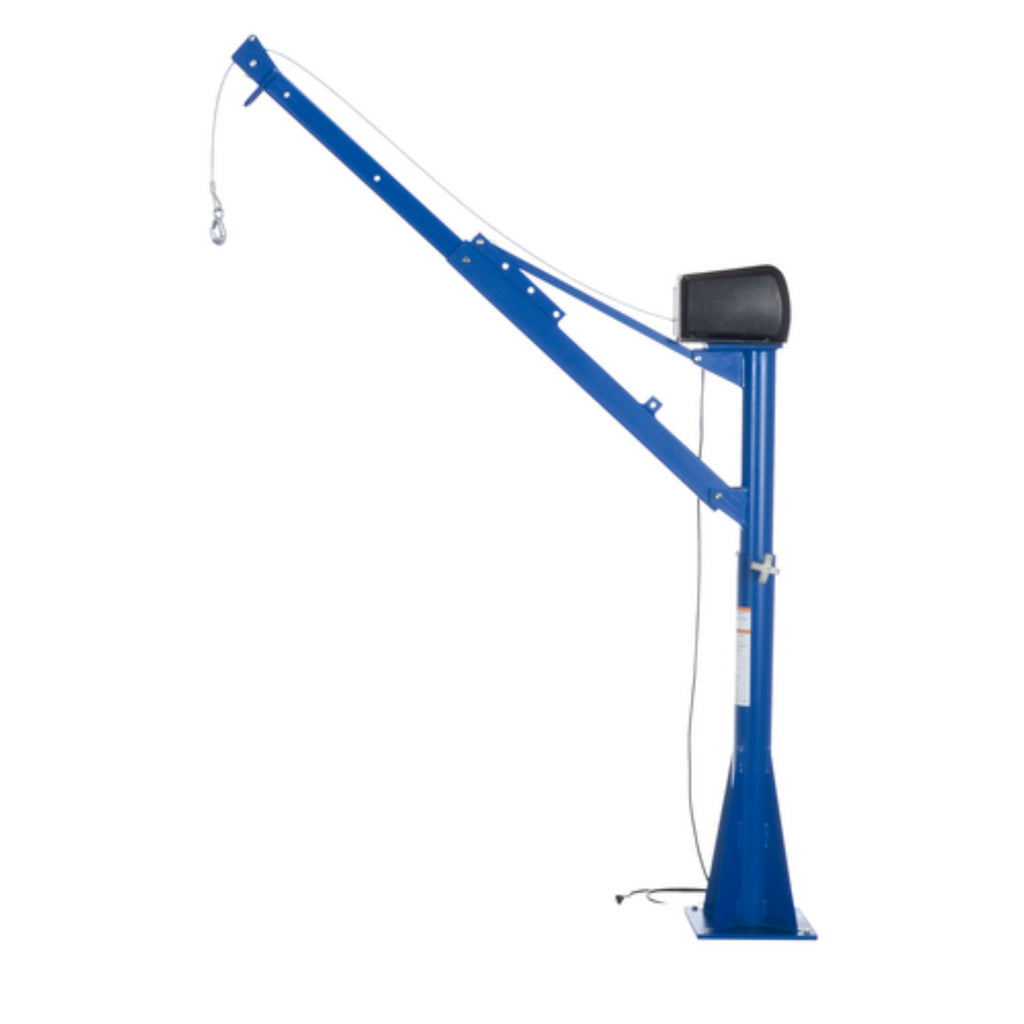

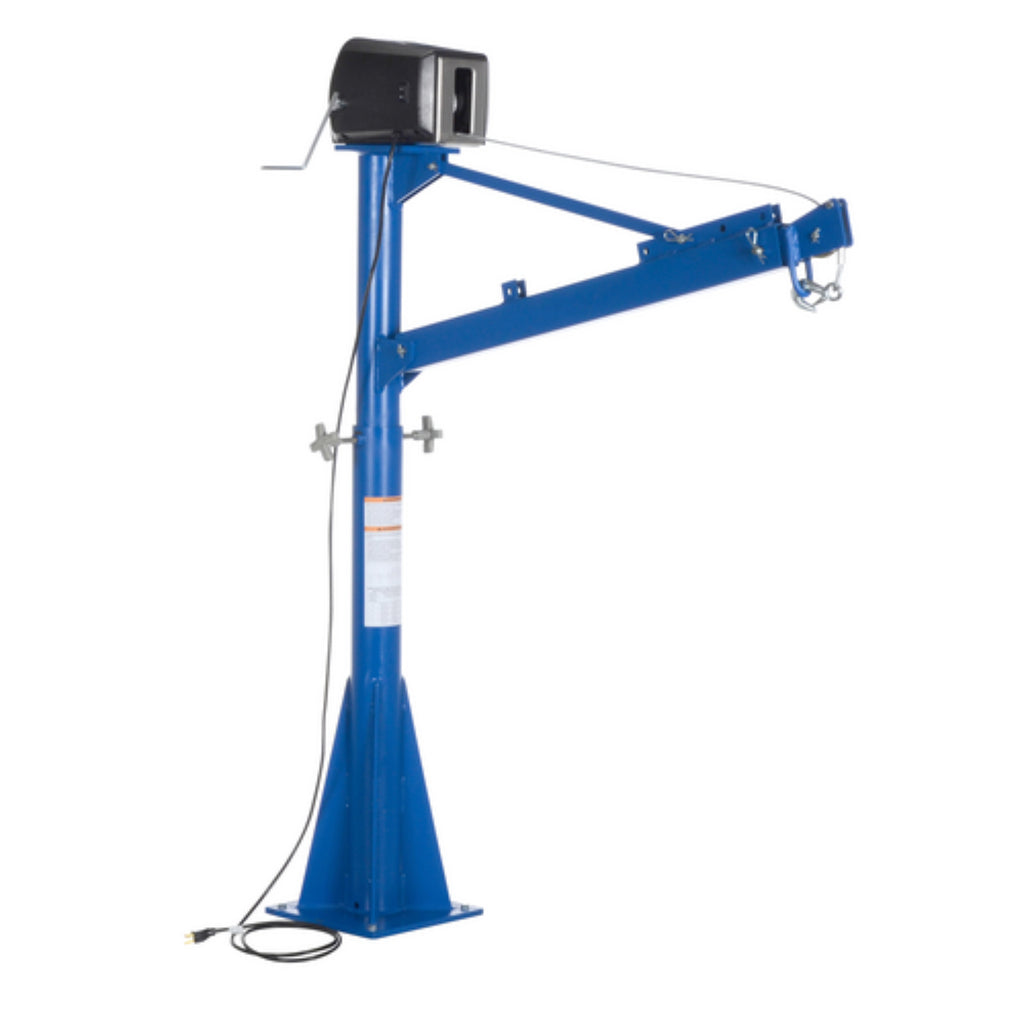

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This lift jib crane is the economical answer to your material handling problems. It offers light-duty, intermittent use. Locking manual rotation. The cable has a swivel snatch block and safety latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
Features
- Powered cable winch makes lifting and maneuvering easy
- Boom telescopes in and out for greater reach and versatility
- 360 Degrees swivel design allows for maximum accessibility
- Pre-drilled base plate makes mounting quick and easy
Specifications
| Specification | Value |
|---|---|
| Color / Finish | Blue |
| Frame Material | Steel |
| Weight (lbs) | 319 |
| Maximum Rotation (°) | 360 |
| Overall Width (in) | 12 |
| Extended Capacity (lbs) | 200 |
| Extended Length (in) | 66.75 |
| Extended Maximum Hook Height (in) | 73.31 |
| Extended Minimum Hook Height (in) | 47.125 |
| Retracted Capacity (lbs) | 1100 |
| Retracted Length (in) | 43.125 |
| Retracted Maximum Hook Height (in) | 66.75 |
| Retracted Minimum Hook Height (in) | 43.06 |
| Base Length (in) | 12 |
| Base Width (in) | 12 |
| Base Height (in) | 18.5 |
| Installation Hardware Included | No |
| Manufacturer Warranty | 90 Days |
| Power Cable Length (ft) | 8 |
| Power Type | AC |
| Voltage (V) | 115 |
| Motor Horsepower (hp) | 0.3 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
