Description
Description

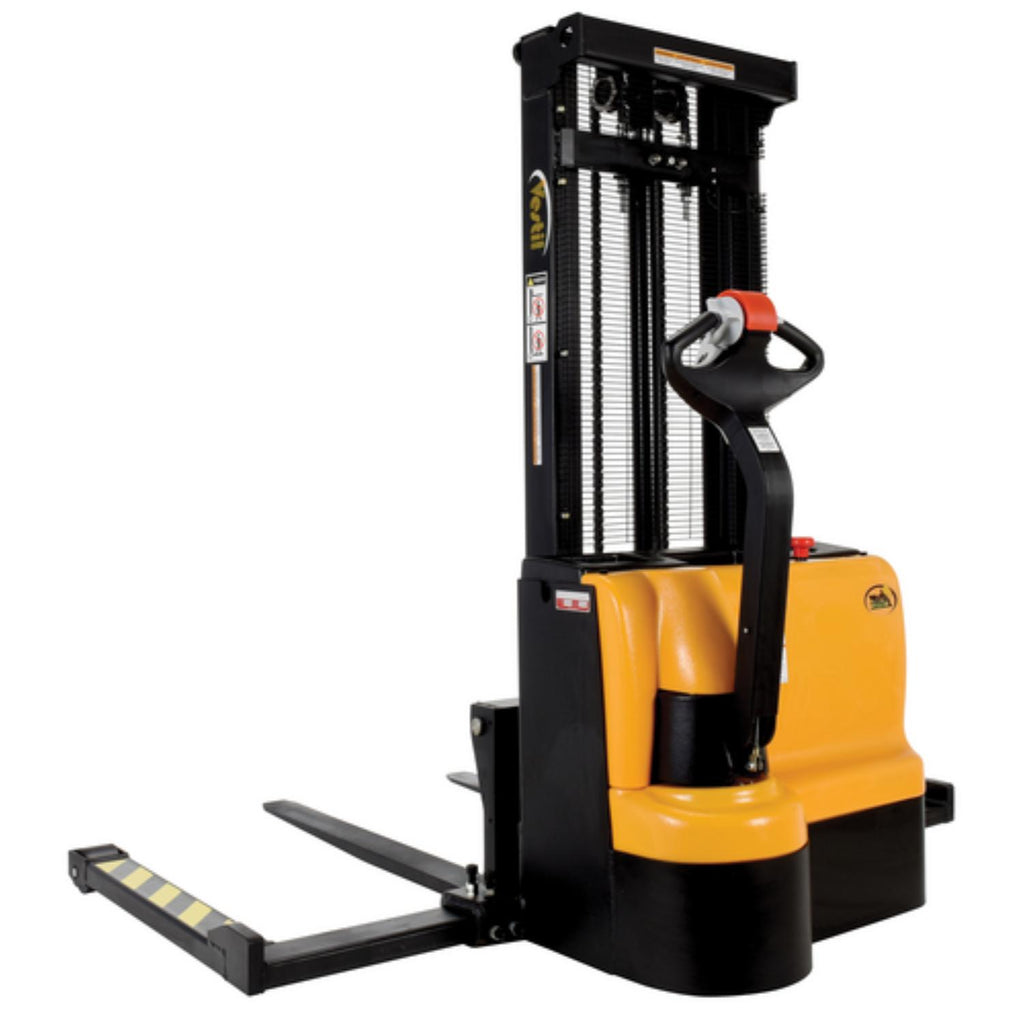

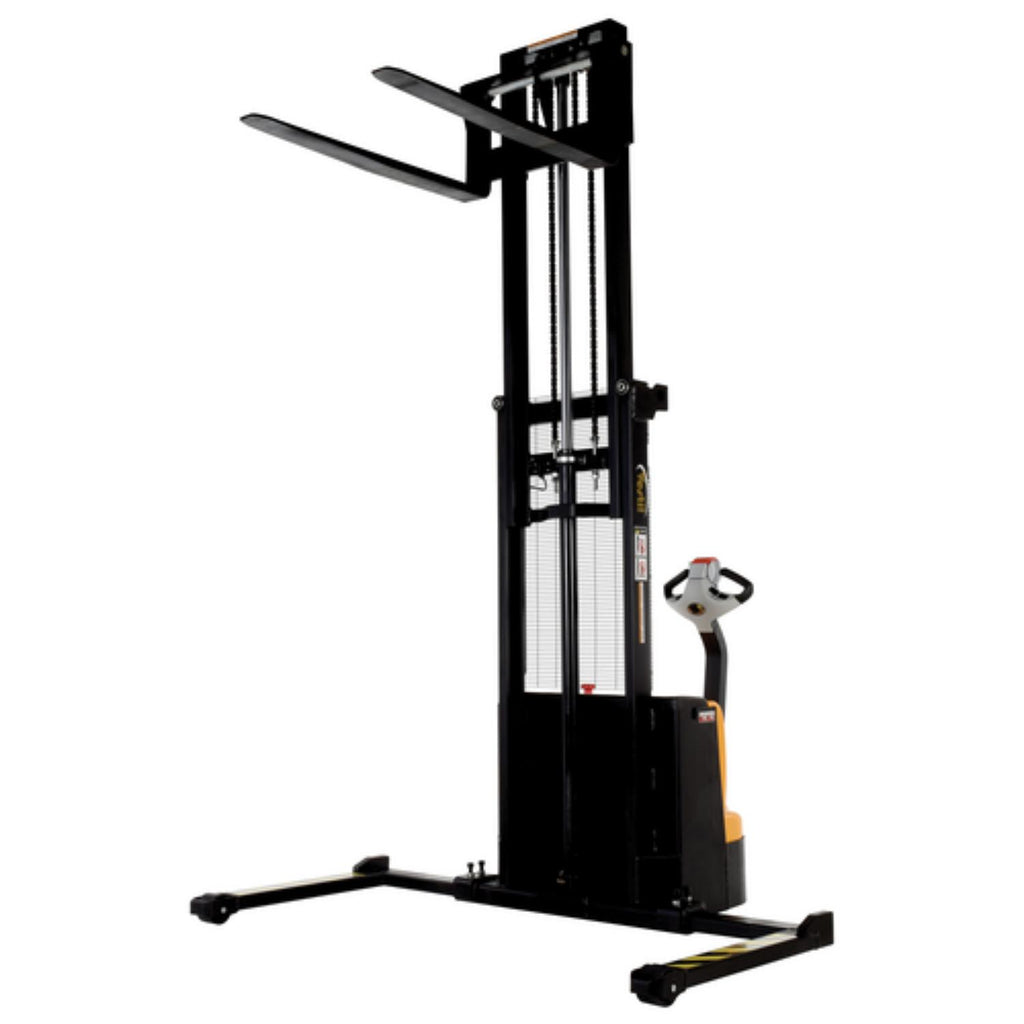

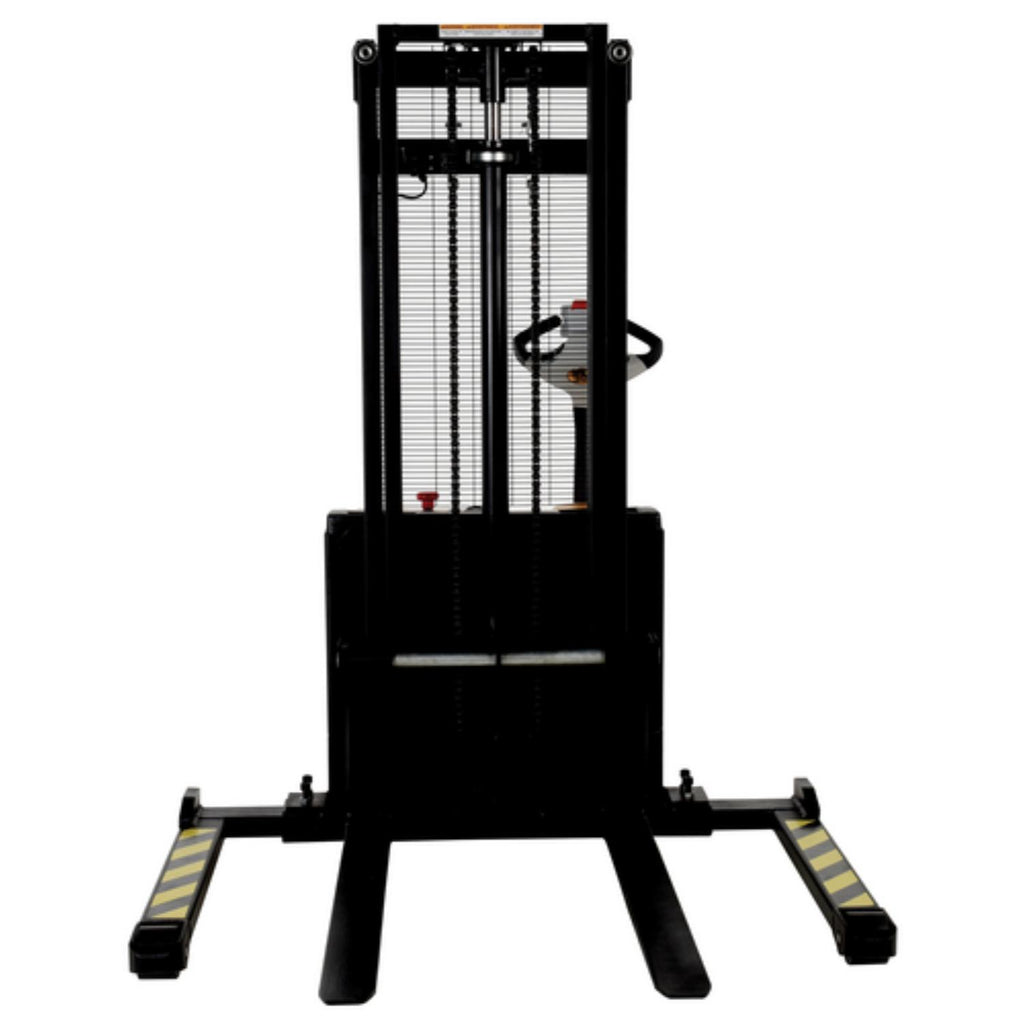

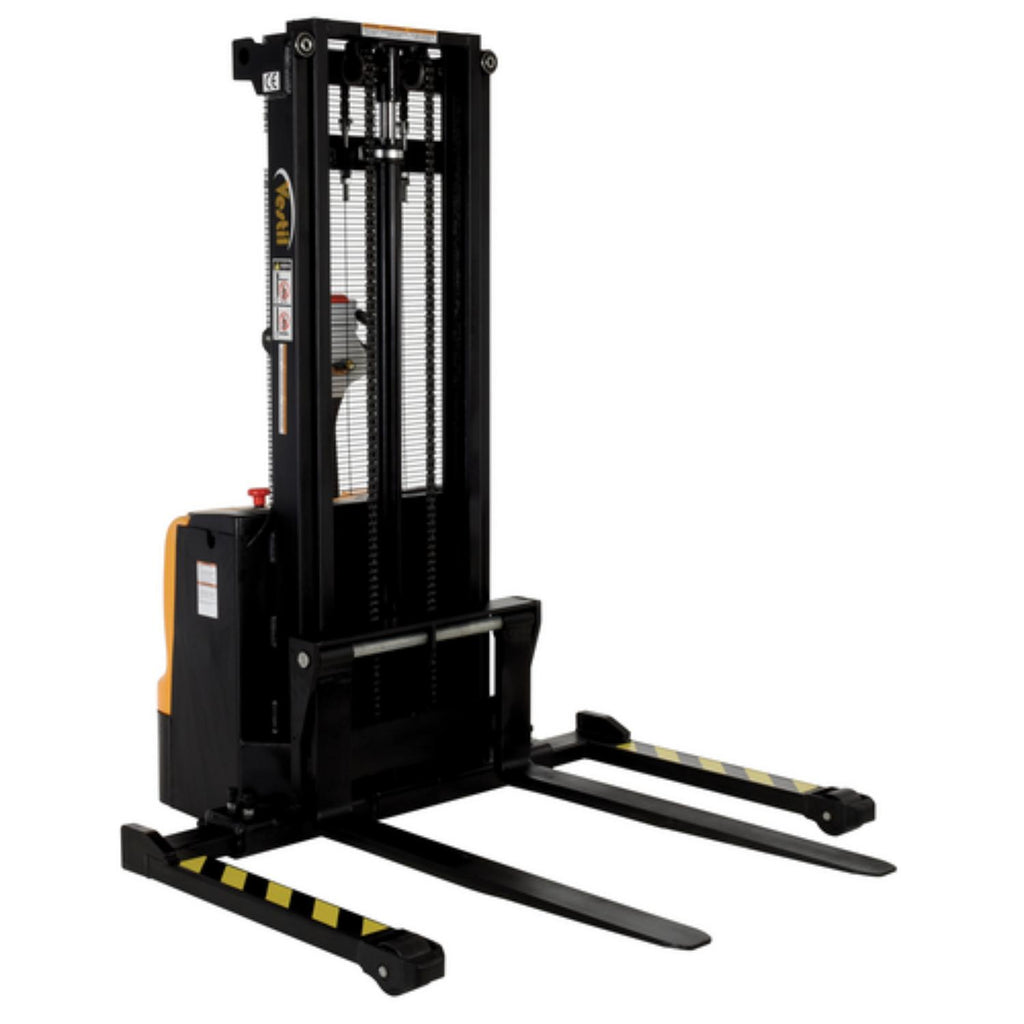

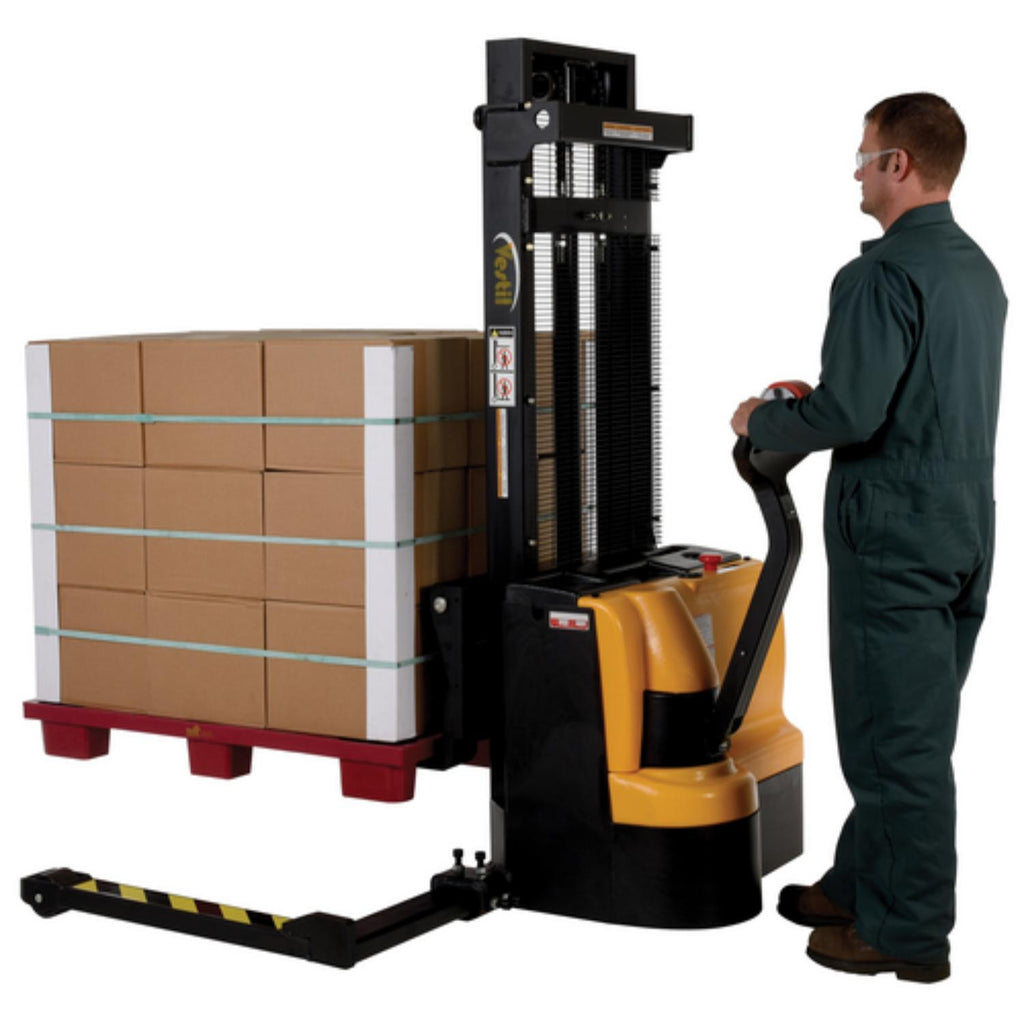

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, A battery charger, gauge and horn are included . stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.
Features
- Emergency reverse belly switch instantly reverses direction
- Powered unit to minimize manual labor
- Diminishes amount of bending and twisting
- Simple movement controls
Specifications
| Specification | Details |
|---|---|
| Power Source | Battery-operated |
| Maximum Lift Height (in) | 101 |
| Minimum Lift Height (in) | 2.125 |
| Maximum Travel Distance (in) | 98.875 |
| Weight Capacity (lbs) | 2200 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fork Length (in) | 42 |
| Fork Width (in) | 4 |
| Adjustable Forks | Yes |
| Minimum Width Between Forks (in) | 8.3 |
| Maximum Width Between Forks (in) | 26.75 |
| Adjustable Legs | Yes |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 40.125 |
| Maximum Width Between Legs (in) | 50 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 2 |
| Phase | Not Applicable |
| Voltage (V) | 24 |
| Number of Casters / Wheels | 5 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Poly on Steel |
| Weight (lbs) | 1362 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
