Description
Description

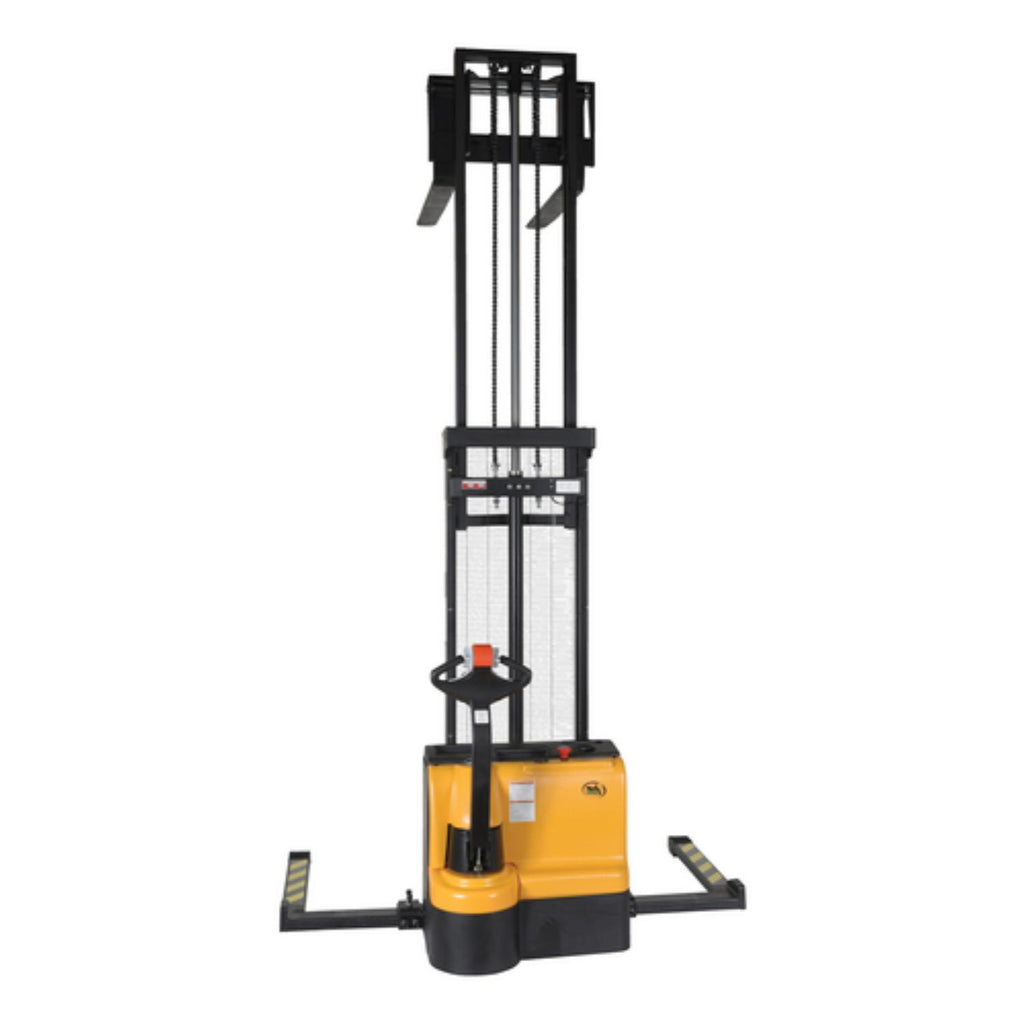

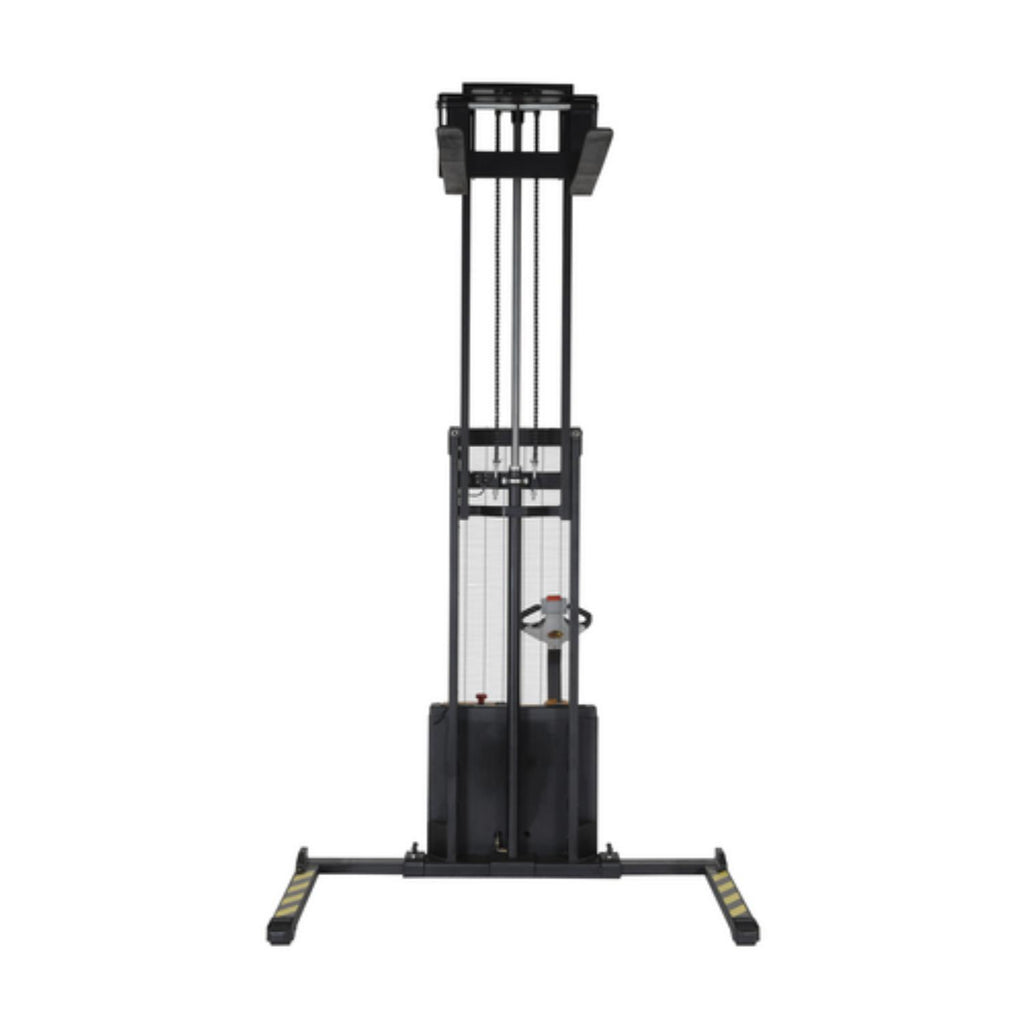

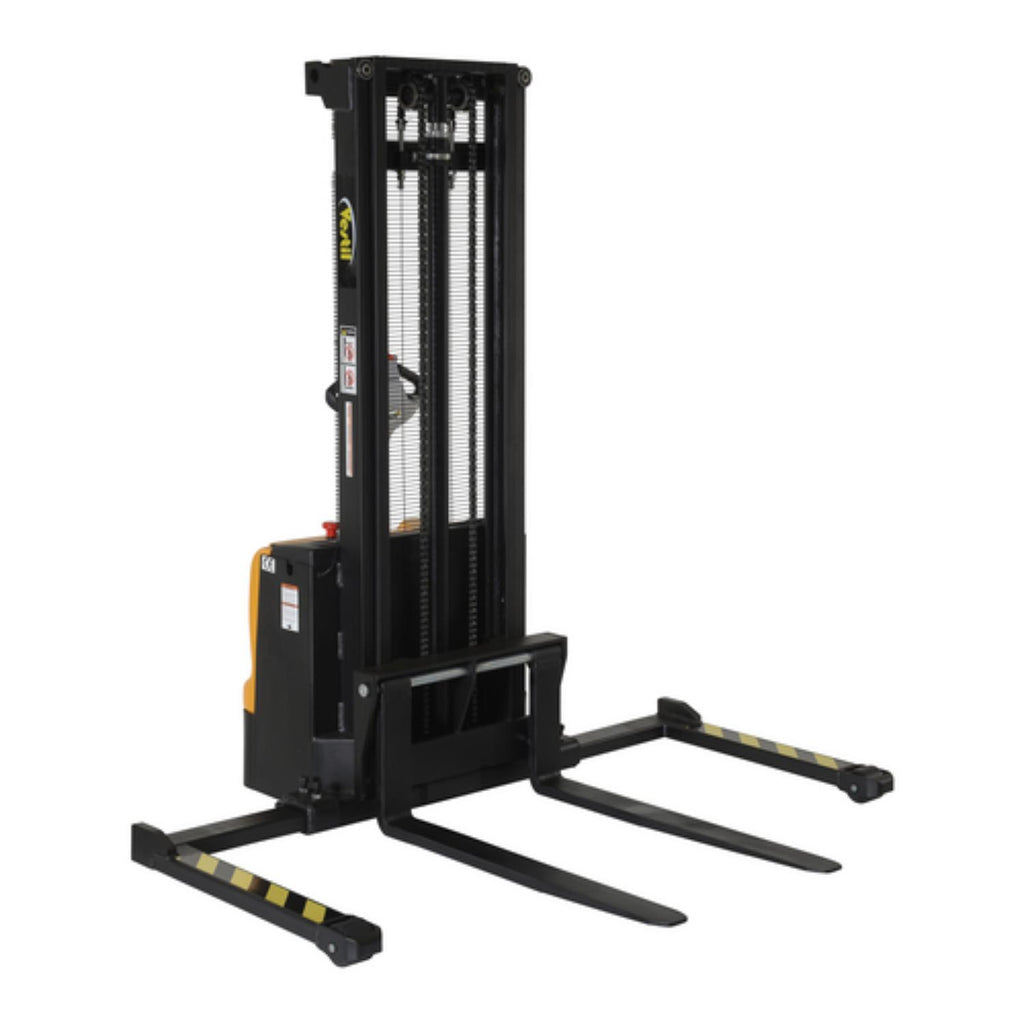

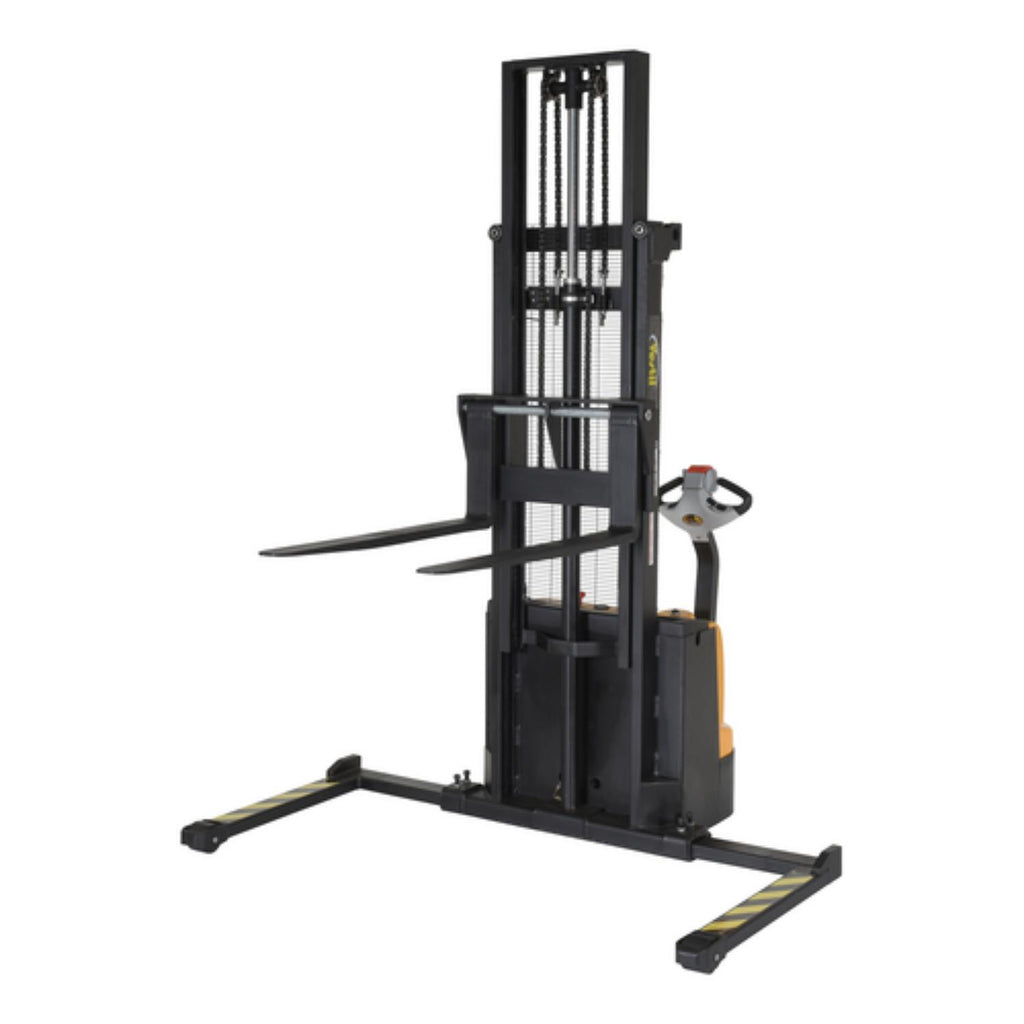

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.
Features
- Emergency reverse belly switch instantly reverses direction
- Powered unit to minimize manual labor
- Diminishes amount of bending and twisting
- Simple movement controls
Specifications
| Specification | Details |
|---|---|
| Power Source | Battery-operated |
| Maximum Lift Height (in) | 150 |
| Minimum Lift Height (in) | 2.125 |
| Maximum Travel Distance (in) | 147.875 |
| Weight Capacity (lbs) | 2200 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fork Length (in) | 42 |
| Fork Width (in) | 4 |
| Adjustable Forks | Yes |
| Minimum Width Between Forks (in) | 8.3 |
| Maximum Width Between Forks (in) | 26.75 |
| Adjustable Legs | Yes |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 40.125 |
| Maximum Width Between Legs (in) | 50 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 2 |
| Phase | Not Applicable |
| Voltage (V) | 24 |
| Number of Casters / Wheels | 5 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Poly on Steel |
| Weight (lbs) | 1290 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
