Description
Description

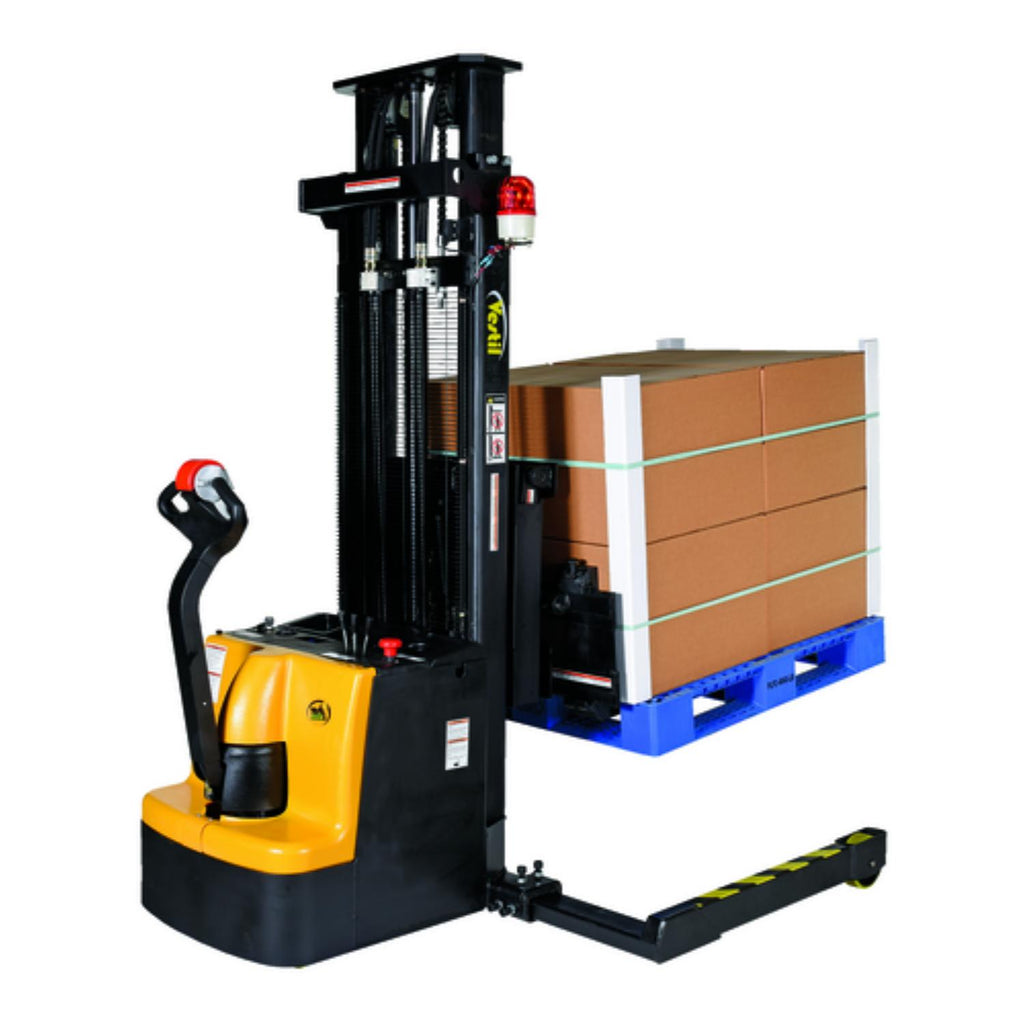

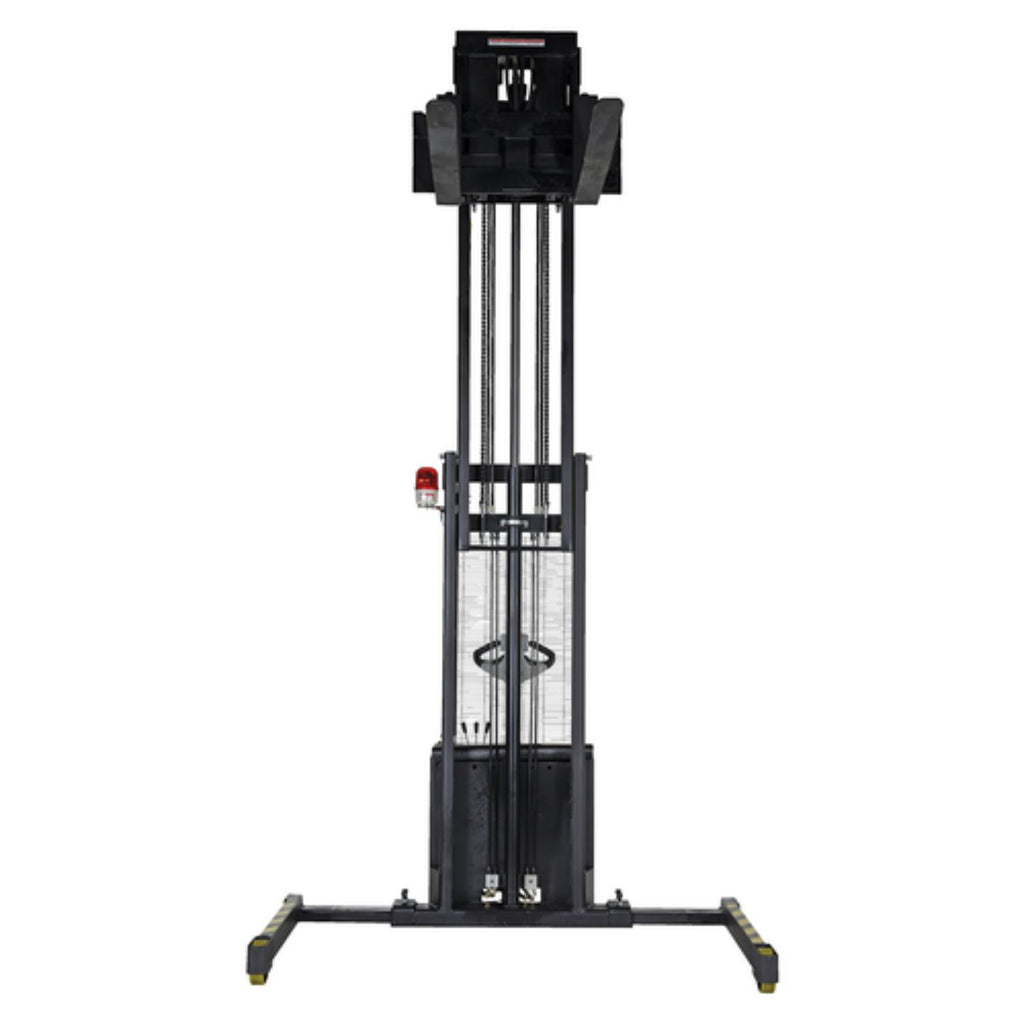

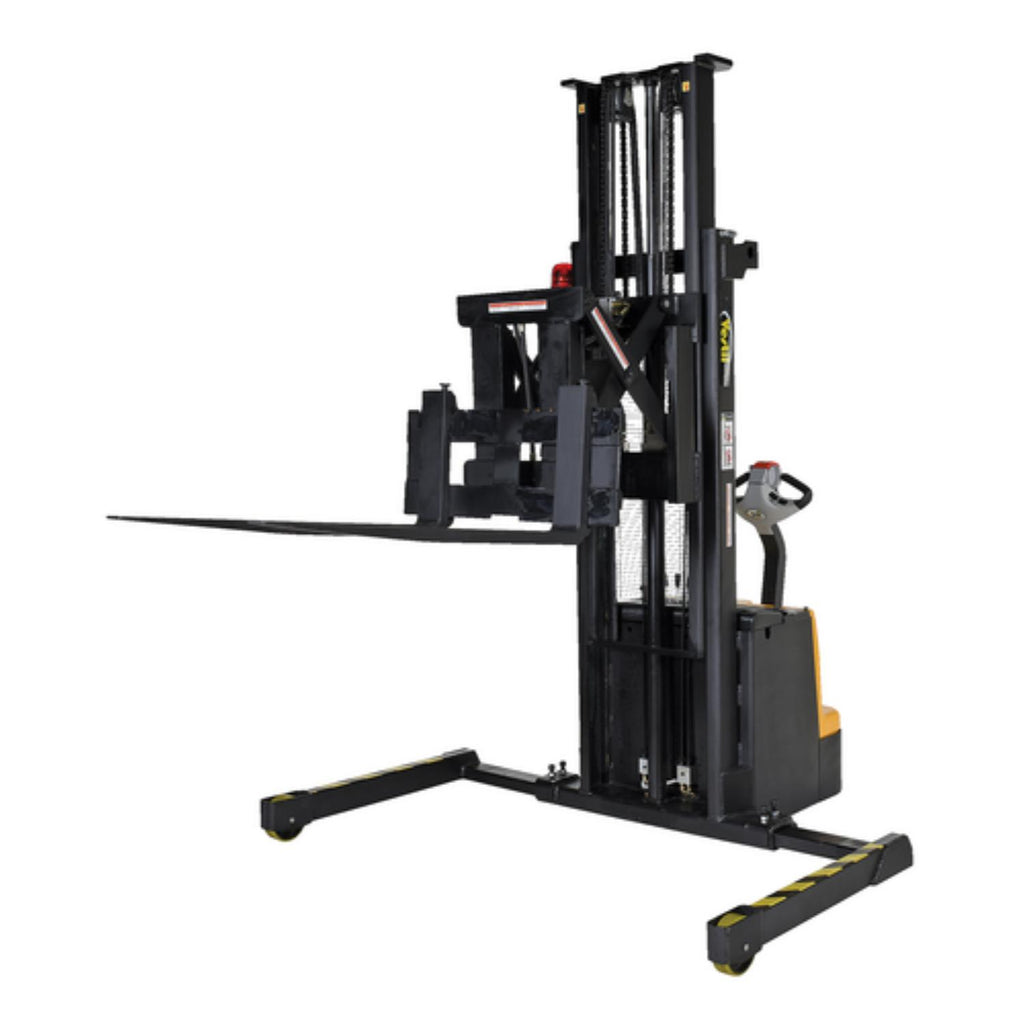

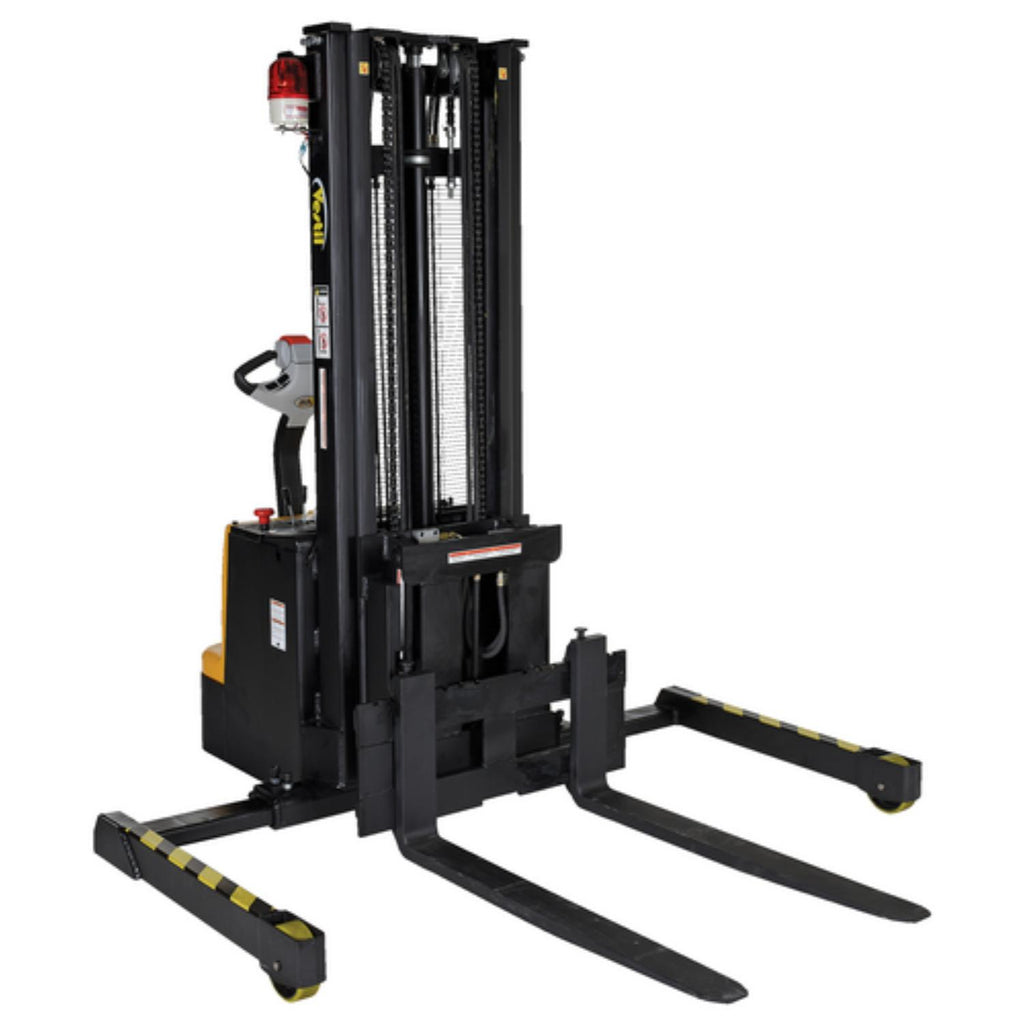

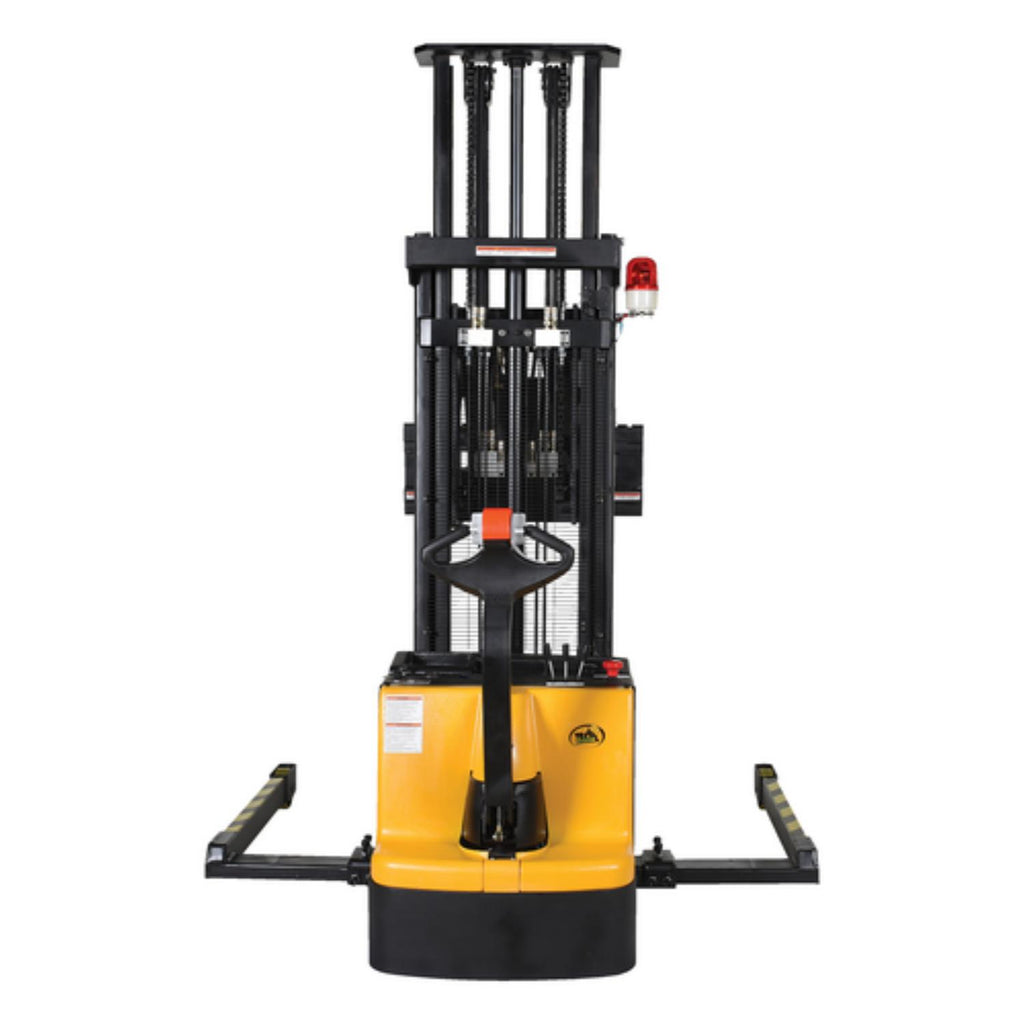

Powered stacker with power drive, power lift, and power fork reach is ideal for distribution and shipping facilities. The stacker is equipped with extendable forks, which can be utilized to reach 25" and lift objects in a condensed area where room to maneuver is limited. The stacker is power driven with simple controls that allow for precise positioning of products. Features two (2) 12V batteries with on-board charger. Battery gauge and horn are included. To use, align forks in the desired position and extend the forks to reach the product safely. Once the unit is in place and the product is secured, the stacker can be driven to the preferred workspace.
Features
- Emergency reverse belly switch instantly reverses direction
- Powered unit to minimize manual labor
- Diminishes amount of bending and twisting
- Simple movement controls
Specifications
| Specification | Details |
|---|---|
| Power Source | Battery-operated |
| Maximum Lift Height (in) | 118 |
| Minimum Lift Height (in) | 2.5 |
| Maximum Travel Distance (in) | 115.5 |
| Weight Capacity (lbs) | 1500 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fork Length (in) | 36.25 |
| Fork Width (in) | 4 |
| Adjustable Forks | Yes |
| Minimum Width Between Forks (in) | 8.3 |
| Maximum Width Between Forks (in) | 26.75 |
| Adjustable Legs | Yes |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 40.125 |
| Maximum Width Between Legs (in) | 50 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 2 |
| Phase | Not Applicable |
| Voltage (V) | 24 |
| Number of Casters / Wheels | 5 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 6 |
| Front Wheel Material | Poly on Steel |
| Weight (lbs) | 1735 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
