Description
Description

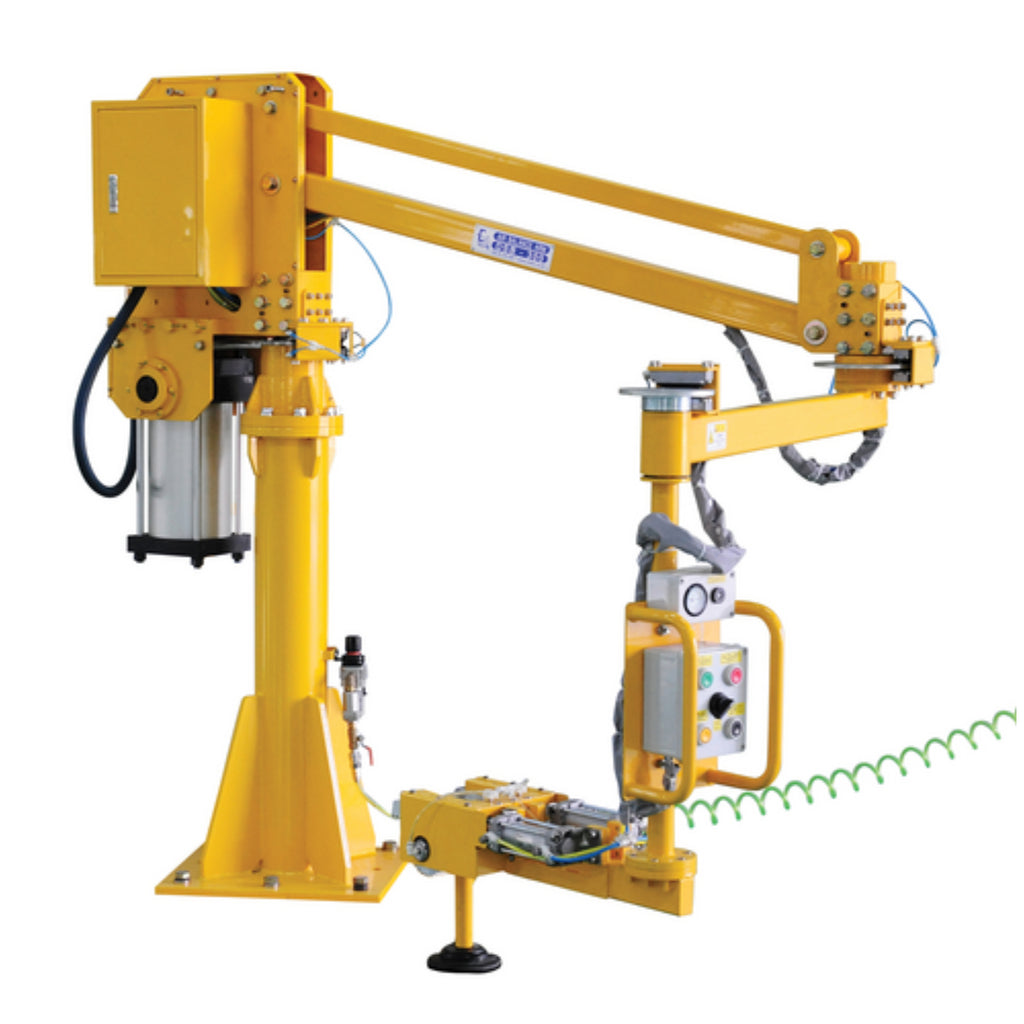

The air balancer Jib Lifter achieves high performance, excellent safety, and low cost in the handling of heavy materials. Designed to effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. This is a floor mount model.
Features
- Performance, safety, low cost, and ideal for heavy materials
- Handle materials in a three dimensional work space
- Push-button hand control operates the pneumatic cylinder
- Position the load by raising and lowering the cable
Specifications
| Specification | Value |
|---|---|
| Capacity (lbs) | 250 |
| Frame Material | Steel |
| Stroke Length (in) | 47.25 |
| Base Length (in) | 19.6875 |
| Base Width (in) | 19.6875 |
| Maximum Arm Length (in) | 98.5 |
| Minimum Arm Length (in) | 78.25 |
| Maximum Rotation (°) | 360 |
| Nozzle Fitting Size | 1/4 In. |
| Recommended Air Pressure (psi) | 100 |
| Weight (lbs) | 691 |
| Mounting Location | Floor |
| Installation Hardware Included | No |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
