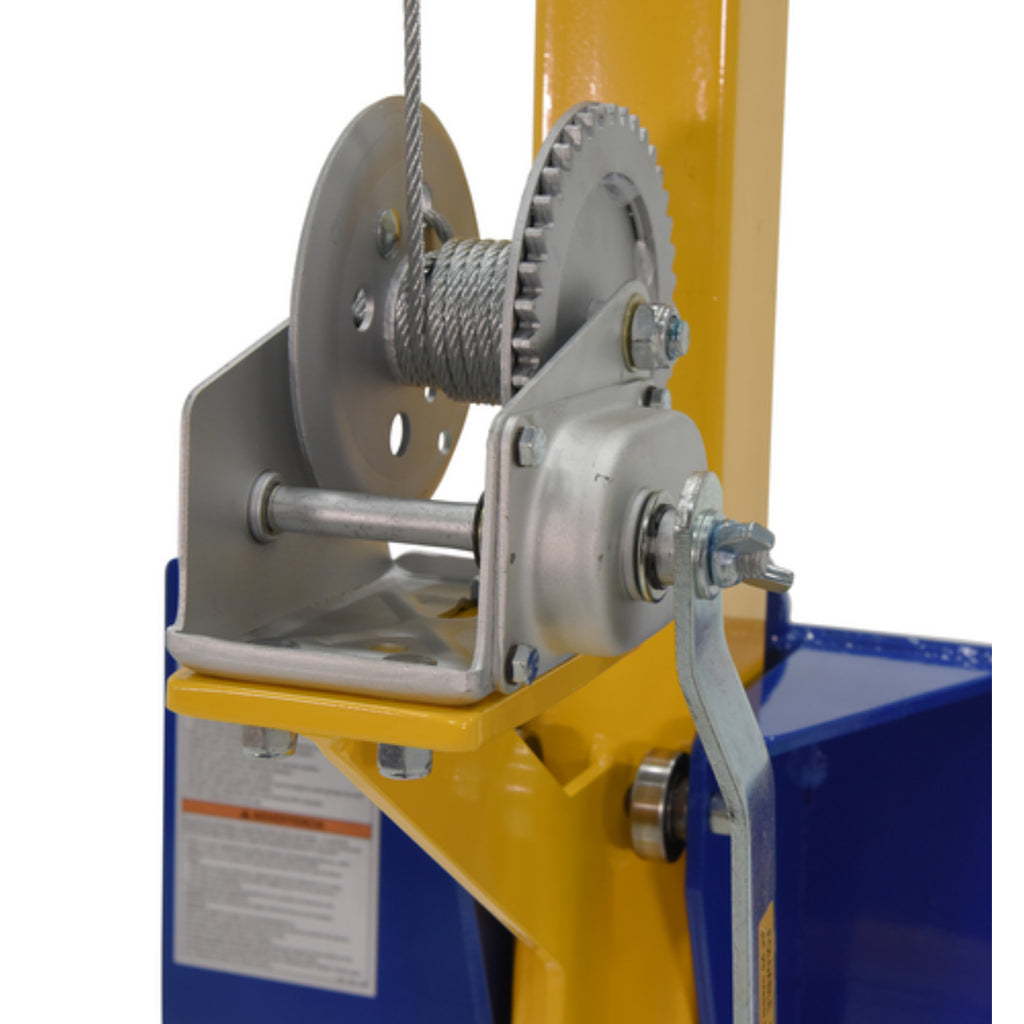

The portable work site lift is ideal for positioning loads where they are needed. It includes a lifting platform and an overhead lifting boom for unique applications. It features a manual hand crank cable winch with hook. Portability is easy with the phenolic swivel casters and a push handle. The unit knocks down in four pieces- base, platform, upright, and boom. It's ideal for storage in tight places and for transportation in the back of a vehicle.
Features
- Portable lift is ideal for positioning loads where they are needed
- Includes lifting platform and an overhead boom for unique applications
- Features phenolic swivel casters and a push handle for easy portability
- Knock down design is ideal for storage in tight places
Specifications
| Specification | Value |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 20 |
| Platform Width (in) | 20 |
| Platform Material | Steel |
| Maximum Height (in) | 70 |
| Minimum Height (in) | 14.75 |
| Maximum Travel Distance (in) | 55.25 |
| Weight Capacity (lbs) | 500 |
| Color / Finish | Yellow/Blue |
| Weight (lbs) | 301 |
| Frame Material | Steel |
| Minimum Platform Height (in) | 14.75 |
| Maximum Platform Height (in) | 70 |
| Maximum Boom Height at Full Extension (in) | 80 |
| Minimum Boom Length (in) | 0 |
| Maximum Boom Length (in) | 25.06 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 8 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 8 |
| Front Wheel Material | Phenolic |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
