Description
Description

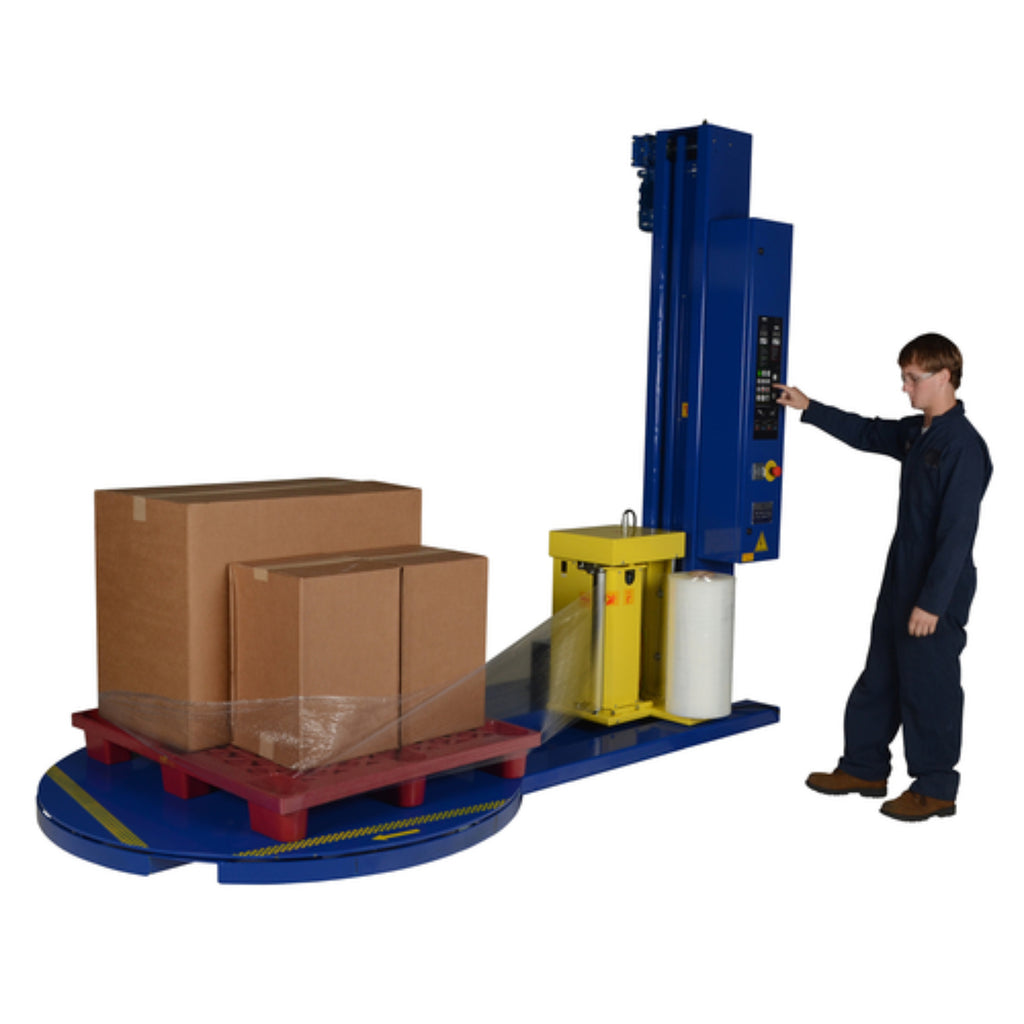

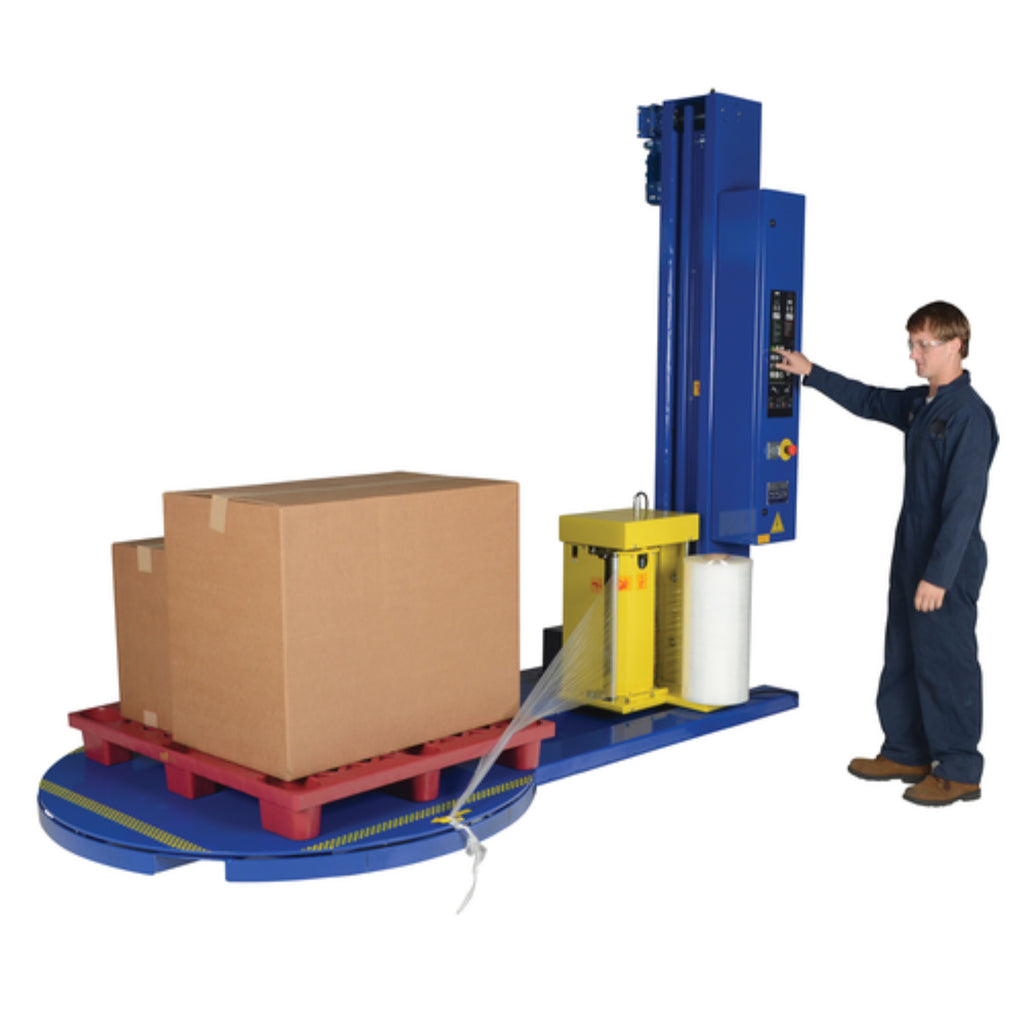

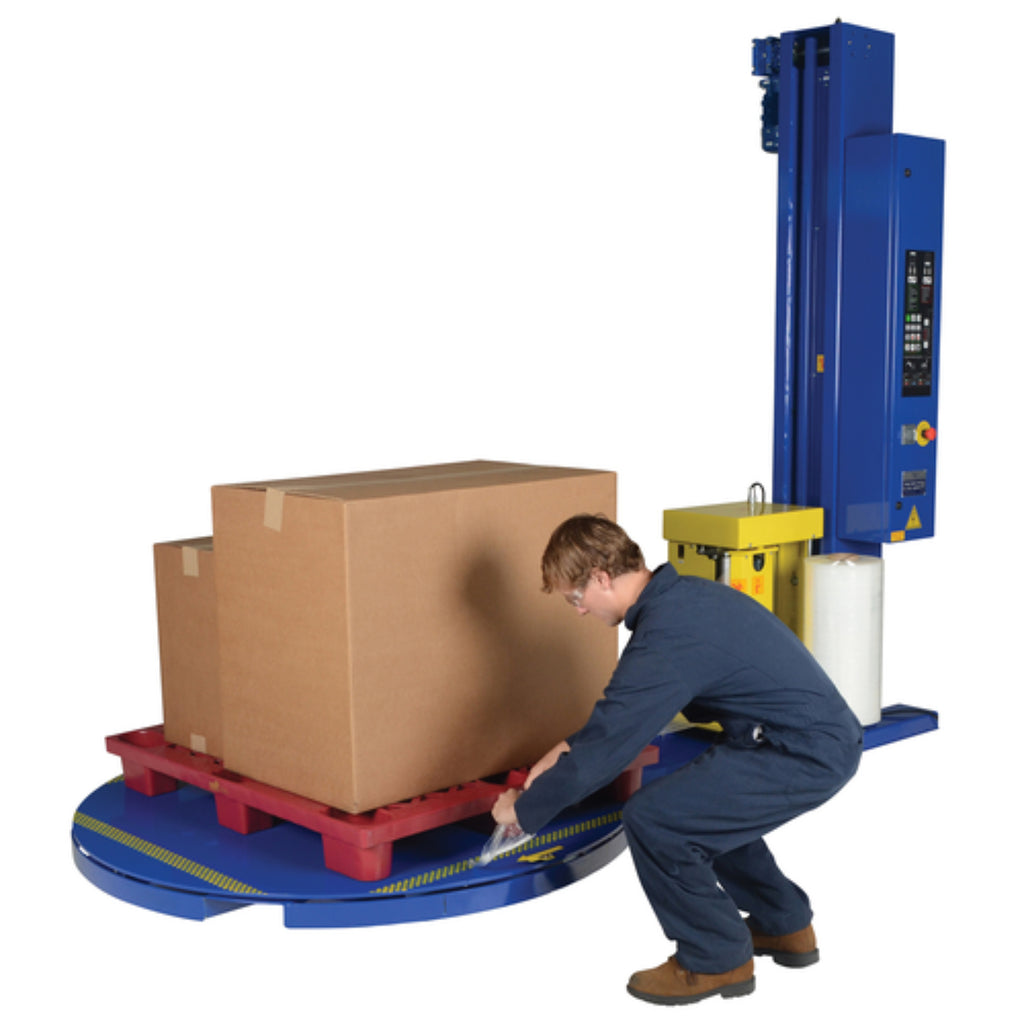

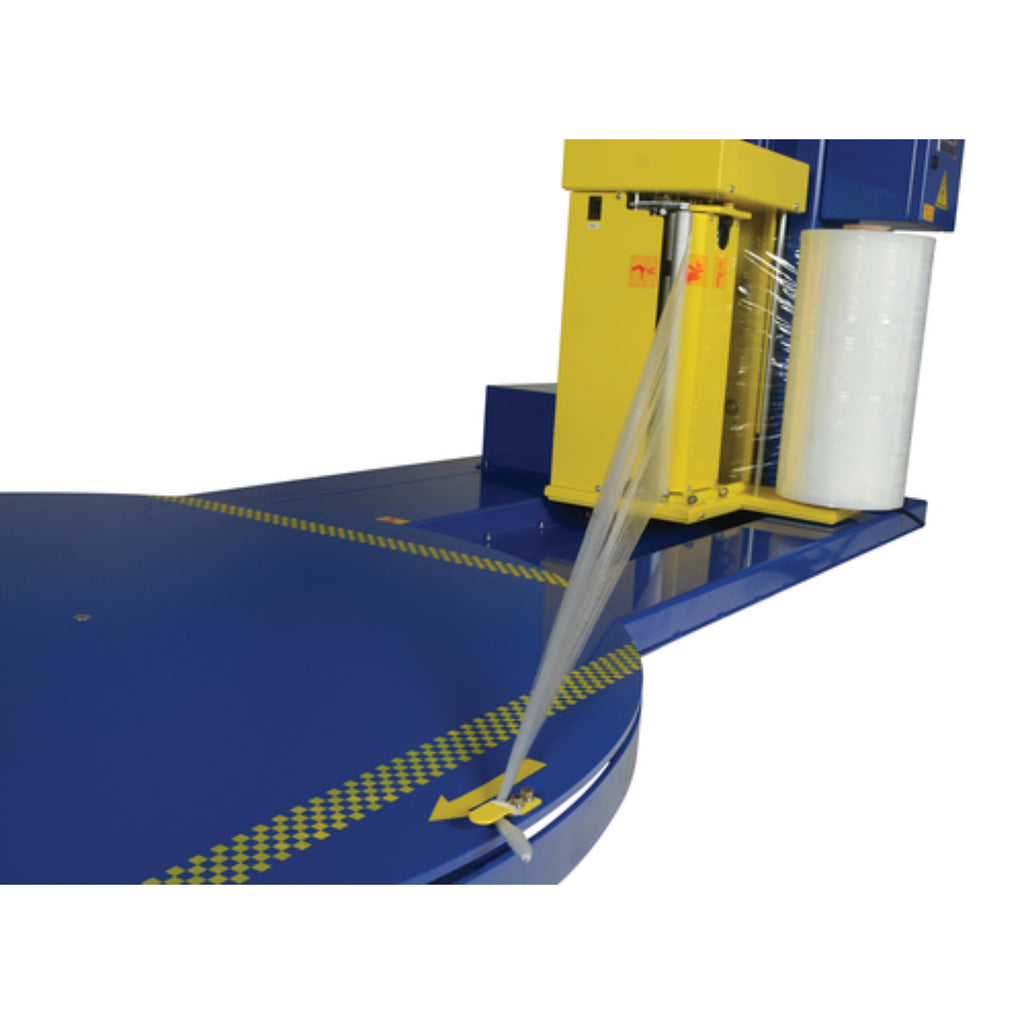

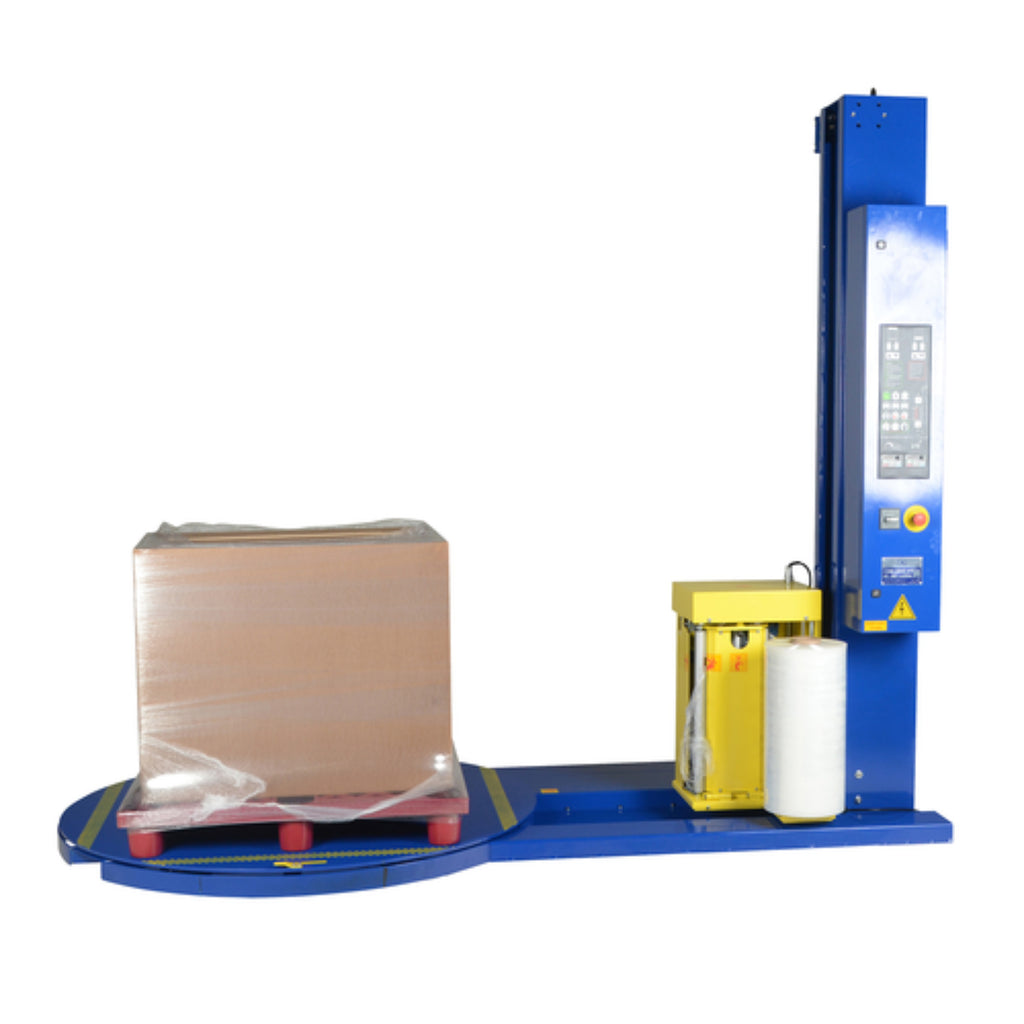

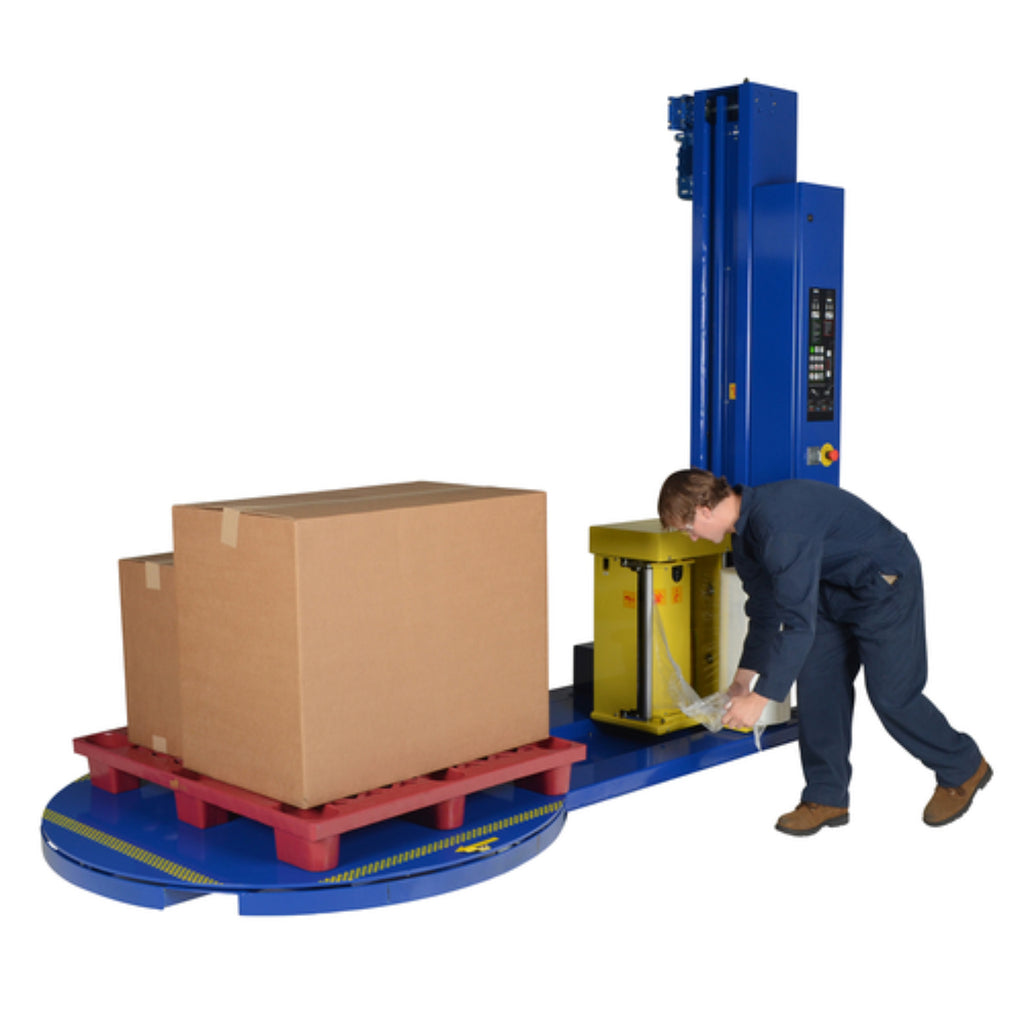

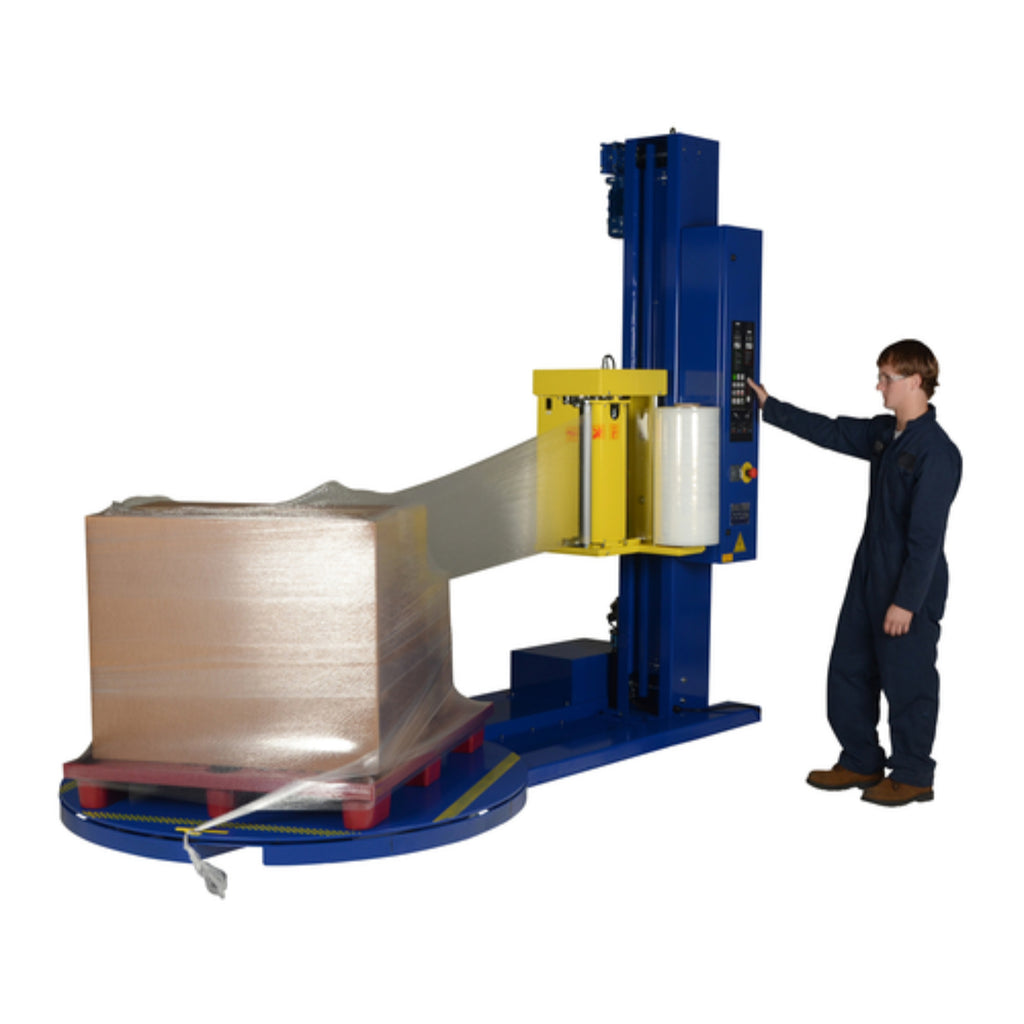

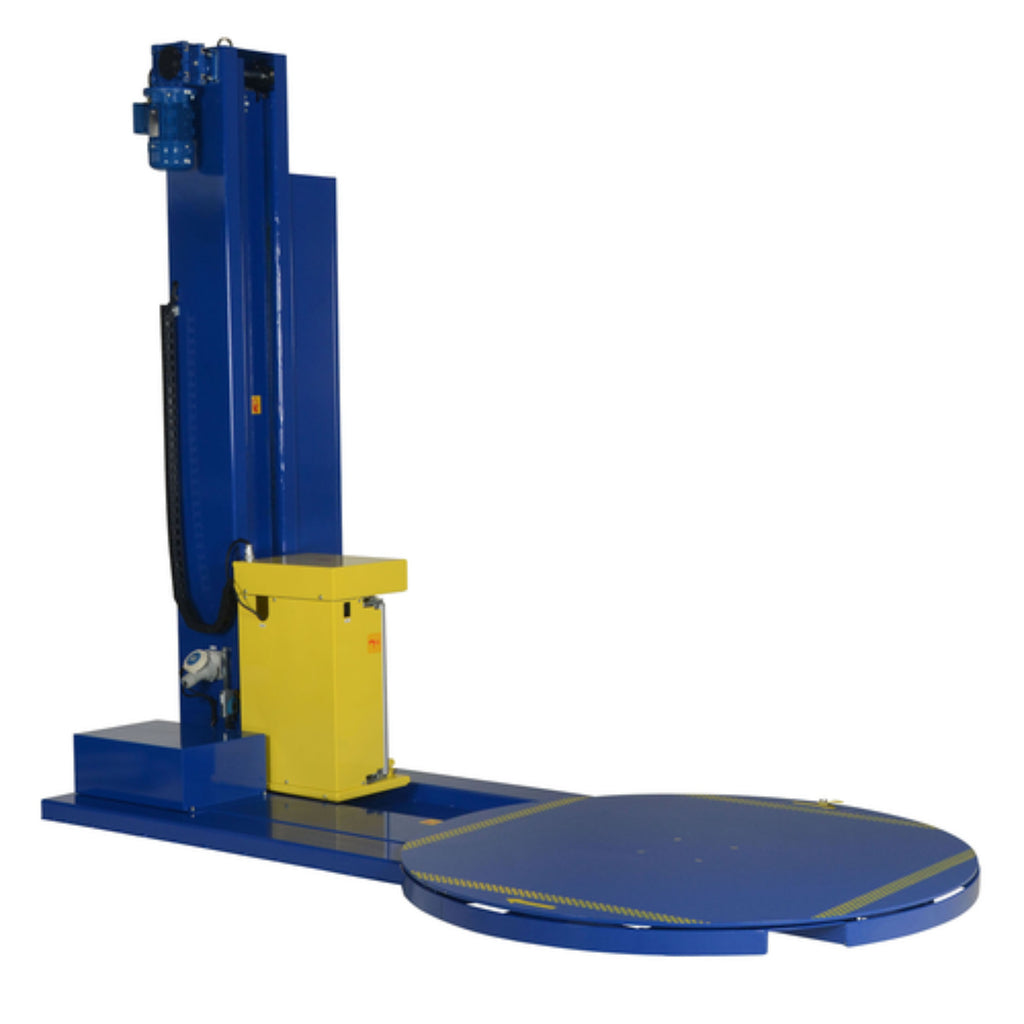

The Medium Duty high performance auto-wrap stretch wrap machine has a user friendly control center that provides workers with efficient control of the wrapping process. The state of the art digital control circuit allows the operator to set the number of pallet rotations and film wrapping patterns, with four (4) standard multifunction wrapping patterns. The operator simply ties off the film wrap on the carousel and presses the start button. When the unit has completed the wrapping process, the operator can simply cut film or use auto brake feature and remove the wrapped pallet. The powered carousel has variable speeds with a soft start and stop feature. Photocell sensors automatically adjust to different pallet heights.
Features
- Stretch wrap design increases shipping productivity
- Simple to use automatic wrap technology
- Adjustable wrap speed to fit users preference
- Steel construction provides a long lasting rugged use
Specifications
| Attribute | Specification |
|---|---|
| Overall Length (in) | 108 |
| Overall Width (in) | 59 |
| Overall Height (in) | 92 |
| Capacity (lbs) | 4000 |
| Color / Finish | Blue |
| Housing Material | Steel |
| Weight (lbs) | 1512 |
| Turntable Diameter (in) | 59 |
| Turntable Height (in) | 3.125 |
| Maximum Compatible Load Diameter (in) | 94 |
| Maximum Wrap Height (in) | 88 |
| Minimum RPM | 0 |
| Maximum RPM | 13 |
| Min. Compatible Stretch Wrap Core Diameter (in) | 3 |
| Max. Compatible Stretch Wrap Core Diameter (in) | 3 |
| Max. Compatible Stretch Wrap Outside Diameter (in) | 10 |
| Min. Compatible Stretch Wrap Width (in) | 10 |
| Max. Compatible Stretch Wrap Width (in) | 20 |
| Scale Included | No |
| Power Cord Length (ft) | 12 |
| Motor Horsepower (hp) | 2.17 |
| Motor Voltage (V) | 115 |
| Motor Amperage | 15 |
| Phase | Single Phase |
| Stretch Wrap Film Quantity Included | None Included |
| Additional Contents | Features NEMA 5-15 Plug |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
