Description
Description

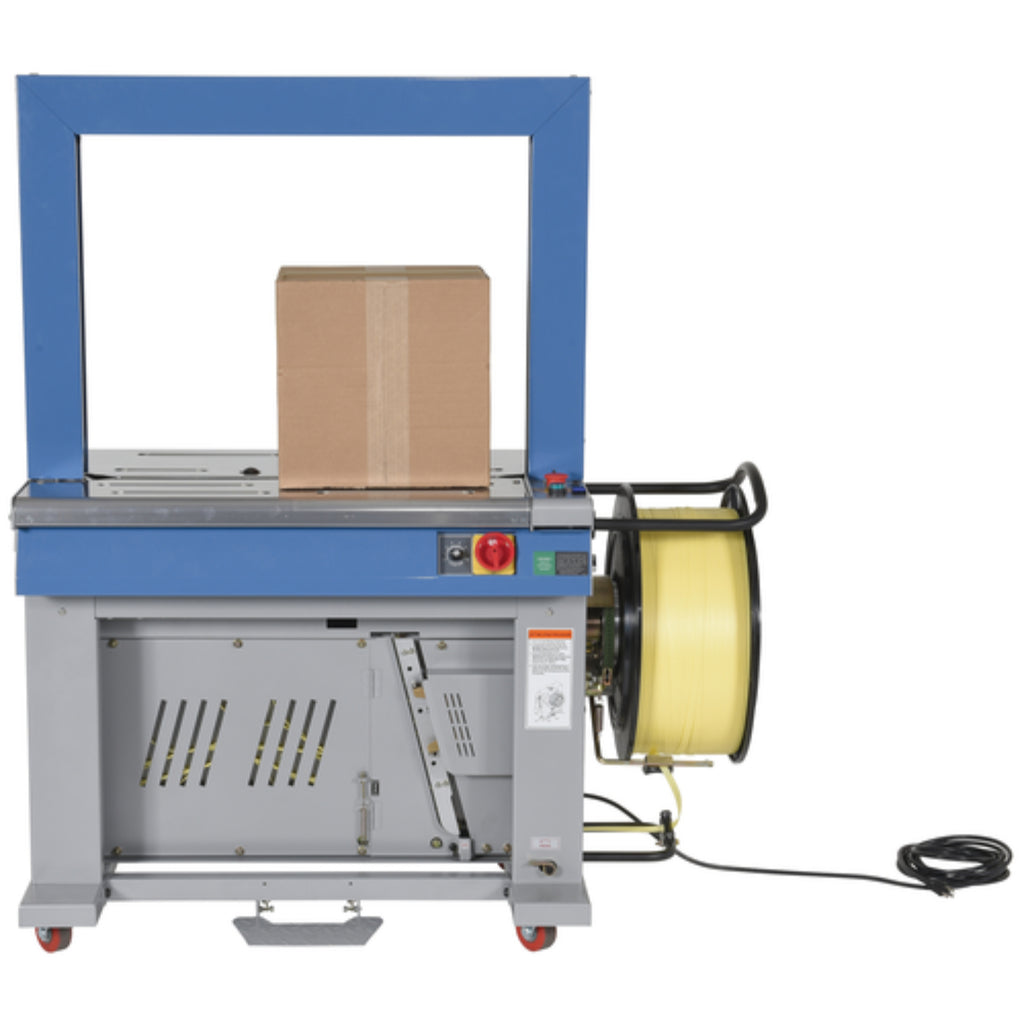

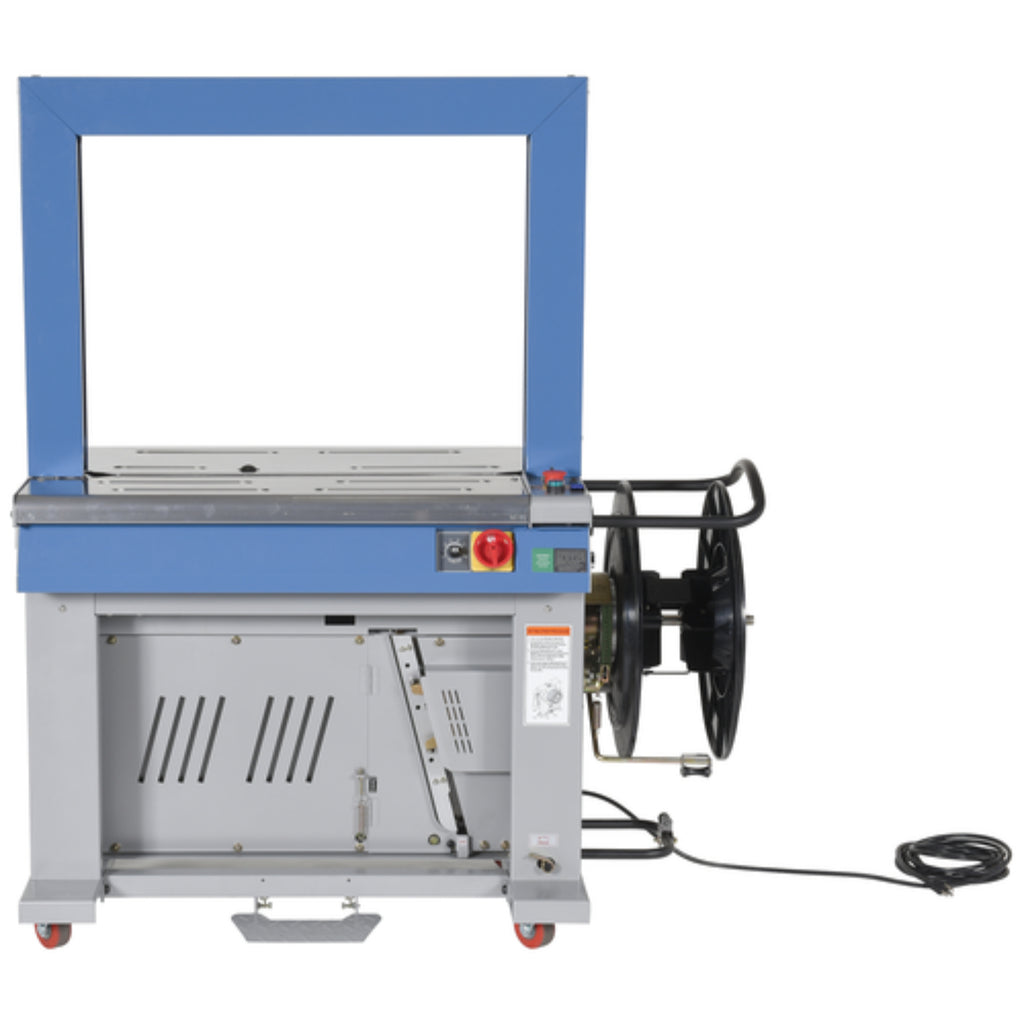

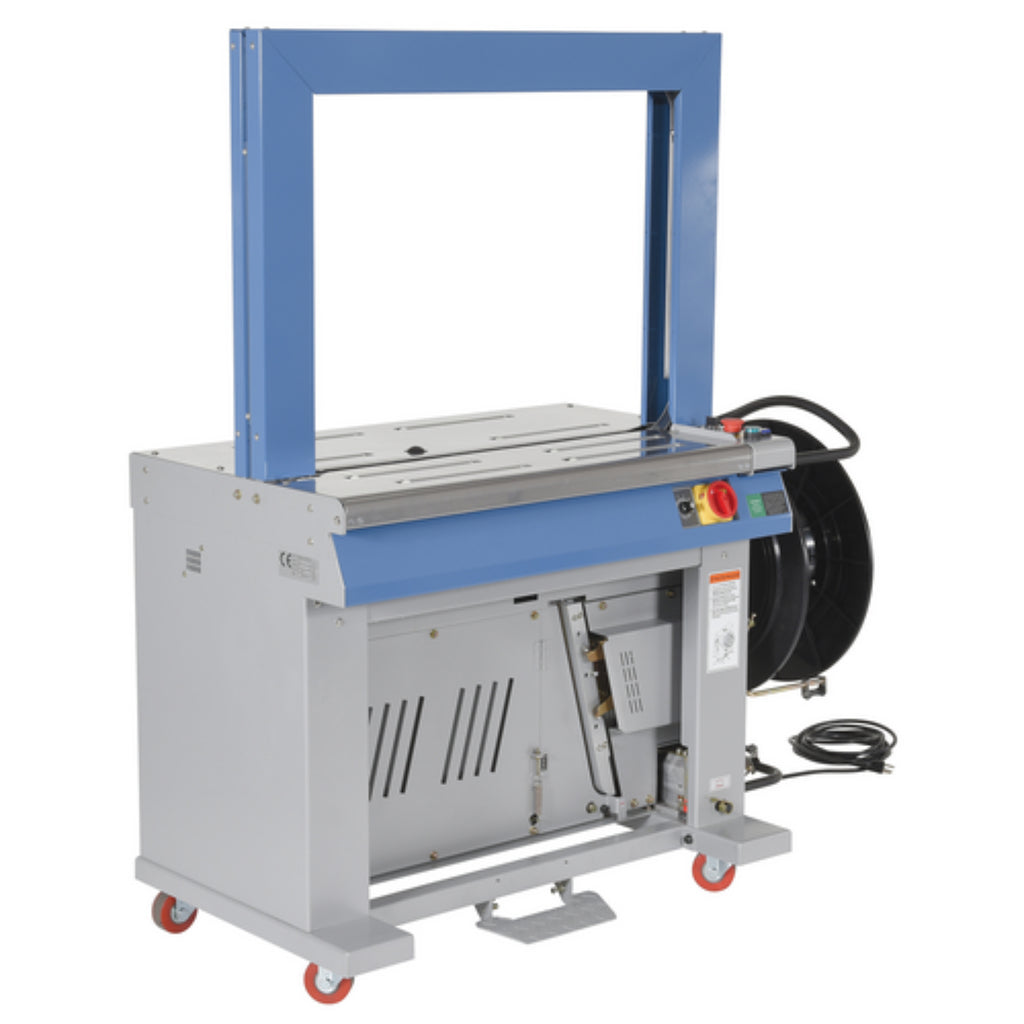

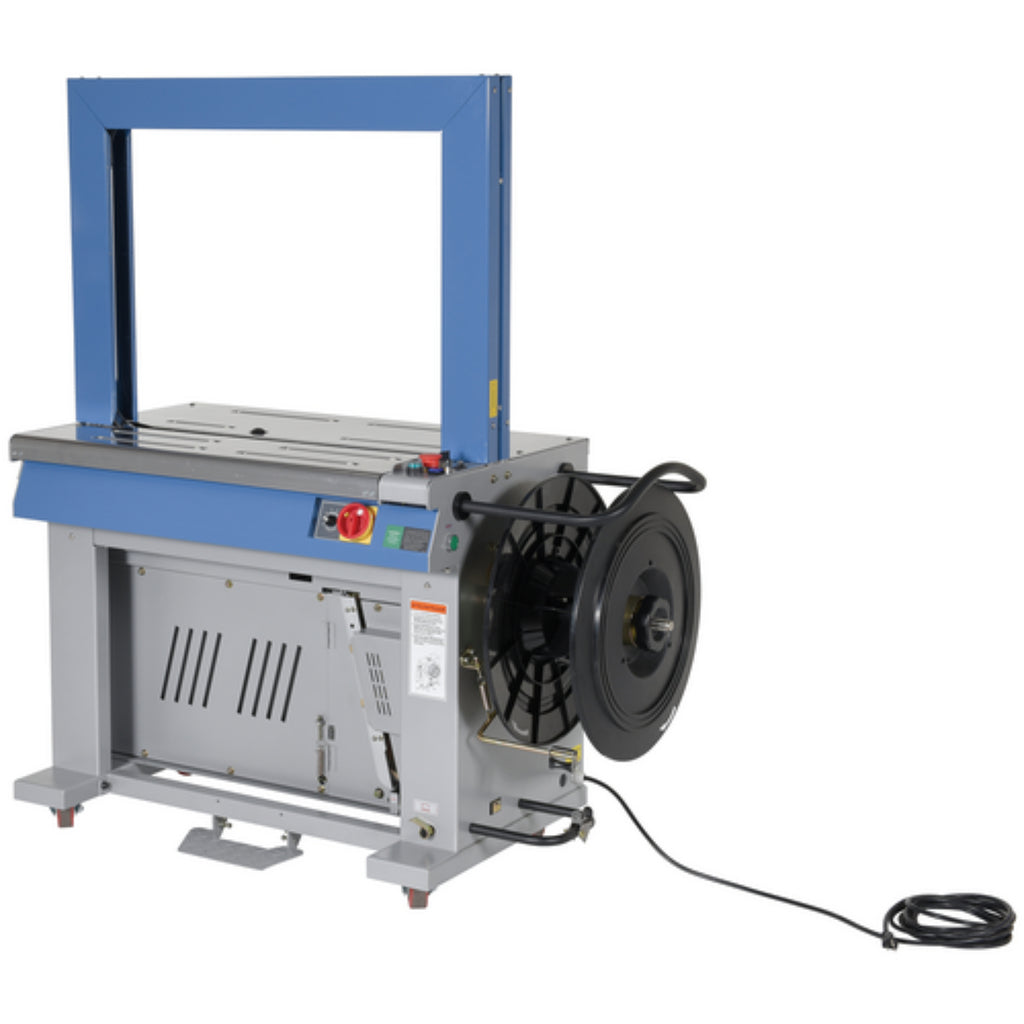

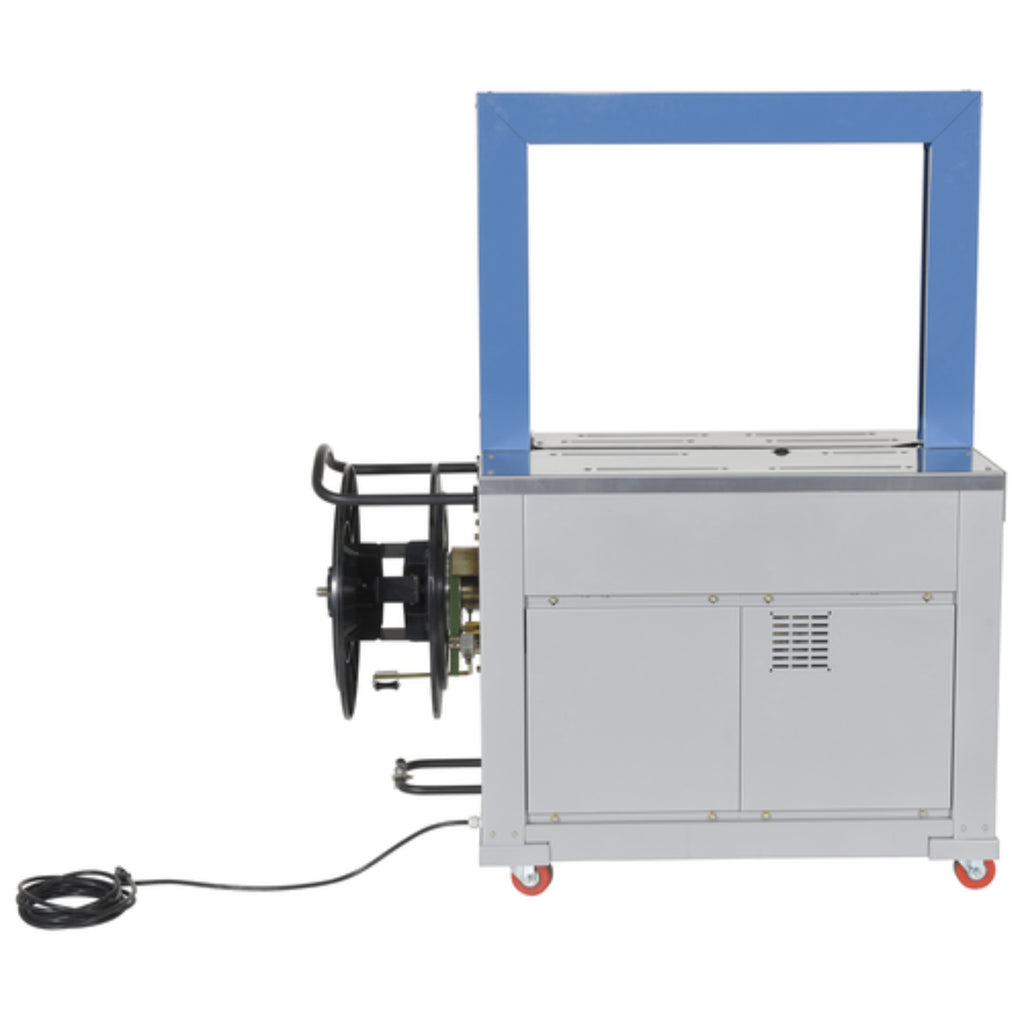

The high speed strapping machine is a productive solution to most polypropylene strapping tasks. The automatic arch strapping machine features the "auto-feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application. The "auto-positioning" system automatically positions and secures the polypropylene strapping efficiently for each cycle. The "jam-free" feature ejects missed strap cycles and resets the unit. The user friendly controls allow the operator to choose between panel mounted controls, foot pedal, or table top ball switch. Actual production will vary depending on package size, chute size, and operator dexterity. The unit has heat welded polypropylene strapping, easy access for reloading strapping and portability for convenience. (Polypropylene strapping is sold separately).
Features
- Solution to most polypropylene strapping tasks
- Auto-feeding automatically feeds arch and is ready for each application
- Auto-positioning automatically positions and secures efficiently for each cycle
- Jam-free feature ejects missed strap cycles and resets the unit
Specifications
| Property | Value |
|---|---|
| Operation Mode | Automatic |
| Overall Height (in) | 58 |
| Overall Length (in) | 23.125 |
| Overall Width (in) | 48.375 |
| Weight (lbs) | 434 |
| Power Source | Electric - Corded |
| Compatible Package Length (in) | 22.5 |
| Compatible Package Width (in) | 29.25 |
| Adjustable Tension | Yes |
| Maximum Tension (lbs) | 150 |
| Minimum Tension (lbs) | 15 |
| Maximum Core Diameter (in) | 8 |
| Maximum Core Width (in) | 6 |
| Frame Material | Steel |
| Surface Material | Steel |
| Voltage | 115 Volts |
| Compatible Strap Size | 1/2 in |
| Compatible Strapping Material | Polypropylene |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 3 |
| Front Wheel Diameter (in) | 3 |
| Wheel Material | Hard Rubber |
| Additional Contents | Fits 16 In. Diameter Roll |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
