Description
Description

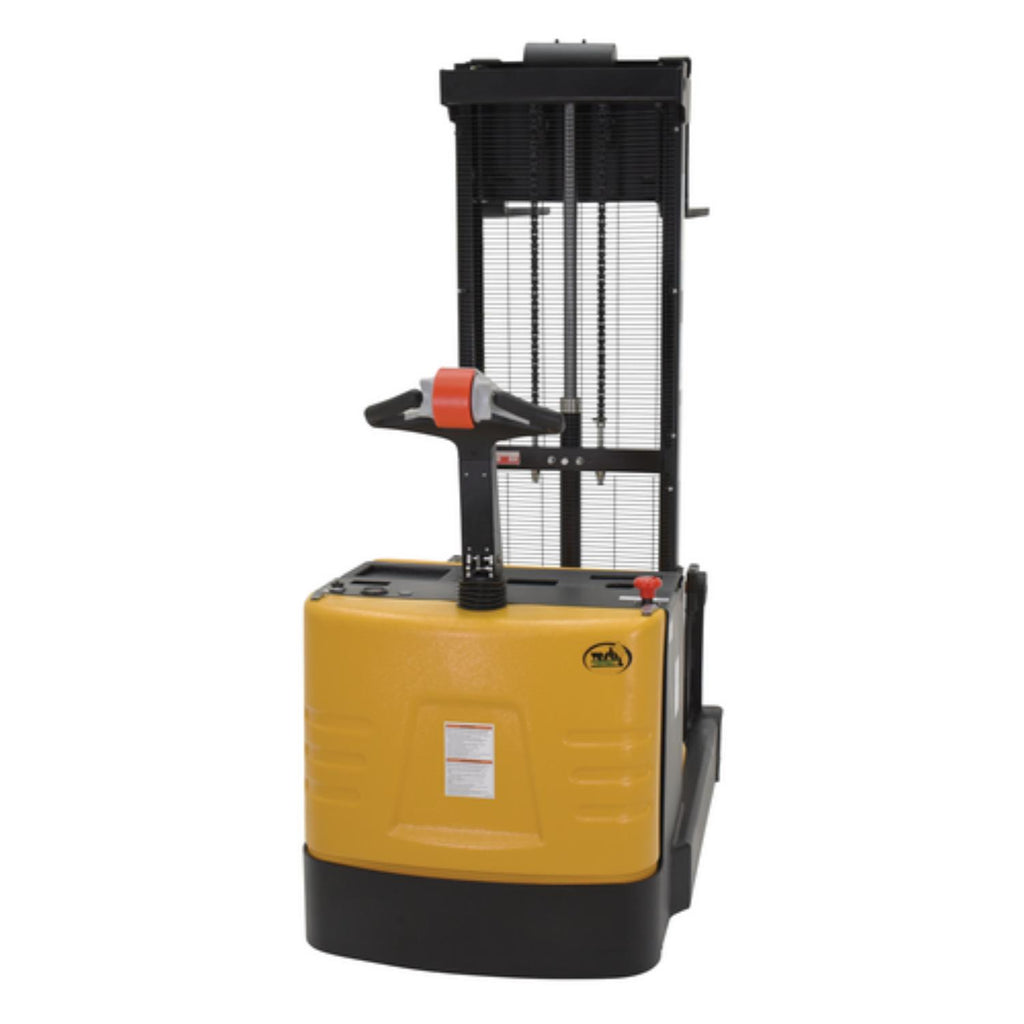

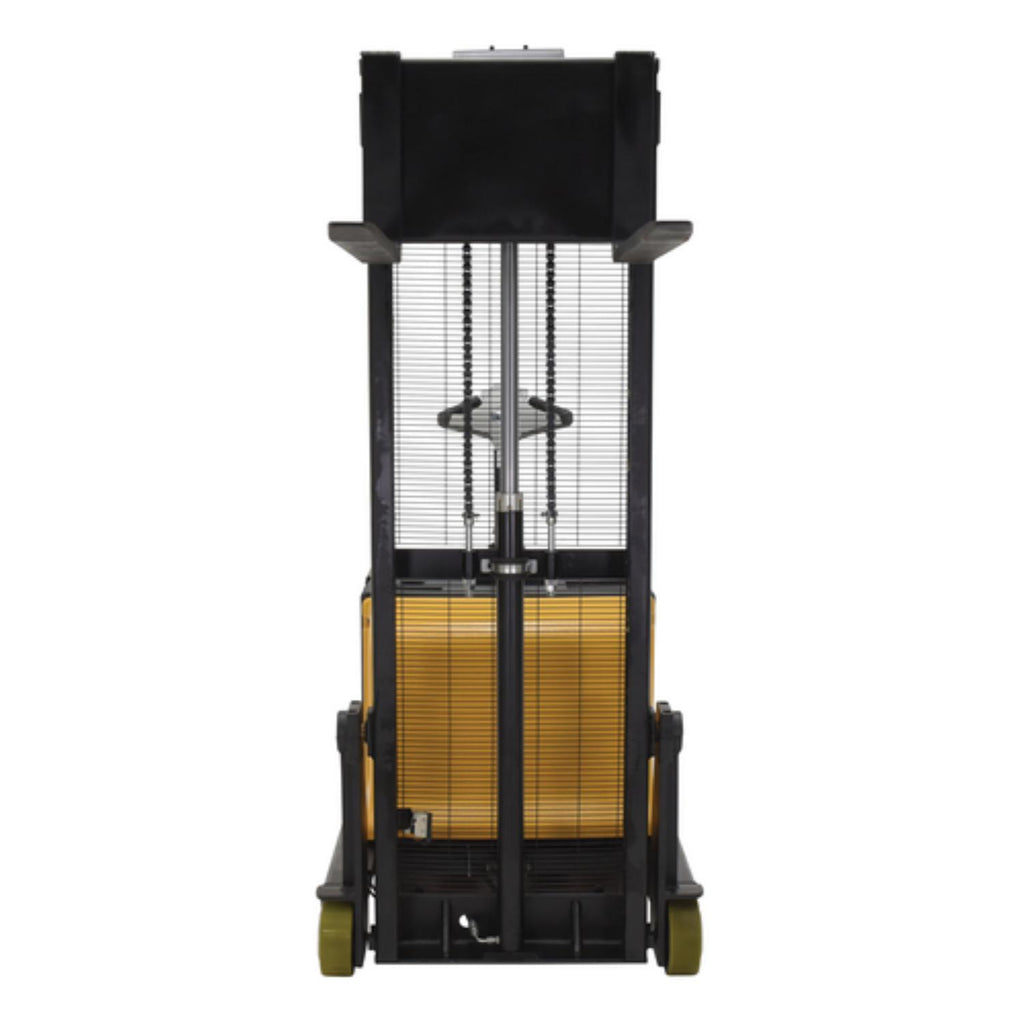

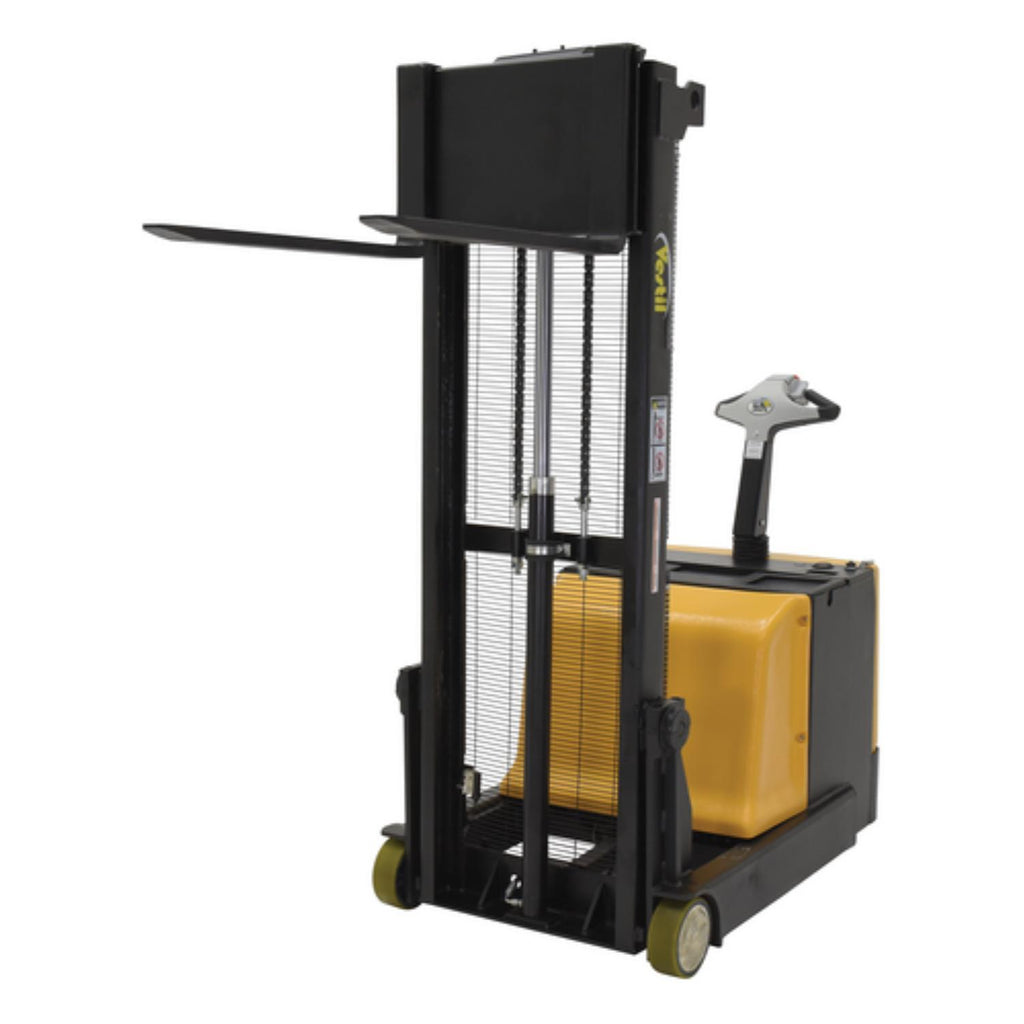

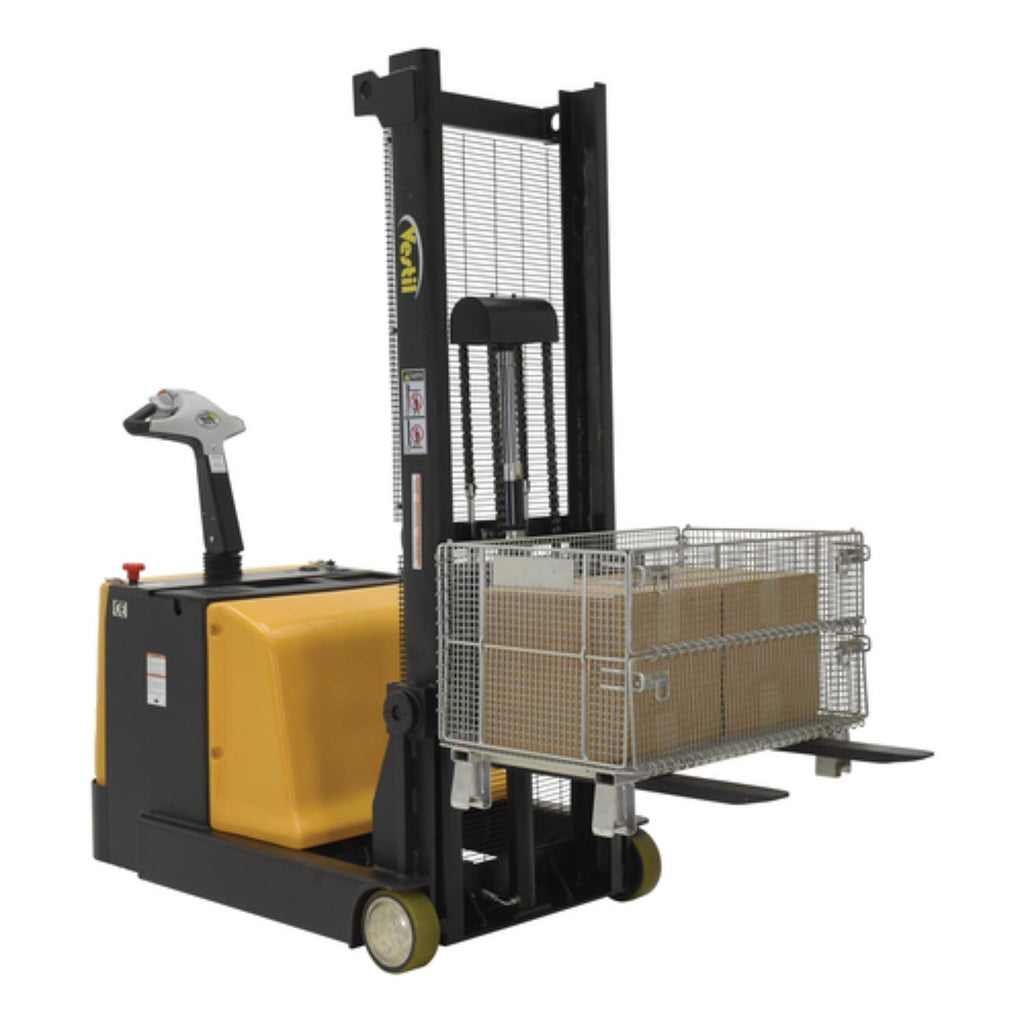

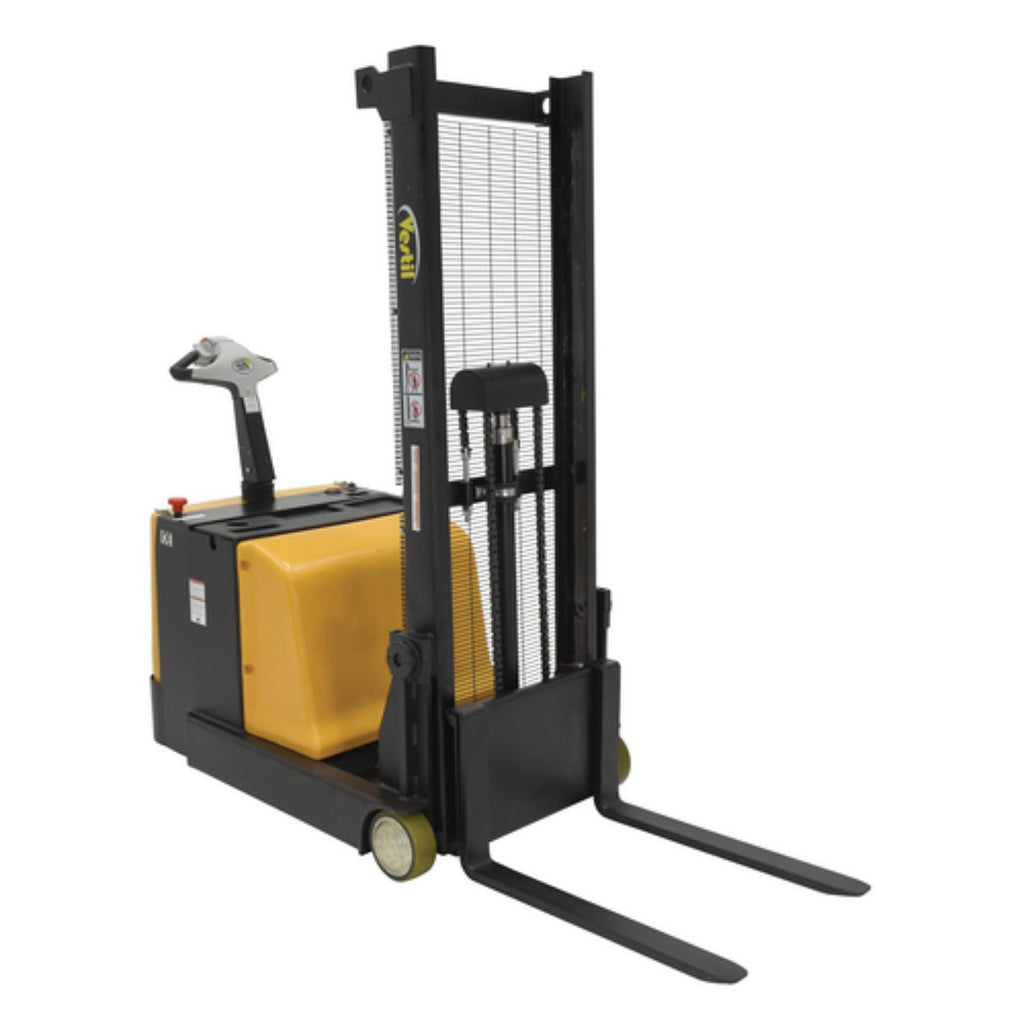

The counter-balanced power drive lift is ideal for die loading, machine feeding, and for loading and unloading trucks. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five (5) seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. The powered lift has lead acid deep cycle batteries, an integral battery charger, and battery level gauge. The stacker rolls smoothly on poly-on-steel steer & load wheels. The high level of serviceability simplifies maintenance and prolongs equipment life. The forks adjust to suit different pallets and the easy access battery compartment simplifies battery maintenance. Horn included.
Features
- Fully-powered pallet truck makes movement of pallets quick and easy
- Includes fingertip raise and lower buttons for operator convenience
- Safety belly reverse button improves worker safety
- Easy-to-operate throttle for forward and reverse direction
Specifications
| Specification | Detail |
|---|---|
| Assembly Required | None |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 50.875 |
| Handle Material | Plastic |
| Material | Steel |
| Lift Height Maximum | 62 |
| Maximum Travel Distance (in) | 60 |
| Power Source | Electric |
| Voltage (V) | 24 |
| Weight Capacity (lbs) | 1000 |
| Maximum Fork Height (in) | 62 |
| Depth (in) | 85 |
| Height (in) | 78 |
| Width (in) | 30 |
| Wheel Material | Poly on Steel |
| Fork Lowered Height (in) | 2 |
| Fork Width (in) | 3.125 |
| Fork Length (in) | 30 |
| Fork Thickness (in) | 1.1875 |
| Maximum Adjustable Fork Width (in) | 23.5 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
