Description
Description

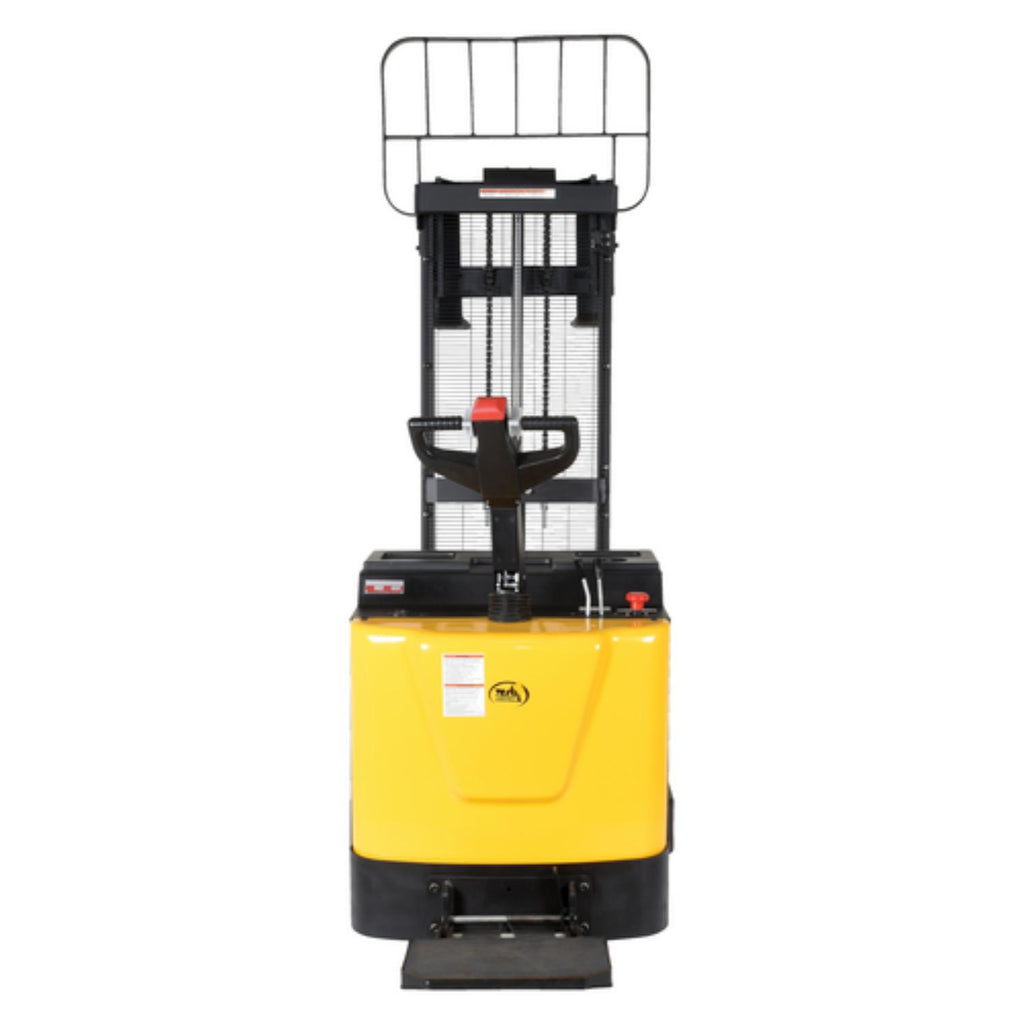

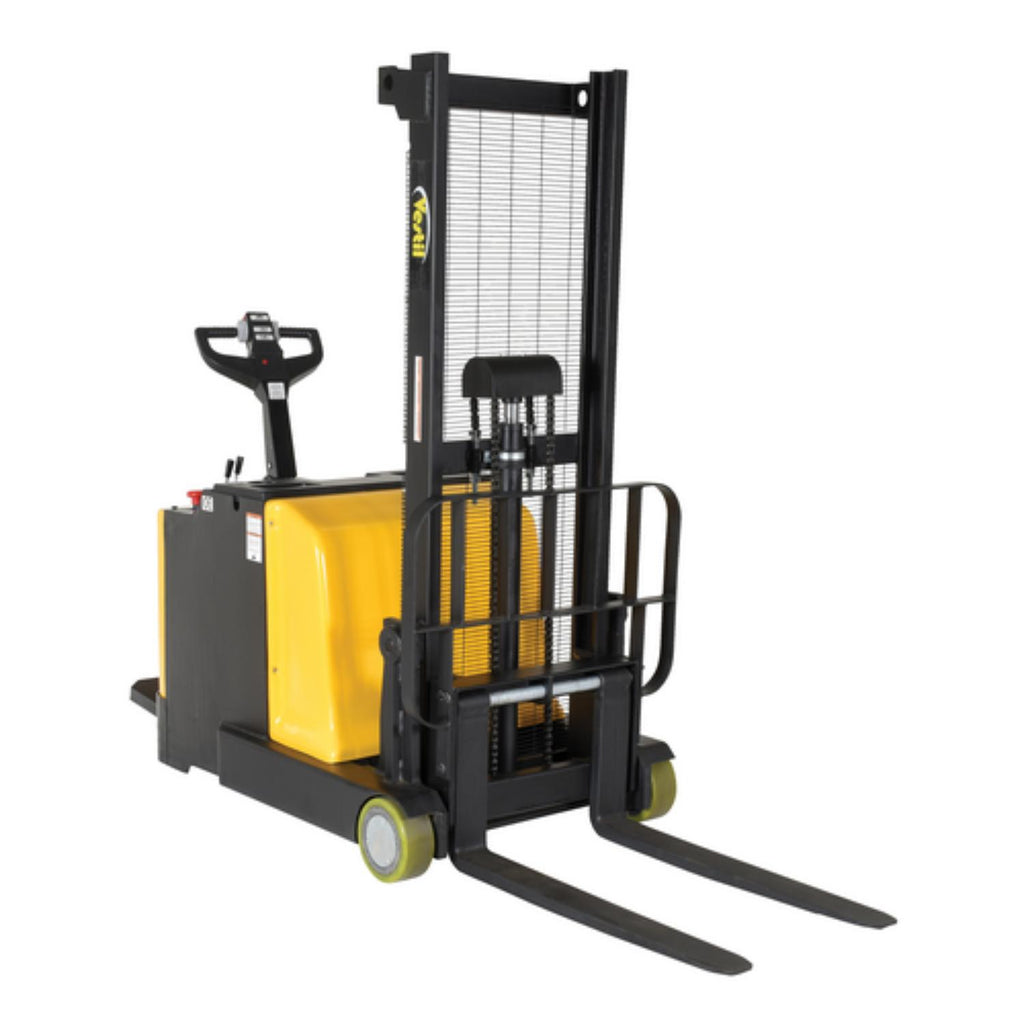

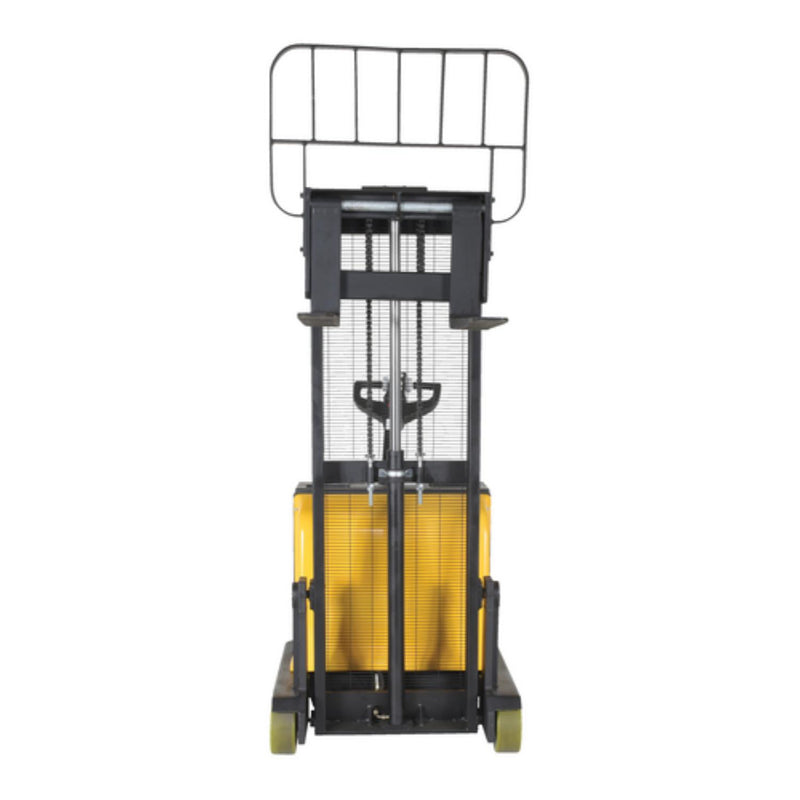

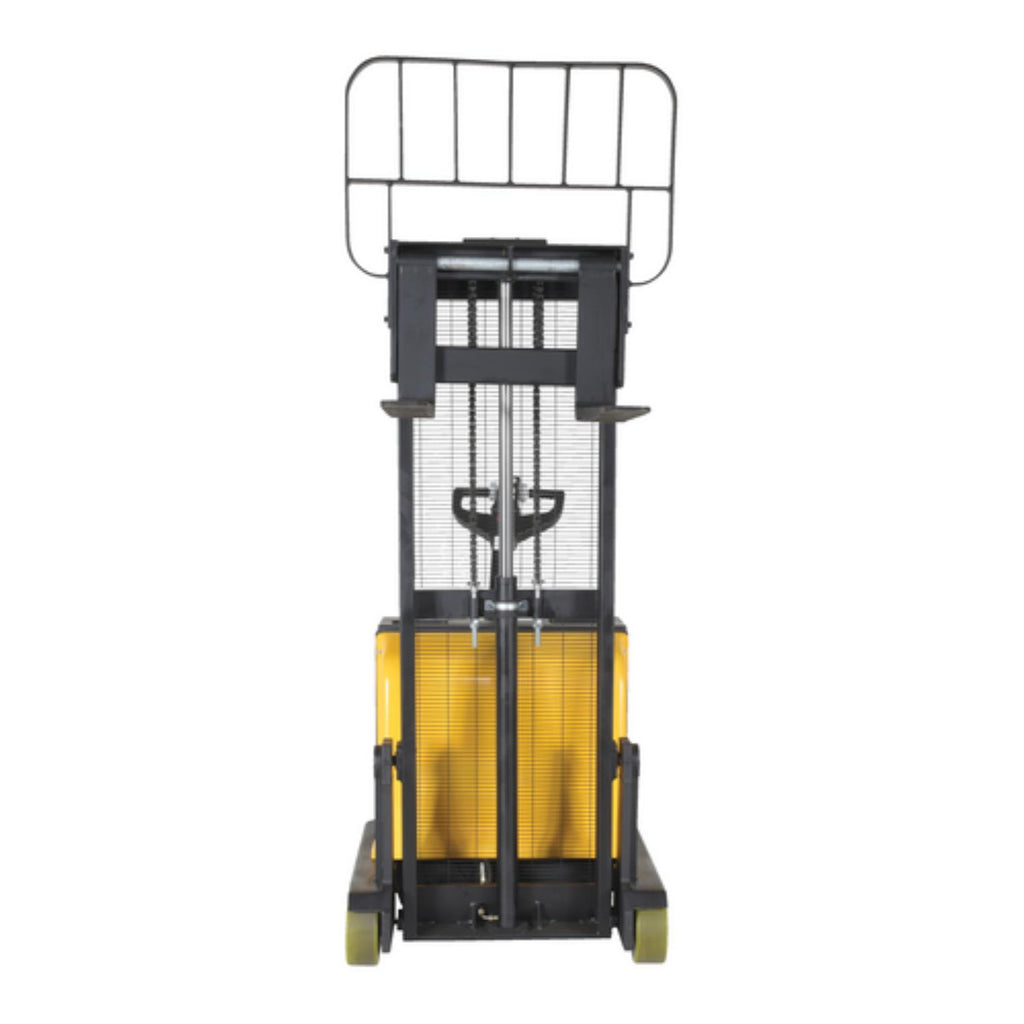

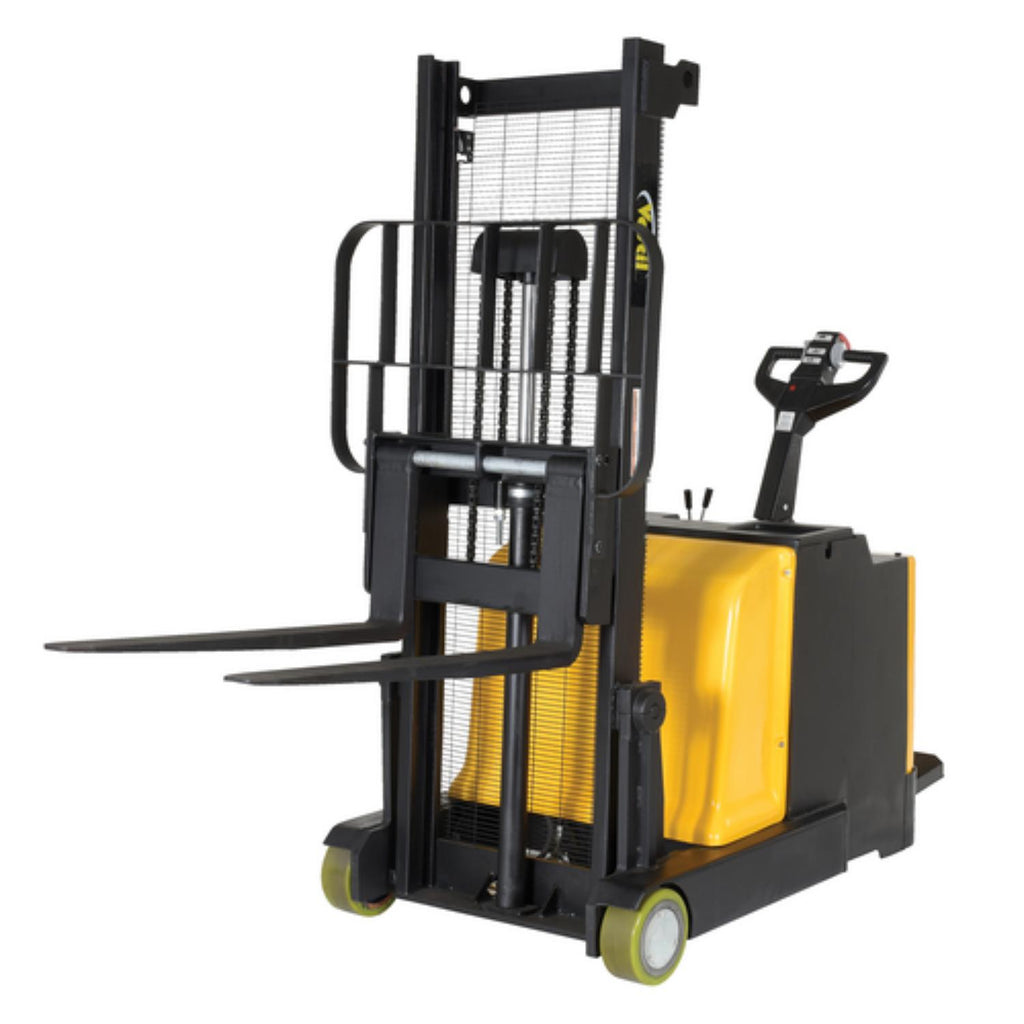

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift also includes batteries, an integral battery charger, and battery level gauge. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.
Features
- Simple controls for quick movement
- Walk behind style for ergonomic posture
- Ability to raise to high levels of workspace
- Poly-on-steel steer and load wheels
Specifications
| Specification | Detail |
|---|---|
| Assembly Required | None |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 54.125 |
| Handle Material | Plastic |
| Material | Steel |
| Lift Height Maximum | 62 |
| Power Source | Electric |
| Voltage (V) | 24 |
| Weight Capacity (lbs) | 2000 |
| Maximum Fork Height (in) | 62 |
| Depth (in) | 110 |
| Height (in) | 78 |
| Width (in) | 35.5 |
| Wheel Material | Poly on Steel |
| Fork Lowered Height (in) | 2.125 |
| Fork Width (in) | 4 |
| Fork Length (in) | 36.25 |
| Load Center (in) | 19 |
| Maximum Adjustable Fork Width (in) | 23.25 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
