Description
Description

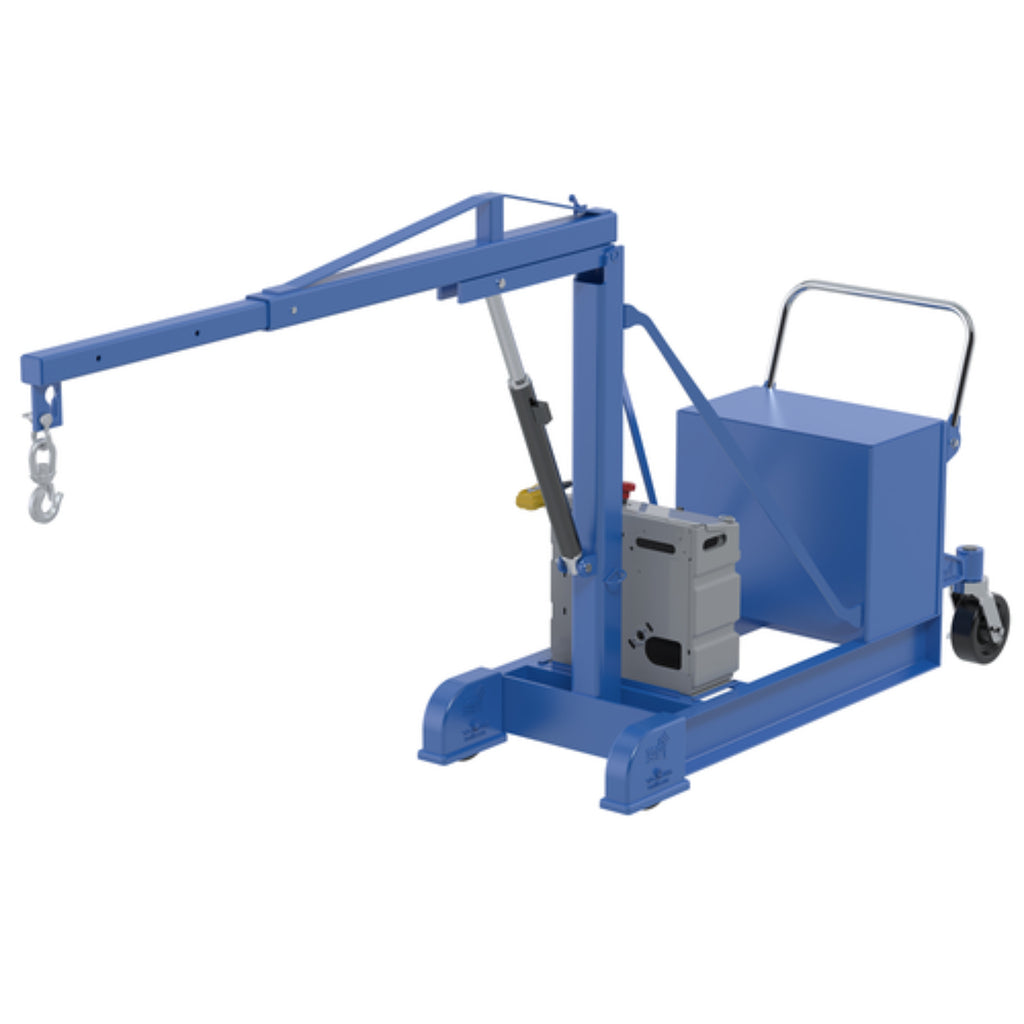

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.
Features
- DC powered for use in multiple areas
- Maneuverable for precise positioning
- Casters for smooth transference
- Counterbalanced for all around stability
Specifications
| Specification | Value |
|---|---|
| Overall Length (in) | 135.125 |
| Overall Width (in) | 29 |
| Overall Height (in) | 102 |
| Maximum Boom Height at Full Extension (In) | 90 |
| Maximum Boom Length (in) | 77.5 |
| Maximum Load Capacity (lbs) | 500 |
| Maximum Load Capacity at Full Extension (lbs) | 300 |
| Color / Finish | Blue |
| Frame Material | Steel |
| Platform Length (in) | 70 |
| Platform Width (in) | 29 |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 8 |
| Rear Wheel Width (in) | 3 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 8 |
| Front Wheel Width (in) | 2 |
| Front Wheel Material | Glass Filled Nylon |
| Power Source | Electric - Cordless |
| ASME B30.5 Compliant | Exempt from Standard |
| Weight (lbs) | 1190 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
