Description
Description

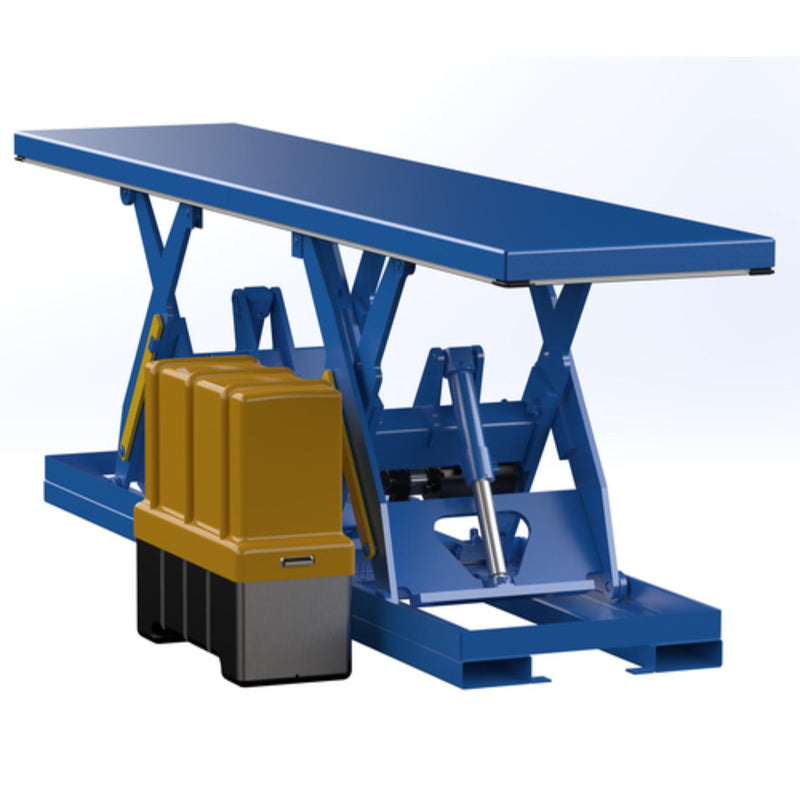

An electric hydraulic tandem scissor lift table is an exceptional asset in a variety of manufacturing and warehouse facilities. With a tandem design, lifting and positioning items is now a simple and secure process. The durable steel construction allows lifting of both large and heavy items. A hand control is included, allowing the user to keep a distance from the lift for additional safety. AC powered with 460V 3 phase.
Features
- Dual scissor lifts for added strength
- Open design allows loading and unloading from all sides
- Variable height positions
- Liquid paint finish
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 144 |
| Platform Width (in) | 30 |
| Platform Material | Steel |
| Maximum Height (in) | 46 |
| Minimum Height (in) | 10 |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Blue |
| Weight (lbs) | 1790 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Hand Operated |
| Lifting Speed (sec/ft) | 16 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 6.5 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Installation Hardware Included | Yes |
| Overall Length (in) | 144 |
| Overall Width (in) | 30 |
| Overall Height (in) | 46 |
| Maximum Travel Distance (in) | 43 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
