Description
Description

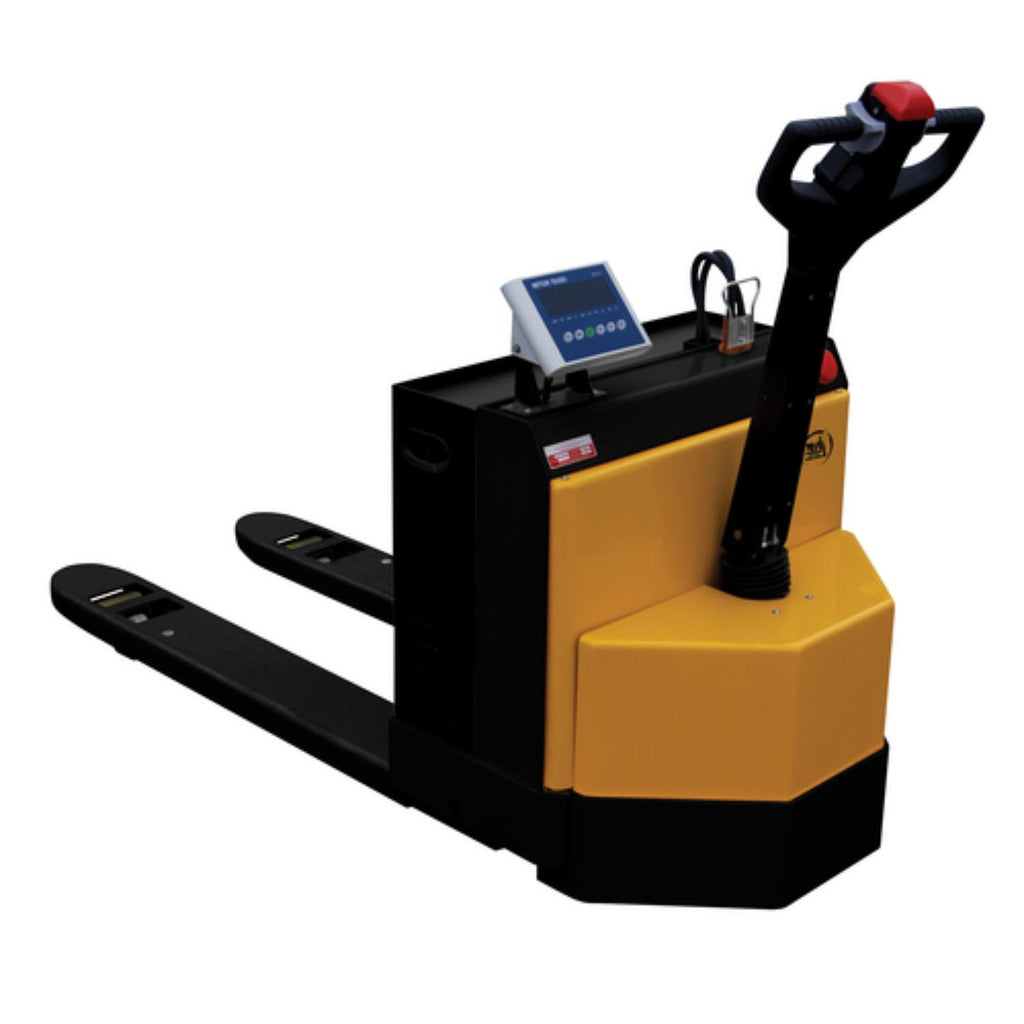

The electric pallet truck with scale can verify inbound and outbound freight right on your pallet truck and then move your loads with ease. The LCD scale and function keys (zero, tare, net/gross, print, LB/KG), displays weight in 1 pound increments within trucks rated capacity. The scale display operates on AA batteries (best accuracy is 0.01 percent of maximum calibrated weight). The scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. An individual can raise and lower loads with a push of a button. The unit makes it easy to maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods provide long service. The high torque DC drive and lift motor handles heavy duty jobs, while the ergonomic handle features an easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Also includes stand-on platform, which flips up when not in use.
Features
- Fully-powered pallet truck makes movement of pallets quick and easy
- Includes fingertip raise and lower buttons for operator convenience
- Safety belly reverse button improves worker safety
- Easy-to-operate throttle for forward and reverse direction
Specifications
| Specification | Details |
|---|---|
| Assembly Required | None |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 48 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 8 |
| Maximum Travel Distance (in) | 4.25 |
| Maximum Amperage (A) | 10 |
| Power Source | Electric |
| Voltage (V) | 24 |
| Weight Capacity (lbs) | 4500 |
| Turning Radius (in) | 78.375 |
| Depth (in) | 76.5 |
| Height (in) | 49 |
| Width (in) | 30.25 |
| Wheel Material | Poly on Steel |
| Fork Lowered Height (in) | 3.375 |
| Fork Width (in) | 27 |
| Fork Length (in) | 48 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
