Description
Description

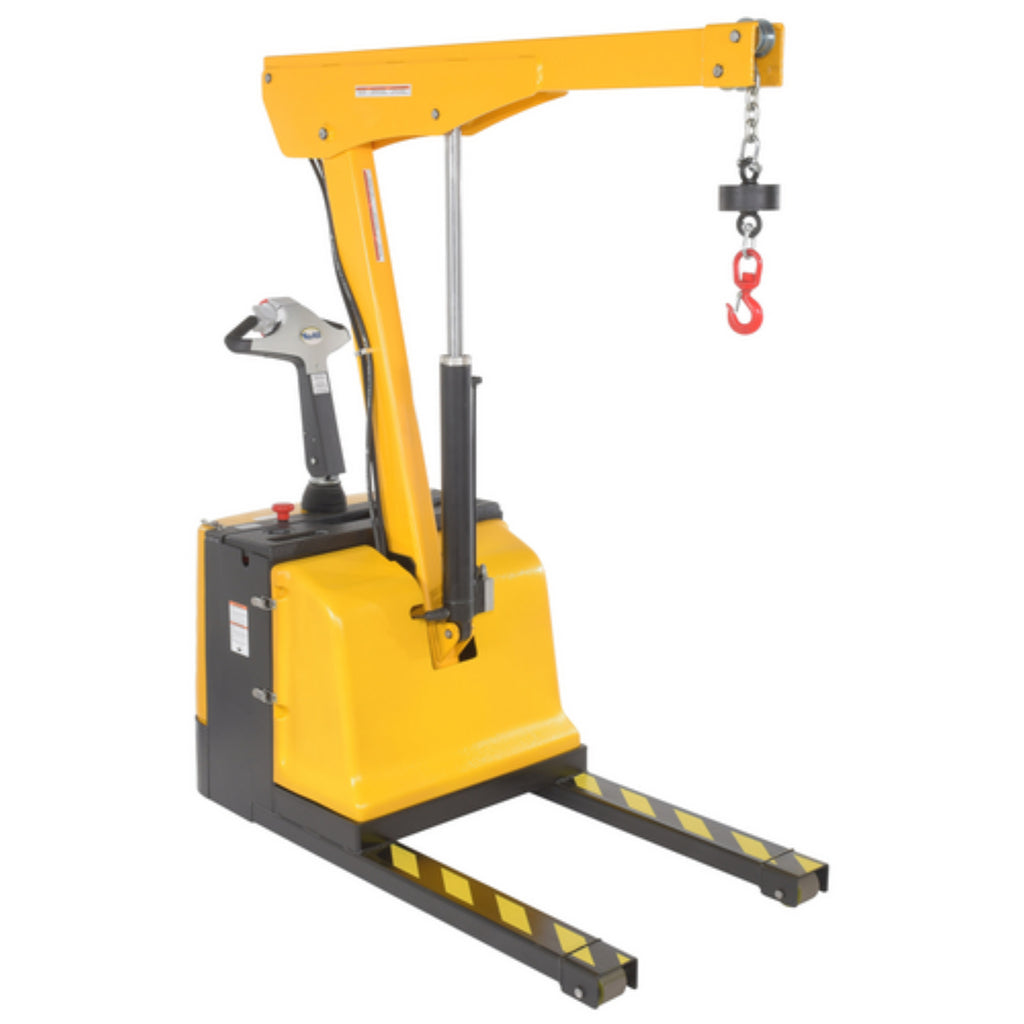

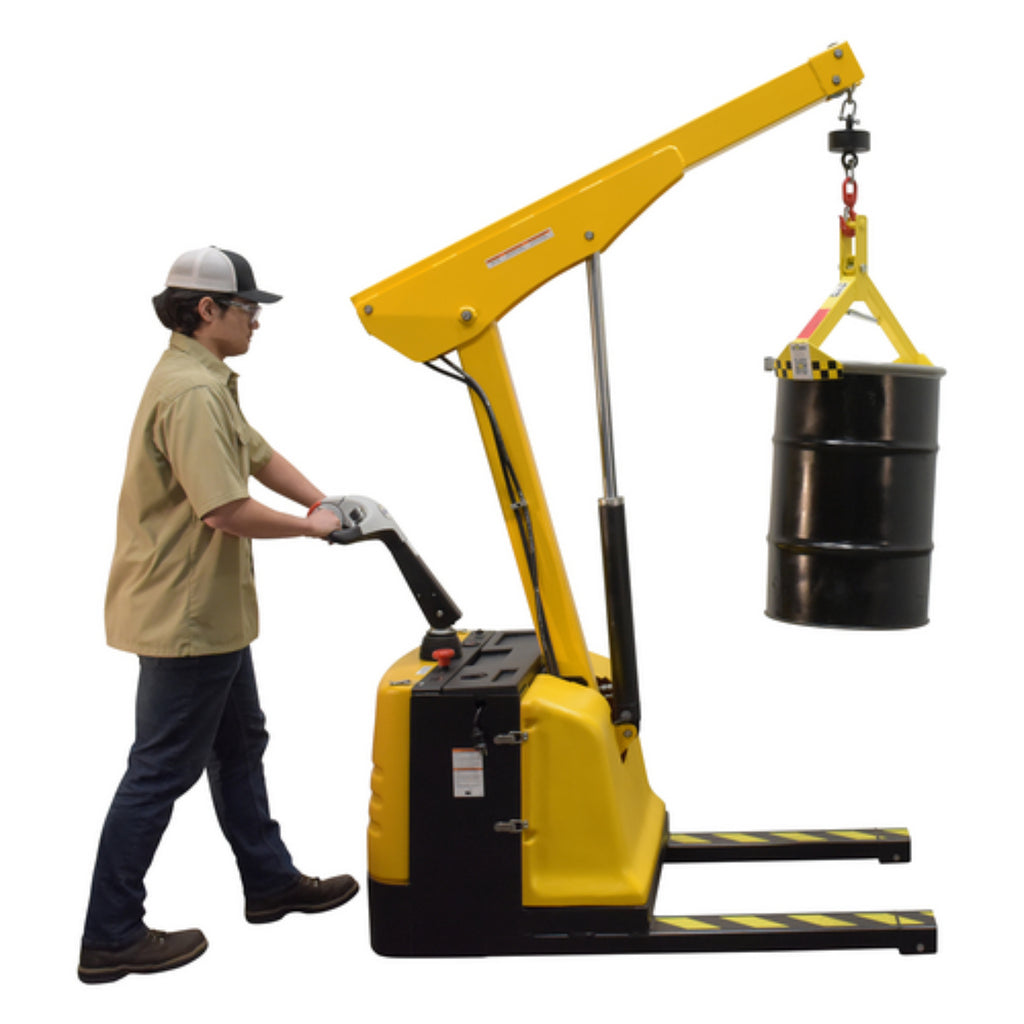

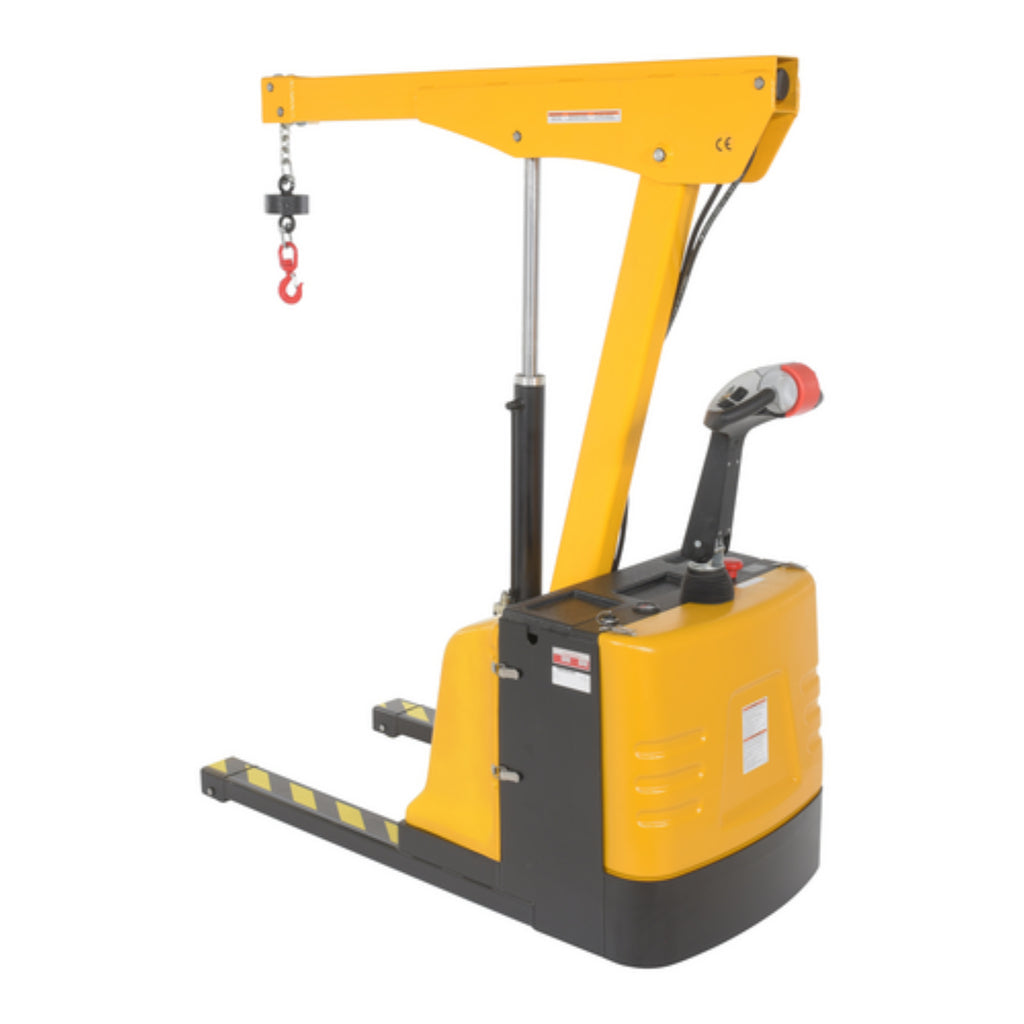

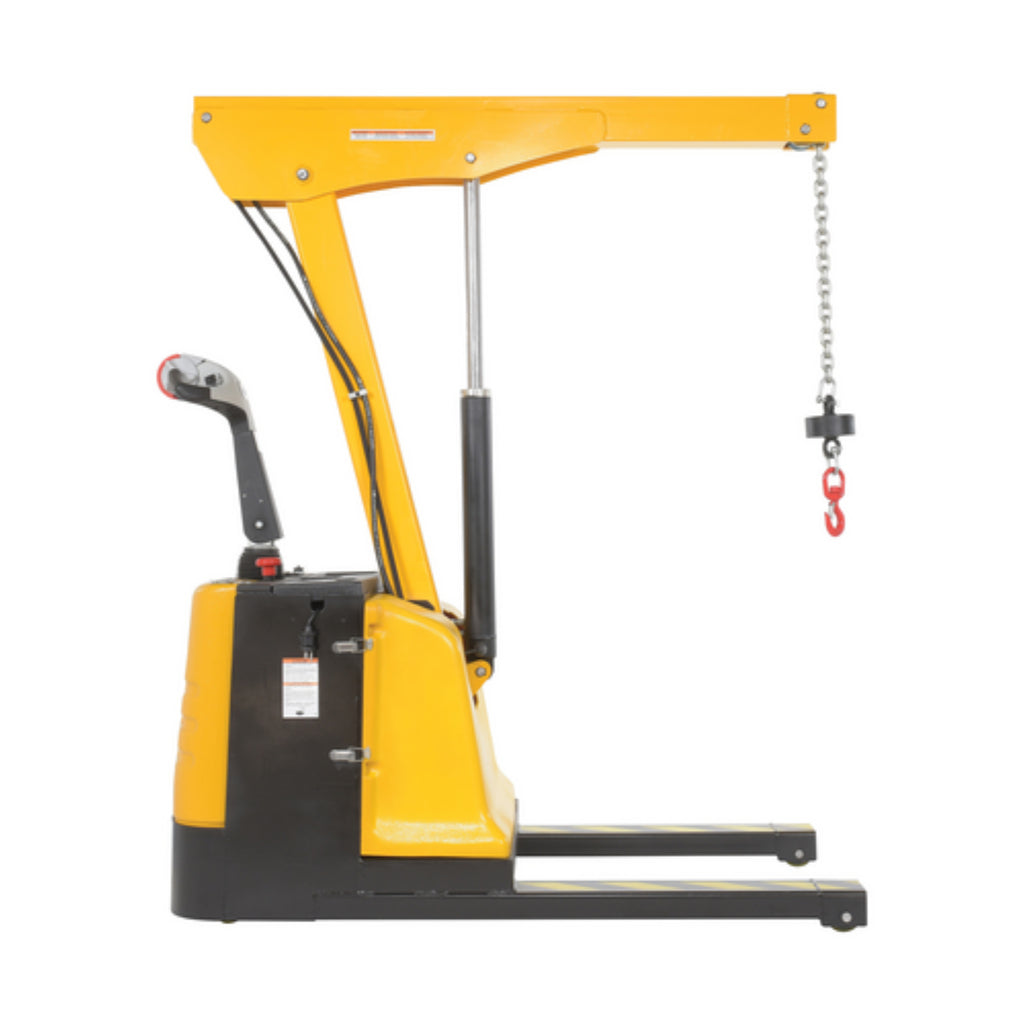

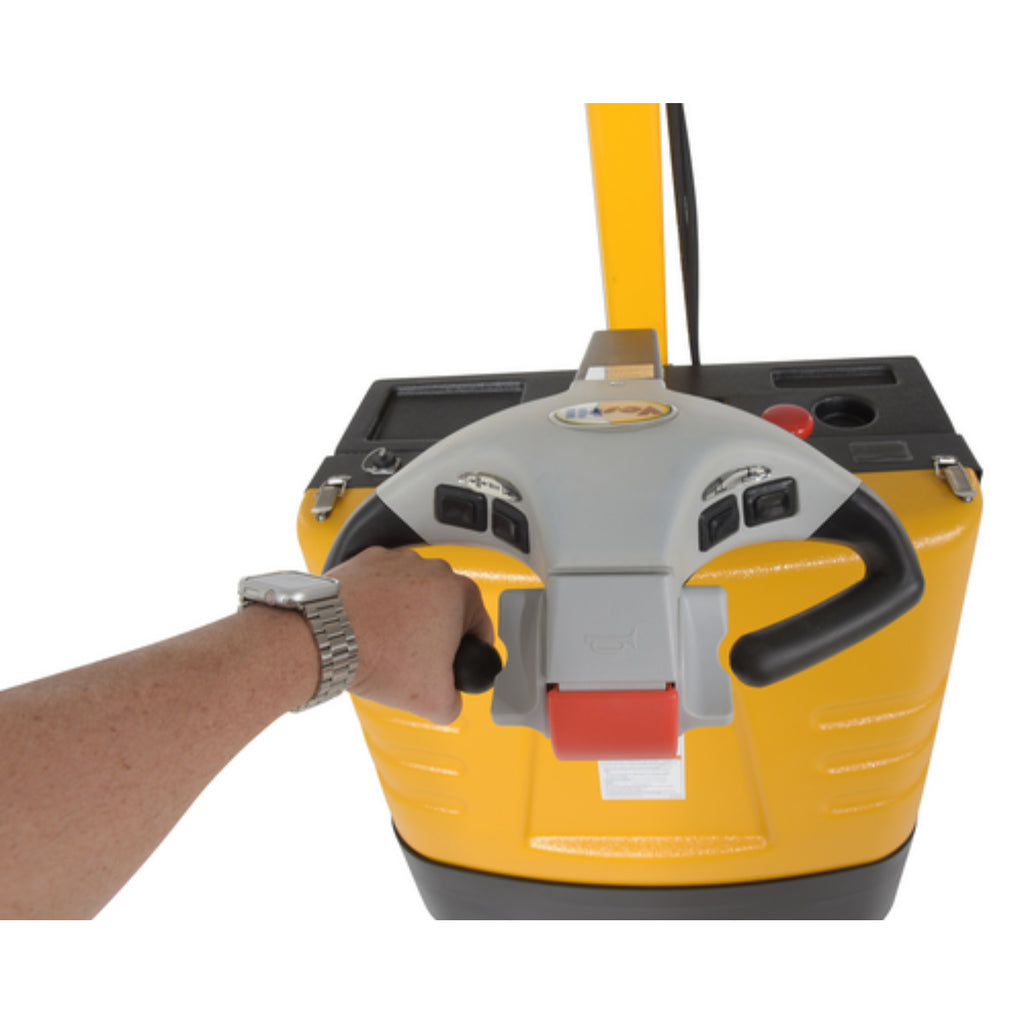

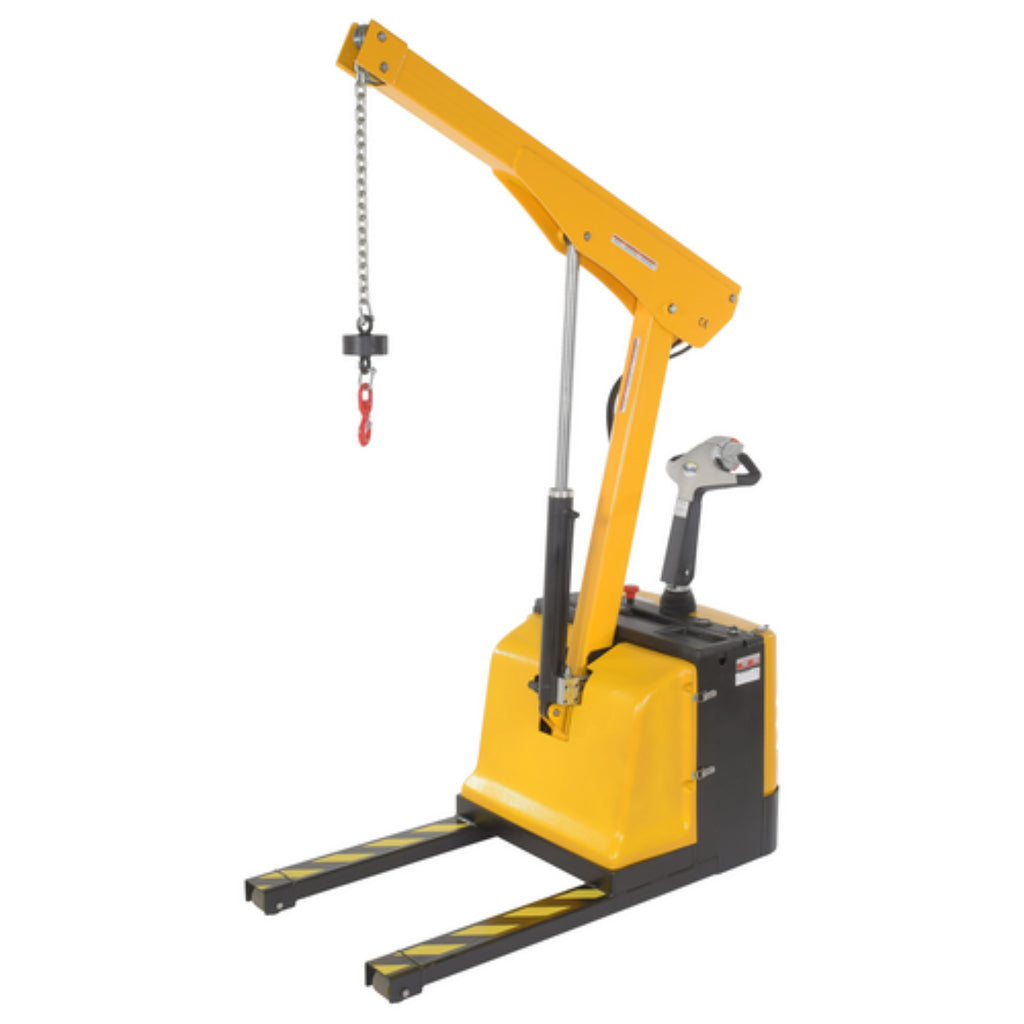

The low profile electric powered floor crane is a safe and efficient way to lift and move equipment. With the push of a button, the unit raises and lowers loads. Its low profile design can be maneuvered in narrow and crowded warehouses. An included rigid hook with safety latch provides security during lifting. Poly-on-steel, steer and load wheels provide a smooth roll. The handle is both ergonomic and functional, featuring a throttle with infinite forward and reverse speed adjustments. Emergency reverse belly switch instantly reverses direction. Horn is also included.
Features
- Electromagnetic disc brake
- Walk behind design

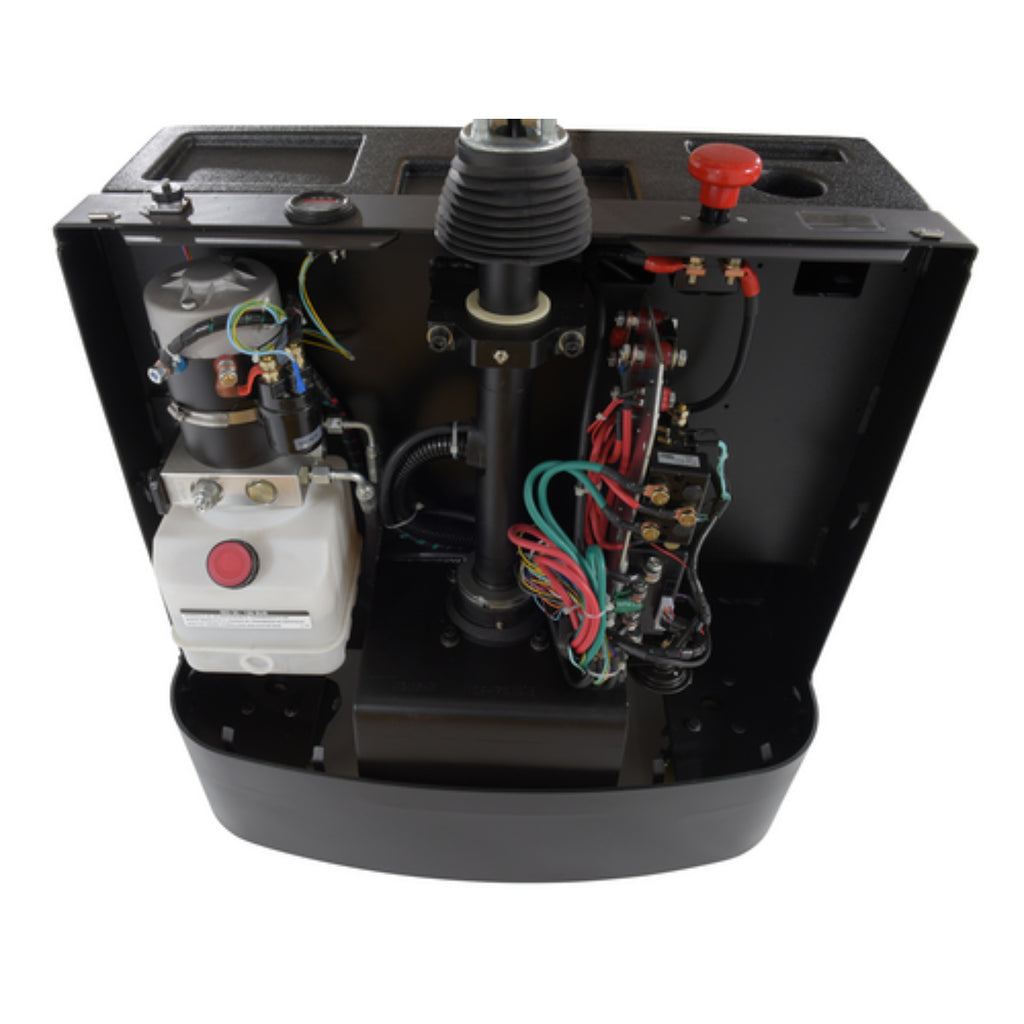

- 24V internal battery
- Battery level gauge and charger included
Specifications
| Specification | Value |
|---|---|
| Overall Length (in) | 65.375 |
| Overall Width (in) | 30.125 |
| Overall Height (in) | 97.25 |
| Maximum Boom Height at Full Extension (in) | 109.5 |
| Maximum Boom Length (in) | 56.5 |
| Maximum Load Capacity (lbs) | 1600 |
| Maximum Load Capacity at Full Extension (lbs) | 1600 |
| Color / Finish | Yellow |
| Frame Material | Steel |
| Portable | Yes |
| Number of Casters / Wheels | 3 |
| Rear Wheel Diameter (in) | 10 |
| Rear Wheel Width (in) | 3.125 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 3.125 |
| Front Wheel Width (in) | 3 |
| Front Wheel Material | Poly on Steel |
| Power Source | Battery-operated |
| ASME B30.5 Compliant | Exempt from Standard |
| Weight (lbs) | 950 |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
