Description
Description

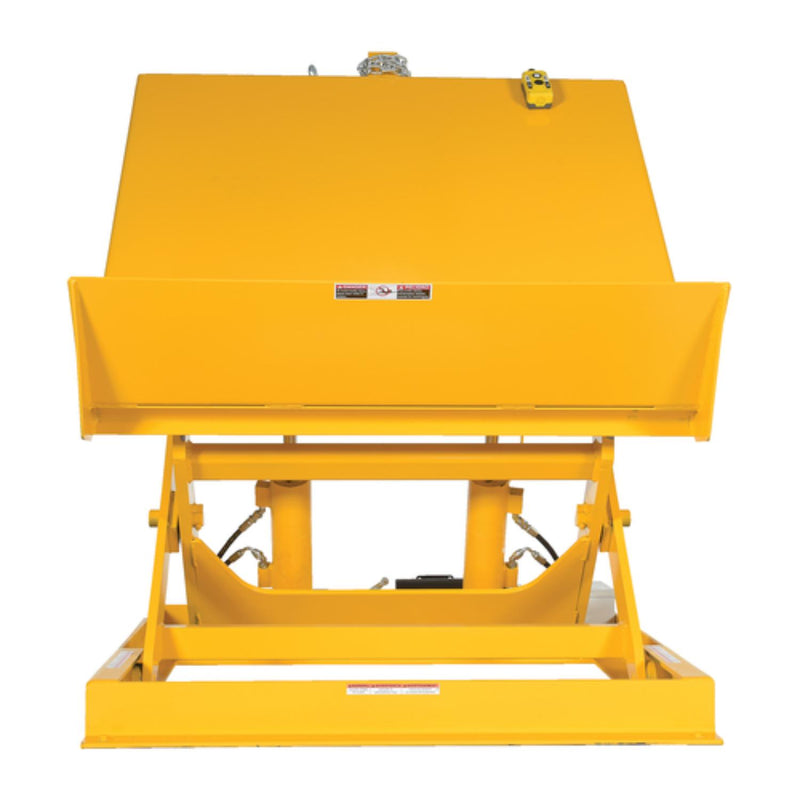

The lift & tilt workstation table allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers. The internal power unit includes electric motor, hydraulic pump, and control box. It includes a two-button hand held pendent control with optional voltages available. The welded steel construction has a yellow painted finish.
Features
- Ergonomic design minimizes bending and twisting
- Welded steel construction provides long lasting rugged use
- 44 Degrees tilt angle offers better ergonomics and operator comfort
- Platform end lip safely supports containers when tilted
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Corded |
| Platform Material | Steel |
| Platform Length (in.) | 48 |
| Platform Width (in.) | 36 |
| Platform Thickness (in.) | 3 |
| Maximum Height (in.) | 24 |
| Minimum Height (in.) | 10 |
| Maximum Travel Distance (in.) | 14 |
| Maximum Tilt Angle (°) | 44 |
| Lip Height (in.) | 12 |
| Weight Capacity (lbs.) | 4000 |
| Color / Finish | Yellow |
| Operation Method | Hand Operated |
| Overload Protection | Yes |
| Lifting Speed (sec/ft.) | 13 |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Power Cord Length (ft.) | 8 |
| Installation Hardware Included | Not Required |
| Weight (lbs.) | 857 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
