Description
Description

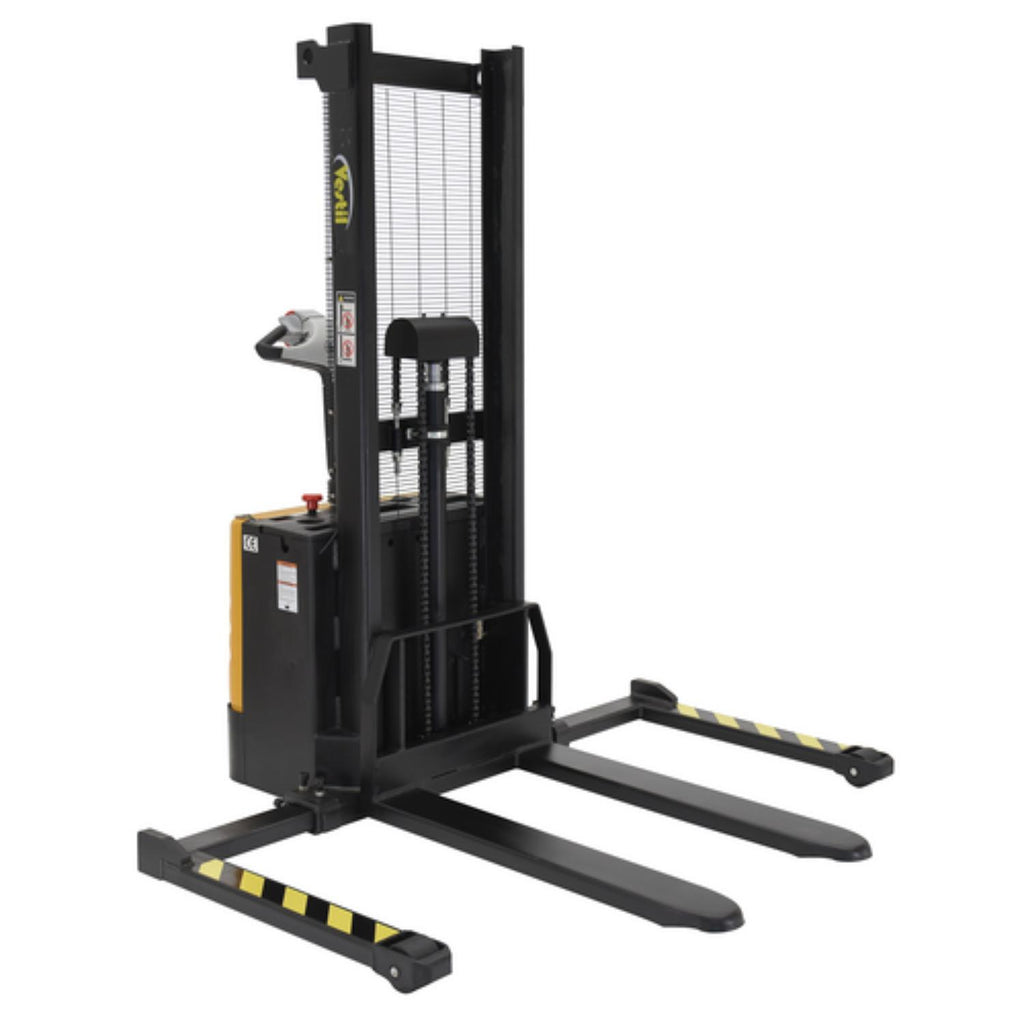

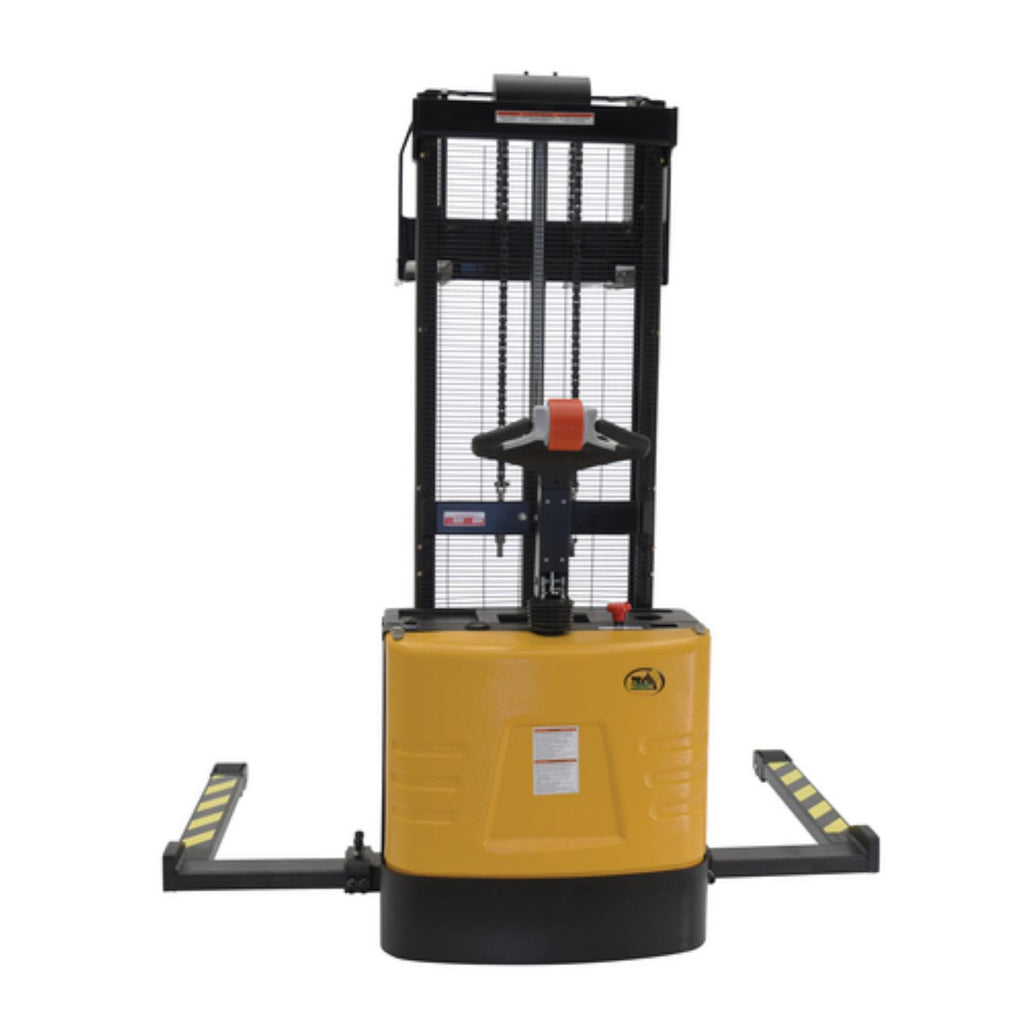

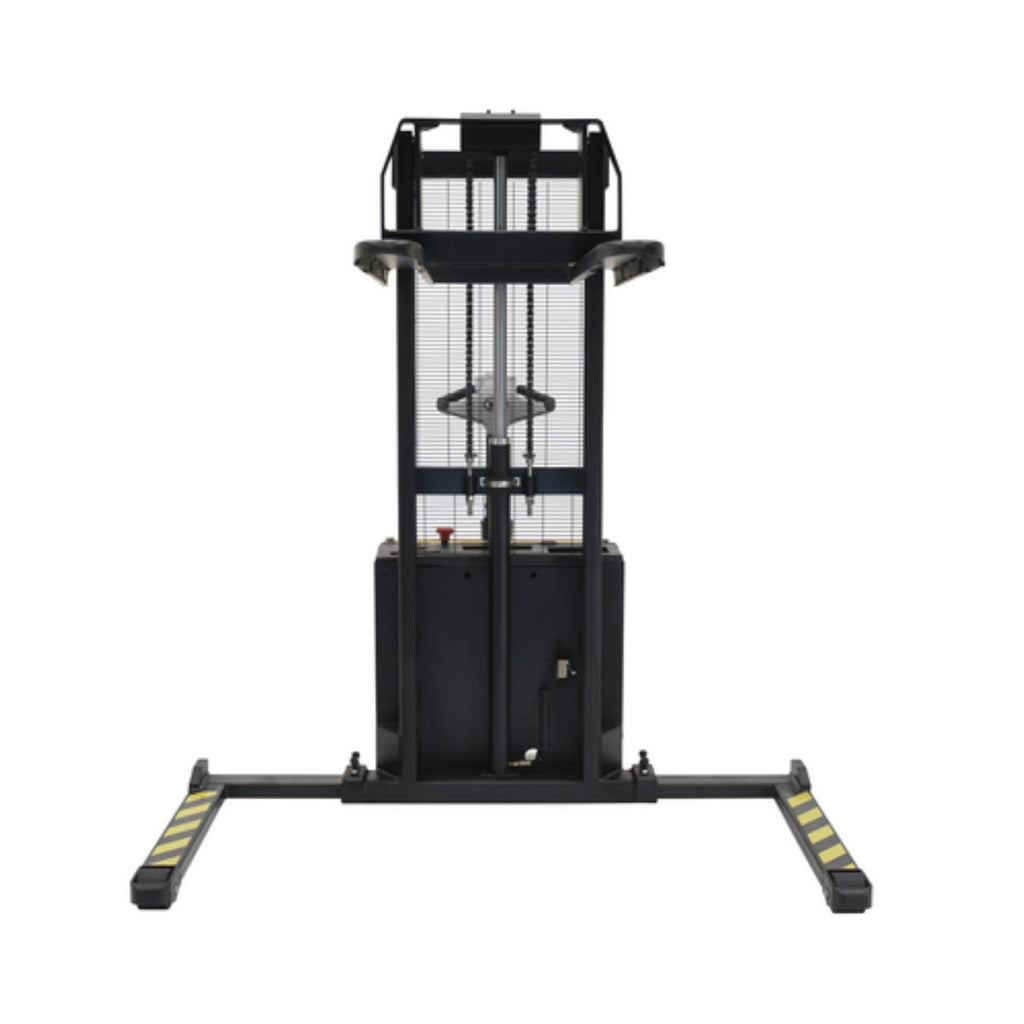

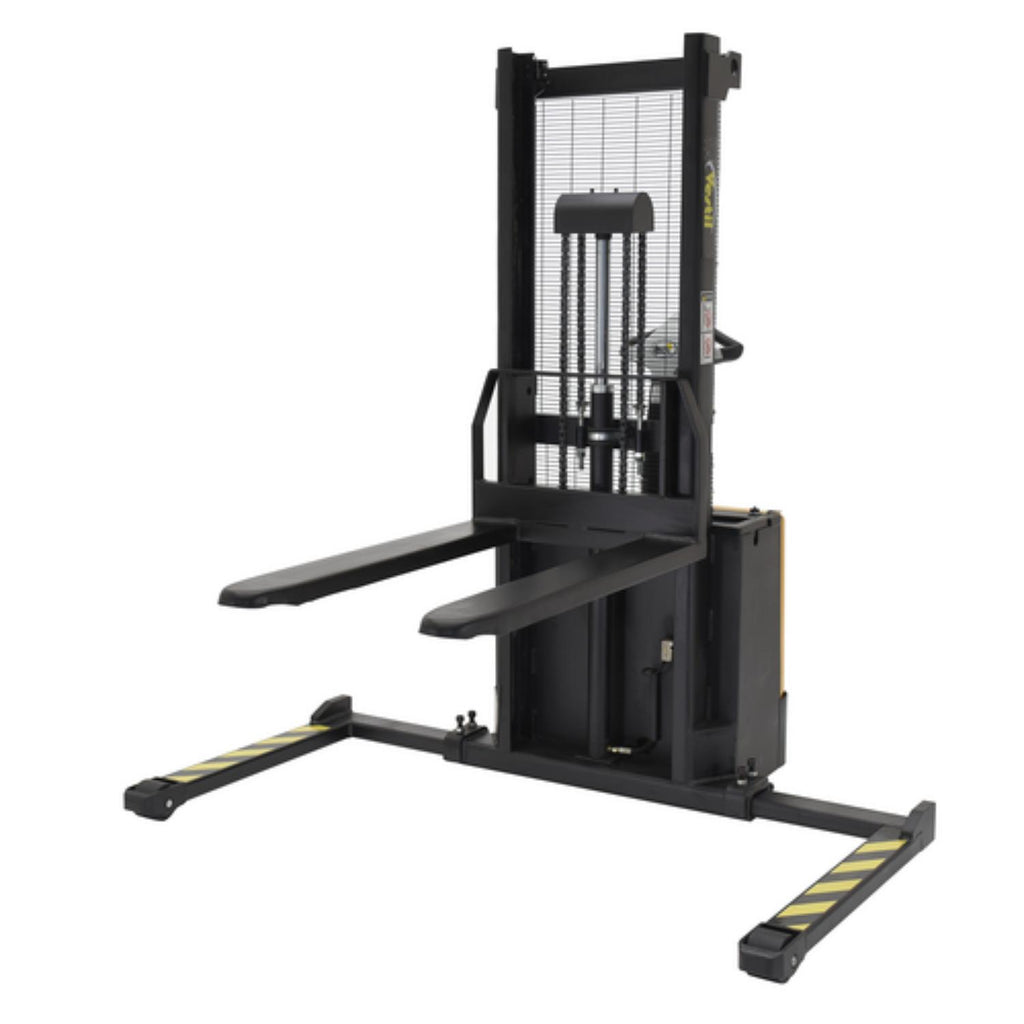

The stacker with powered drive and powered lift is a fully powered electric stacker that transports loads throughout warehouse facilities quickly and with less effort. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The power lifter features a lead acid deep cycle battery, integral battery charger, and a battery level gauge. The stacker rolls smoothly on poly-on-steel steer and load wheels.
Features
- Fully-powered pallet truck makes movement of pallets quick and easy
- Includes fingertip raise and lower buttons for operator convenience
- Safety belly reverse button improves worker safety
- Easy-to-operate throttle for forward and reverse direction
Specifications
Specification | Details |
---|---|
Power Source | Battery-operated |
Maximum Lift Height | 62 in |
Minimum Lift Height | 2.5 in |
Maximum Travel Distance | 59.5 in |
Weight Capacity | 2000 lbs |
Color / Finish | Black/Yellow |
Frame Material | Steel |
Fork Length | 42 in |
Fork Width | 5.9 in |
Adjustable Forks | No |
Minimum Width Between Forks | 26.75 in |
Adjustable Legs | Yes |
Leg Width | 4 in |
Minimum Width Between Legs | 38.188 in |
Maximum Width Between Legs | 50 in |
Battery Charger Included | Yes |
Horsepower | 2 hp |
Phase | Not Applicable |
Voltage | 24 V |
Number of Casters / Wheels | 5 |
Rear Wheel Diameter | 4 in |
Rear Wheel Material | Poly on Steel |
Front Wheel Diameter | 4 in |
Front Wheel Material | Poly on Steel |
Weight | 970 lbs |
Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
