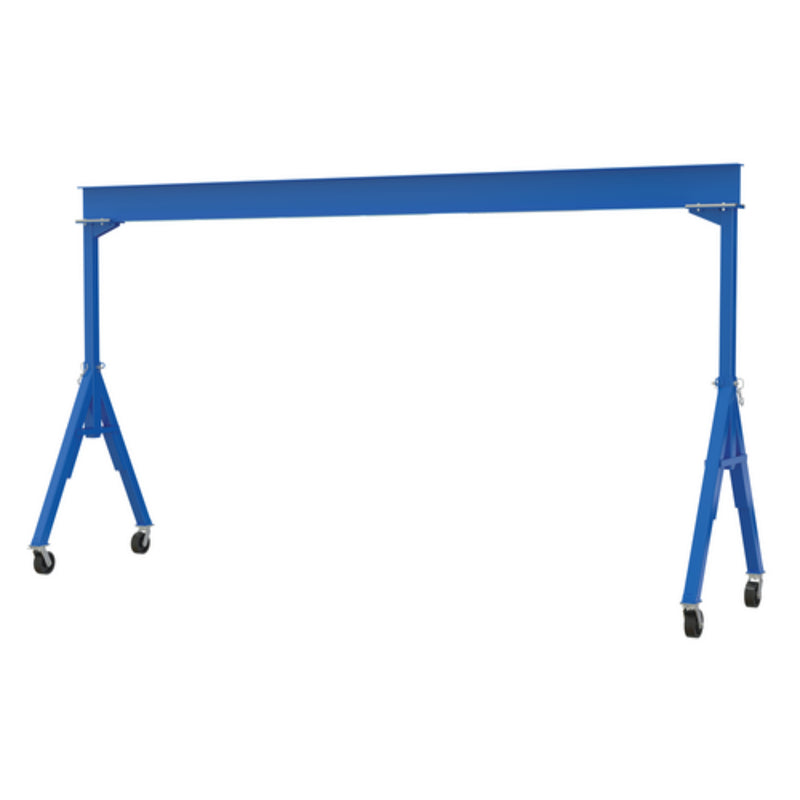

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
Features
- Heavy-duty welded steel construction for long lasting use
- Each unit includes four swivel steel casters with four-way position locks for safe positioning
- The fixed height of the unit provides constant lifting stability
- All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Specifications
Specification | Value |
---|---|
Capacity (lbs) | 6,000 |
Color / Finish | Blue |
Frame Material | Steel |
Beam Height (in) | 12.3125 |
Beam Length (in) | 240 |
Usable Beam Length (in) | 209.75 |
Flange Width (in) | 6.5 |
Base Width (in) | 65.5 |
Base Length (in) | 229.25 |
Maximum Overall Height (in) | 133.5 |
Adjustable Height | No |
Maximum Clearance (in) | 121 |
Number of Casters / Wheels | 4 |
Caster / Wheel Locking | Yes |
Wheel Material | Phenolic |
Wheel Diameter (in) | 8 |
Wheel Width (in) | 3 |
Weight (lbs) | 1,355 |
Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
