Description
Description

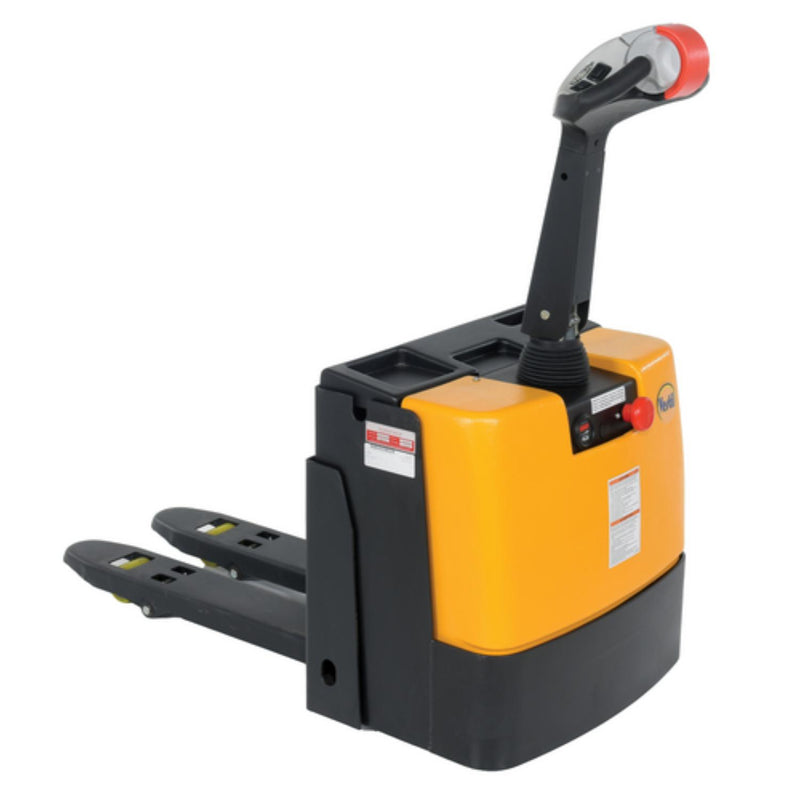

A fully powered electric pallet truck provides a quick and easy solution in close-fitting areas. The narrow fork design is perfect for half and quarter sized pallets, making it a reliable resource in warehouses and trailers. Reinforced welded forks with adjustable tie-rods provide long term service. High-torque drive & lift motor endures heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn.
Features
- Quick performing raise and lower buttons
- 24V DC drive
- Poly on steel casters
- 3.1 To 7.625" service range
Specifications
| Specification | Value |
|---|---|
| Assembly Required | None |
| Color / Finish | Black / Yellow |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 46 |
| Handle Material | Plastic |
| Material | Steel/Plastic |
| Lift Height Maximum (in) | 7.625 |
| Maximum Travel Distance (in) | 4.525 |
| Maximum Amperage (A) | 9.16 |
| Power Source | Electric |
| Voltage (V) | 24 |
| Weight Capacity (lbs) | 2,600 |
| Maximum Fork Height (in) | 7.625 |
| Depth (in) | 57 |
| Height (in) | 46 |
| Width (in) | 25.25 |
| Wheel Material | Poly on Steel |
| Fork Lowered Height (in) | 3.1 |
| Fork Width (in) | 6 |
| Fork Length (in) | 32 |
| Load Center (in) | 14 |
| Maximum Adjustable Fork Width (in) | 19 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
