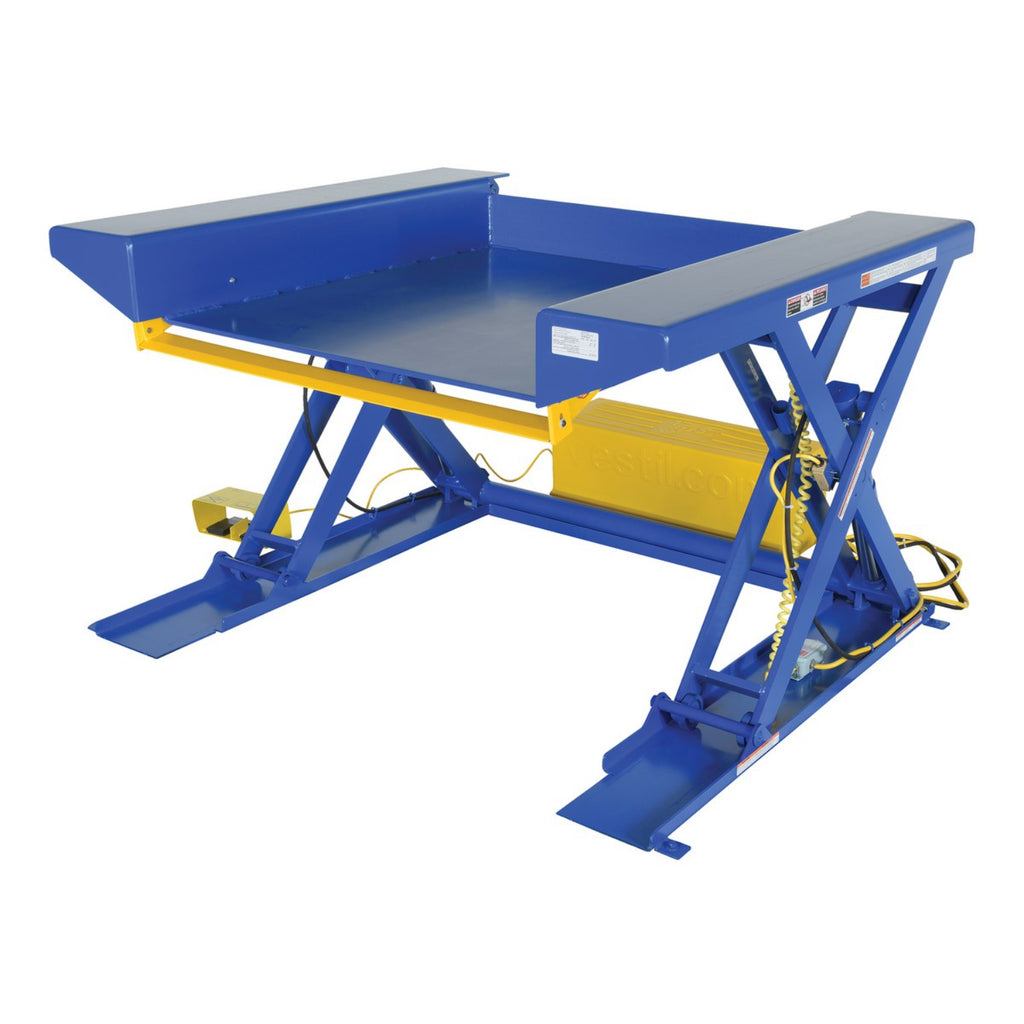

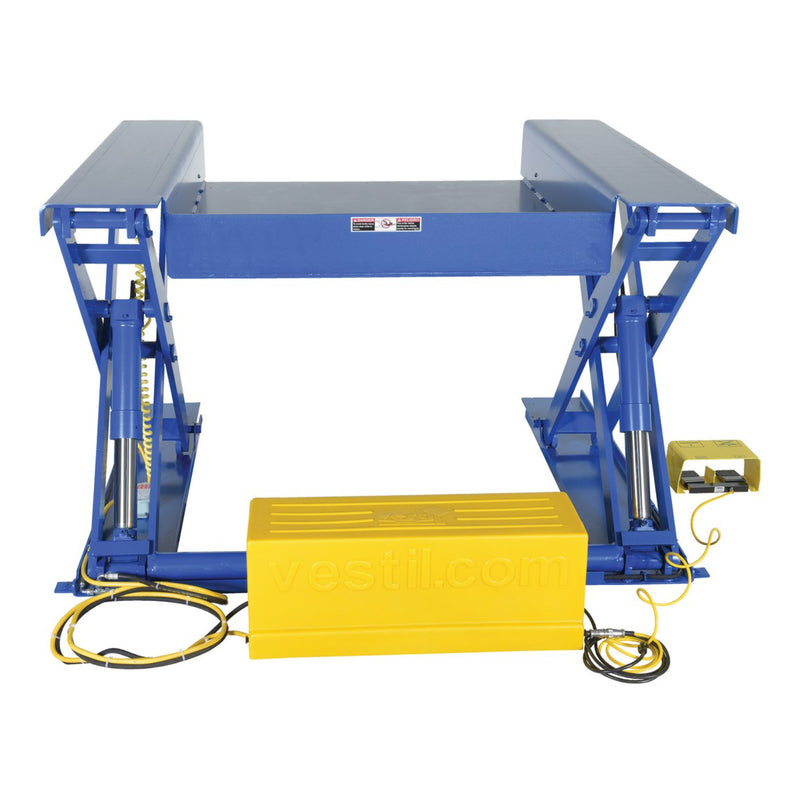

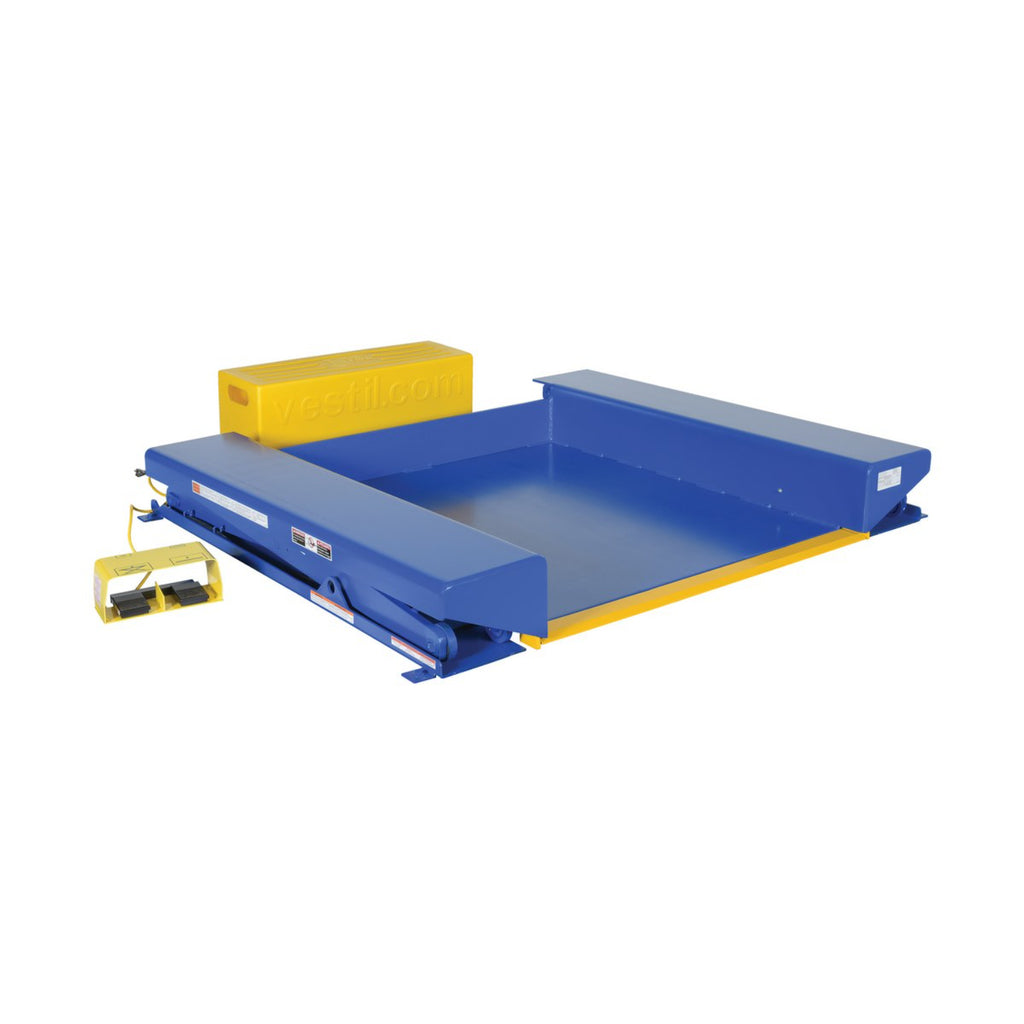

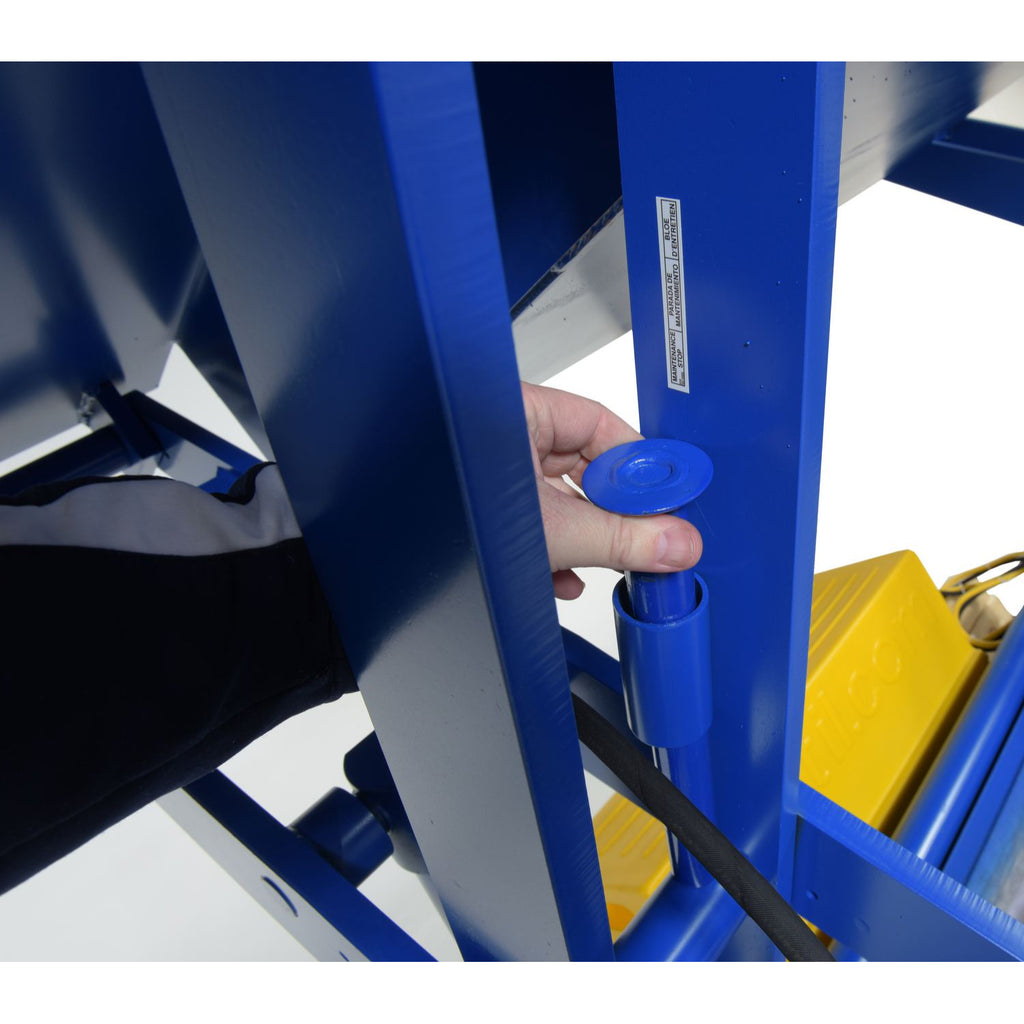

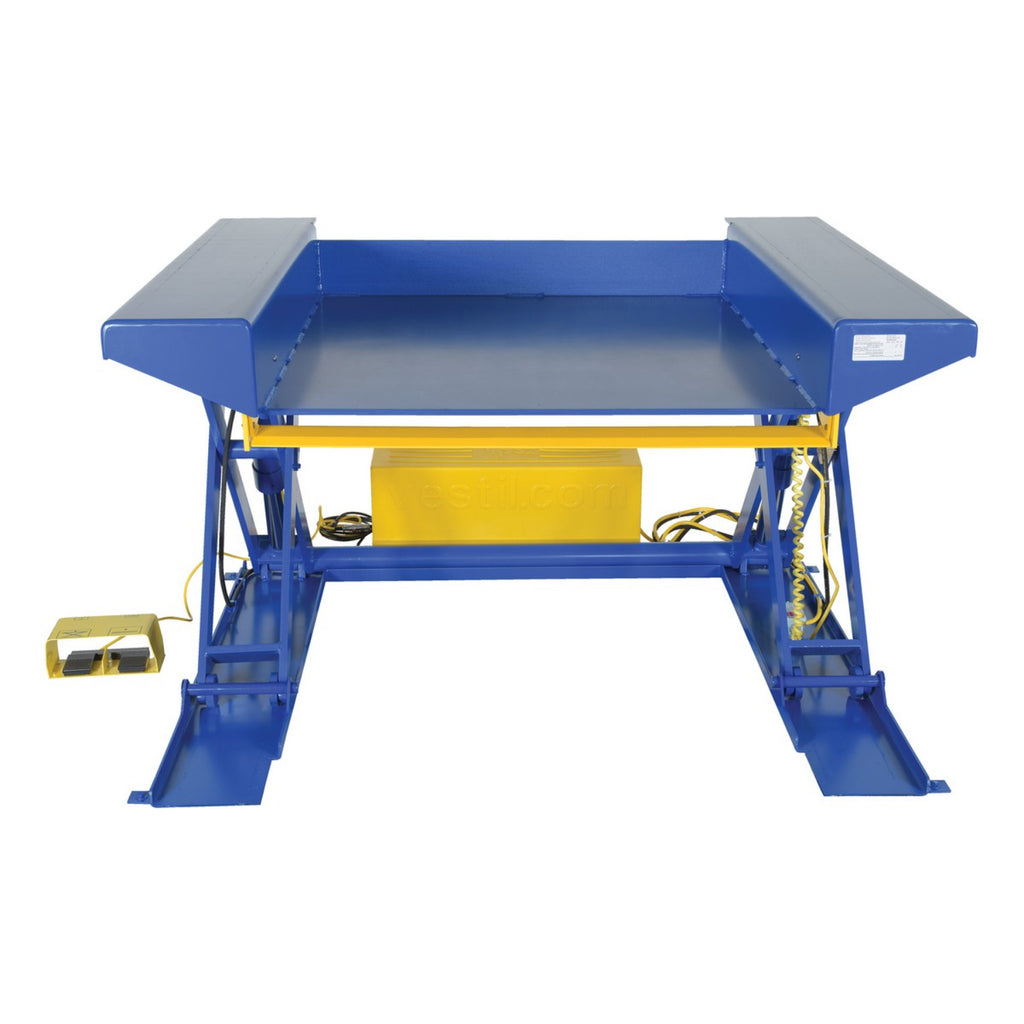

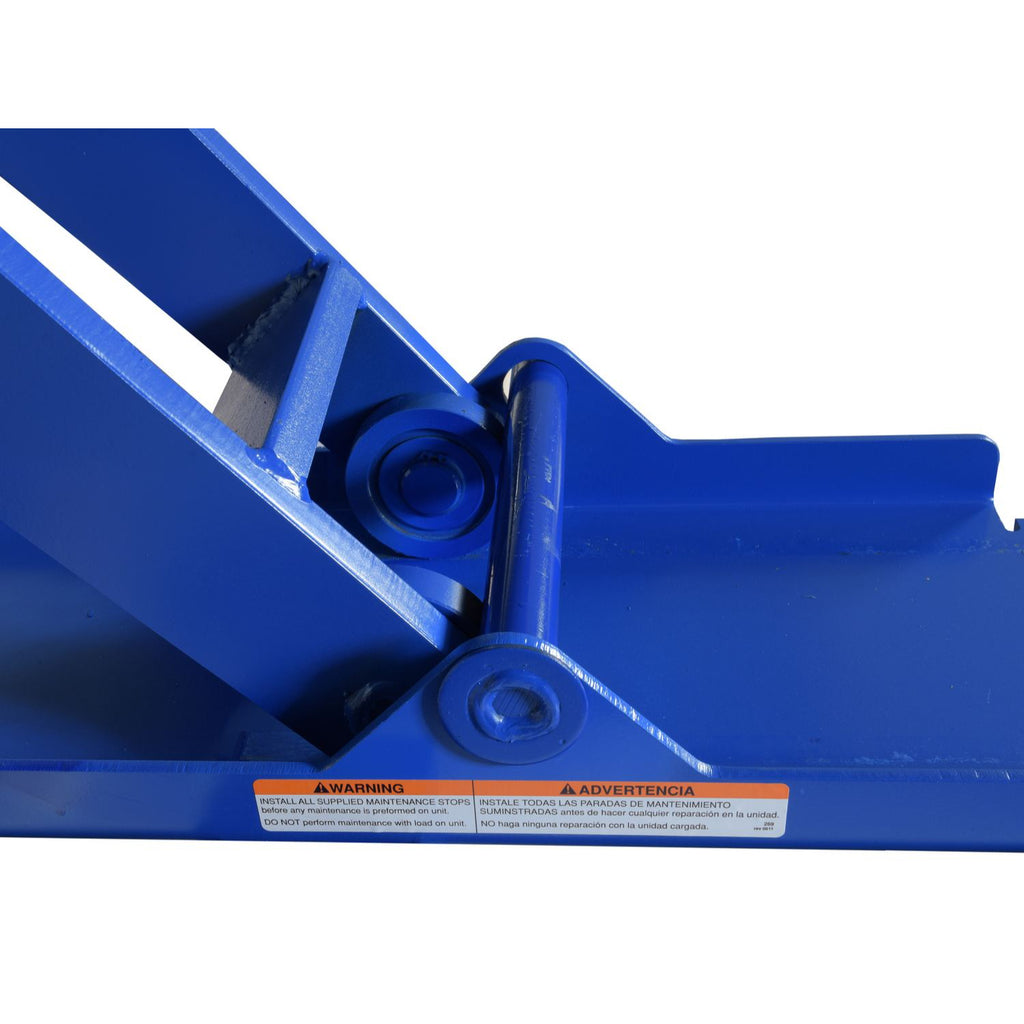

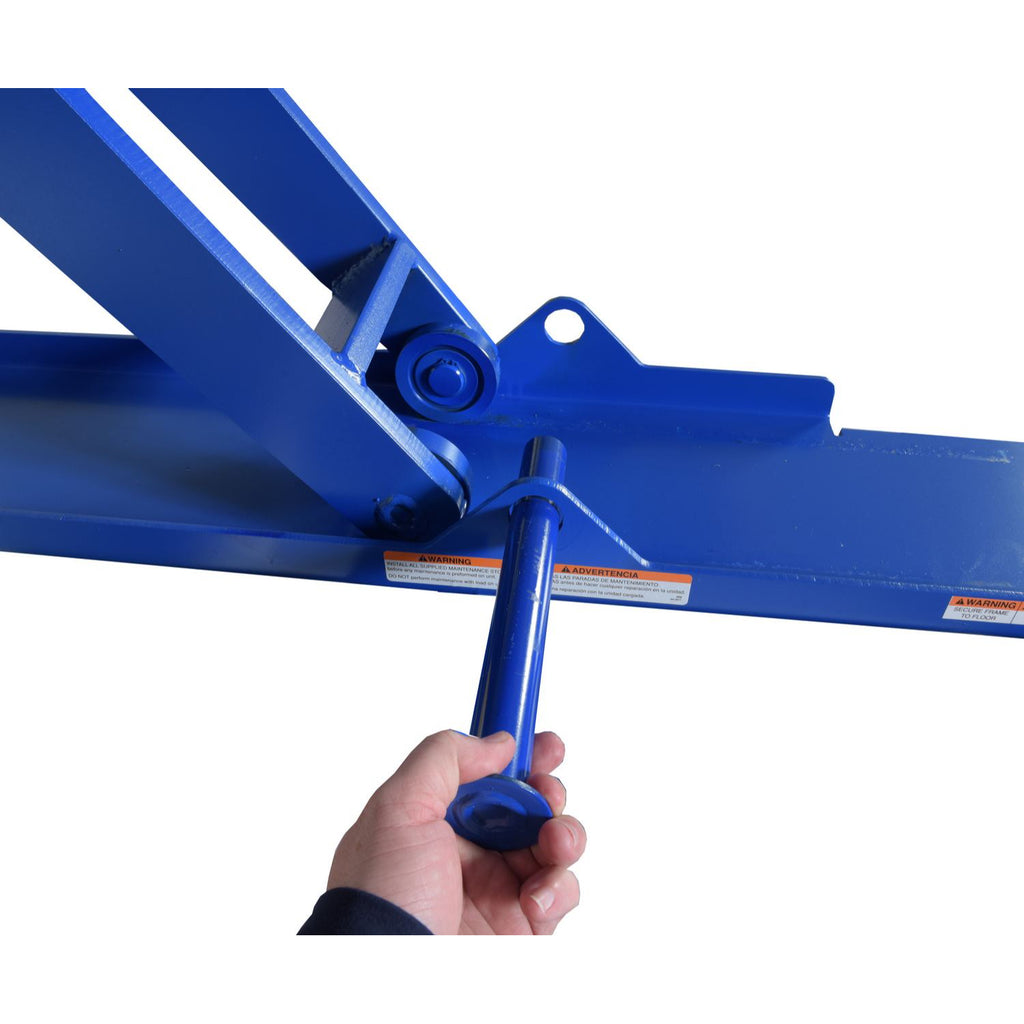

The ground lift scissor table is designed for use when fork trucks are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed standard with additional voltage options available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.
Features
- Pallets can be loaded onto the platform and raised to a working height
- Features entry-side electric toe guard to protect pinch points
- Includes velocity fuse to maintain platform height
- Remote power unit can be located up to eight feet away from the table
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Color / Finish | Blue/Yellow |
| Weight Capacity (lbs) | 2000 |
| Overall Height (in) | 8.5 |
| Overall Length (in) | 56.25 |
| Overall Width (in) | 66.8125 |
| Platform Material | Steel |
| Platform Length (in) | 51.5 |
| Platform Width (in) | 44 |
| Maximum Height (in) | 36 |
| Minimum Height (in) | 0.5 |
| Maximum Travel Distance (in) | 35.5 |
| Operation Method | Foot Operated |
| Overload Protection | Yes |
| Lifting Speed (sec/ft) | 40 |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Power Cord Length (ft) | 8 |
| Weight (lbs) | 1455 |
| Installation Hardware Included | Not Required |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
