Description
Description

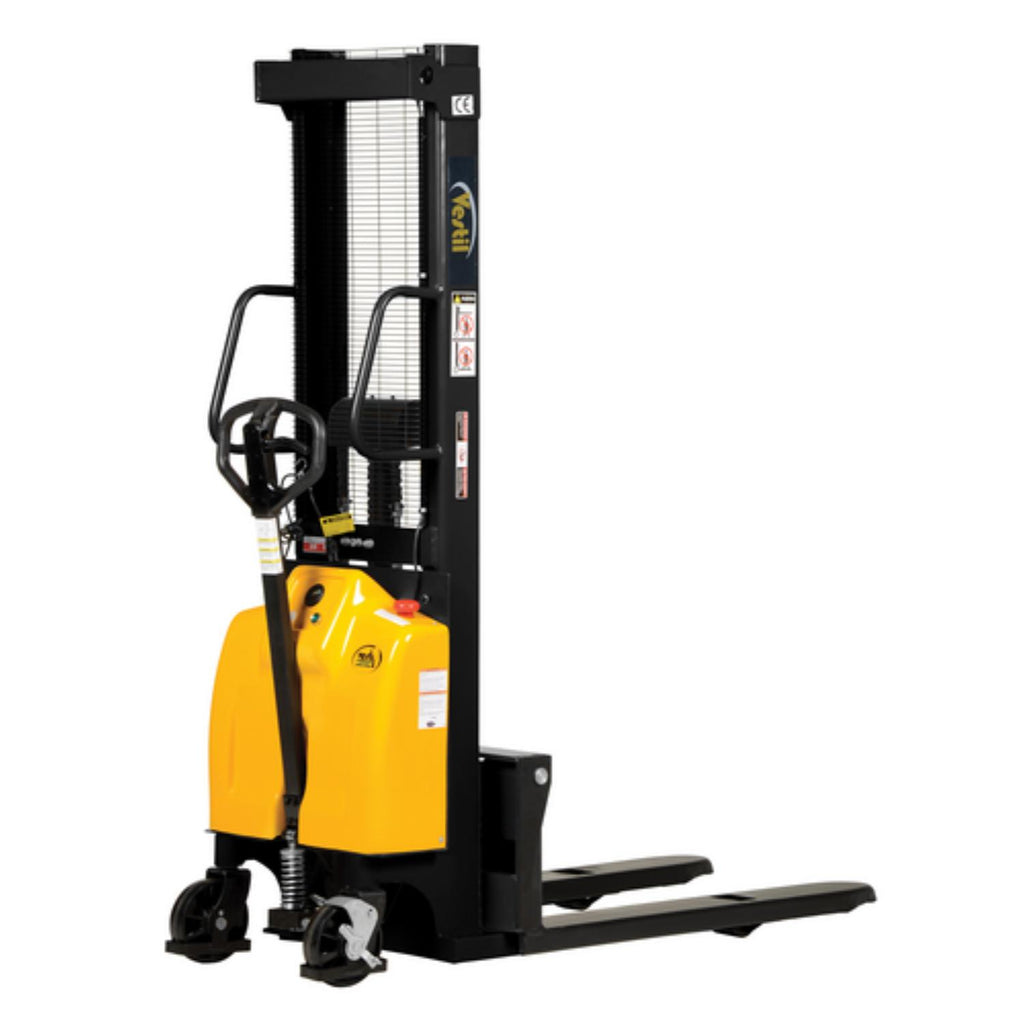

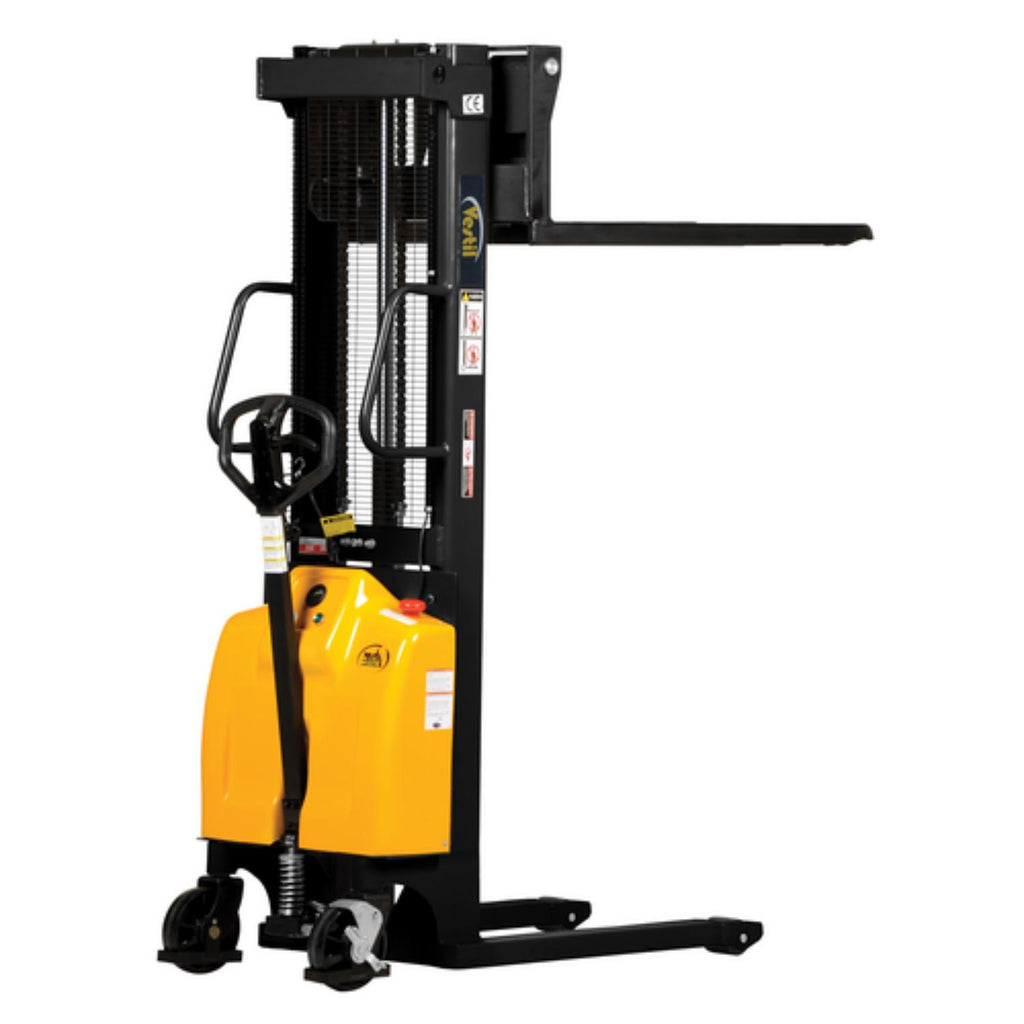

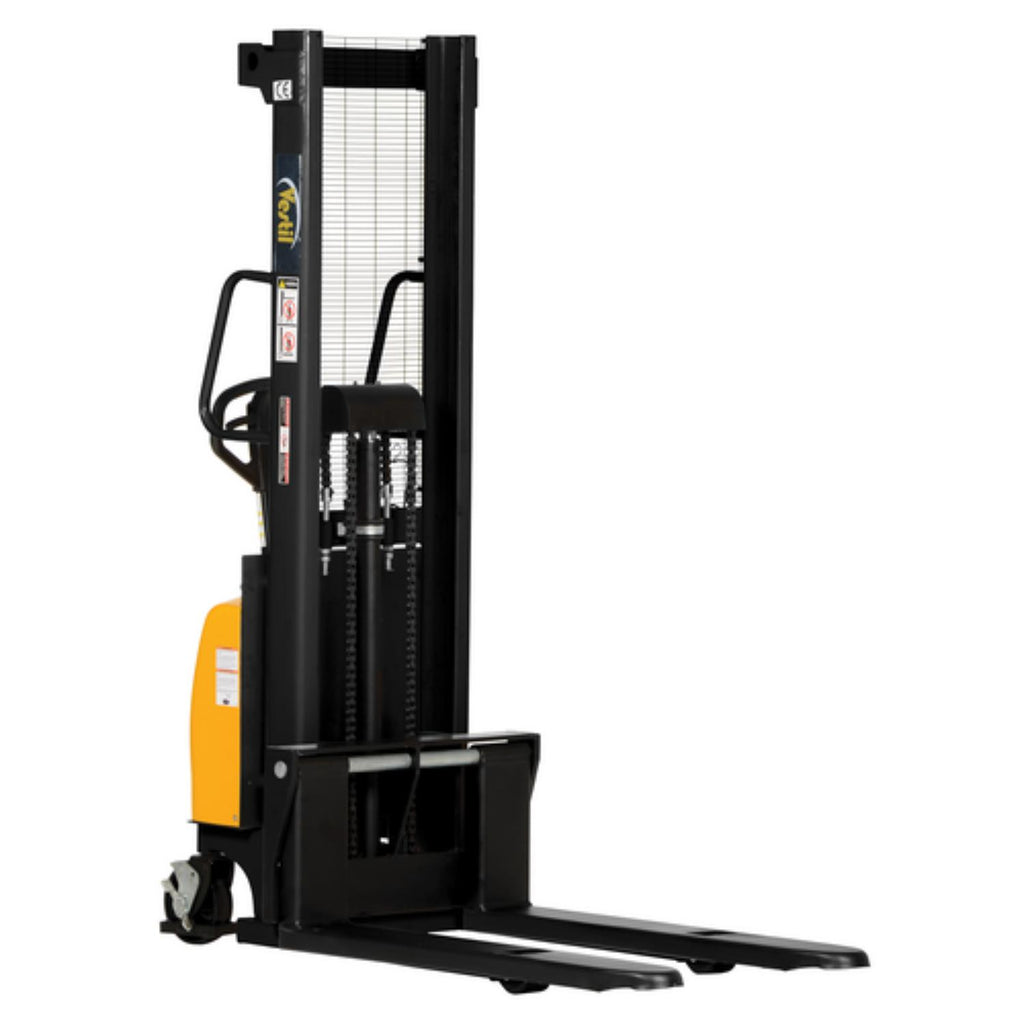

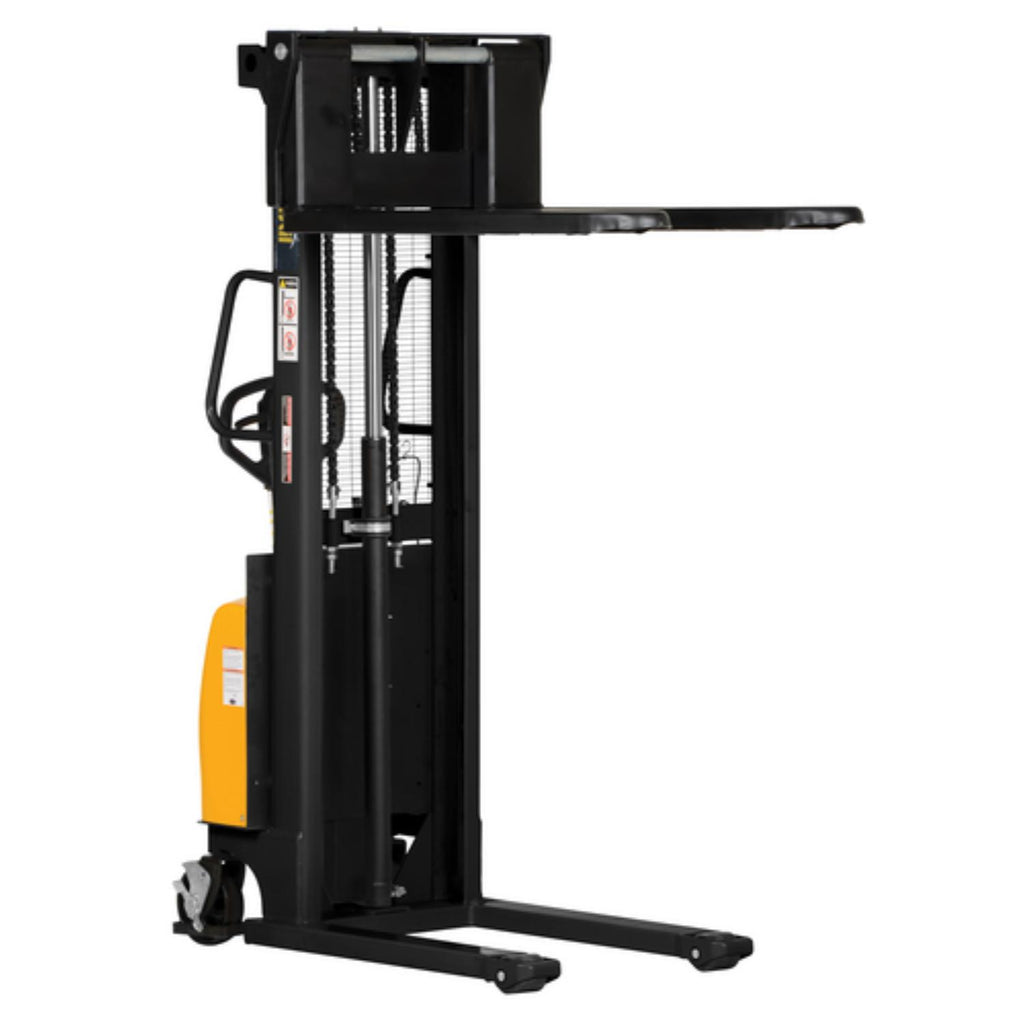

The combination hand pump and electric stacker is an economical alternative to the DC powered lift stacker. It's ideal for maintenance and commercial applications. This unit can be used as a manual hand pump lift or an electric powered lift, which is ideal when power is not available. It has a high quality hydraulic pump and DC lift system. The compact design and strong steel profile construction allows the lift to handle tasks such as transporting dies, molds, and skids. It features an integral battery charger, battery level gauge, and adjustable lowering speed. Easily maneuverable using a standard pull handle.
Features
- Unique design features manual and powered forks
- Standard pull handle maneuvers easily
- Steel construction is ideal for maintenance and commercial applications
- High quality hydraulic pump and DC lift system conveniently lifts forks when loaded/unloaded
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Cordless |
| Maximum Lift Height (in) | 63 |
| Minimum Lift Height (in) | 3.375 |
| Maximum Travel Distance (in) | 59.625 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Yellow |
| Frame Material | Steel |
| Fork Length (in) | 42 |
| Fork Width (in) | 4 |
| Adjustable Forks | No |
| Minimum Width Between Forks (in) | 17 |
| Adjustable Legs | No |
| Leg Width (in) | 24 |
| Minimum Width Between Legs (in) | 24 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 2 |
| Running Watts | 1500 |
| Maximum Amperage (A) | 120 |
| Phase | Single Phase |
| Voltage (V) | 24 |
| Hertz (Hz) | 60 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6.5 |
| Rear Wheel Material | Polyurethane |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Polyurethane |
| Weight (lbs) | 718 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
