Description
Description

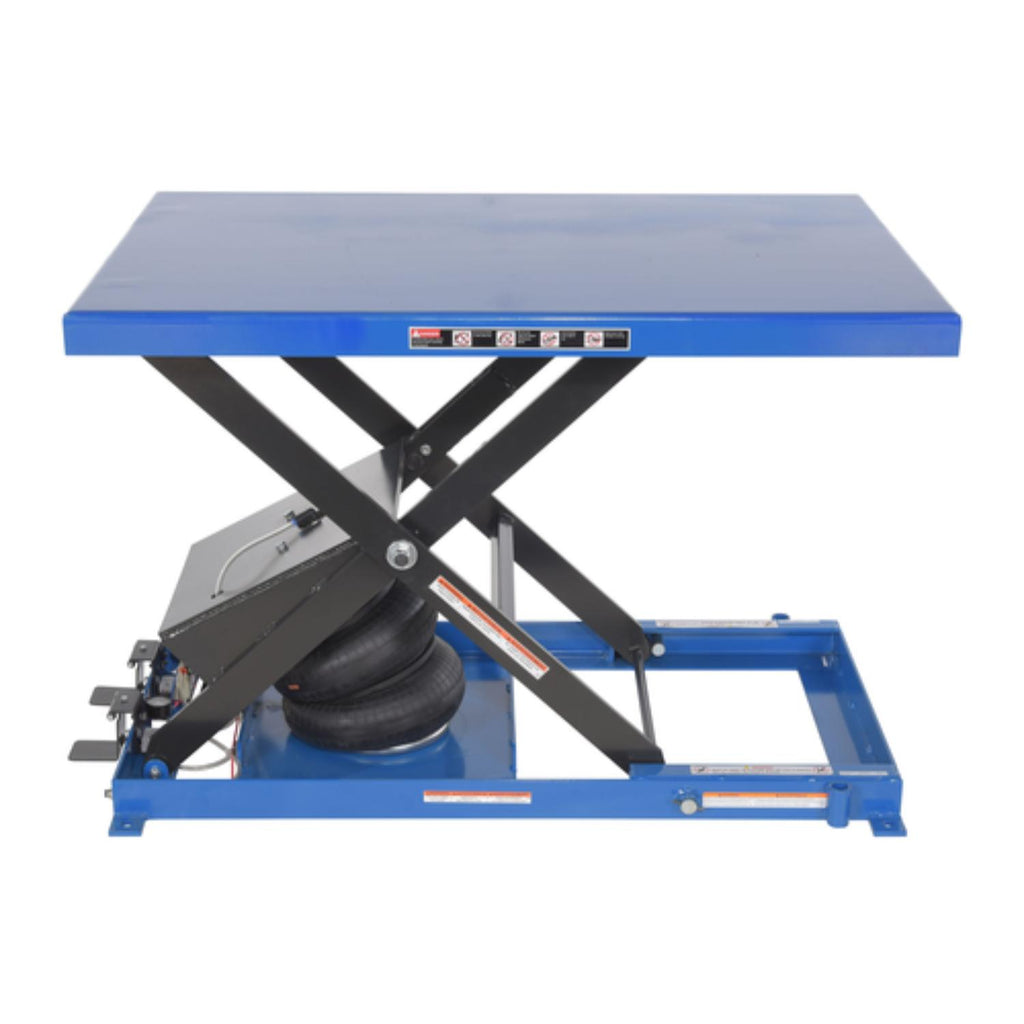

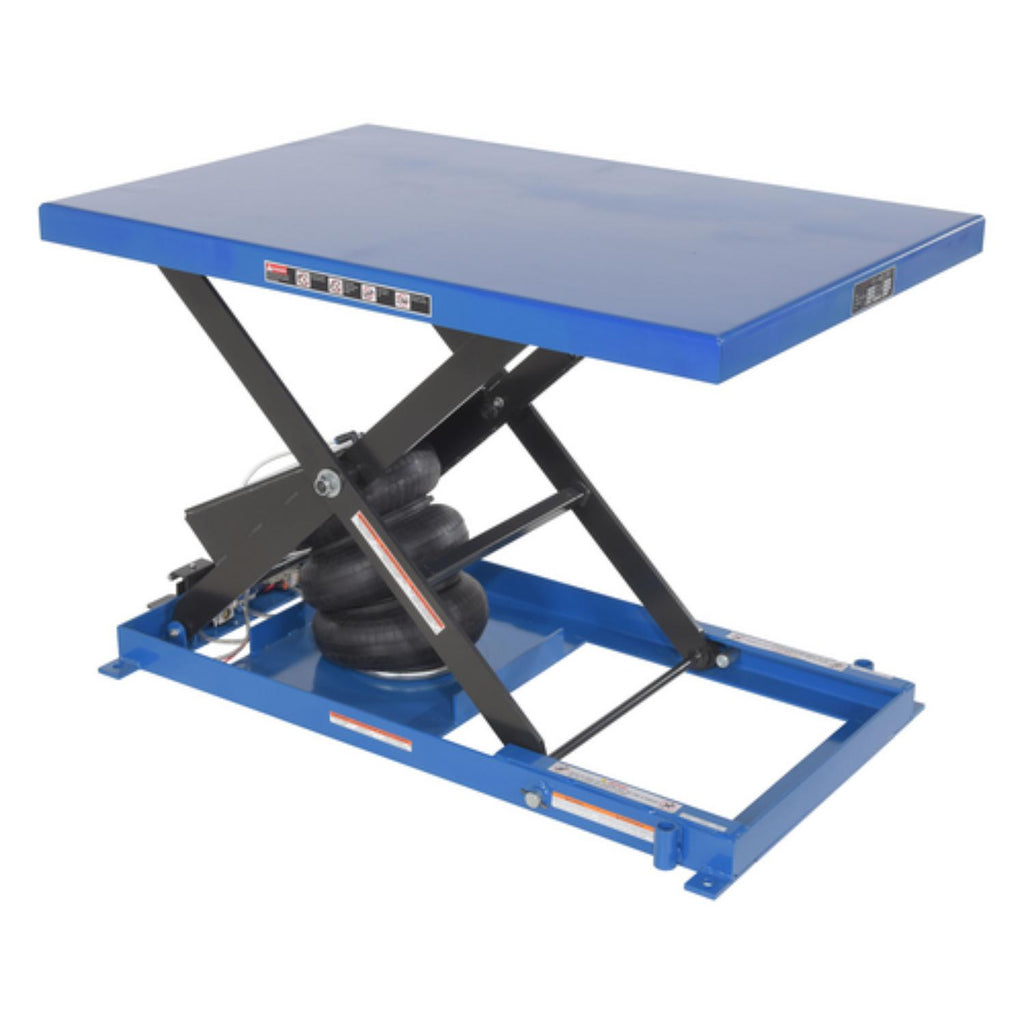

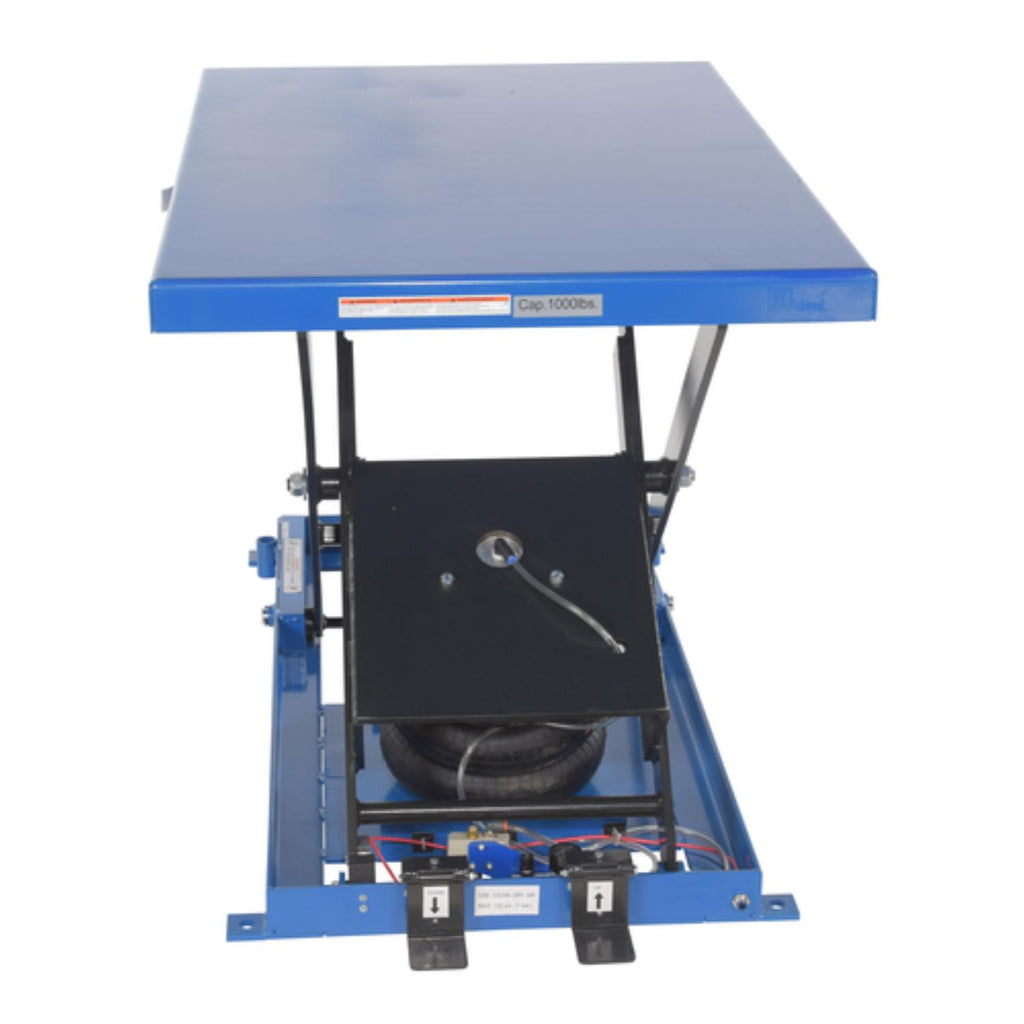

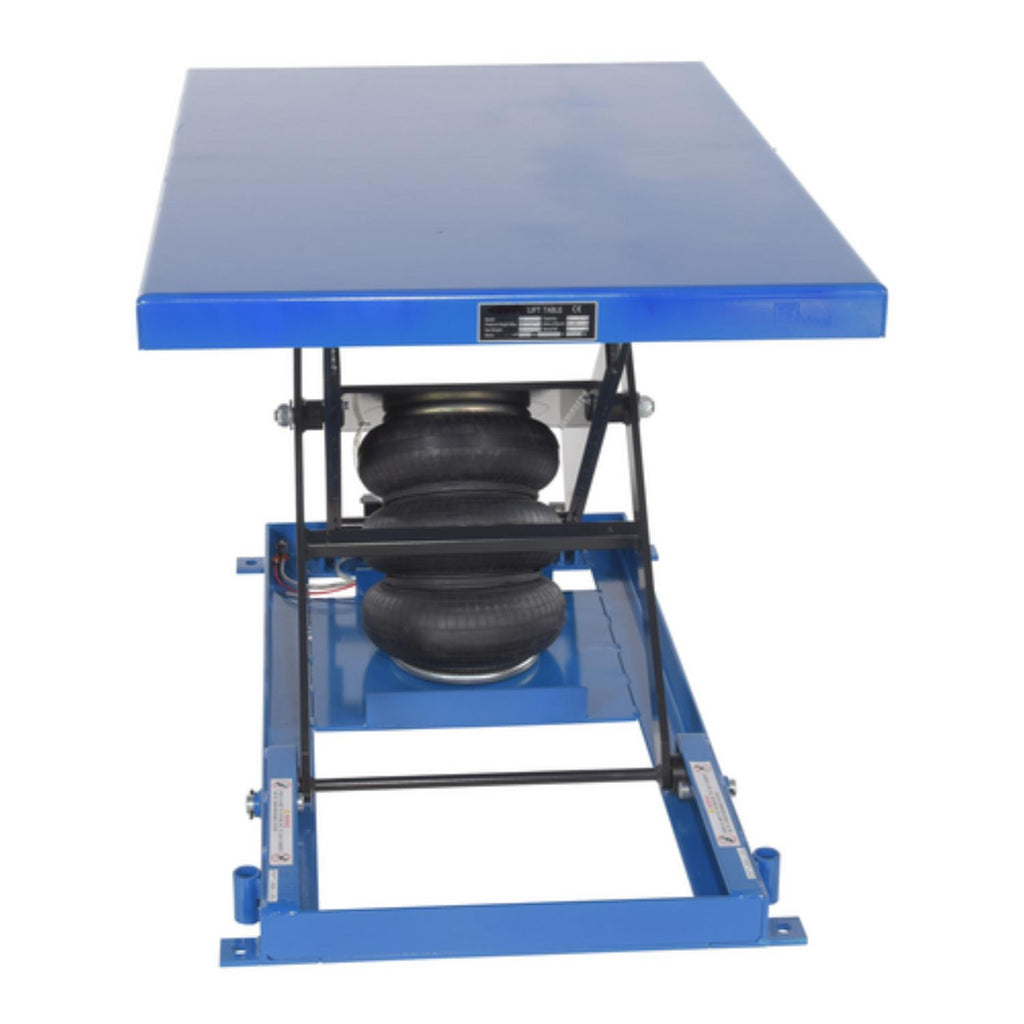

The heavy-duty air bag scissor lift table uses factory air for clean, dependable, maintenance free operation. The safety features include a pressure relief valve, pinch point guard, and a standard foot control. The incoming air must be clean, dry, and regulated with a filter required. The standard features include an adjustable upper travel limit valve, state-of-the-art lifetime lubricated bearings, and maintenance prop.
Features
- Uses factory air for a clean and maintenance free operation
- Includes a pressure relief valve, pinch point guard, and foot control
- Incoming air must be clean, dry, and regulated with a filter
- Features an adjustable upper travel limit valve and lifetime lubricated bearings
Specifications
| Specification | Value |
|---|---|
| Power Source | Pneumatic |
| Platform Length (in) | 32 |
| Platform Width (in) | 48 |
| Platform Material | Steel |
| Maximum Height (in) | 33 |
| Minimum Height (in) | 9 |
| Weight Capacity (lbs) | 1000 |
| Color / Finish | Blue |
| Weight (lbs) | 331 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Air Inlet Size (in) | 0.5 |
| Operating Pressure (PSI) | 80 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 32 |
| Overall Width (in) | 48 |
| Overall Height (in) | 9 |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
