Description
Description

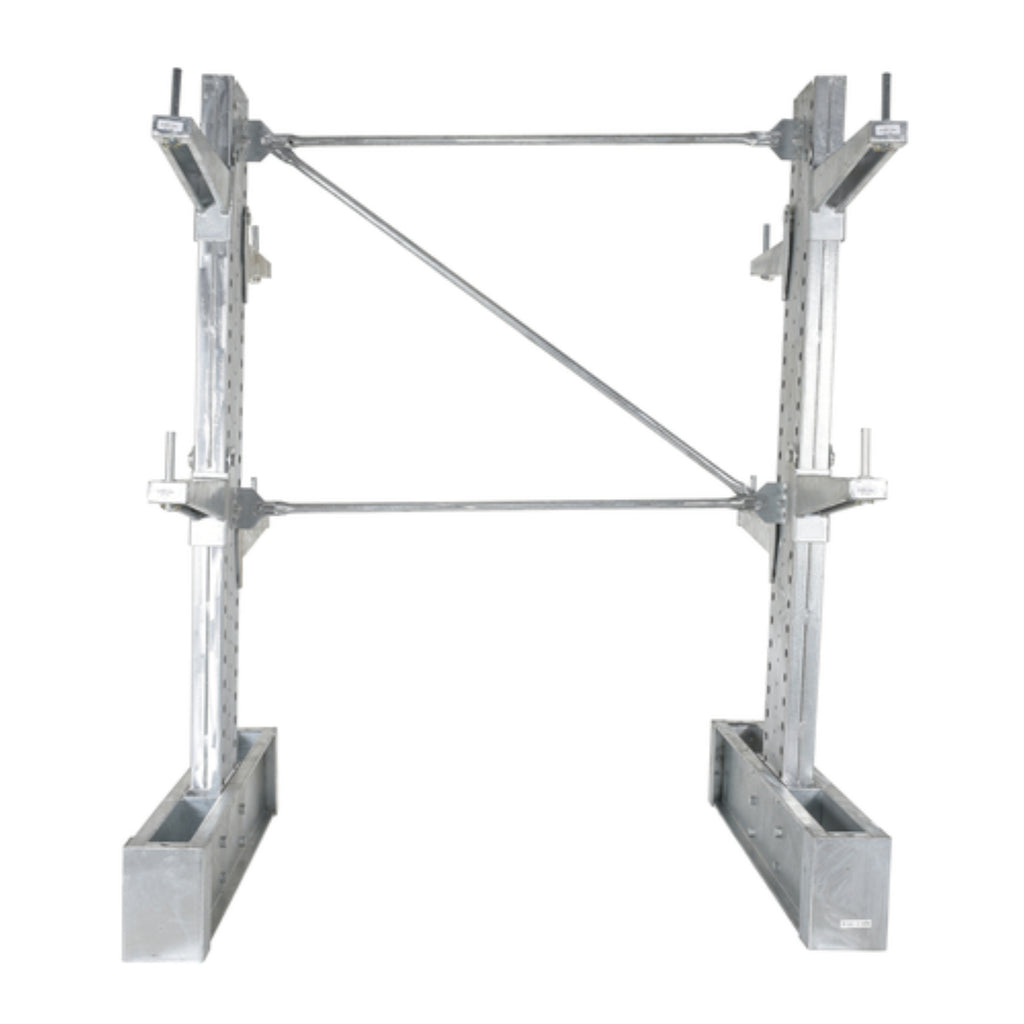

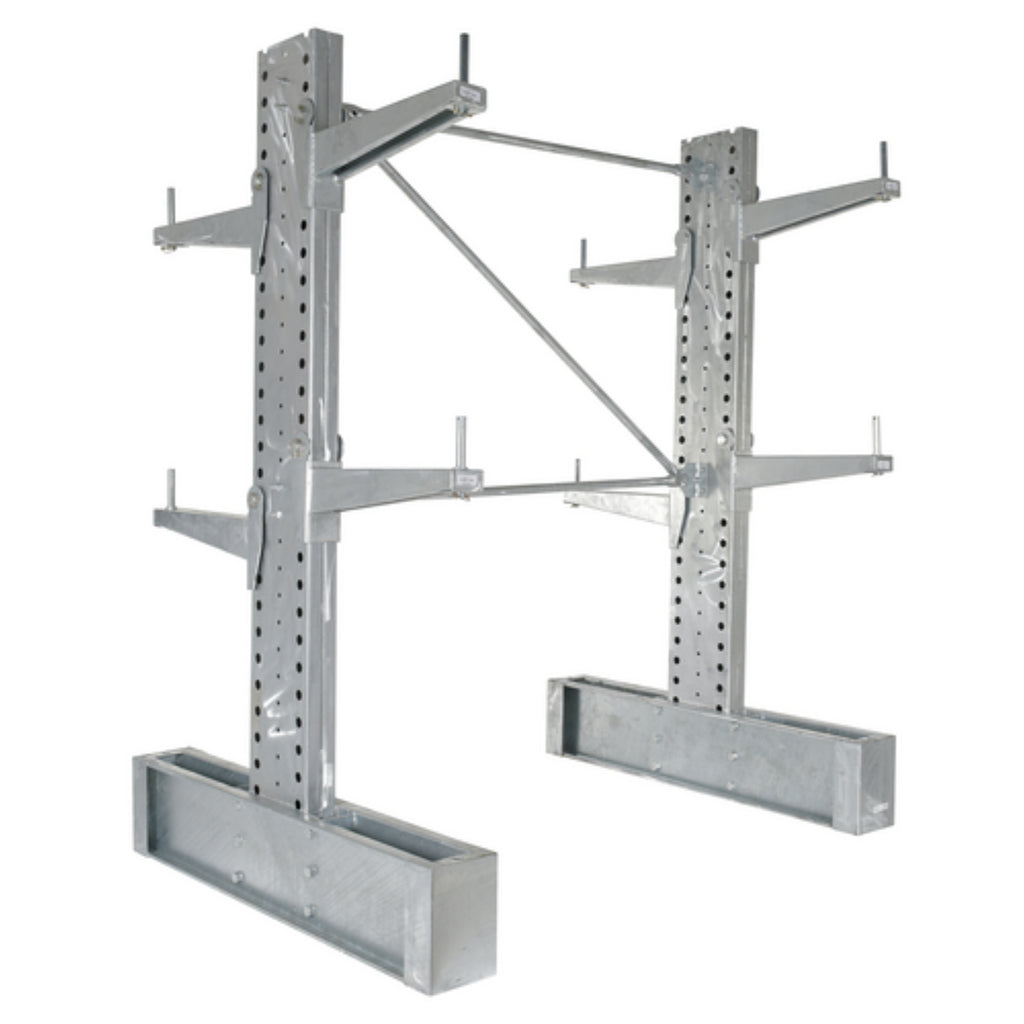

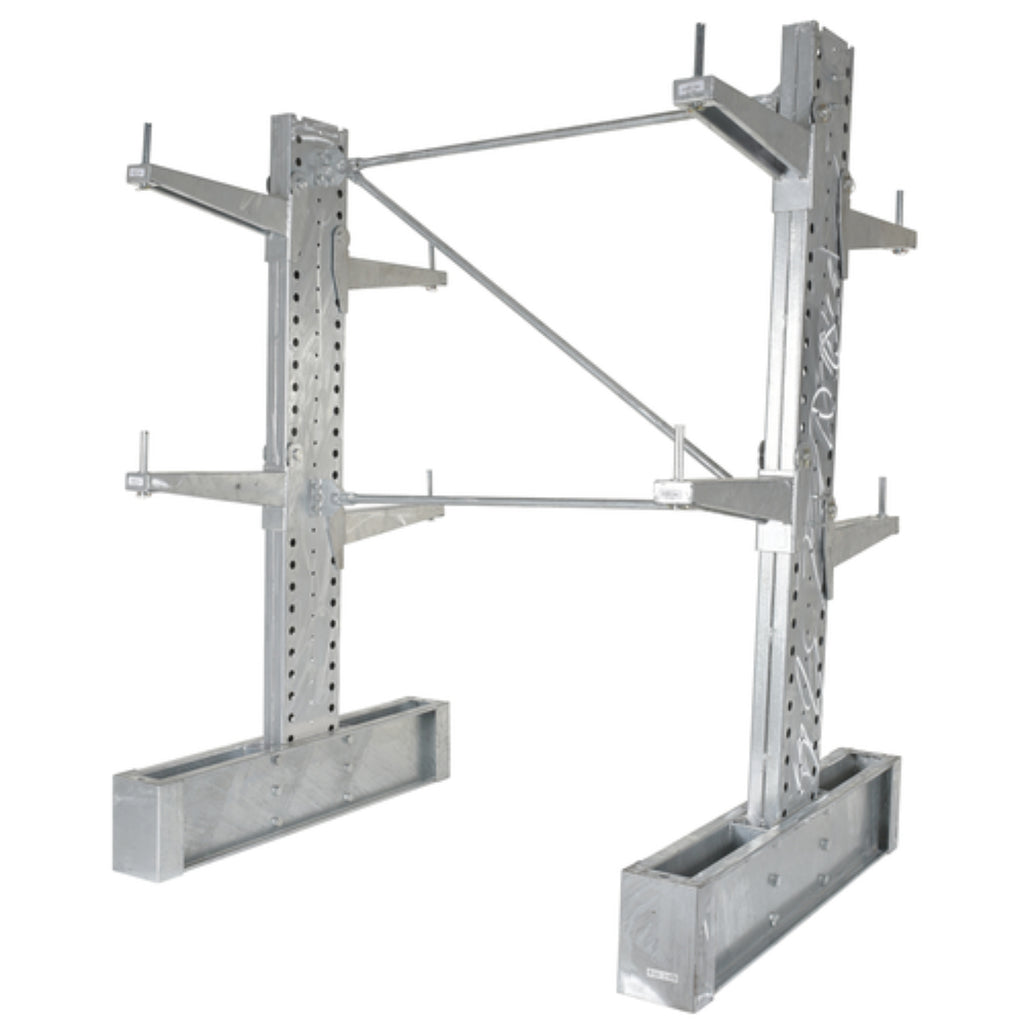

The Galvanized Cantilever rack systems are ideal for distributing and industrial settings. The galvanized steel design minimizes rust while providing a strong construction. The adjustable rack arms can be adapted to a customized position allowing the unit to fit the needs of individual circumstances. *Capacity is per level.
Features
- Racks provide more vertical space
- Place at preference of user
- Reduces material near floor/ground level
- Lipped arm edges prevent items from falling
Specifications
| Specification | Value |
|---|---|
| Color / Finish | Gray |
| Frame Material | Galvanized Steel |
| Weight Capacity (lbs) | 86,000 |
| Overall Height (in) | 96 |
| Overall Width (in) | 72 |
| Overall Depth (in) | 58 |
| Single / Double Design | Double |
| Arm Quantity | 8 |
| Arm Design | Straight |
| Maximum Arm Capacity (lbs) | 8,000 |
| Installation Hardware Included | Yes |
| Weight (lbs) | 820 |
| Additional Contents | (2) HDU-C-8-24-G Uprights, (1) HB-C-8-6-G Brace Set, (8) HSA-C-24-G Arms |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
