Description
Description

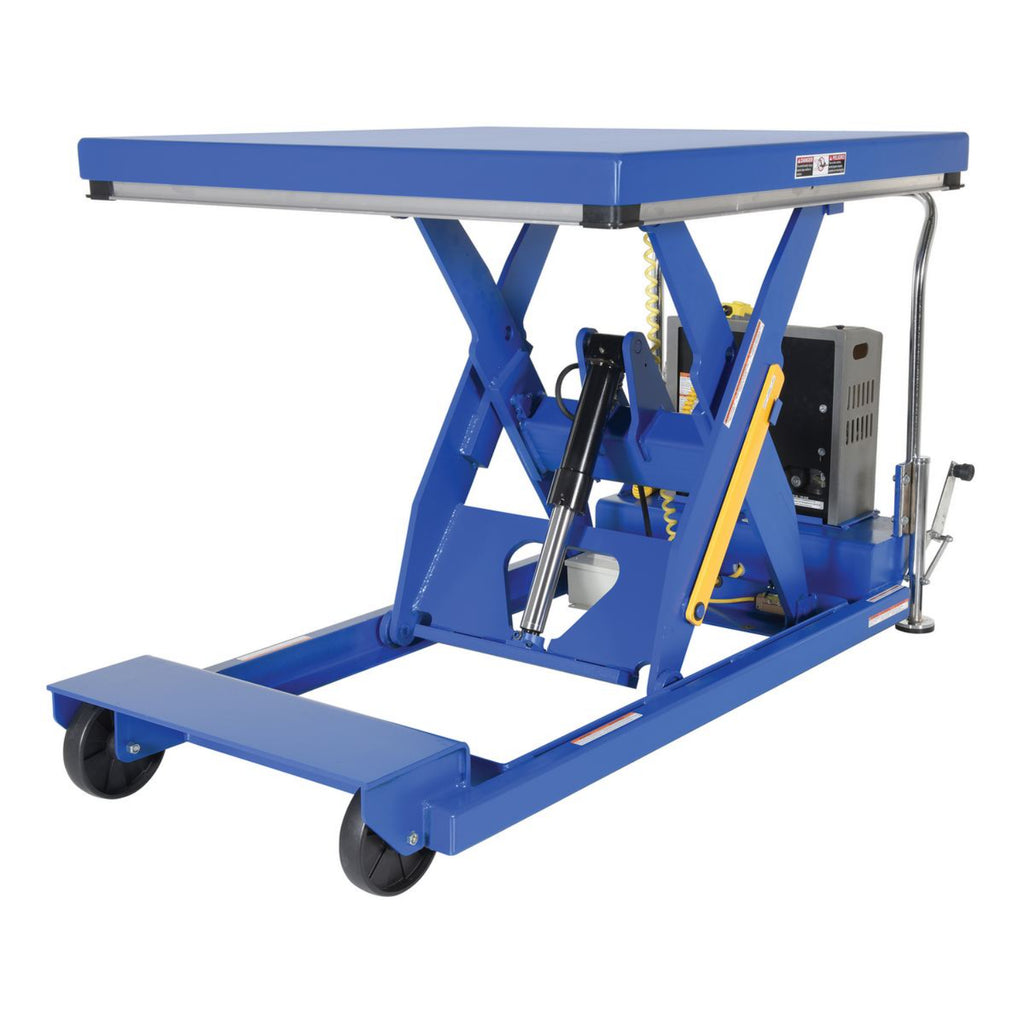

Portable scissor lift tables are designed to transport and elevate your heaviest loads. A heavy-duty 12V DC power unit with deep cycle battery and an on-board battery charger with a battery charge indicator is standard. Features 8" glass filled nylon casters (two swivel and two rigid), floor lock, and patented electric pinch point guards. Push buttons to raise and lower lift, and the magnetic hand control on an 8 ft. cord are standard. Key-operated on/off control for better security is built into the power unit.
Features
- Heavy-duty design transports and elevates the heaviest loads
- Features two swivel and two rigid glass filled nylon casters
- Easily maneuvered for precise positioning
- Key-operated on and off control for better security
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 48.375 |
| Platform Width (in) | 24.375 |
| Platform Material | Steel |
| Maximum Height (in) | 46 |
| Minimum Height (in) | 10 |
| Weight Capacity (lbs) | 1000 |
| Color / Finish | Blue |
| Weight (lbs) | 875 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Lifting Speed (sec/ft) | 15 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 1.5 |
| Phase | Single Phase |
| Voltage (V) | 115 |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 8 |
| Rear Wheel Material | Glass Filled Nylon |
| Front Wheel Diameter (in) | 8 |
| Front Wheel Material | Glass Filled Nylon |
| Installation Hardware Included | Not Required |
| Overall Length (in) | 77 |
| Manufacturer Warranty | 1 Year |
| Overall Width (in) | 33 |
| Overall Height (in) | 46 |
| Maximum Travel Distance (in) | 36 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
