Description
Description

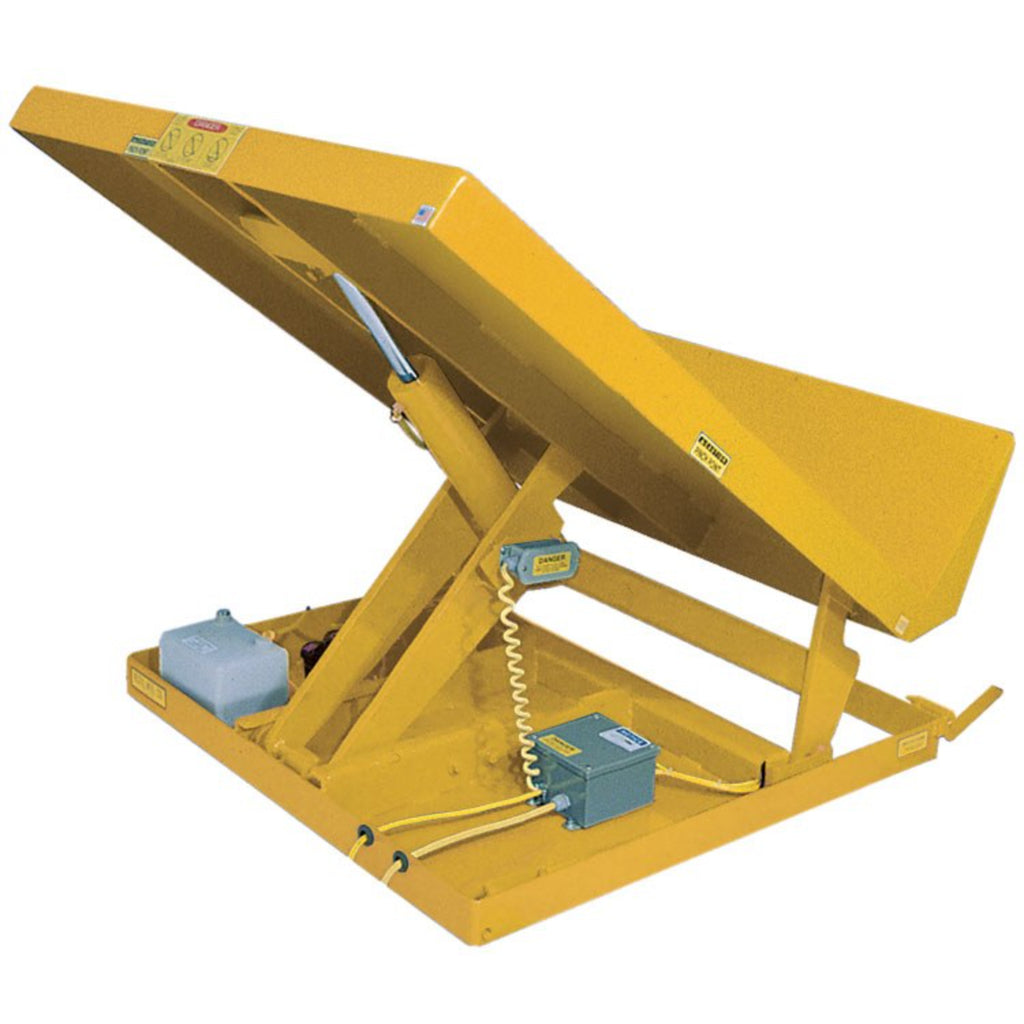

The single scissor lift & tilt table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This scissor table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor table must be lagged to the floor.
Features
- Ergonomic design minimizes bending and twisting
- Welded steel construction provides long lasting rugged use
- 40 Degrees tilt angle offers better ergonomics and operator comfort
- Platform end lip safely supports containers when tilted
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 48 |
| Platform Width (in) | 36 |
| Platform Material | Steel |
| Height at Level (in) | 8 |
| Lip Height (in) | 12 |
| Maximum Tilt Angle (°) | 40 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Yellow |
| Weight (lbs) | 640 |
| Frame Material | Steel |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Power Cord Length (ft) | 2 |
| Operation Method | Push Button |
| Controller Cord Length (ft) | 8 |
| Voltage (V) | 208 |
| Installation Hardware Included | Not Required |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
- Cancelable: N
- Packaging is Returnable: N
