Description
Description

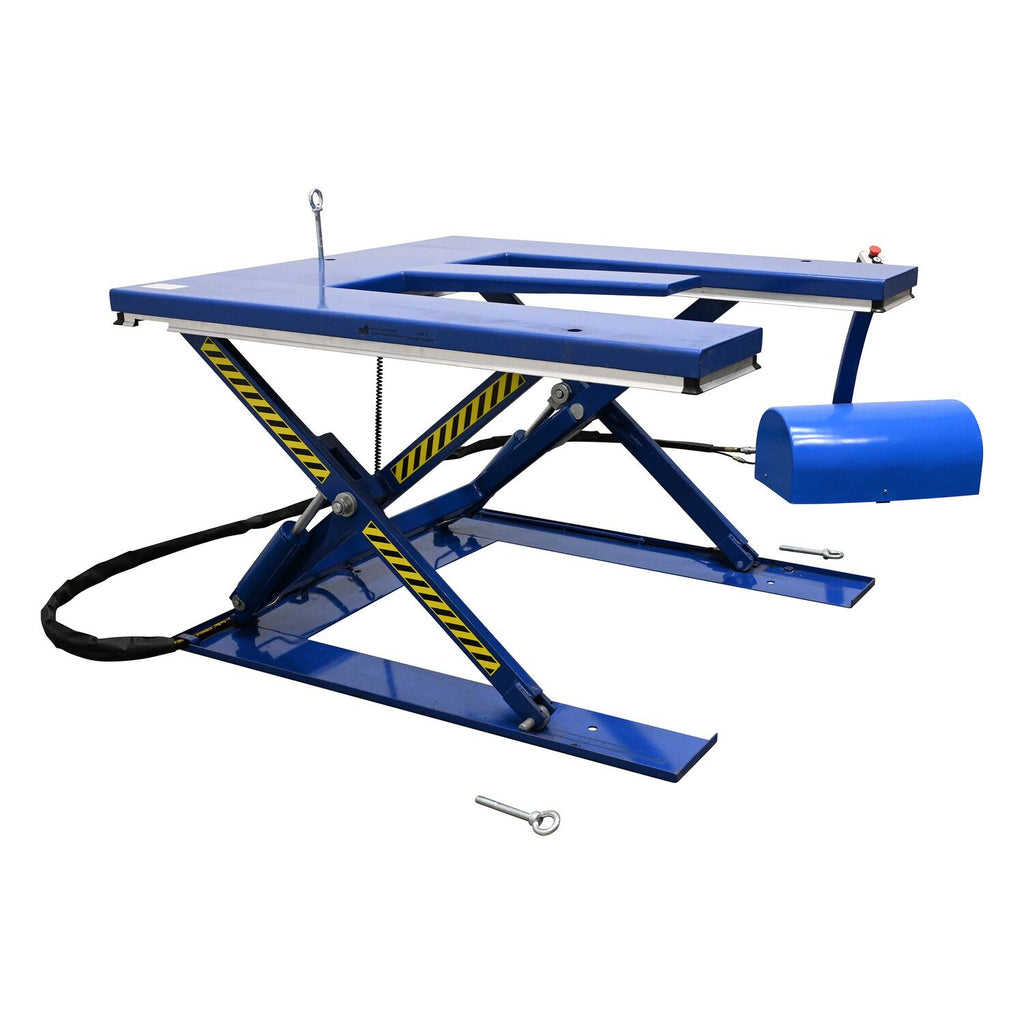

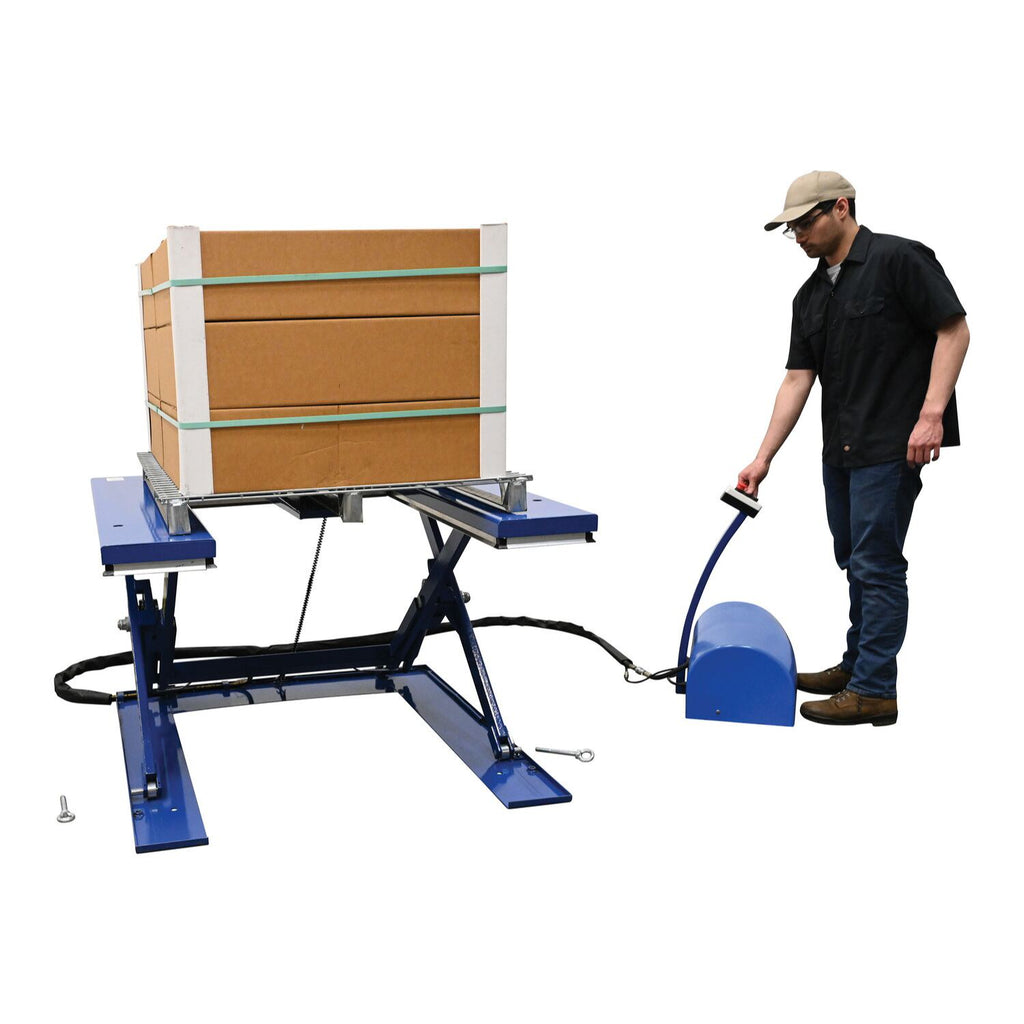

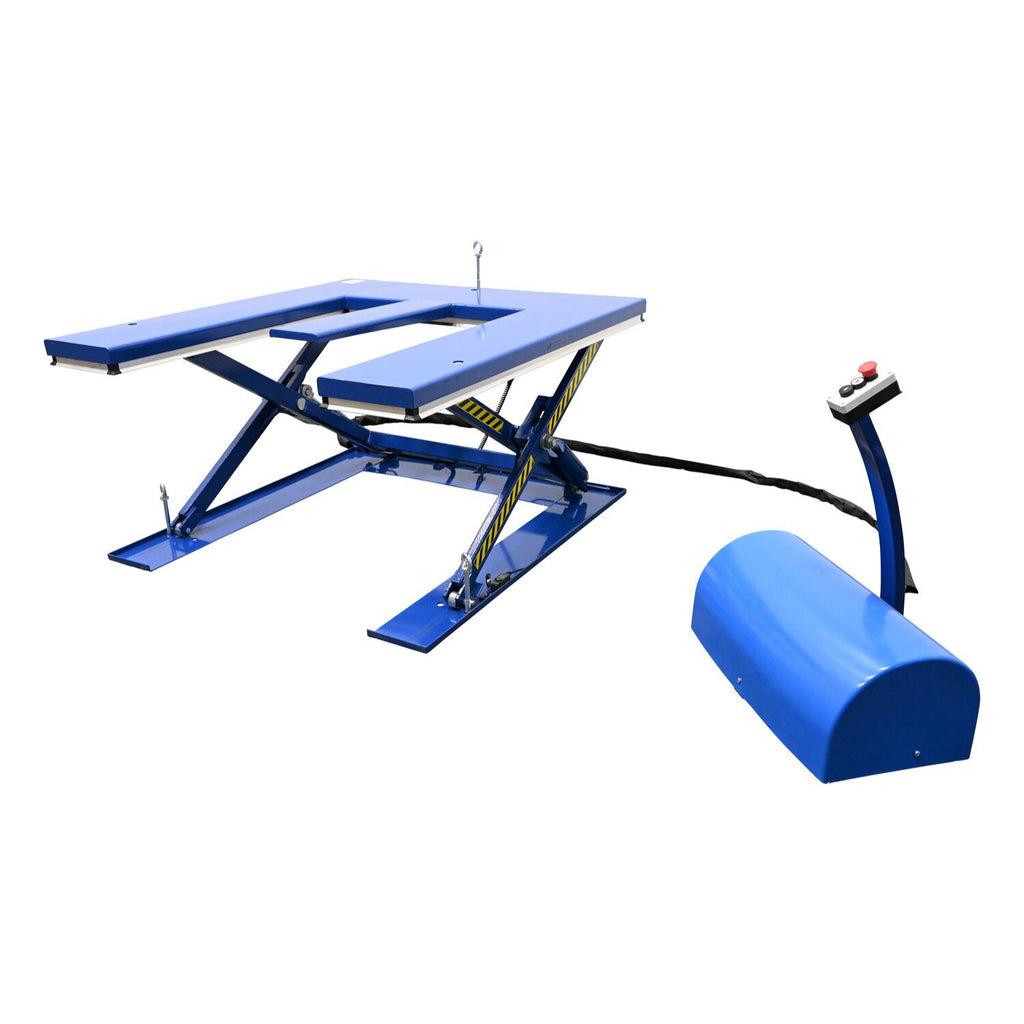

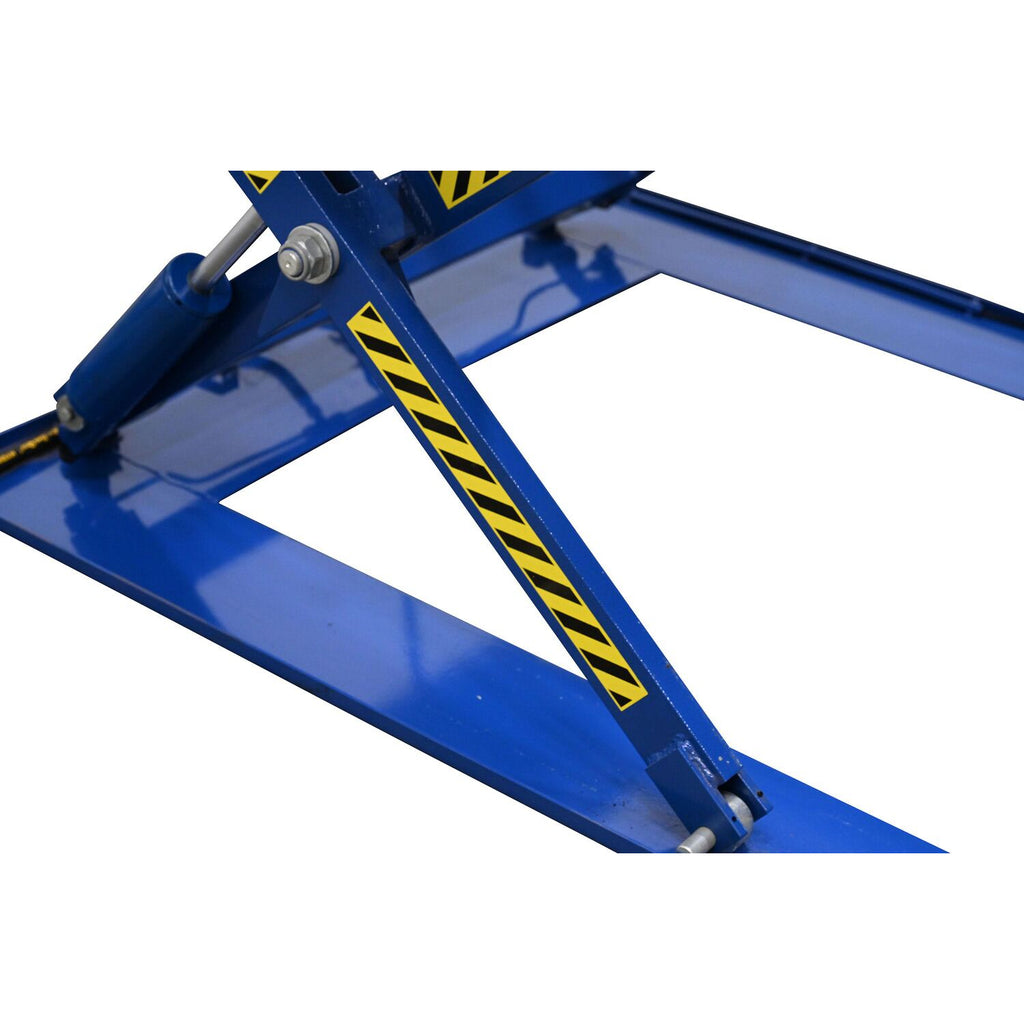

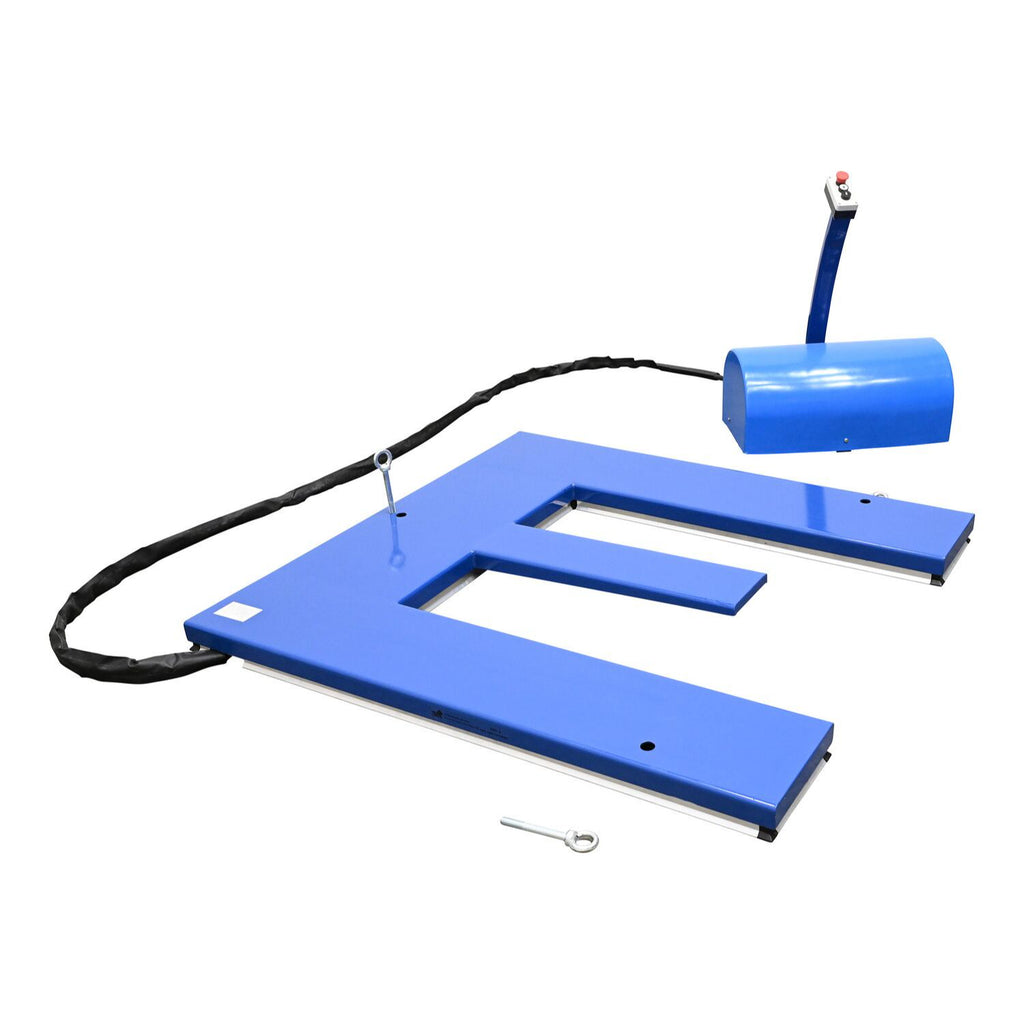

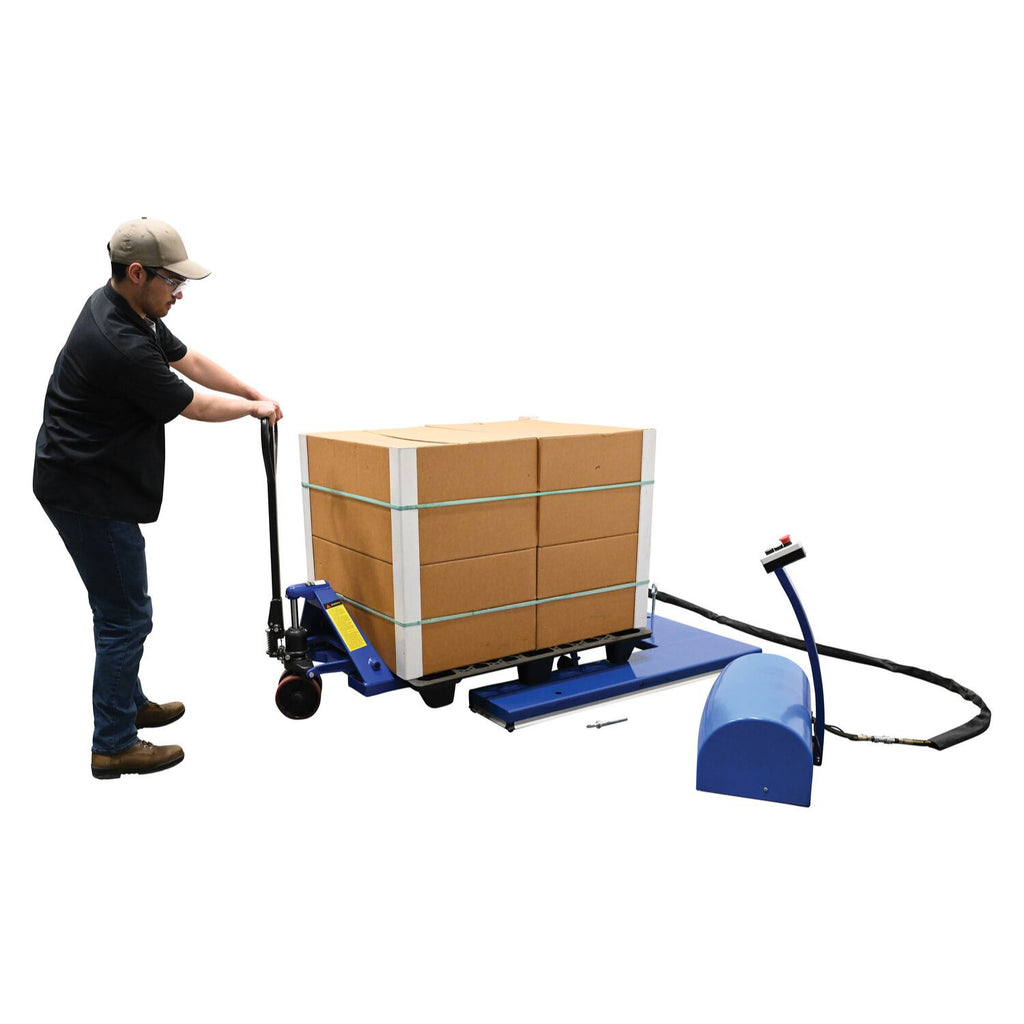

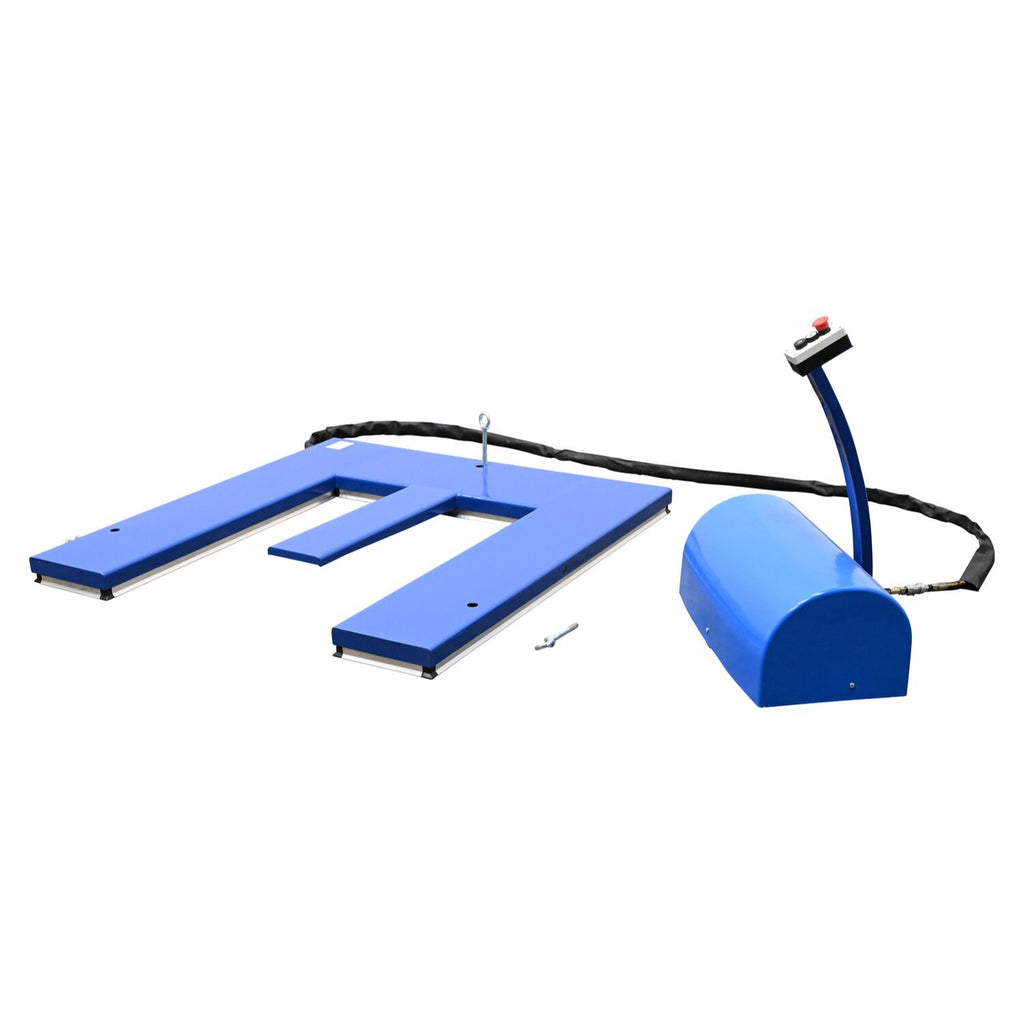

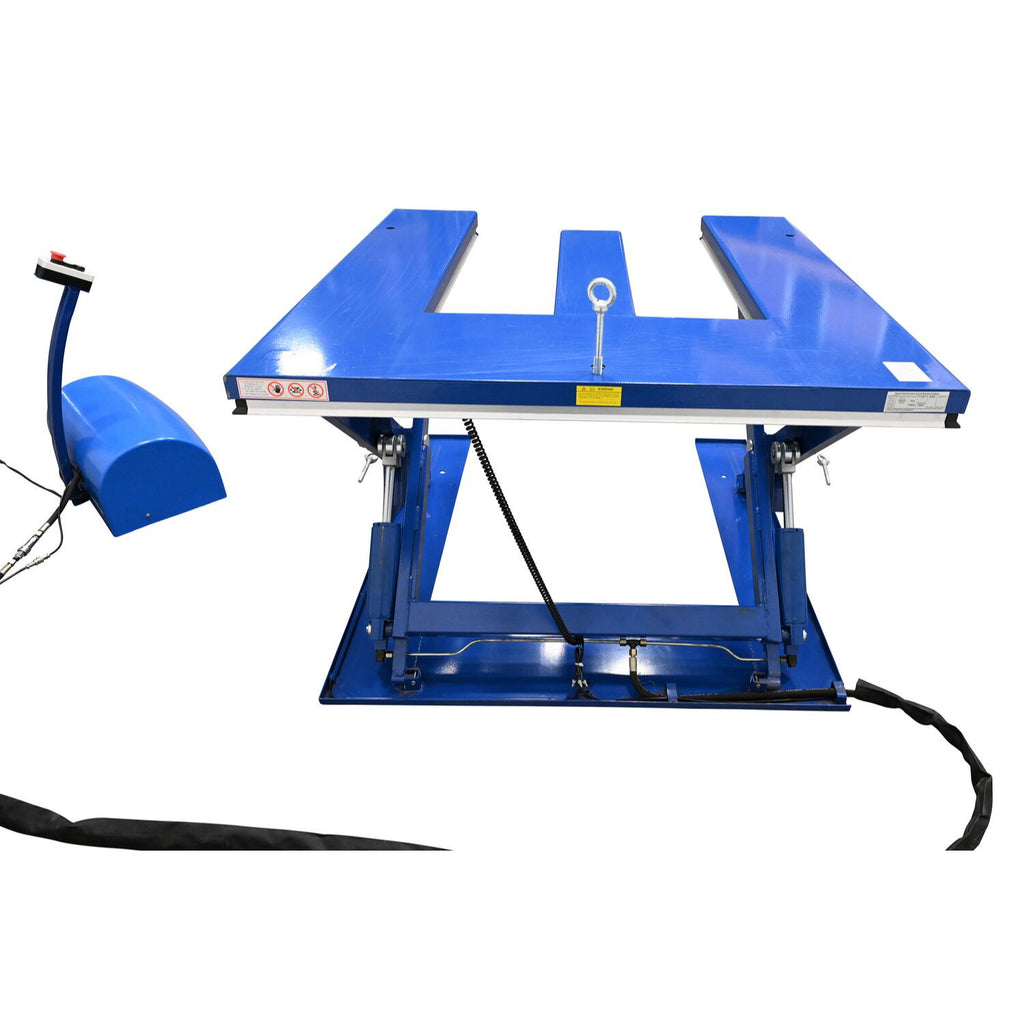

The low profile electric lift tables are ideal for manufacturing and distribution facilities. The unique, steel constructed "E" design provides a center support beam to prevent the lifted product from deflecting downward in the center. Numerous protective features include electric toe guards, velocity cylinders, and emergency stop buttons, providing personnel with the utmost safety. An external power pack is equipped with a pressure relief valve which prevents overloading while controlling lowering speed. To raise and lower the unit, simply utilize the "up and down" push button design on the 24V control box for precise ergonomic positioning of product.
Features
- Ergonomically stable control box height
- Lift products to minimize bending and twisting
- Easy to use controls for efficiency
- Unique design provides more surface area
Specifications
| Feature | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 41.25 |
| Platform Width (in) | 29.75 |
| Platform Material | Steel |
| Maximum Height (in) | 33.875 |
| Minimum Height (in) | 3.375 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 590 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Hand Operated |
| Lifting Speed (sec/ft) | 16.8 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 1.5 |
| Phase | Single Phase |
| Voltage (V) | 115 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 56 |
| Manufacturer Warranty | 1 Year |
| Overall Width (in) | 52.75 |
| Overall Height (in) | 3.5 |
| Maximum Travel Distance (in) | 30 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
