Description
Description

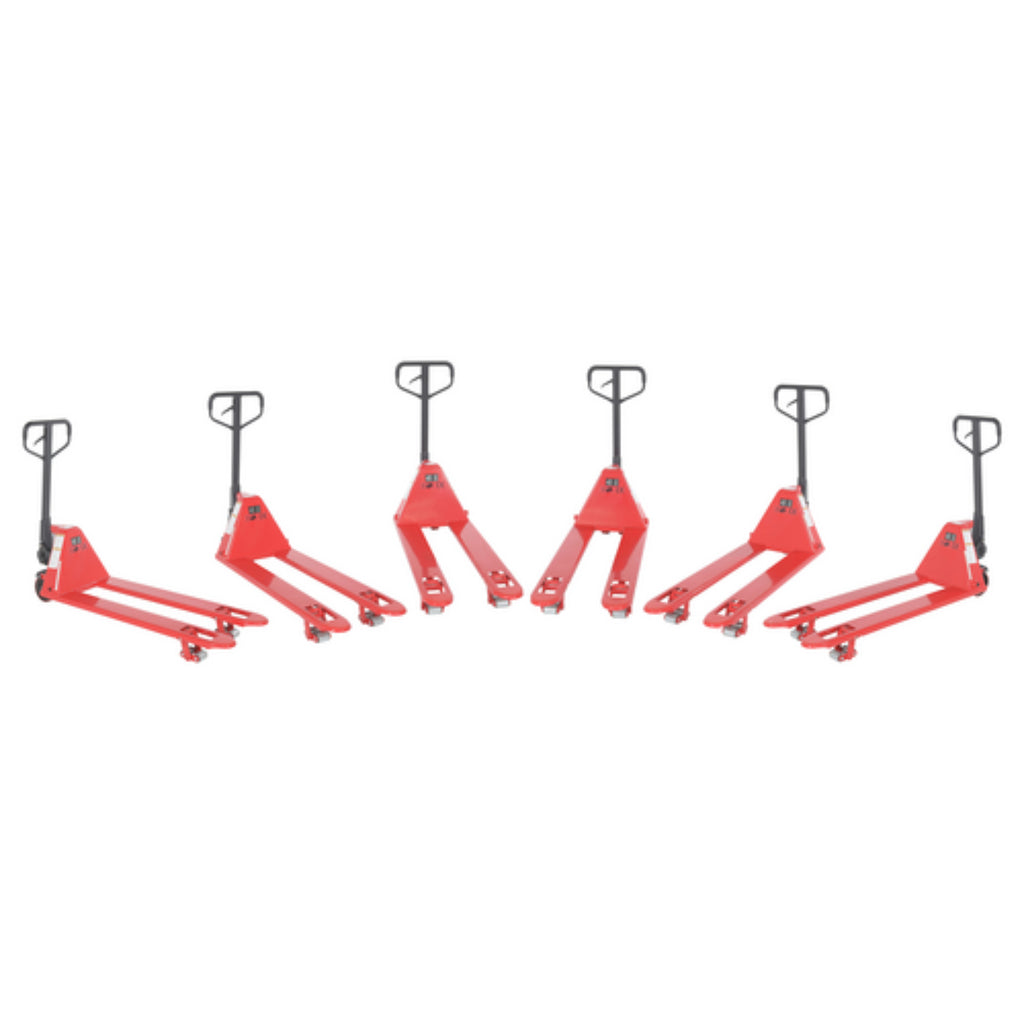

The Low Profile pallet truck has all steel frame that is reinforced to handle heavy loads. User friendly handle with quick acting lowering and raising functions. The hydraulic system has a hard chrome plated pump piston with polyurethane seals. This pallet truck comes complete with adjustable push rods, polyurethane wheels, steel load rollers, and a red powder coat finish.
Features
- Wide loop handle offers easy unit maneuverability
- Fingertip lever provides an easy lift, lower and neutral operation
- Suspension system has heavy-duty thrust bearing for long lasting use
- Lifetime lubricated bearings never need maintenance work
Specifications
| Specification | Value |
|---|---|
| Assembly Required | Partial |
| Color / Finish | Red |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 50 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 6.75 |
| Maximum Travel Distance (in) | 4.75 |
| Power Source | Hand |
| Weight Capacity (lbs) | 4000 |
| Depth (in) | 61.6875 |
| Height (in) | 50 |
| Width (in) | 21 |
| Wheel Material | Poly on Steel |
| Fork Lowered Height (in) | 2 |
| Fork Width (in) | 6.31 |
| Fork Length (in) | 48 |
| Load Center (in) | 20 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
