Description
Description

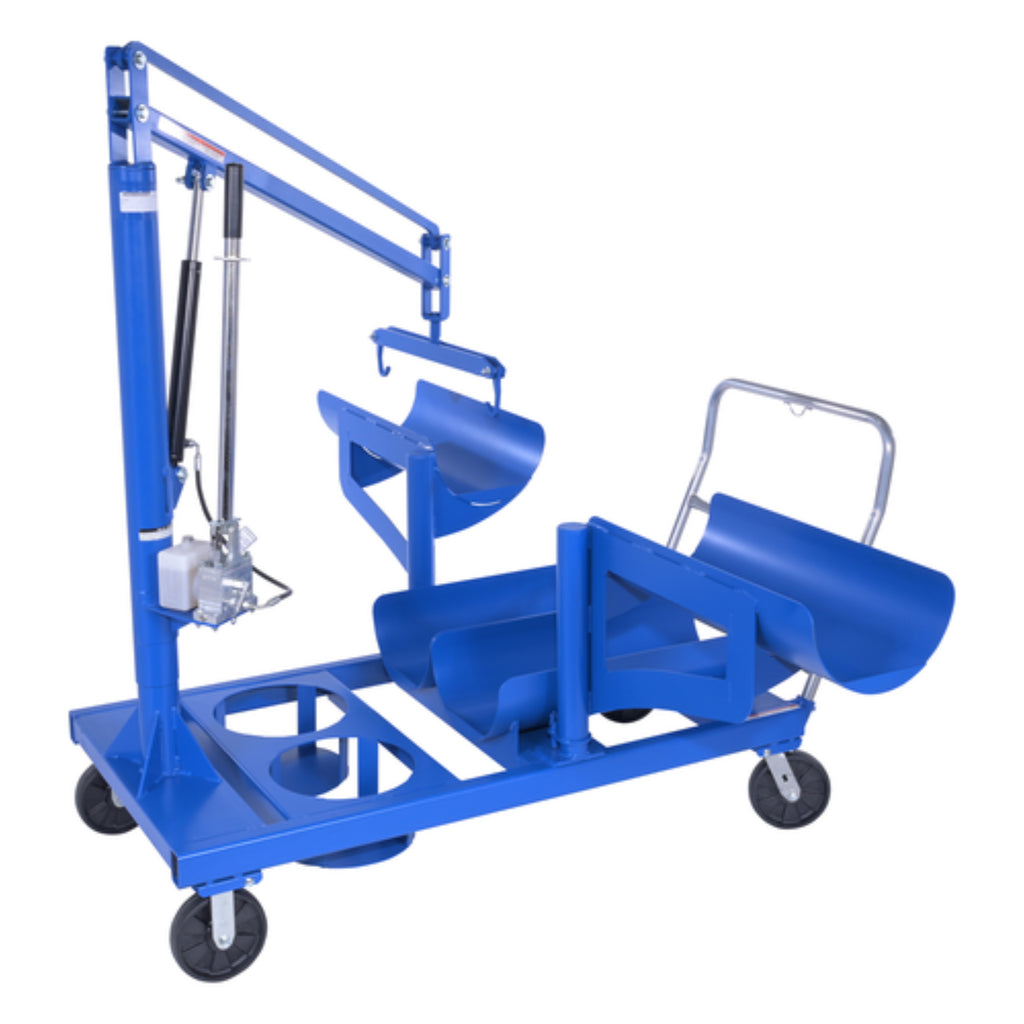

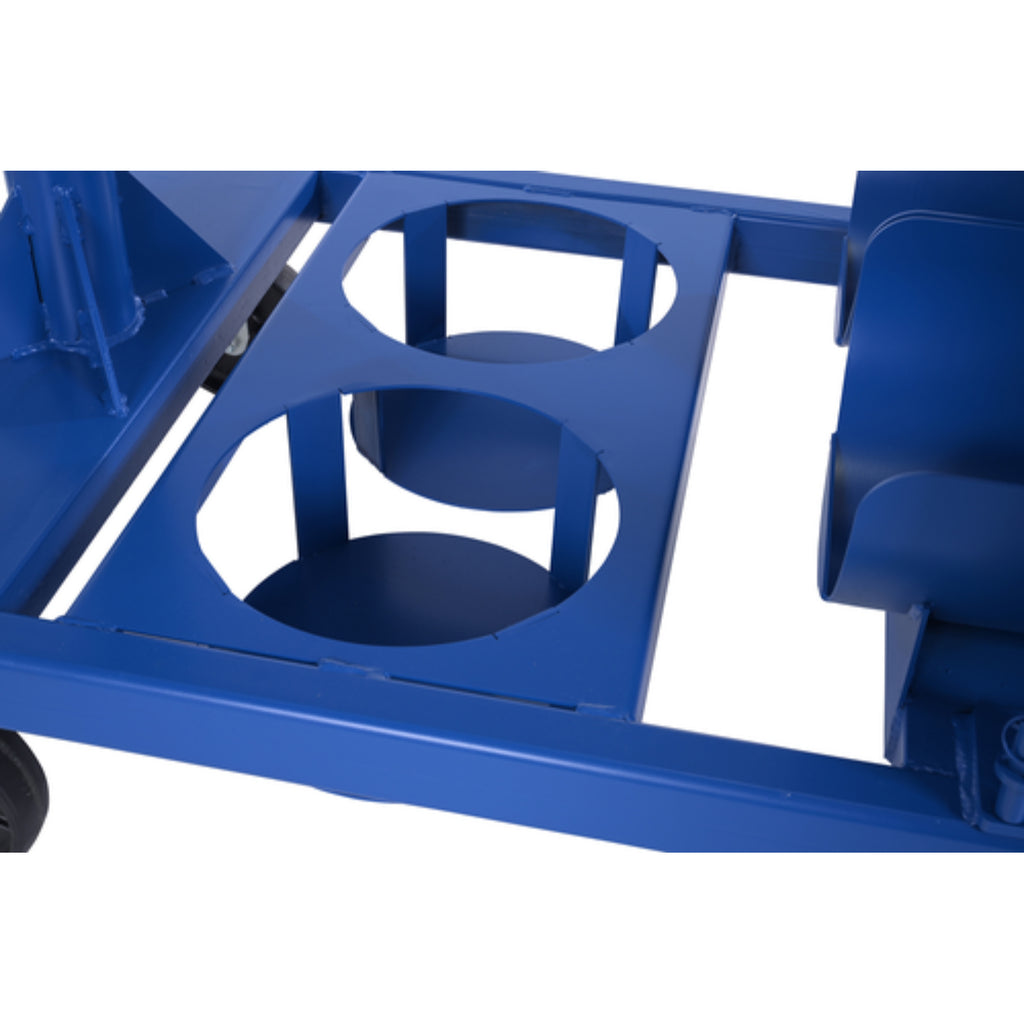

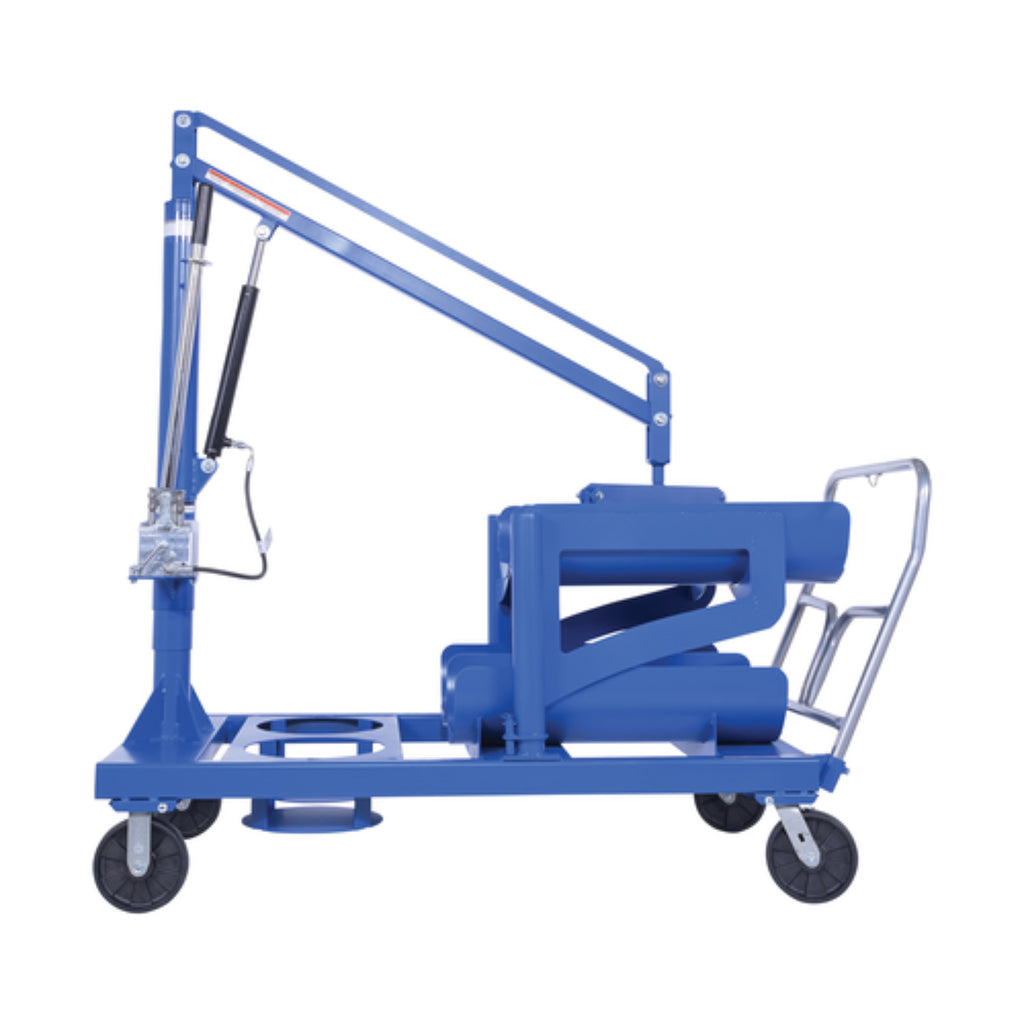

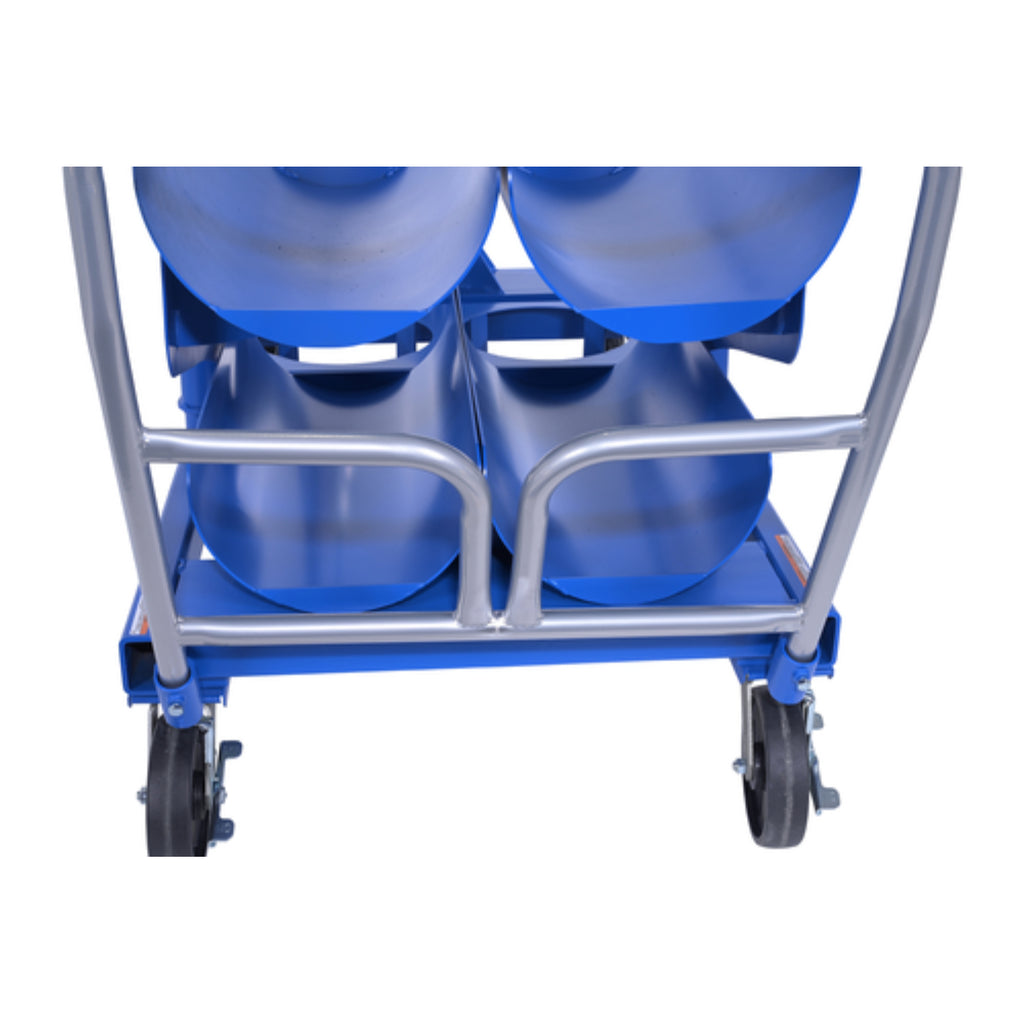

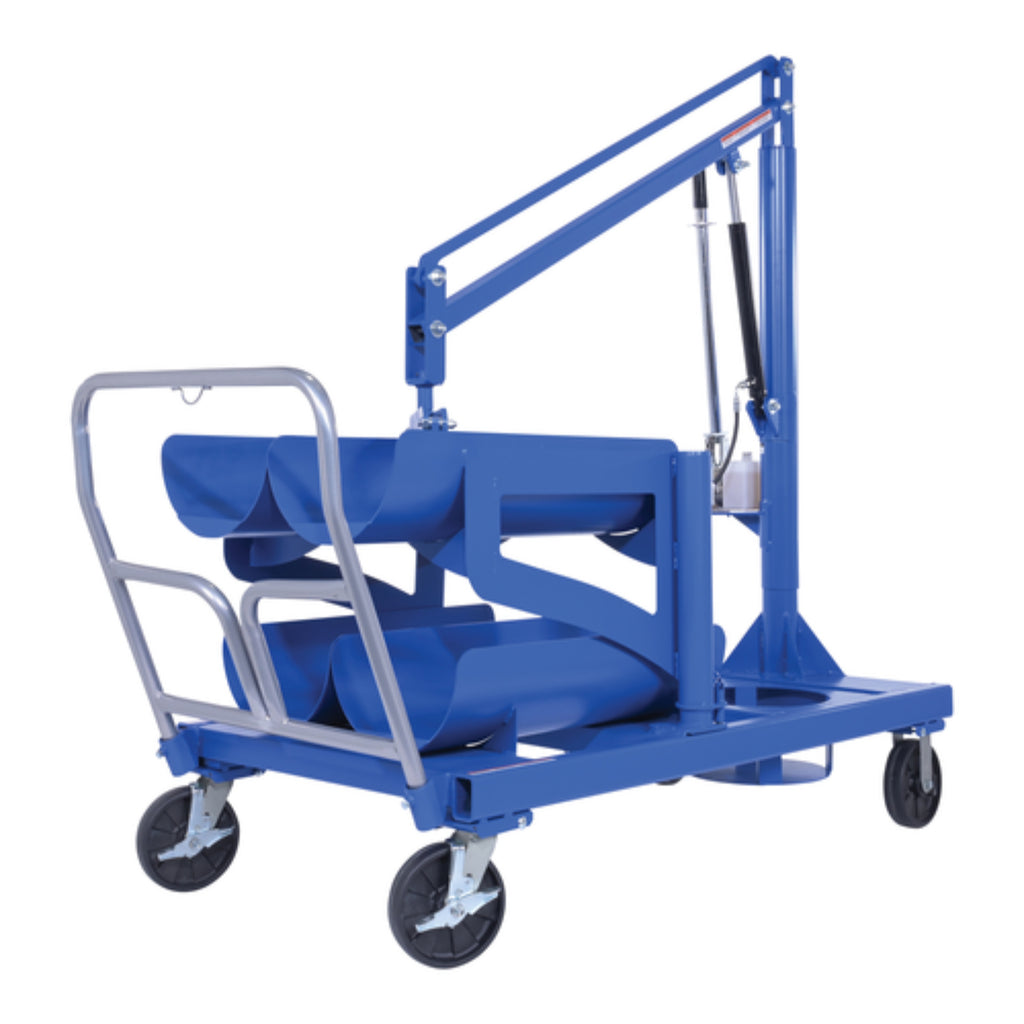

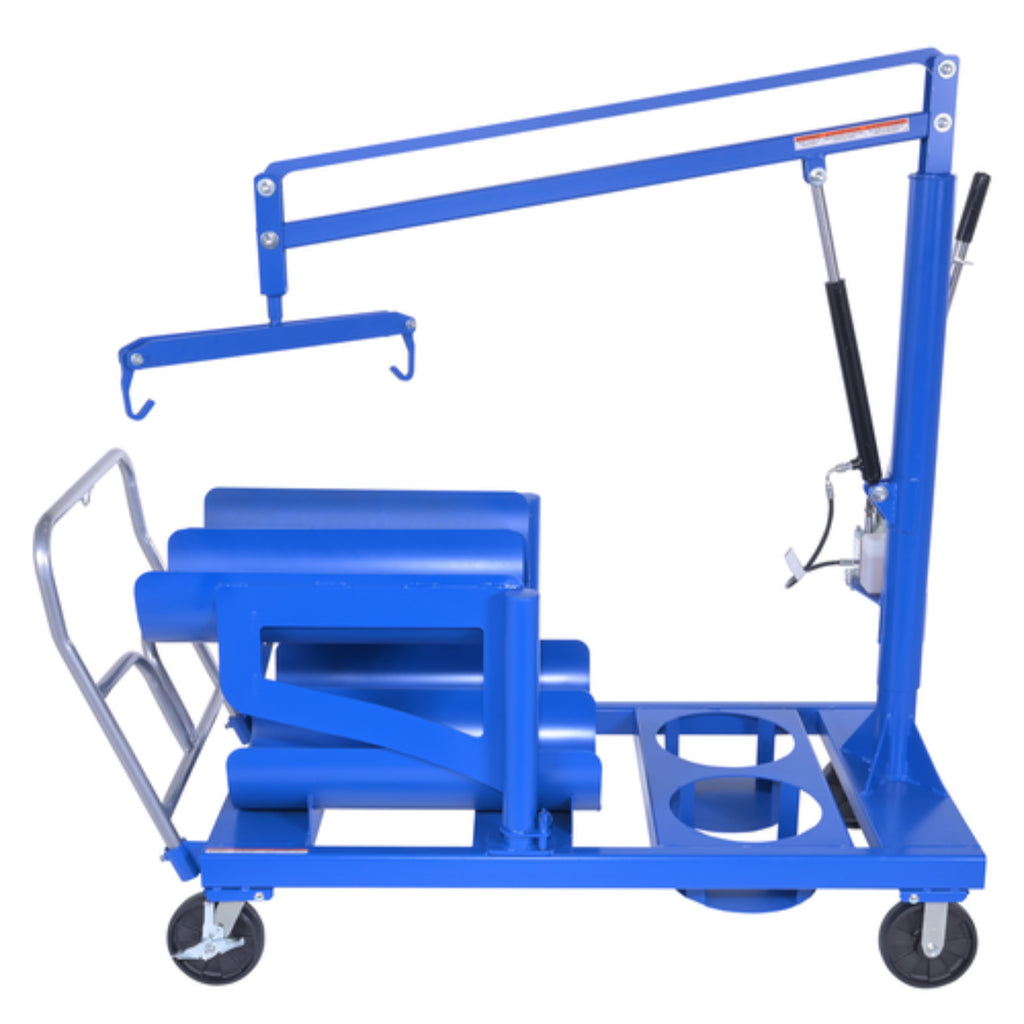

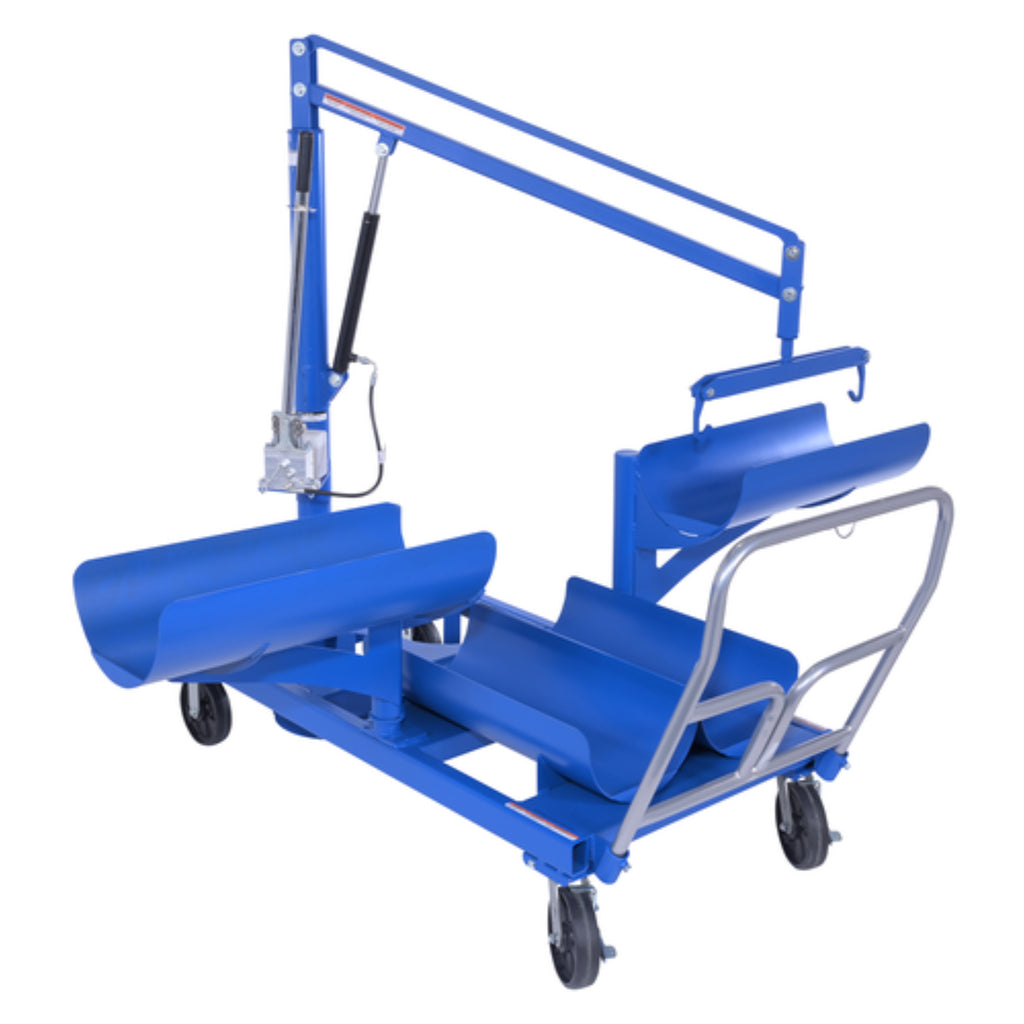

Finally an easy answer to lifting, storing, and transporting problems associated with LP tanks. This all-in-one LP tank truck allows users to transport LP tanks where needed. The built-in crane can be used to safely load full tanks into fork trucks. The crane pivots for maximum versatility. The crane boom is raised and lowered with a manual hand pump hydraulic lift. The tank attachment at the end of the boom automatically clamps to each end of the cylinder. The built-in racks are ideal for LP tank storage-racks. Store two (2) tanks in the vertical position and four (4) tanks in the horizontal position. Truck includes a push handle with casters for portability.
Features
- Truck allows users to transport LP tanks where needed
- Built-in crane can be used to safely load full tanks into fork trucks

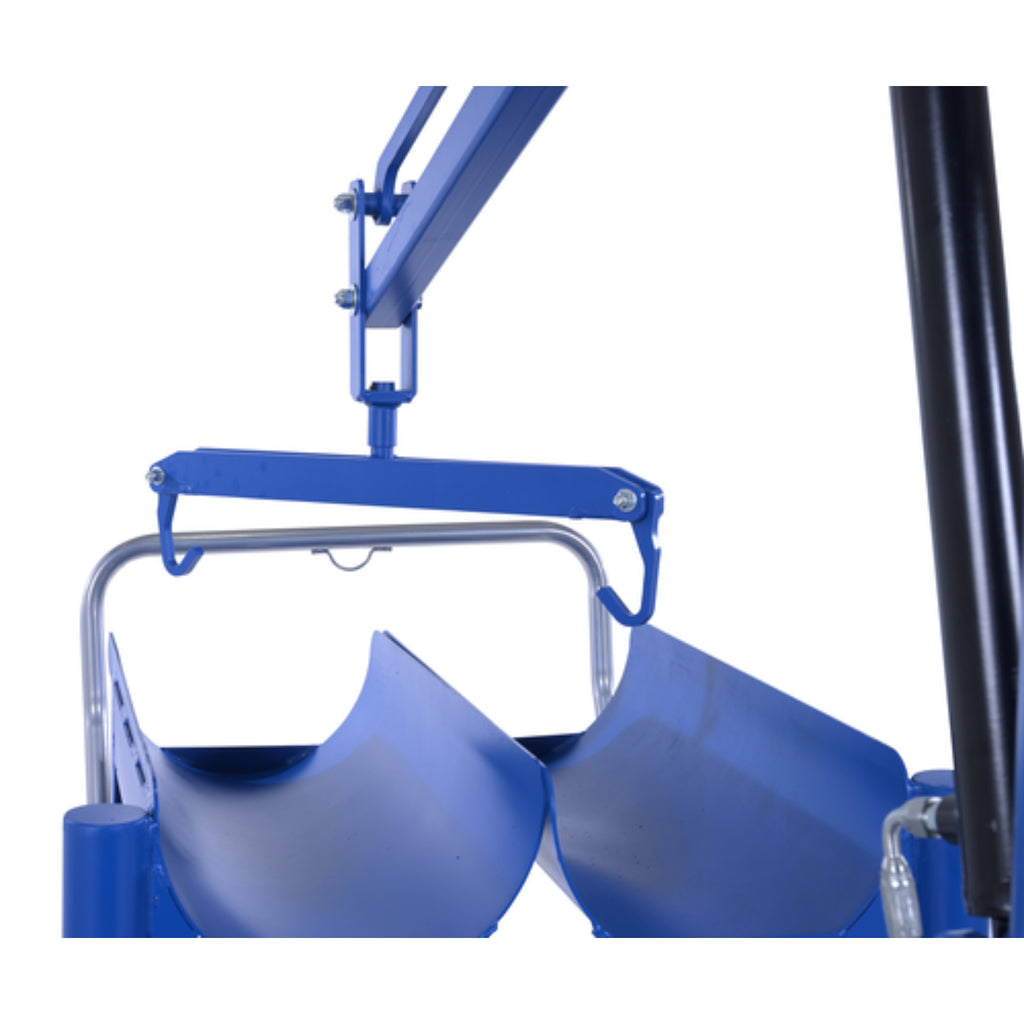

- Attachment at the end of the boom automatically clamps to each end of the cylinder
- Truck includes a push handle with casters for portability
Specifications
| Specification | Value |
|---|---|
| Overall Height (in) | 94.5625 |
| Overall Length (in) | 136.4375 |
| Overall Width (in) | 33.8125 |
| Maximum Boom Height at Full Extension (in) | 77.375 |
| Minimum Boom Height at Full Extension (in) | 12.81 |
| Maximum Boom Length (in) | 55.125 |
| Minimum Boom Length (in) | 55.125 |
| Maximum Load Capacity (lbs) | 100 |
| Maximum Load Capacity at Full Extension (lbs) | 100 |
| Color / Finish | Blue |
| Frame Material | Steel |
| Portable | Yes |
| Towable | No |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 8 |
| Front Wheel Diameter (in) | 8 |
| Wheel Material | Glass Filled Nylon |
| Power Source | Manual |
| Weight (lbs) | 566 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
